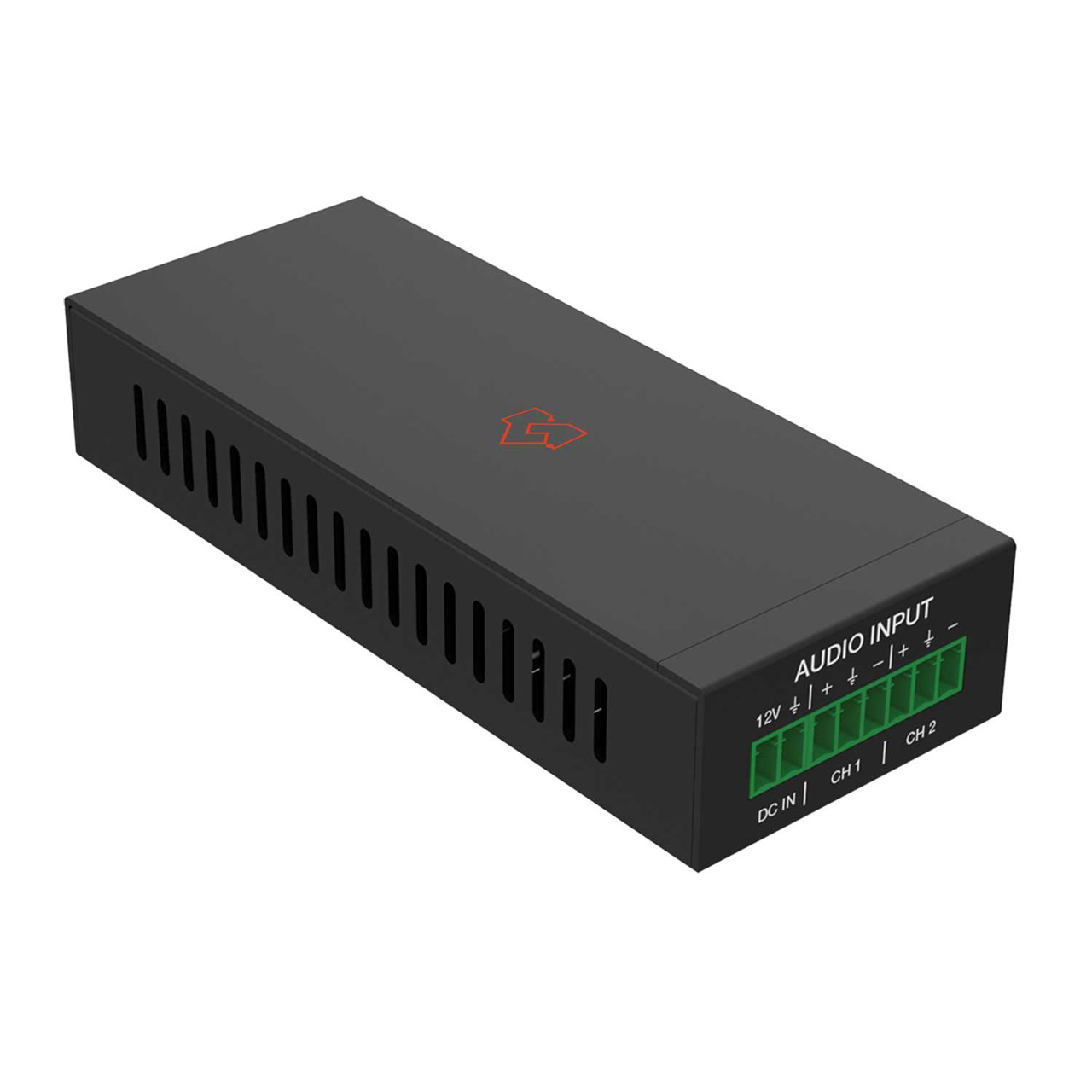

VigilLink VLDT-AA2D 2-Channel Dante Analog Audio Decoder with POE

VLDT-AA2D - Overview

• Features:

  • Dante 2 Channel Analog audio Decoder
  • Supports both balanced and unbalanced audio signals
  • 44.1/48/96KHz sample rates @24bit
  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Features Class 1 802.3af PoE for powering of product from any PoE switch


• Specifications:

  Technical
  • Video Network Bandwidth: 100M
  • Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
  • Transmission Distance: 100m (Cat 6/6A)
  • Control Method: Dante Controller

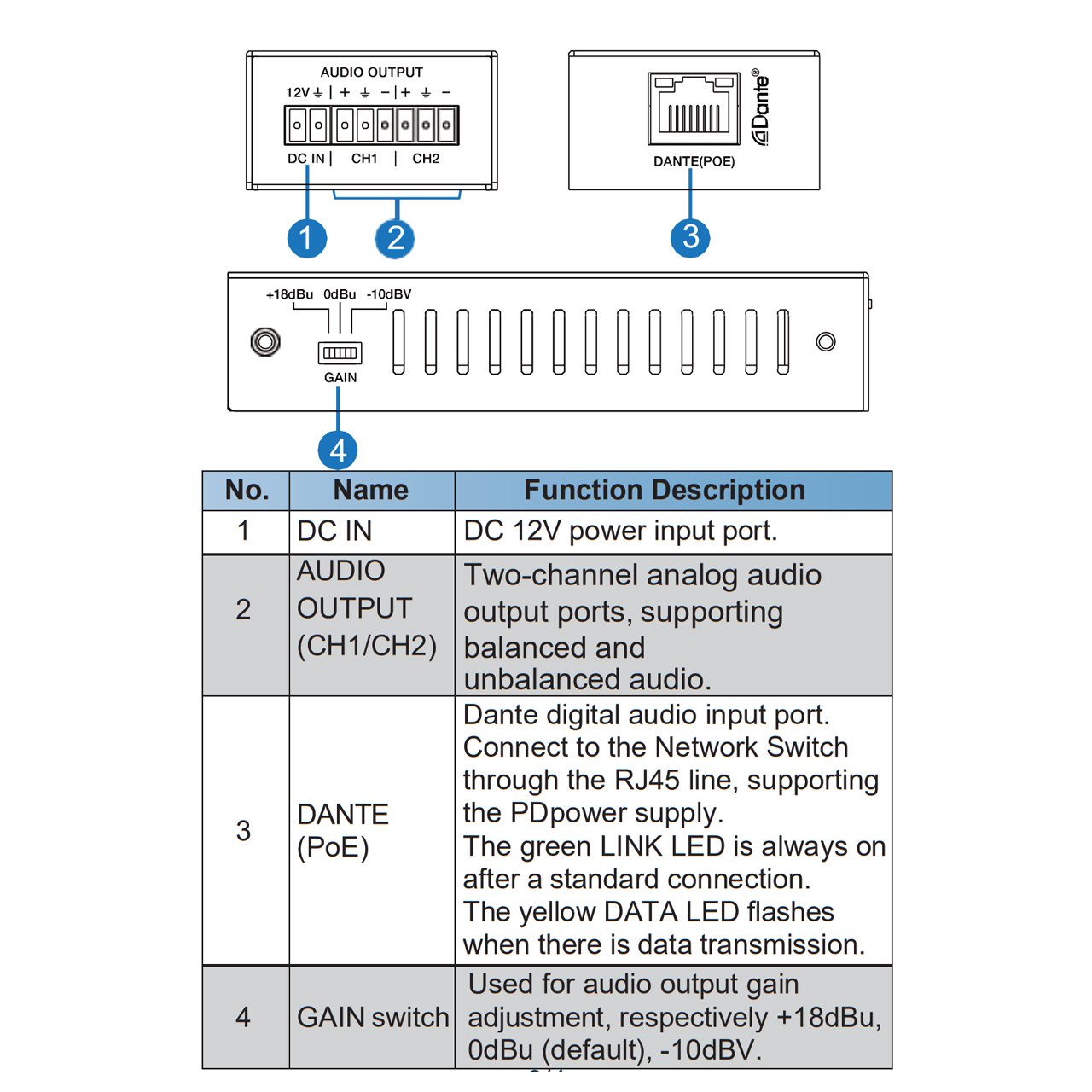

    Connections
  • Input:
    - 1x DANTE [RJ45 connector, PoE]
    - 1x PWR [2-pin phoenix, 3.81mm]
  • Output: 1x AUD [6-pin phoenix, 3.81mm]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 4.72" x 1.85" x 1.02" (120mm x 47mm x 26mm)
  • Weight: 0.44lbs (186g)
  • Power Supply:
    - DC input: 12V
    - PoE input: IEEE802.3af Class 0
  • Power Consumption: 1.32W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x Dante 2CH Analog Audio Decoder
  • 1x 6pin-3.81mm Phoenix Connector (male)
  • 1x 2pin-3.81mm Phoenix Connector (male)
  • 1x User Manual


• Warranty:

  • 6 Years
