18097 - Overview

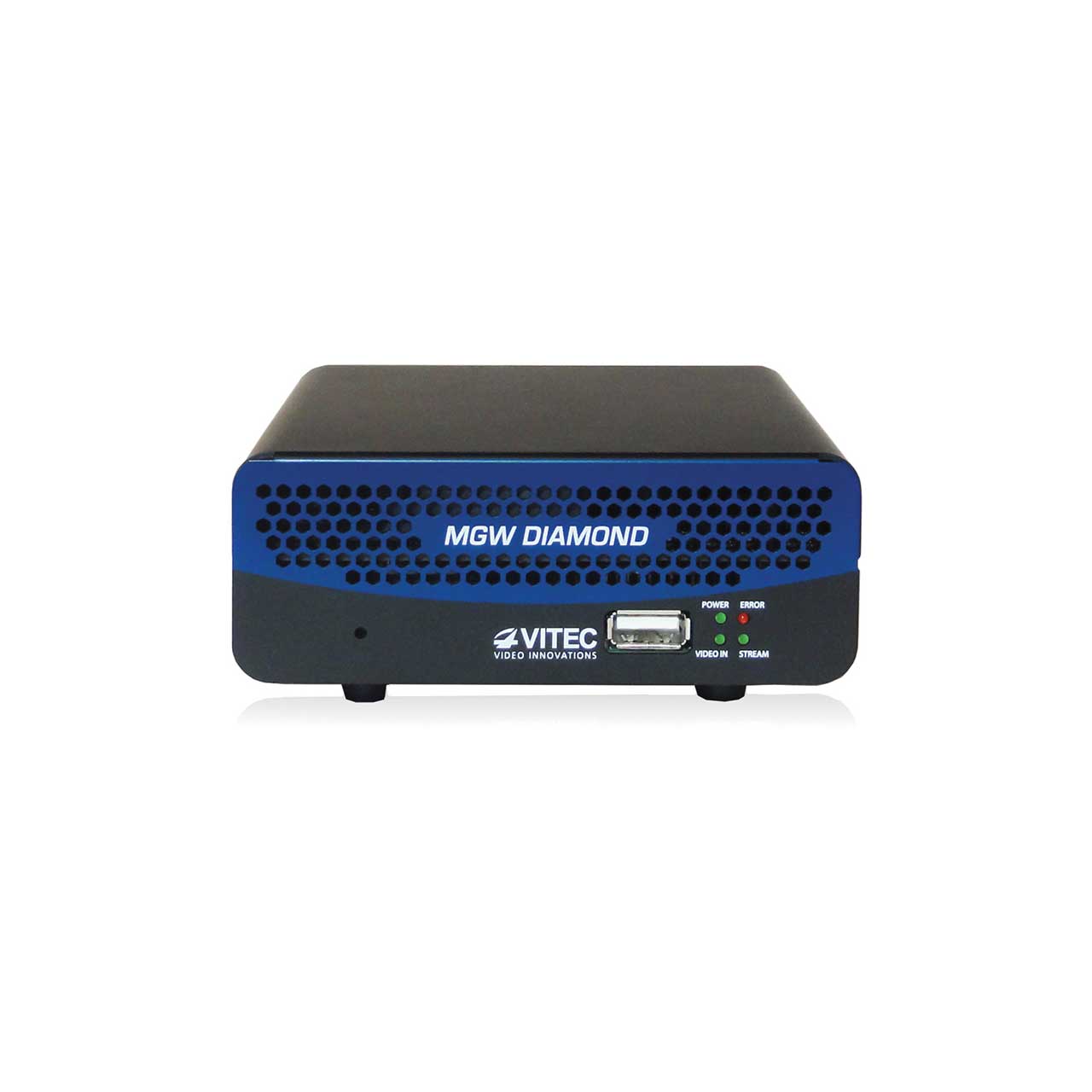

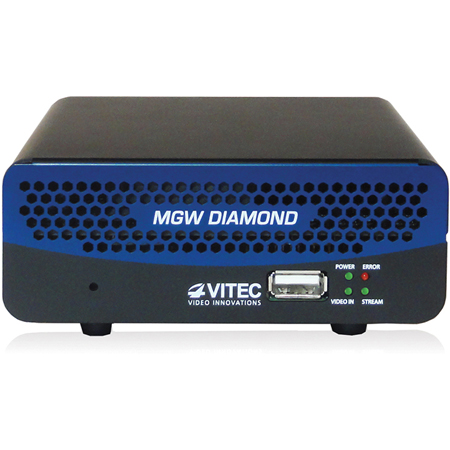

VITEC 18097 MGW Diamond - H.264 - 4x HD or 1x 4K
is a small, power-efficient quad channel HD or one channel 4K HEVC video encoder ideal for field-based applications. It features a powerful encoding engine with the ability to output up to eight streams simultaneously. MGW Diamond is ideally suited to any multichannel application where stringent size, weight and power (SWaP) characteristics are demanded.

MGW Diamond captures up to 4x 3G/HD/SD-SDI or Composite inputs and streams live up to 8 channels, addressing diverse applications within sports, enterprise, defense and surveillance markets. Featuring Ultra High Definition and High Definition range (HDR) support, MGW Diamond can capture and stream 4K60p HDR10 or HLG video from either its 4x3G-SDI or 12G-SDI inputs.

For data-sensitive applications, the MGW Diamond supports KLV / STANAG metadata ingest from various sources (SDI, IP or Serial), real-time image cropping and video scaling, Forward Error Correction (FEC) streaming and JITC compliant output streams. It packs all the needed capabilities for delivering any type of Intelligence, Surveillance, and Reconnaissance (ISR) or Situational Awareness (SA) video generated by ground vehicles, manned or unmanned airborne platforms and marine vessels.

Features:
- Low latency streaming from 4x SDI/Composite sources simultaneously
- Support for Ultra High Definition (4K) and High Definition Range (HDR)
- Up to 8x output streams
- HEVC (H.265) compression support to reduce network bandwidth utilization by up to 50% compared to H.264
- Stream protection for reliable video/audio and metadata transmission (Zixi, SRT, RIST and Pro-MPEG)
- KLV / STANAG metadata ingest from SDI, IP plus multiplexing - JITC Compliant
- Compact, low-power hardware design - optimized for field use (14W)

  Applications
- Muti-site and/or Multi-channel IP Video contribution
- Dense IPTV distribution with up to x40 HD or x10 4K channels a 2RU (openGear card)
- Remote contribution
- Streaming Intelligence, Surveillance and Reconnaissance (ISR) video feeds from ground and airborne vehicles over RF or satellite link (portable appliance)
- Streaming video to desktop/laptop, TV and mobile devices over bandwidth-constrained pipes
Specifications:

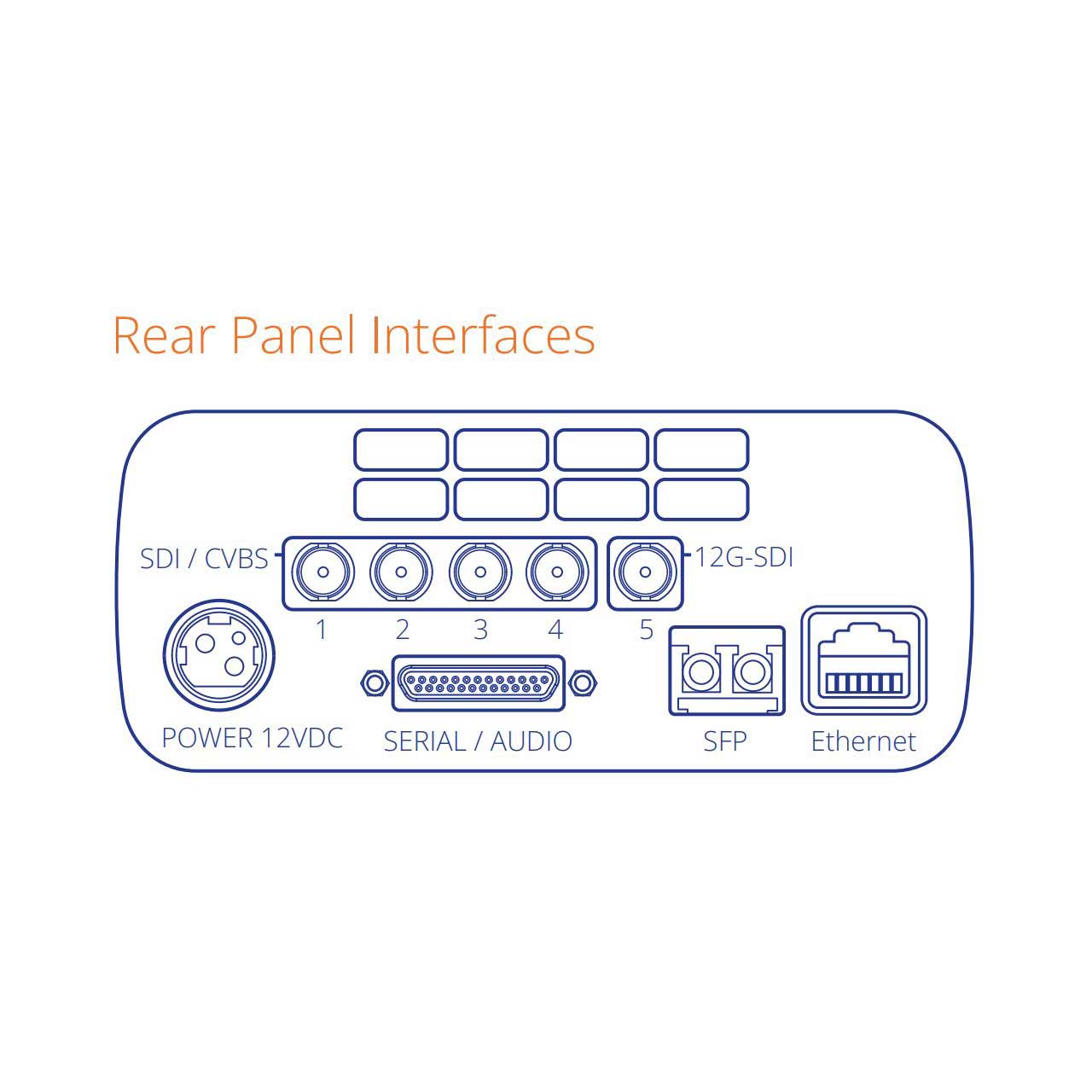

- Video Inputs
- SDI / Composite Inputs
- 12G-SDI (SMPTE 2082-1)
- 4x3G-SDI (SMPTE 425-5 Level A / Two-Sample Interleave)
- 3G/HD/SD-SDI (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, 425M Level A only)
- Analog Composite / RS-170 (NTSC, PAL, PAL-M)
- Quad channel mode in 3G-SDI, HD-SDI, SD-SDI and Composite

  Input Resolutions / Frame Rates
- 4096x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (4K DCI)
- 3840x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (UHD)
- 2048x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
- 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
- 1920x1080i @ 60, 59.94, 50 Hz
- 1280x720p @ 60, 59.94, 50, 30, 29.97, 25 Hz
- 720x480/576i @ 60, 59.94, 50 Hz (NTSC, PAL, PAL-M)

  Audio Inputs
- SDI Embedded audio (Stereo and Mono)
- 4x Analog unbalanced audio (Stereo and Mono)

  Video Output
- Simultaneous HEVC and H.264 IP Video encoding of 4x independent channels (up to 1080p60 per channel)
- Up to 8 output streams with independent resolution (downscaling), frame rate and bitrate
- Up to 1x 4K60p output stream

  HEVC (H.265) MPEG-H HEVC (ISO/IEC 23008-2)
- Main / Main 10 and Main 4:2:2 - up to 4:2:2 10-bits
- Level up to Level 5.2, Main and High Tier
- Selectable GOP structure and size: I, IP, IBP, IBBP, I(3)BP, I(4)BP
- Bit Rate: 36Kbps to 80Mbps
- Frame Rate: 1-60 fps. Configurable frame rate from 60 down to 1fps.
- Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
- Output Resolutions: Configurable from CIF up to 1920x1080p60
- Encoding latency less than 55ms

  H.264 (MPEG-4 AVC Part 10) - ISO\IEC 14496-10 MPEG-4 AVC - Rec
- Baseline Profile L3
- Main Profile L3 and L4
- High Profile L4 and L4.2
- Bit Rate: 64Kbps to 80Mbps
- Selectable GOP structure and size: I, IP, IBP, IBBP, I(3)BP, I(4)BP
- Frame Rate: 1-60 fps. Configurable framerate from 60 down to 1fps.
- Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
- Output Resolutions: Configurable from CIF up to 1920x1080p60
- Encoding latency less than 55ms

  Audio Output
- Up to x32 audio encoding channels
- Codec: MPEG-4 AAC-LC (ISO/IEC 14496-3)
- Stereo and Mono modes
- Bit Rate: 32Kbps - 256Kbps in Stereo, 16Kbps - 128Kbps in Mono
- Sampling Rate: 16 kHz - 48 kHz

  Ancillary Data Support
- Timecode (SMPTE12M-2)
- High Dynamic Range (HDR):
- HDR10 (SMPTE ST 2084/ITU-R BT.2100)
- HLG (ITU-R BT.2100) from SDI (SMPTE ST 2108)

  Network Protocols
- UDP TS: MPEG Transport Stream over UDP
- RTP TS: MPEG Transport Stream over RTP
- RTP ES (RTSP): Elementary stream over RTP
- ZixiT Stream protection
- Zixi P2P and Broadcaster modes
- Zixi ABR streaming (Adaptive Bitrate)
- Zixi Low Latency
- RTP TS with ProMPEG Forward Error Correction (SMPTE 2022)
- SRT (Caller, Listener and RendezVous)
- RIST
- RTMP (H.264)
- Unicast and Multicast (IGMPv3) streaming
- HTTPS, NTP, SSH, SAP

  Encryption
- Real-time AES encryption for video, audio and metadata.
- 128 and 256 bit encryption key support.
- Interoperability with AES compliant systems such as VITEC EZ TV and FITIS distribution platforms

  Management
- Secure Web based remote management interface (HTTPS), password protected
- Custom SSL certificate loading capability
- Customizable Notice and Consent login banner
- Zixi streaming statistics for easier configuration and enhanced Quality of Service
- Autostart mode recovers saved configuration after power cycle
- Remote firmware and software upgrade capability via command line or web-GUI
- System and channel event logging
- Easy to use HTTPS Rest API for control and status monitoring from 3rd party

  Control Software
- Status LED's for power, network activity, Temperature and Fan Errors, streaming and video source indications
- Recovery or initialization of Ethernet settings over USB thumb drive
- System Discovery to retrieve MGW Diamond IP address on a network
- SSH/Telnet interface for management (status and control)
Item Includes:
- 1x MGW Diamond - H.264 - 4x HD or 1x 4K Encoder
- 1x Breakout Cable
