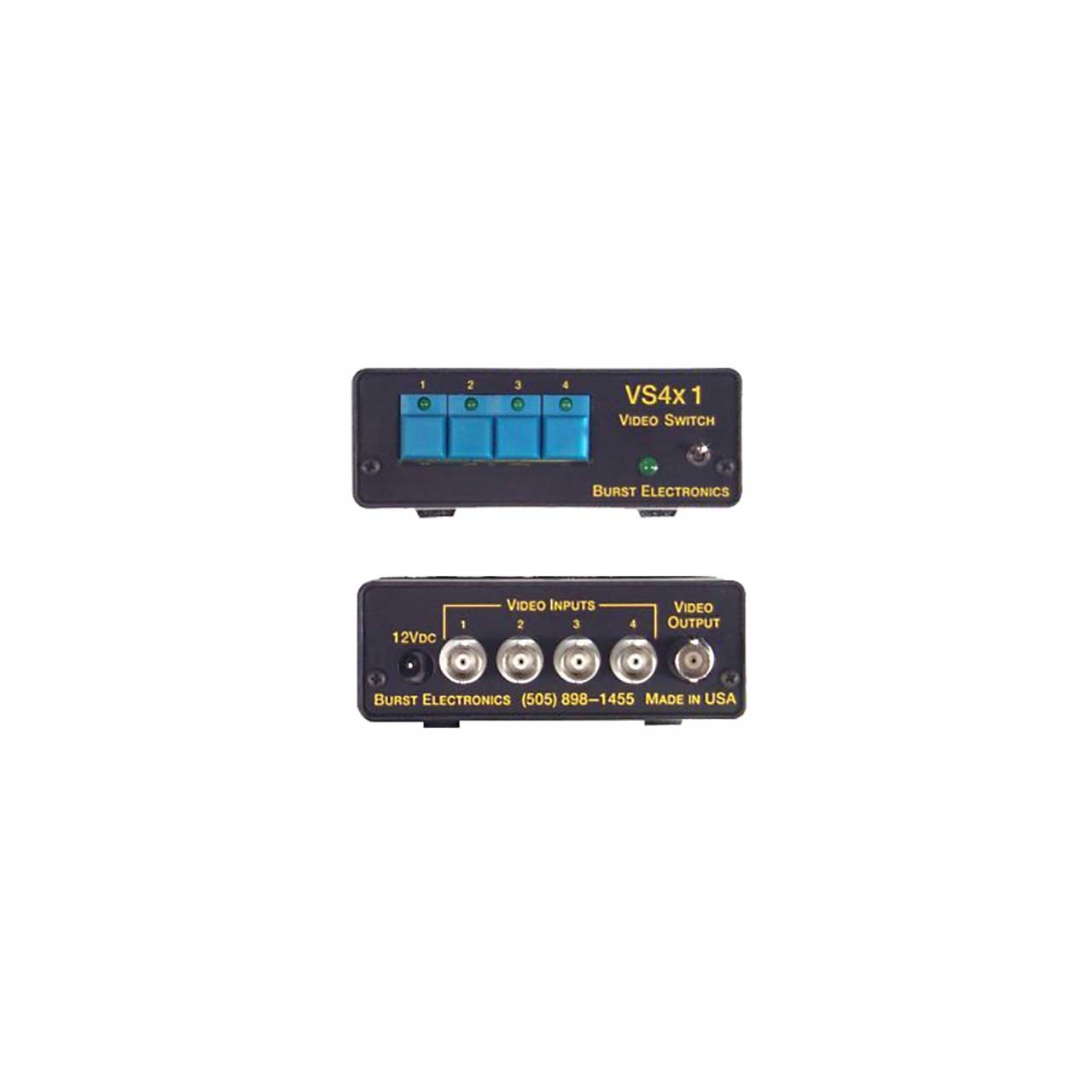

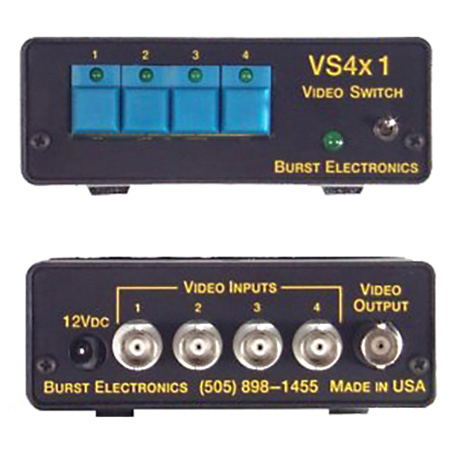

Burst VS-4X1YC Vertical Interval 4x1 Y/C Active Switcher

ITEM #: VS-4X1YC MFG #: VS-4X1YC

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$693.00

Our Price:

$547.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


VS-4X1YC - Overview

Featuring the convenience of Switchcraft EH Series USBB FeedThru Barrel on front to USBA FeedThru Barrel on rear This patch panel has 16 total patch points and is ready to mount in your studio or truck rack Once rackmounted connecting your equipment to the back the bay is fast and easy Feedthru allows your standard cables to simply be plugged into the back of your gear Perfectly suited to meet the needs of any studio broadcast facility or systems integrator Features. Switchcraft E Series 16 Point USBB Front to USBA Rear FeedThru Barrel Patch Panel 2RU

  • Specifications:

    • Input/Output: 1 Volt standard video
    • Input Impedance: HiZ or 75 Ohms 1%, looping (jumper/switch selected)
    • Output Impedance: 75 Ohms 1%
    • Video Connector: BNC, 4 pin MiniDIN for Y/C option
    • Output Protection: Open or Short, infinite duration
    • Video Standard: Both NTSC and PAL
    • Gain: Unity
    • Bandwidth: 25 MHz @ 1 dB
    • Diff Gain: 0.1%
    • Diff Phase: 0.1 deg
    • S/N: 60 dB
    • Crosstalk: 60 dB
    • Switching: Vertical Interval
    • Size: 4.1 W x 5.5 D x 1.5 H inches
    • DC Powered: 11-14 Vdc
    • Wall module (included): 120 VAC 60 Hz, 12 Vdc 500 mA, UL Listed
    • Warranty: Two Years Parts and Labor
