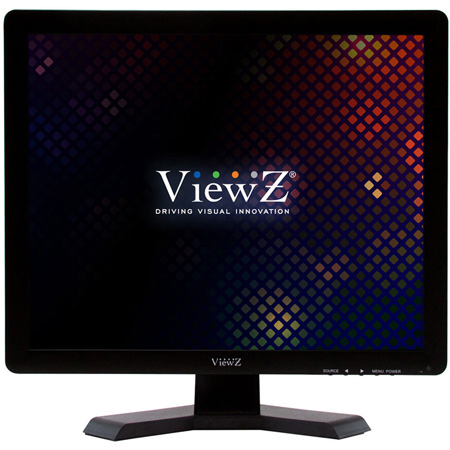

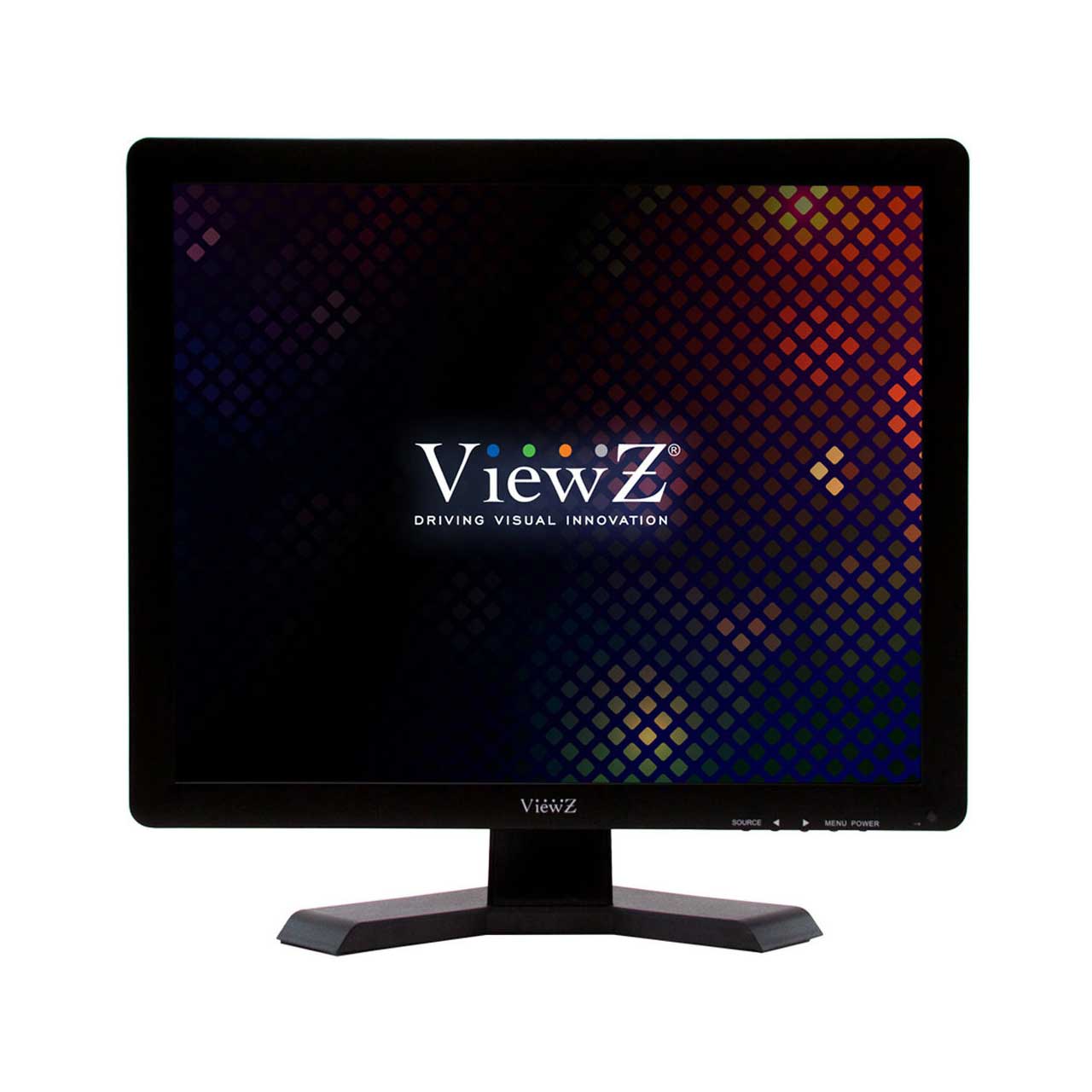

ViewZ VZ-19RTN 19 Inch Black Pro-Grade 1280x1024 LCD Monitor - VGA/HDMI/ BNC (2x1) - 12VDC Power Supply

VZ-19RTN - Overview

• Features:

  • 19" Black Flat Panel LED "A" Commercial-Grade Monitor
  • 1280X1024 / 5:4
  • 2 BNC(Composite) Inputs / 1 BNC (Composite) Output (Loop-through)
  • HDMI / VGA / Audio In/Out
  • Analog Video Resolution (Max) - 600 TV Line
  • 3D Comb-Filter / De-Interlace
  • OSD / Remote Control
  • Auto Source & Power Recovery
  • 2.5W Stereo Speaker x 2


• Specifications:

  • Power Electrical Ratings: DC 12V, 3A (AC 100V - 240V[50/60Hz])
  • Power Consumption: 23W
  • Warranty - MTBF: (Approx.) 50,000 Hours
  • Operating Temperature: 14°F - 122°F (-10°C - 50°C)
  • Mount: Vesa 75mm x 75mm/M4 x L10 screws
  • Outline Dimensions (WxHxD): 16.77" x 16.09" x 5.39" (426.10mm x 408.9mm x 136.97mm)
  • Net Weight: 6.17lbs (2.8kg)
  • Gross Weight: 7.27lbs (3.3kg)
  • Filter Type: 3D Comb-Filter/De-Interlace
  • Video Resolution (Max): 600 TV Line
  • Multi-Lingual Language: English, Deutsch,, Spanish, French, Italian
  • Built-In Speaker: 2.5 W x 2
  • AV (Composite) In/Out: 2/1
  • RGB In (15pin D-Sub): 1
  • HDMI In: 1
  • AV (Composite) Sound In (RCA Type): 1
  • Screen Size: 19"
  • Max Resolution: 1280 x 1024 @ 60Hz
  • Pixel Pitch: 0.294mm x 0.294mm
  • Brightness: 250cd/m² (Typical)
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 5:4
  • Viewing Angle (H/V): 170°/160°
  • Display Color: 16.7 Million
  • Response Time: < 5ms
  • Video System: NTSC/PAL
  • Frequency (H): 30 - 80Khz
  • Frequency (V): 50 - 75Hz


• Warranty:

  • 3 Year Parts & Labor
