Varizoom VZQJ2K-CPJ QuickJig Camera Crane Kit With CinemaProJR-K4 remote head

ITEM #: VZ-VZQJ2K-CPJ MFG #: VZQJ2K-CPJ

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$16,995.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


VZQJ2K-CPJ - Overview

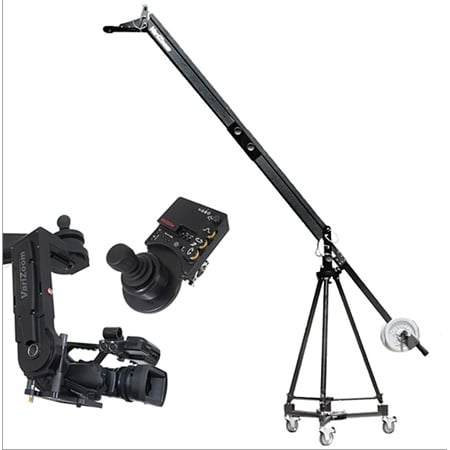

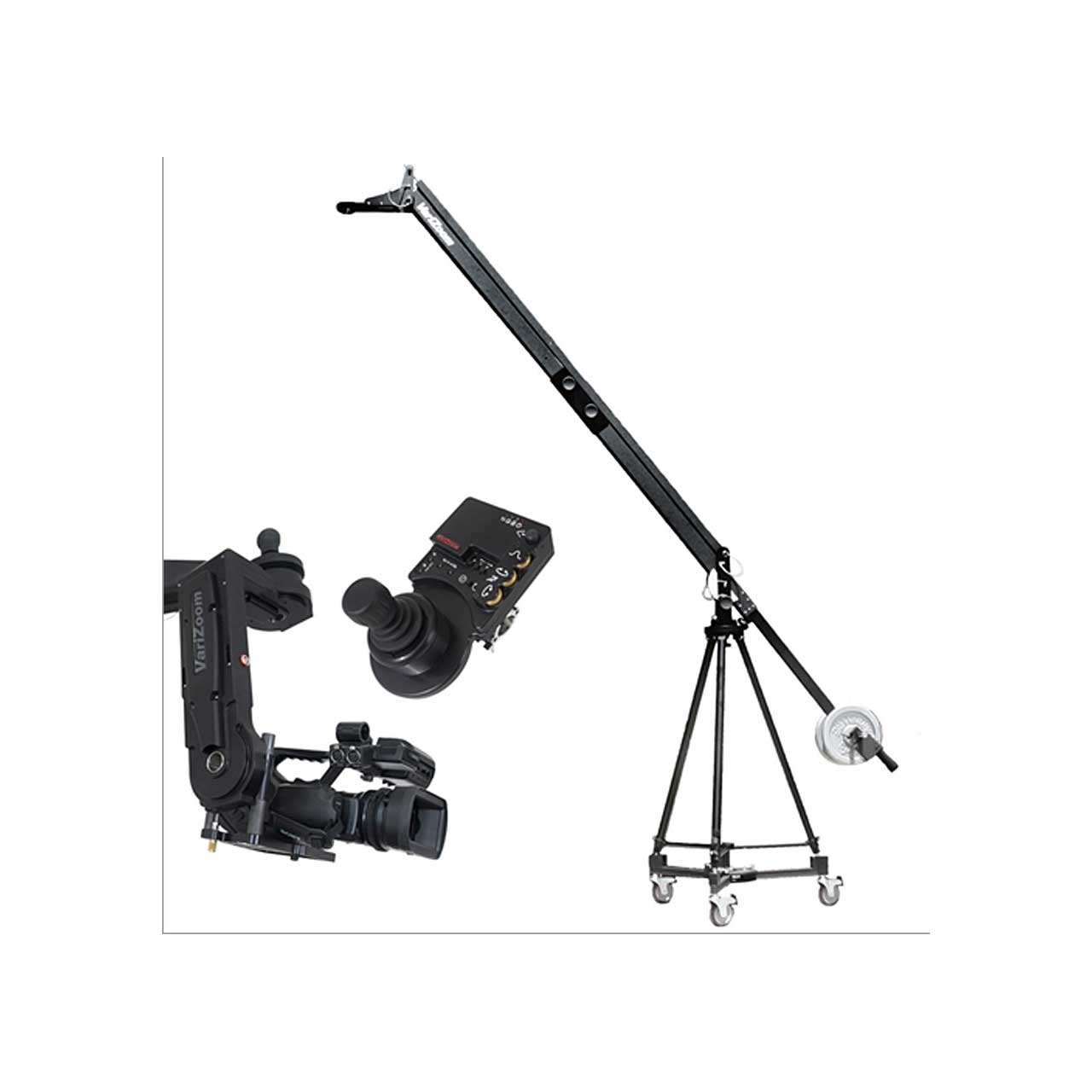

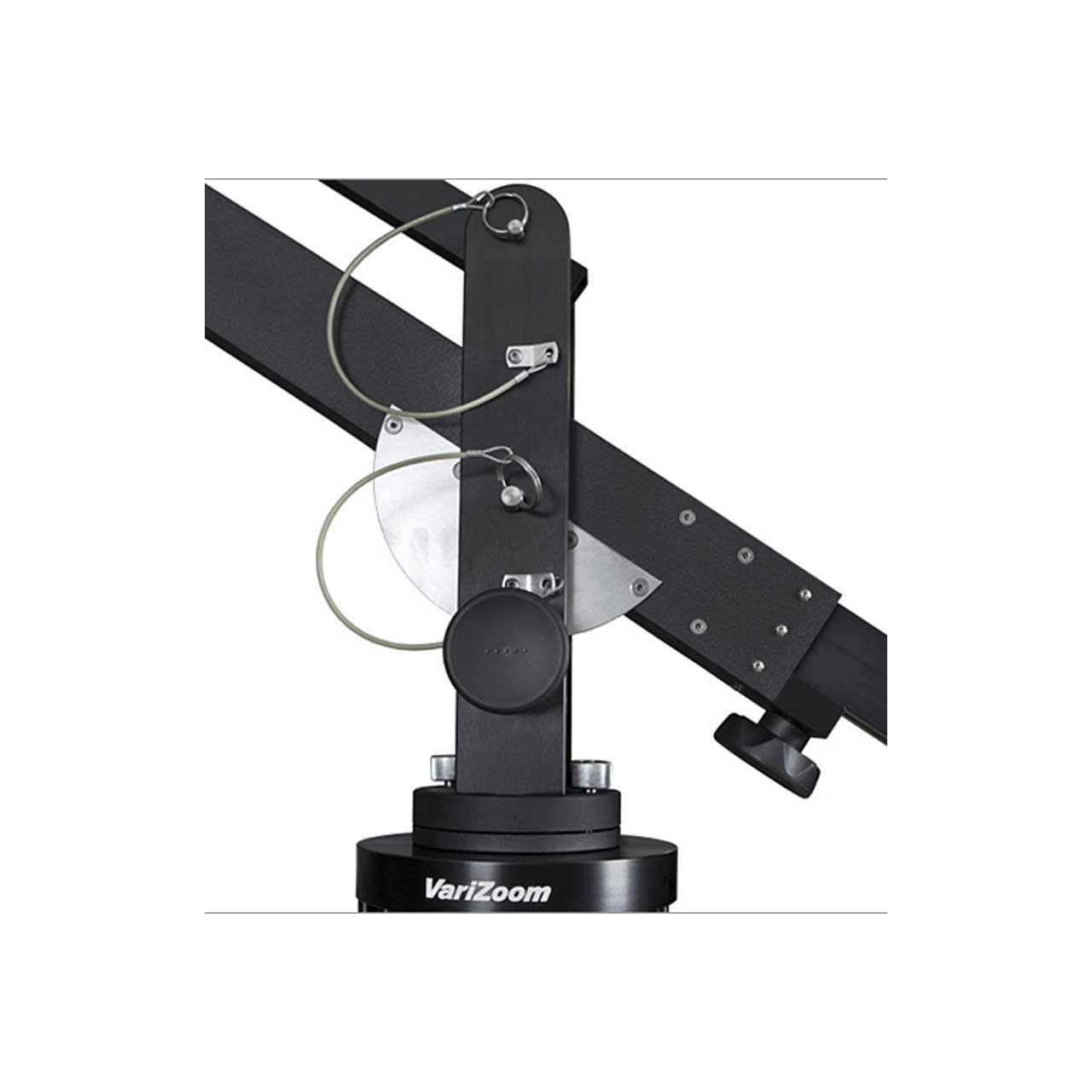

VariZoom's QuickJib represents the perfect balance of quality and economy in a well thought-out design. This is the answer for those who love all of the options of the SnapCrane, but aren't ready to spend that much. The Quick Jib gives you many of the features of the Snap Crane at a more affordable price. With the Quick Jib you get an economical, but secure captive clamp system for extending the jib, along with lanyard-attached stainless aircraft pins for quick assembly. The QuickJib is a professional, tool-free jib arm that assembles rapidly and safely. The QuickJib, like all of our products, was designed for years of trouble-free, reliable operation in the field. With attention to every detail, we have created a tool that will last generations with proper care.

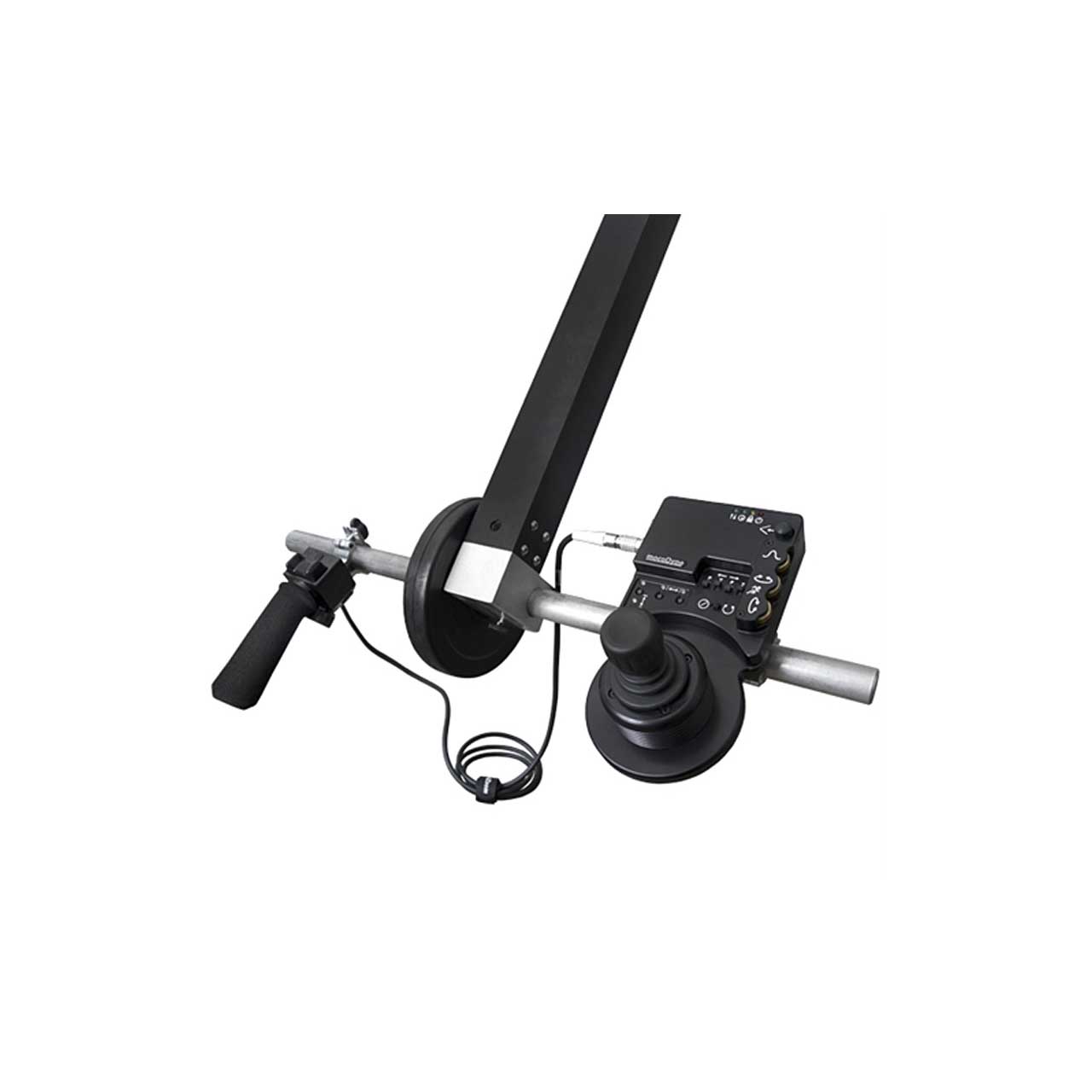

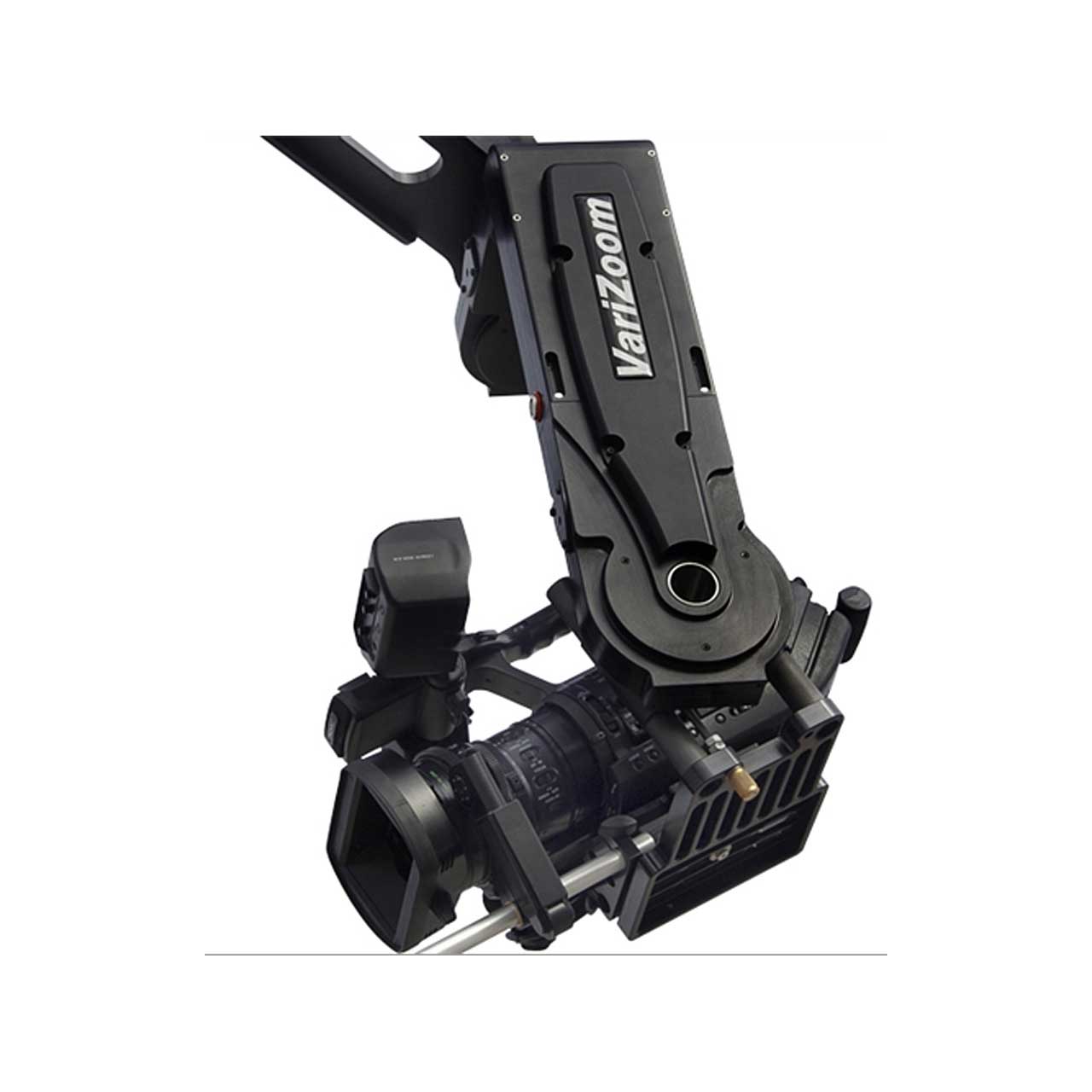

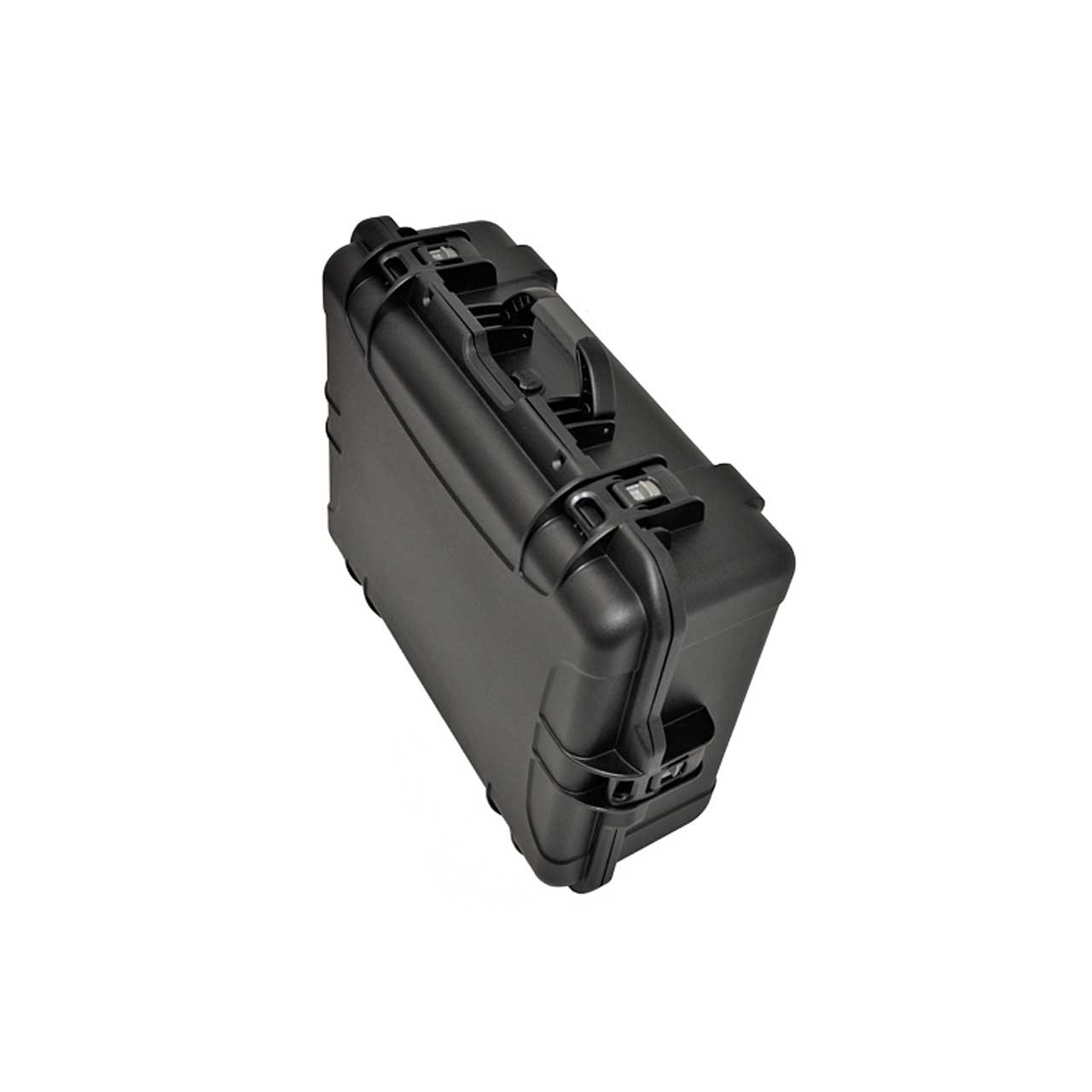

With our ergonomic Jibstick Pro controller, the Cinema Pro JR-K4 offers high-performance pan/tilt/zoom/focus in an incredibly user-friendly package. With all the speed and stability of the advanced motion control kits, but no menus or complex settings, and far fewer buttons and options, the Cinema Pro JR-K4 goes to work with minimal training and setup. At only 13 pounds, the CP Jr is ideal for cranes and portable remote applications, and its superior programming capability and rock-solid electromechanical performance make it a perfect upgrade for the low-tech heads found on most jib systems. The enclosed, slip-ring based drivetrain provides no-maintenance, reliable performance in nearly any environment. The K4 control offers a professional long-throw joystick mounted in a palmrest housing, on-the-fly custom motion limits, integral lens control via plug-in pistol-grip zoom/focus remote, speed & smoothing control, motor disable, pan/tilt/zoom/focus direction switches, & USB interface for advanced setup and firmware updates. This kit includes CP Jr head, Jibstick Pro, plug-in zoom/focus control, 50' control cable, AC adapter, 30' XLR power extension, waterproof hard carrying case.

  • Features:

    • Professional LongThrow Joystick for Pan & Tilt
    • Included plugin hand control for zoom & focus
    • Independent speed control for pan & tilt
    • Smoothing control for pan & tilt
    • Set independent motion limits for pan and tilt to limit rotation, preset location marks, or lock position
    • Motor disable switch
    • Motor direction switch for pan/tilt/zoom/focus
    • USB interface for firmware updates and PCcompatible GUI control panel
    • GUI control panel allows setup of lens parameters, joystick deadband, and other advanced features
    • 2500' max std extension, longer w/ fiber optic option
    • Wireless Option available
    • BuiltIn Lens control for Fuji/Canon/Preston
    • Extremely rigid for smooth motion @ telephoto
    • Also compatible with TOC lens control systems
    • Extremely Rigid Build w/ 100mm or Mitchell Mount
    • Panbase slipring for continuous 360° motion
    • Highpower Enclosed Drivetrain Allows Dynamic Moves
    • System can be upgraded with Advanced Console for additional features

  • Specifications:

    • QuickJib
    • Tripod to Camera - "Reach": 9'6"
    • Max Camera Height: 13'9"
    • Vertical Movement: 12"
    • Max Weight Capacity: Up to 30 lbs.
    • Telescoping Weight Range: 3'
    • Jib Weight: 47 lbs.
    • Minimum Storage Length: 56"
      CPJR
    • Height: 20.5"
    • Width: 11.3"
    • Depth: 6"
    • Weight: 13 lbs
    • Camera weight: 35lbs
    • Camera clearance (underslung): 15" min / 18.5" max
    • Pan/Tilt speed: 130 degrees/second (limited for optimal performance)
    • Mechanical travel: Unlimited Pan, Tilt may be limited by cable twist past 720 degrees
    • Power Requirements: 24VDC (regulated) 5A

  • Item Includes:

    • Jib w/ extension
    • DCR100 Dolly
    • TCR100 Tripod
    • CinemaProJr-K4 pan/tilt head

  • Warranty:

    • 2 Years
