WILLIAMS AV DWS PCS 3 400 RCH One-Way Digi-Wave Personal Communication System - Rechargeable

ITEM #: WLS-DWSPCS3400 MFG #: DWS PCS 3 400 RCH

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,045.00

Our Price:

$939.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DWS PCS 3 400 RCH - Overview

This WILLIAMS AV AV DWS PCS 3 400 RCH personal communication system is designed for simple and seamless one-way communication from one person to another. With its advanced frequency-hopping algorithm, these portable, lightweight devices ensure secure and interference-free communication, making them perfect for teacher to student, tour guide to the attendee, or interpreter to the guest scenarios.

Ensure Secure Audio
Their Digi-Wave systems feature a frequency-hopping algorithm to prevent interference, along with optional pin code access to prevent unauthorized users from eavesdropping. Whether it's confidential discussions in boardrooms, legal proceedings, or other sensitive communications, your audio remains protected from unauthorized access where privacy is paramount.

Portable Convenience
This system is complete portability, allowing easy transportation and storage. The portable, lightweight transmitters, receivers, and accessories mean easy setup and operation, ensuring exceptional sound quality wherever you go.

Flexible Expansion
For larger gatherings or additional participants, you can easily expand the system by purchasing extra transceivers (DLT 400) and/or receivers (Rechargeable - DLR 400 RCH) (Alkaline - DLR 400 ALK), ensuring seamless communication in diverse settings such as factory tours, courtroom proceedings, or business meetings.

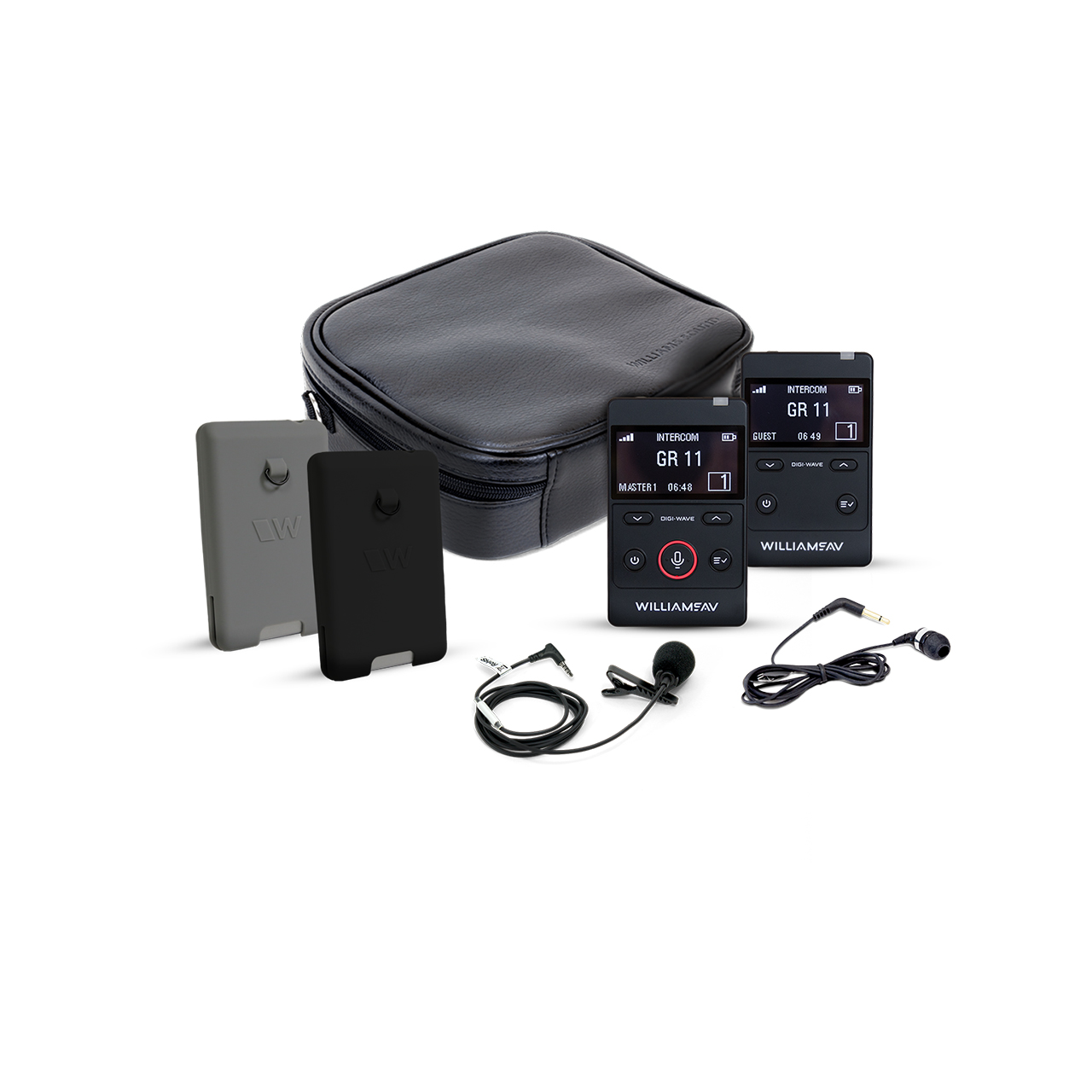

This system includes a transceiver, receiver, lapel mic, earbud, (2) silicone cases, charger adapters, and a carrying case. To accommodate more speakers or listeners, you can expand this system by purchasing additional transceivers (DLT 400) and/or receivers (Rechargeable - DLR 400 RCH) (Alkaline - DLR 400 ALK).

Applications:
- Intercom
- Language interpretation
- Tours
- Presentations
- Hearing Assistance

Markets:
- Government
- Courtrooms
- Corporate - training, presentation, tours
- Broadcast
- Healthcare - medical centers
- Education - classrooms and lecture halls

  • Features:

    • Portable digital transceiver with built-in mic
    • Completely portable - no base station or rack-mounted components required
    • Crystal-clear digital sound quality
    • Use as a two-way wireless intercom or in one-way mode
    • Accommodates six simultaneous talkers and an unlimited number of listeners
    • Built for security. Optional 128+87 bit encryption, secure key code, lock for settings

  • Specifications:

    • DLT 400 RCH
    • Color: Black
    • Battery Type: Lithium Polymer with smart charge built into transceiver; 1800 mAH
    • Battery Life: Up to 32 hrs per charge @ 1ch Rx
    • Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
    • Charge Time: 5 hrs. approx.
    • System Voltage: OLED 14VDC; RF 5VDC; Logic 3.3 VDC
    • Operating Frequencies: 2.4 GHz (ISM band); 2402 - 2476 MHz FHSS
    • Audio Frequency Response (-3dB Level): Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz
    • SNR: 73 dB (A-weighted)
    • THD: 0.1 % (Default Volume, 1kHz)
    • Headphone Output: 3.5 mm TRRS headphone jack; 25 mW, R32 O
    • Line Audio Output: USB-C, Adjustable Level
    • Range: Up to 900 ft (274 m)
    • Modulation: FSK
    • RF Sensitivity: -92 dBm
    • Security: 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
    • Indicators: OLED
    • LEDs: Bi-color, changing green and red LED at top
    • Charging Connectors: USB-C; Two contacts for use with CHG 412
    • Compatible Units: DLT 400, DLT 300 with some limitations
    • Operating Tempurature Range: 14°F - 113°F (-10°C - 45°C)
    • Approvals: FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
    • Dimensions (HxWxD): 2.60" x 4.22" x 0.50" (66mm x 107.3mm x 12.6mm)
    • Weight: 3.3oz (94g) including battery

      DLT 400
    • Dimensions (HxWxD): 2.60" x 4.22" x 0.50" (66mm x 107.3mm x 12.6mm)
    • Weight: 3.3oz (94g) including battery
    • Color: Black/Silver (Front/Back)
    • Case Material: Black ABS plastic
    • Battery Type: Lithium Polymer with smart charge built into transceiver; 1800 mAH
    • Battery Life: Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
    • Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
    • Charge Time: 5 hrs. approx.
    • System Voltages: OLED 14VDC; RF 5VDC; Logic 3.3 VDC
    • Operating Frequencies: 2.4 GHz (ISM band); 2402 - 2476 MHz FHSS
    • Audio Frequency Response (-3dB Level): Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz
    • SNR: 73 dB (A-weighted, default Rx volume with mic input )
    • THD: 0.1 % (Default Volume, 1kHz)
    • Microphone Input: Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
    • Line Input: USB-C, Adjustable level
    • Headphone Output: 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
    • Audio Output: Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
    • Range: Up to 900ft (274m) (depending upon environmental conditions)
    • Modulation: FSK
    • RF Output: 19 dBm Typical
    • Security: 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
    • Side Tone: -6 dB below volume, tone variation (Off, Low and High settings available)
    • Indicators: OLED
    • LEDs: Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
    • Charging Connectors: USB-C; Two contacts for use with CHG 412
    • Compatible Receiver: DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
    • Operating Temperature Range: 14°F - 113°F (-10°C - 45°C)

      EAR 041
    • Style: Single, in-ear, isolation earphone
    • Plug: 3.5mm mono
    • Cord: 39"
    • Driver Size: 10mm
    • Nominal Impedance: 16Ω
    • Freq. Response: 20Hz - 20kHz
    • Weight: 6g
    • Max Power Input: 5mW
    • Sensitivity: 104dB @ 1kHz
    • Replacement Silicone Tip: EAR 043 (0ne pair)

      DW ACC PAC
    • Weight: 0.25lbs
    • Input Power: 100V - 240V AC, 50/60Hz, 0.2A
    • Output Power: +5 VDC, 1.0 A
    • Included Adapters: US, UK, Euro, Australia
    • Approvals: UL, CE, IC

  • Item Includes:

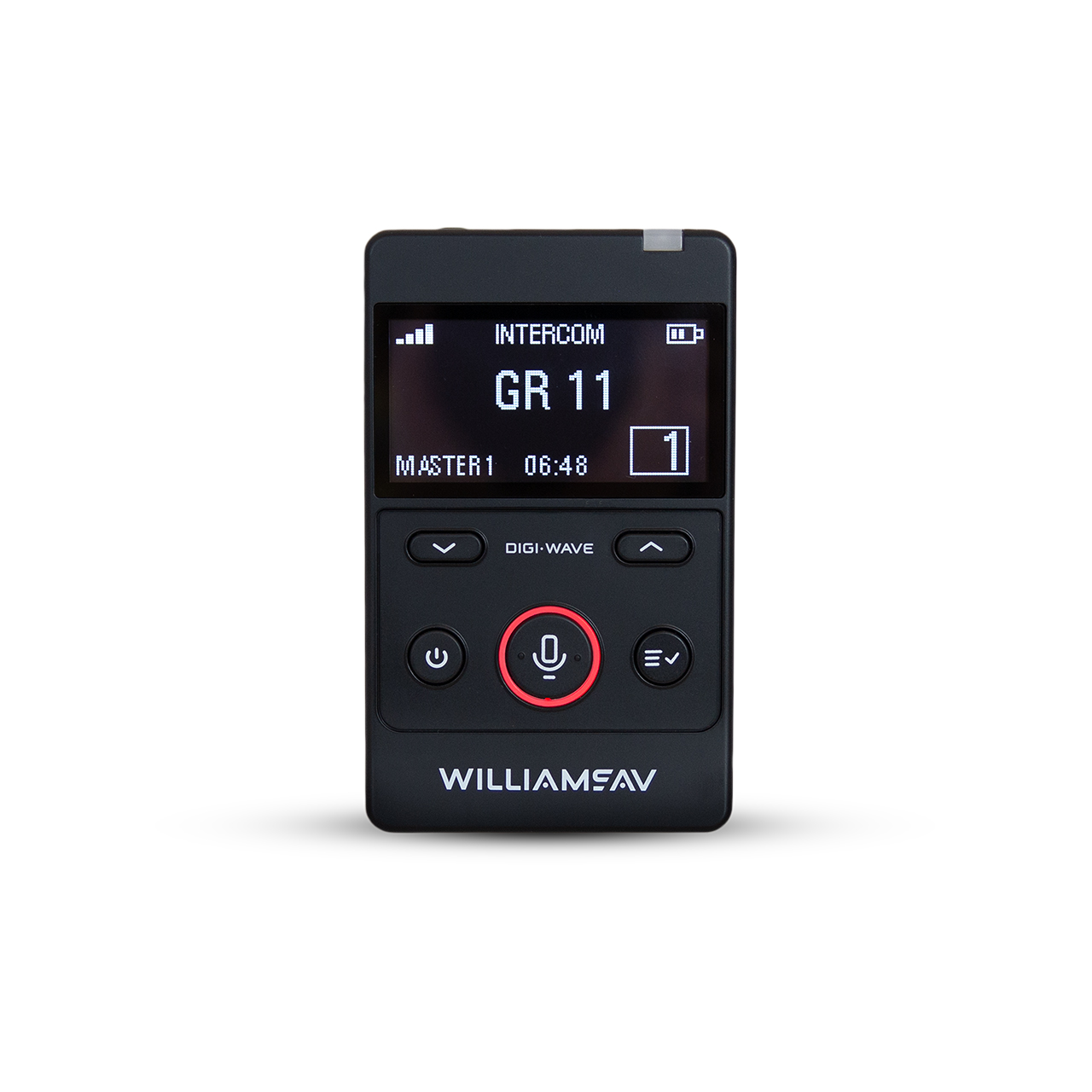

    • 1x DLT 400 transceiver

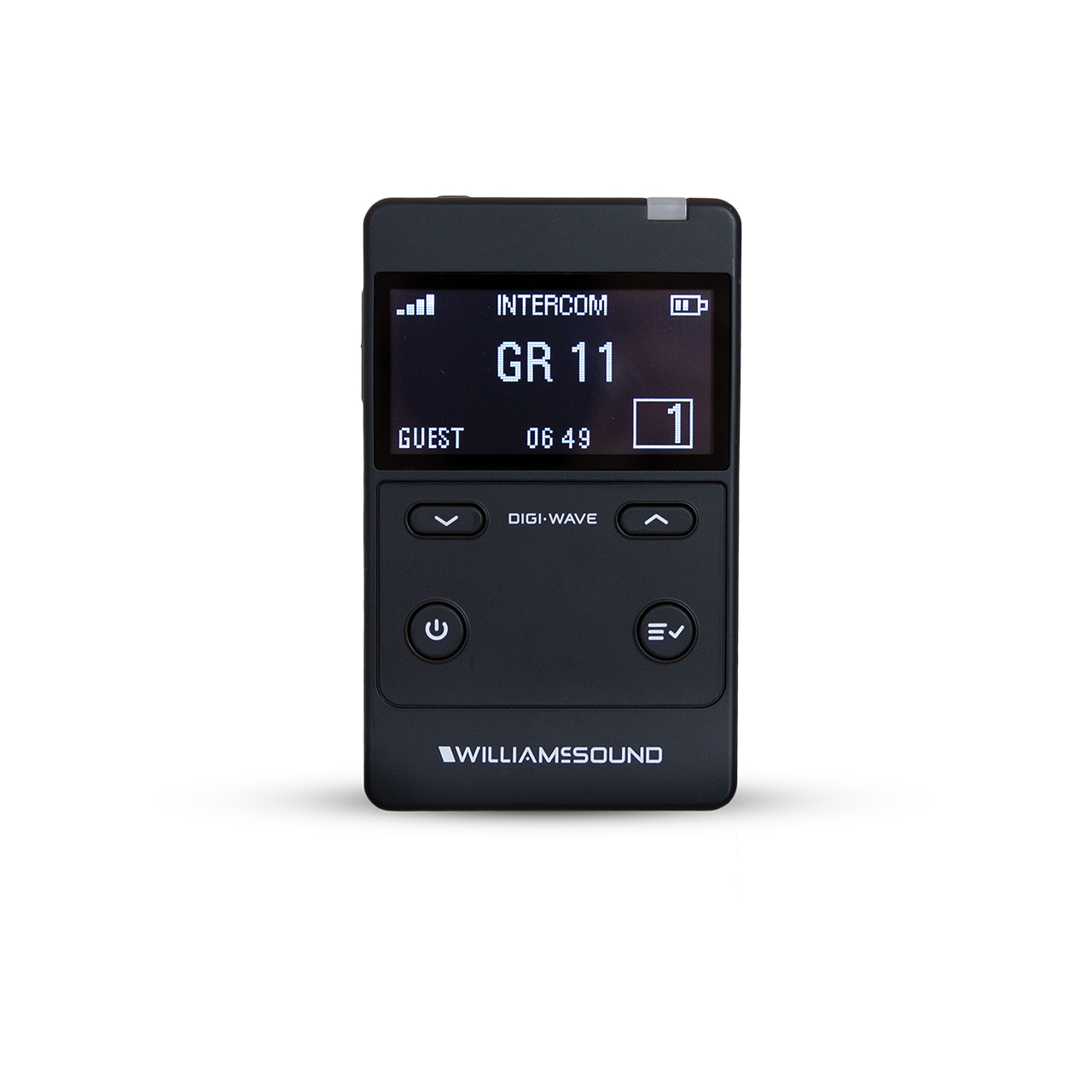

    • 1x DLR 400 RCH receiver
    • 2x DWS ACC PAC4

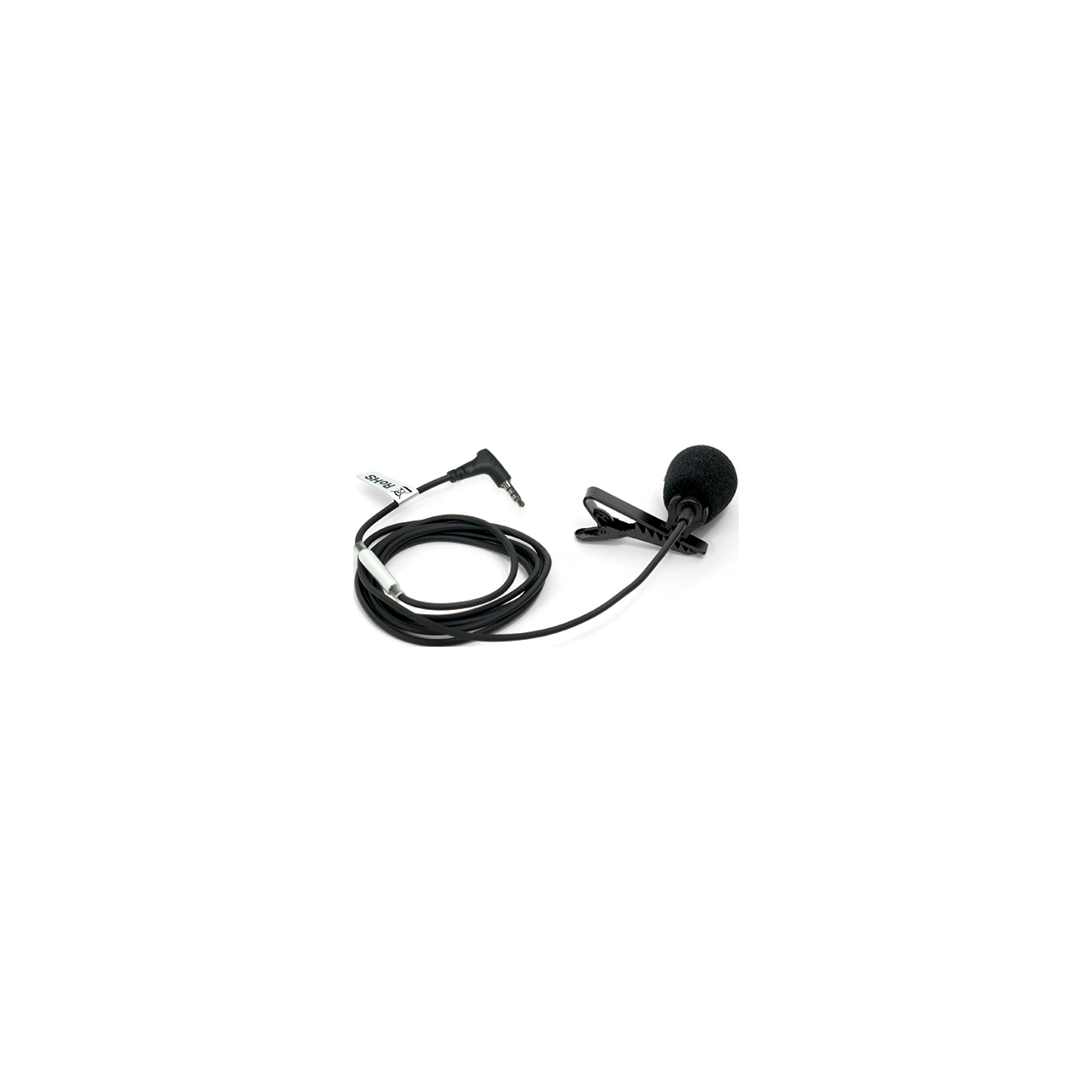

    • 1x MIC 454 lapel microphone

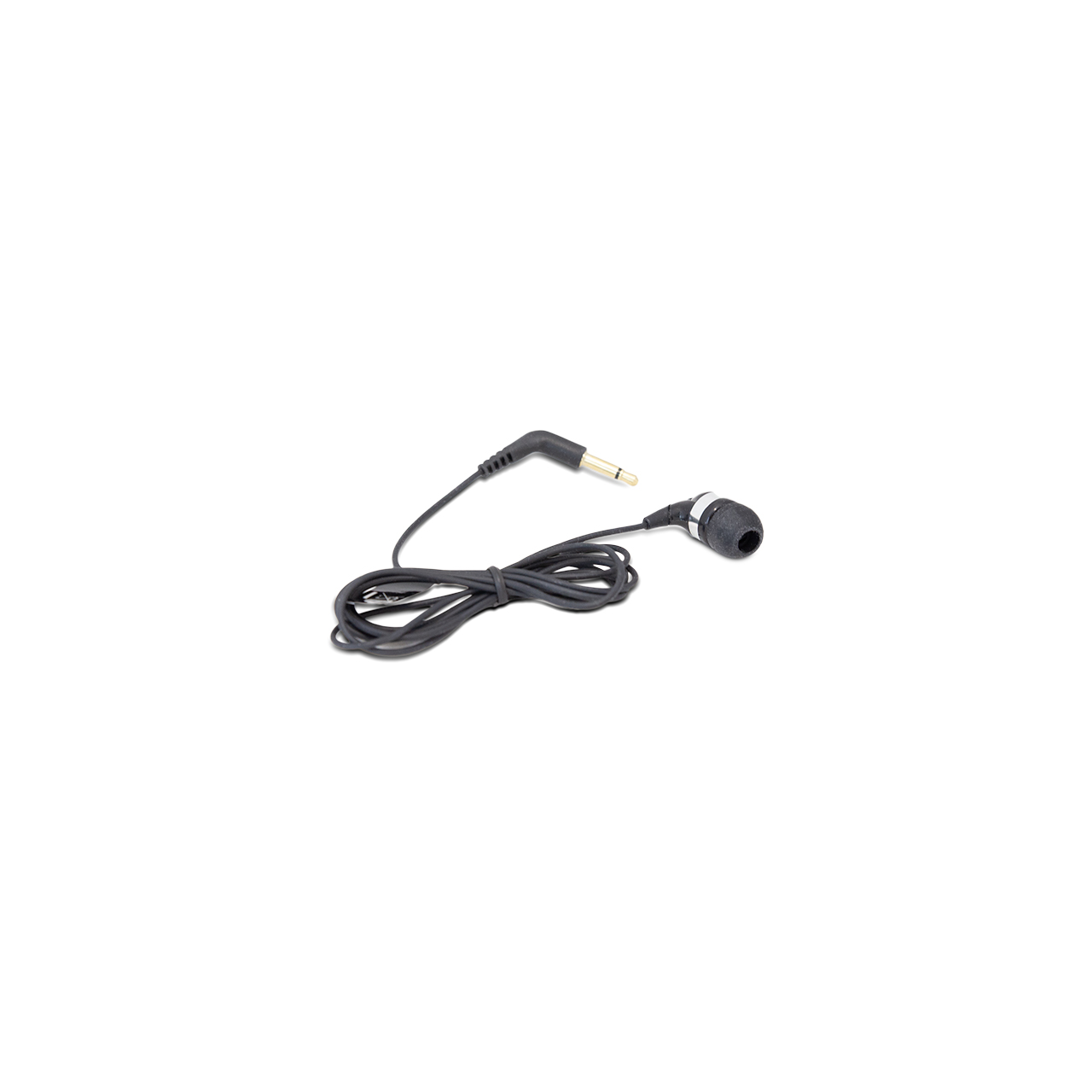

    • 1x EAR 041 earphone
    • 1x CCS 043 system carry case
    • 1x CCS 061 GR grey silicone skin
    • 1x CCS 061 BK black silicone skin

  • Warranty:

    • 2 Years
