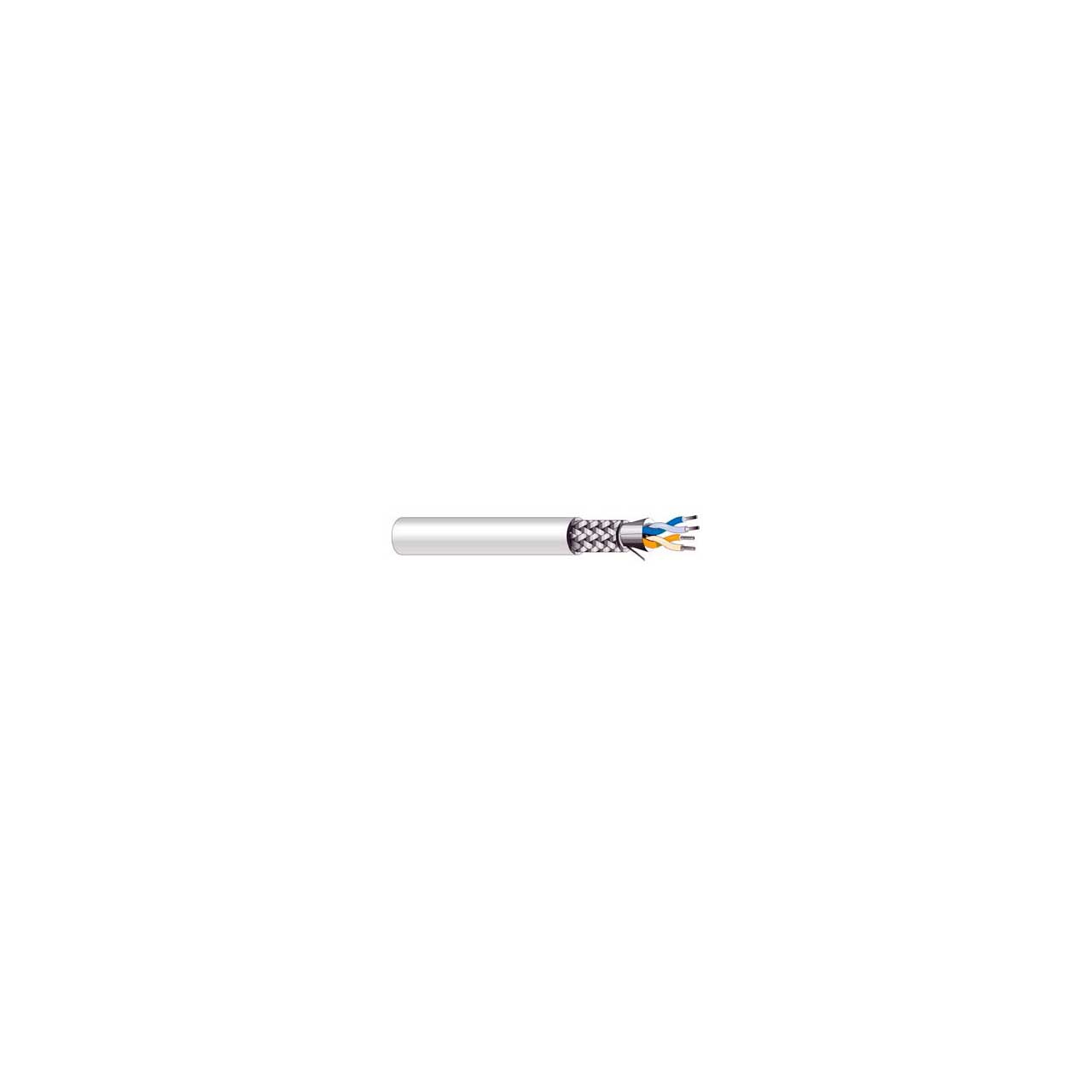

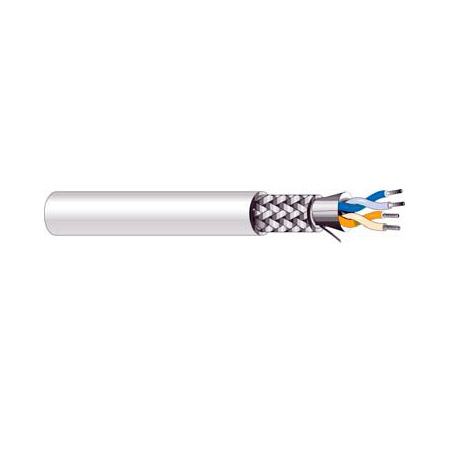

West Penn D4852 2 Pair 24 (7X32) Tinned Shielded Cable Cm Rs-485 - 500 Foot Roll

ITEM #: WP-D4852-500 MFG #: D4852-500

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

D4852-500 - Overview

2 Pair 24 Awg. Stranded tinned copper conductors, shielded with an overall jacket. Indoor data cable for: Computer Application, Low-Capacitance Data.

  • Specifications:

    • Conductor 24 AWG Tinned Copper
    • Stranding 7x32
    • Insulation Material Polyolefin
    • Insulation Thickness 0.035'' Nom.
    • Number of Conductors 4 (2 Pair)
    • Shield 100% Aluminum Polyester Foil
    • 95% Al. Braid
    • Drain Stranded Tinned Copper
    • Jacket Material PVC
    • Jacket Thickness 0.032'' Nom.
    • Overall Cable Diameter 0.305'' Nom.
    • Approximate Cable Weight 62 Lbs/1M' Nom.
    • Flame Rating UL 1685

    • Temperature Rating -20° C to 60° C
    • Operating Voltage 300 V RMS
    • Max.Capacitance Between Conductors @ 1 KHz 12.8 pf/ft Nom.
    • Capacitance Between Conductors to Shield @ 1 KHz 23 pf/ft Nom.
    • DC Resistance per Conductor @ 20deg C 24 Ohms/1M' Nom.
    • Velocity of Propagation 66% Nom.
    • Impedance 120U Nom
    • Insulation Colors 1. Blue- White/Blue, 2. Orange-White/Orange
    • Jacket Color Gray
    • RoHS Compliant
    • Max. Recommended Pull Tension 87 lbs.
    • Min. Bend Radius (Install) 3"


  • GTIN:

    0612825028895
