West Penn Wire DA2401 Single Pair AES/EBU Digital Audio Distribution Cable - 1000ft Roll

ITEM #: WP-DA2401-1000BK MFG #: DA2401BK1000

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$259.38

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


DA2401BK1000 - Overview

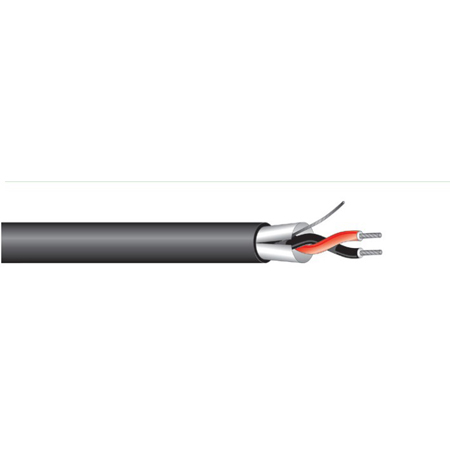

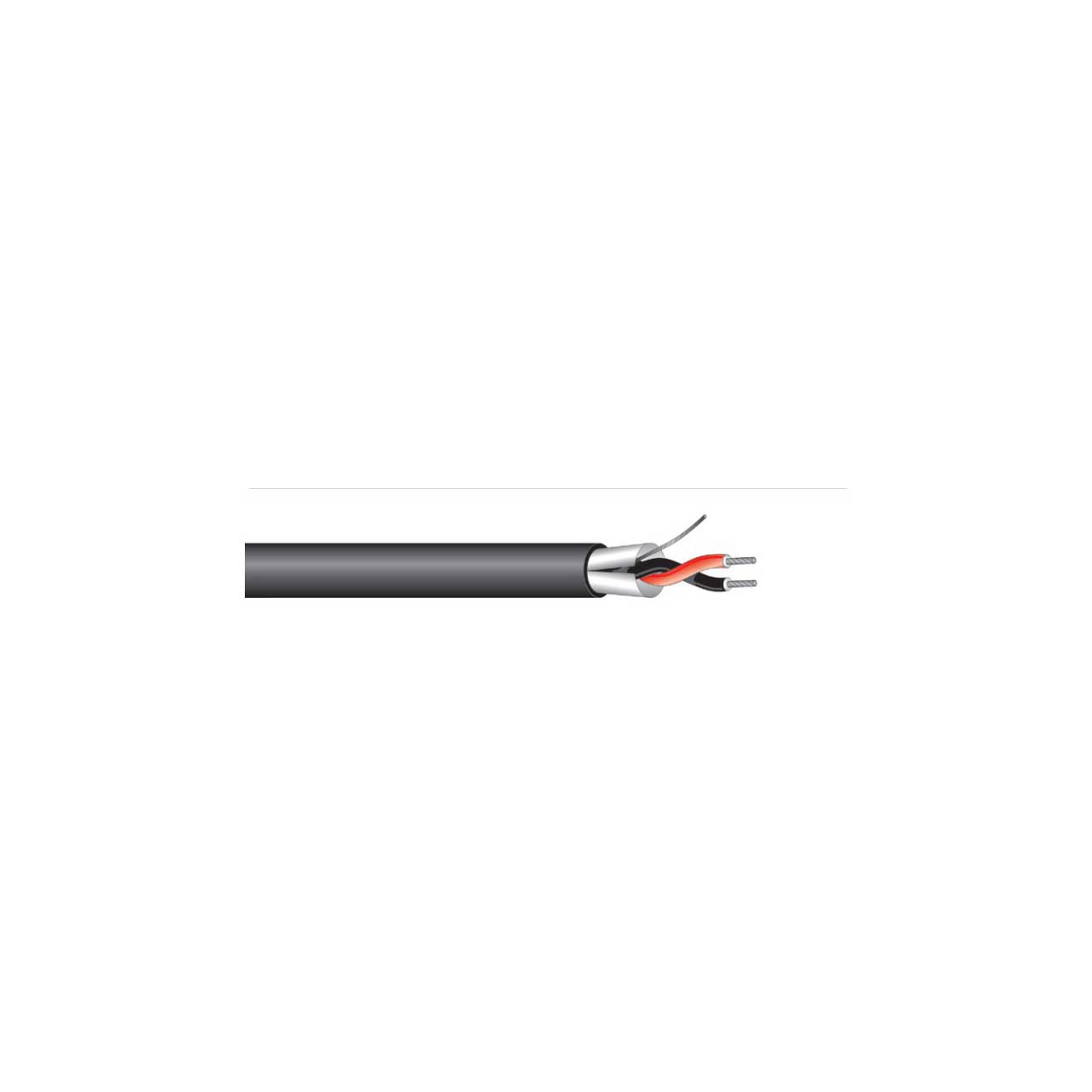

West Penn DA2401BK1000 is a single pair, 24AWG AES/EBU Digital Audio Distribution Cable. It is constructed of tinned copper and foam polyethylene.

  • Features:

    • ASTM tinned copper
    • Low-loss foam insulation
    • Short overall twist lengths
    • Polyester binders as required
    • Each pair individually shielded100 Percent coverage of aluminum polyester foil with strd. TC drain wire
    • Single Pair
    • AWG: 24
    • Stranding: 7x32
    • O.D. 0.182 inch
    • Nom. Impedance: 110 Ohms

  • Specifications:

    • Conductor
    • Number of Pairs: 1
    • AWG Size: 24
    • Conductor Stranding: 7 x 32
    • Conductor Type: Tinned Copper
    • Nominal DCR: 26 Ohm/1000ft

      Insulation
    • Insulation Type: Foam Polyethylene
    • Insulation Thickness: 0.022 in
    • Insulation Color: Black, Red

      Shielding
    • Shield Type: Individually Stranded
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 24 AWG

      Electrical
    • Nominal Impedance: 110 Ohm
    • Nominal Cap. Between Conductors: 12.5 pF/ft
    • Nominal Cap. Conductor to Shield: 22 pF/ft

      Construction
    • Jacket Type: PVC
    • Jacket Thickness: 0.030in
    • Nominal Cable O.D.: 0.178in
    • Plenum: Nominal
    • NEC UL Rating: CM
    • RoHS Compliant: Yes
    • TIA Test: AES/EBU
    • Pull Tension: 17 lbs
    • Bend Radius: 1.601"
    • Cable Weight: 14lbs

      Overall Electrical & Optical Characteristics
    • Nominal Velocity of Propagation (VP): 76 %
    • UL Flammability: UL1685
    • Operating Range: -4° to 140°F (-20 to 60°C)
    • UL Voltage Rating: 300

  • Item Includes:

    • 1x DA2401 Single Pair AES/EBU Digital Cable - 1000ft Black

  • GTIN:

    0612825026075
