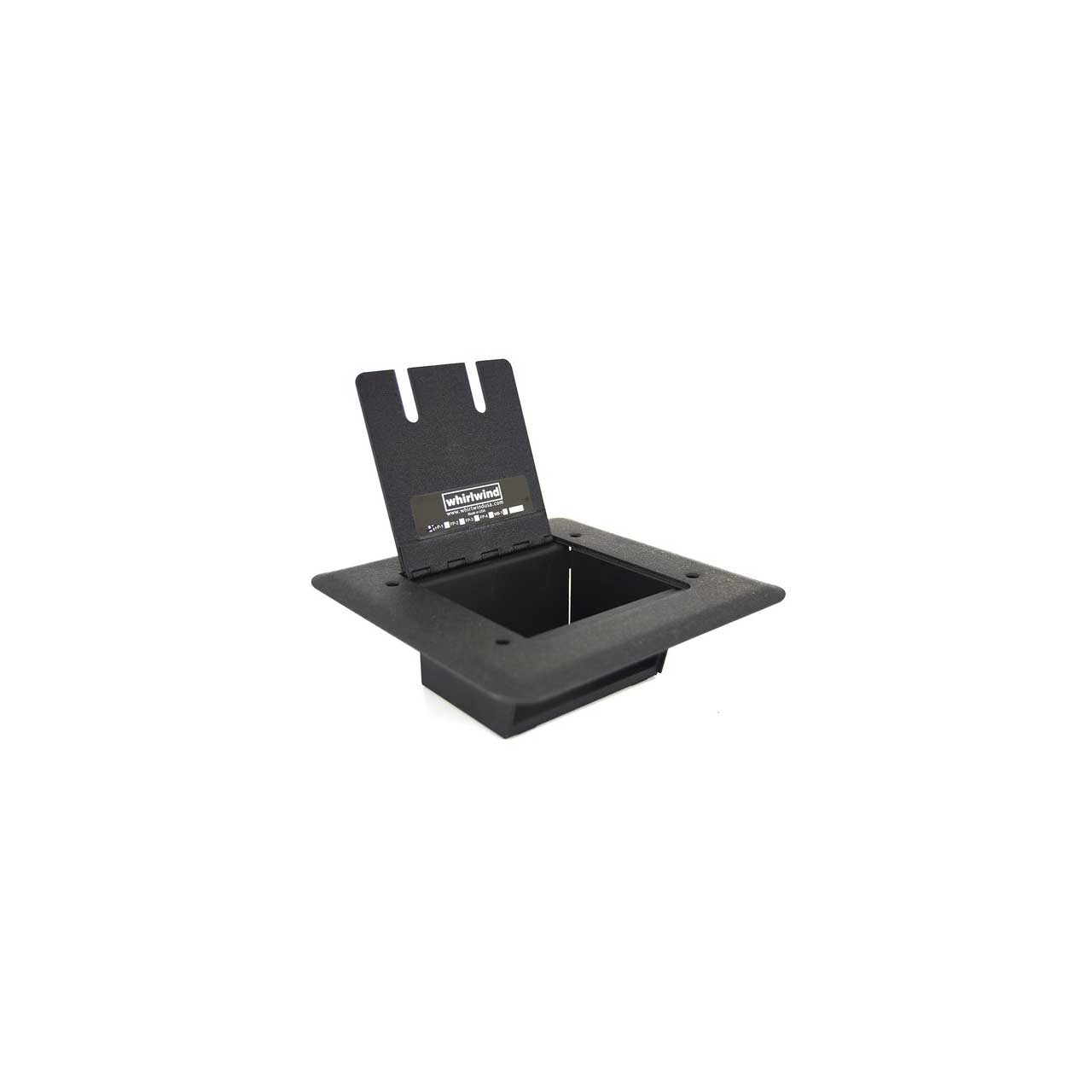

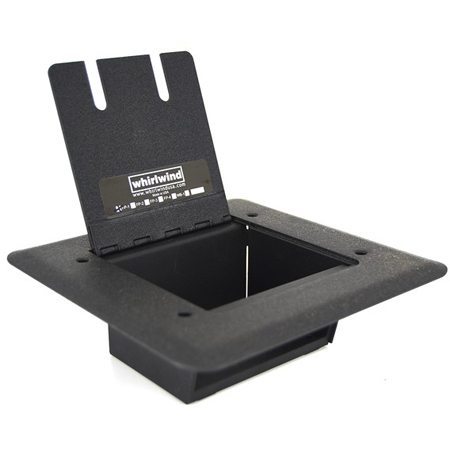

Whirlwind FP-1 is a floor pocket that is 8 x 8 x2.6". The cable-clearance slots in the doors allow them to close over cables when in use. Constructed of 11 gauge steel, the FP-1 and FP-2 permit flush installation for safe, reliable connections. Each unit incorporates a black carpet trim ring with a beveled edge.

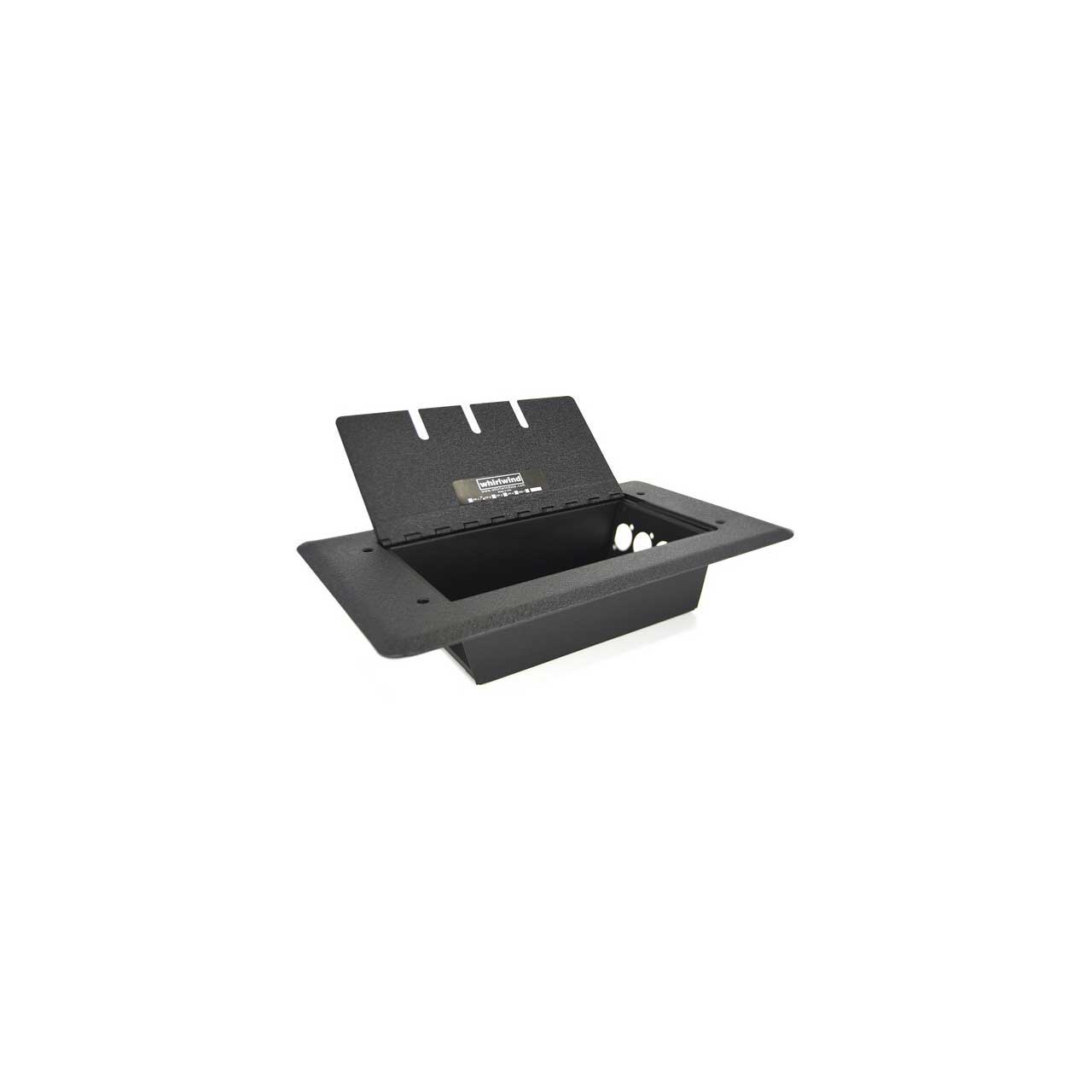

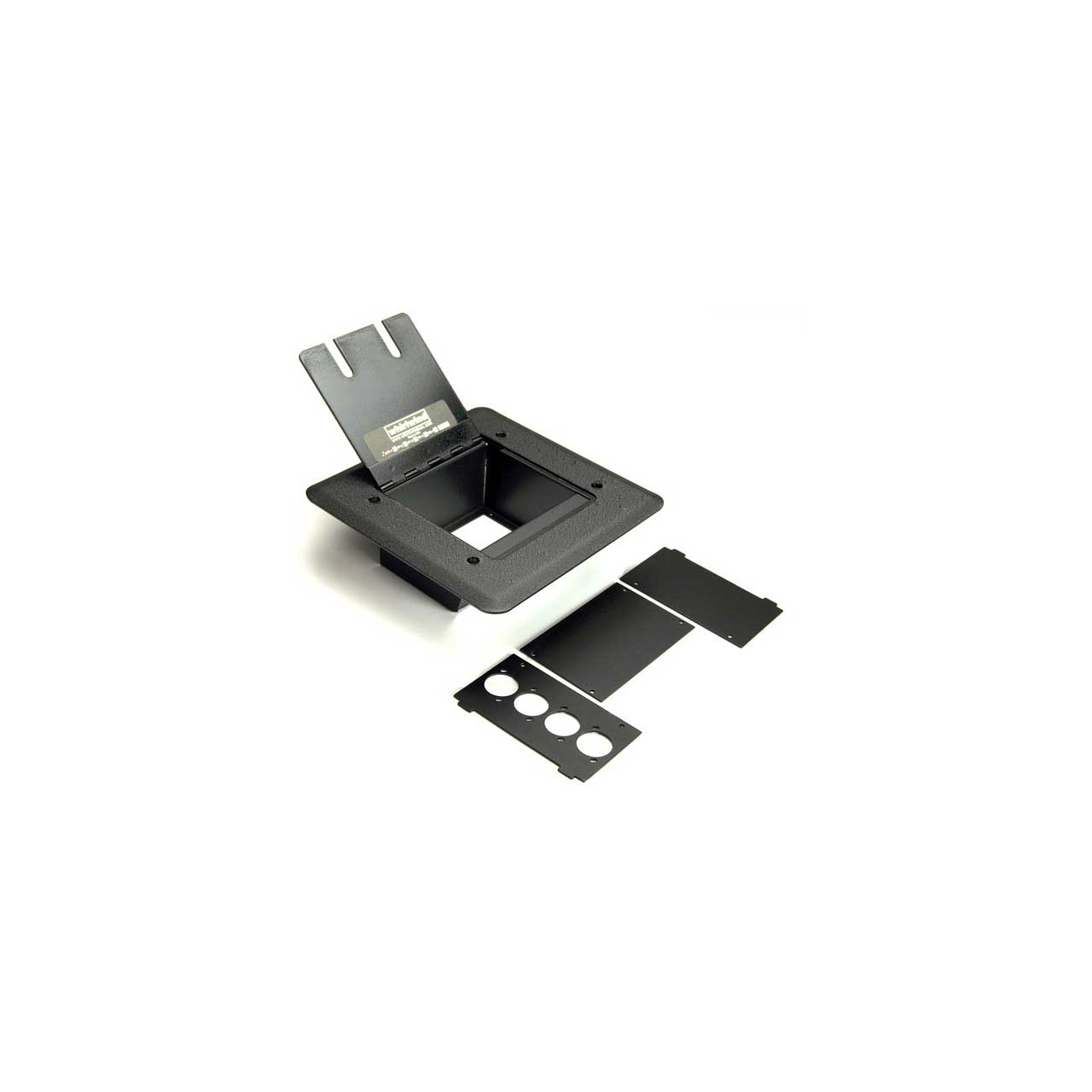

Interchangeable end panels are supplied with the FP-1 and FP-2. One is solid metal which allows the user to punch or drill it to their own individual specifications. The other is pre-punched to accept four Whirlwind XLR or TRS jacks. The FP-1 has one interchangeable panel on one end, the FP-2 provides panels on both ends.
The bottom plates are also removable to facilitate additional hole punching and connector mounting. Any or all of these may be ordered custom punched and/or loaded by Whirlwind.
The optional back boxes (FP-1BB, FP-1BB6, FP-2BB and FP-2BB6) have three sets of knockouts on each side. Back box knockouts include .5", .75", and 1".
