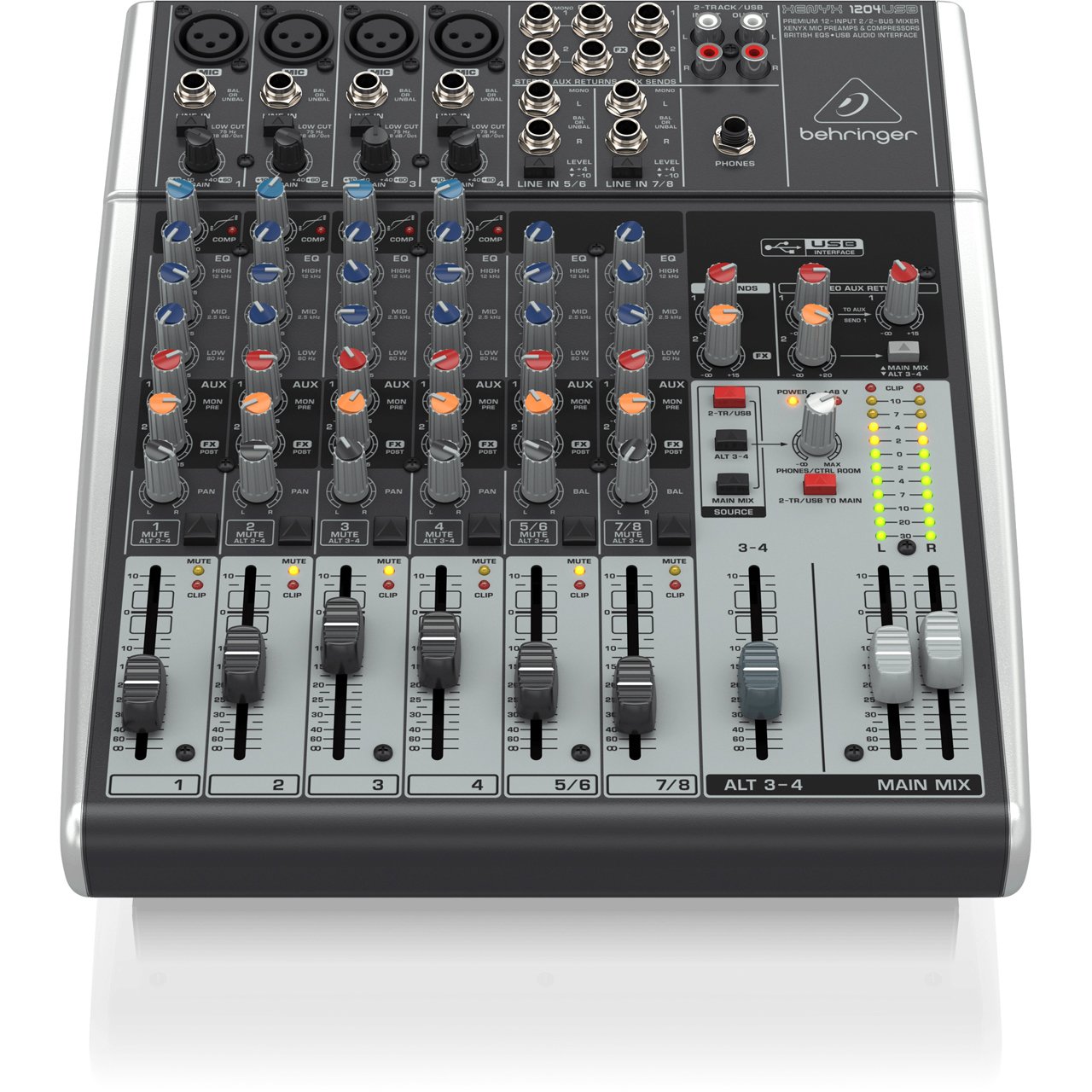

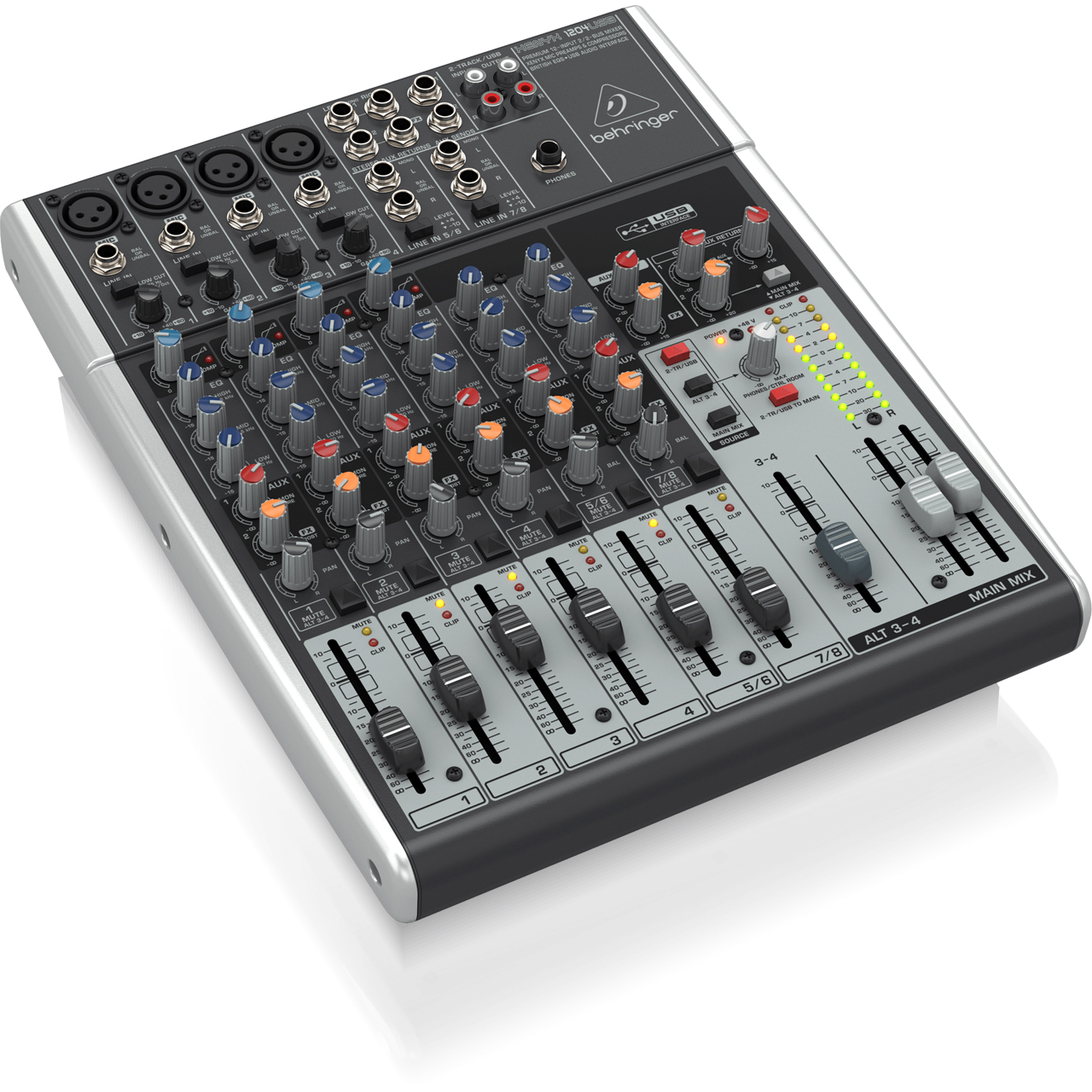

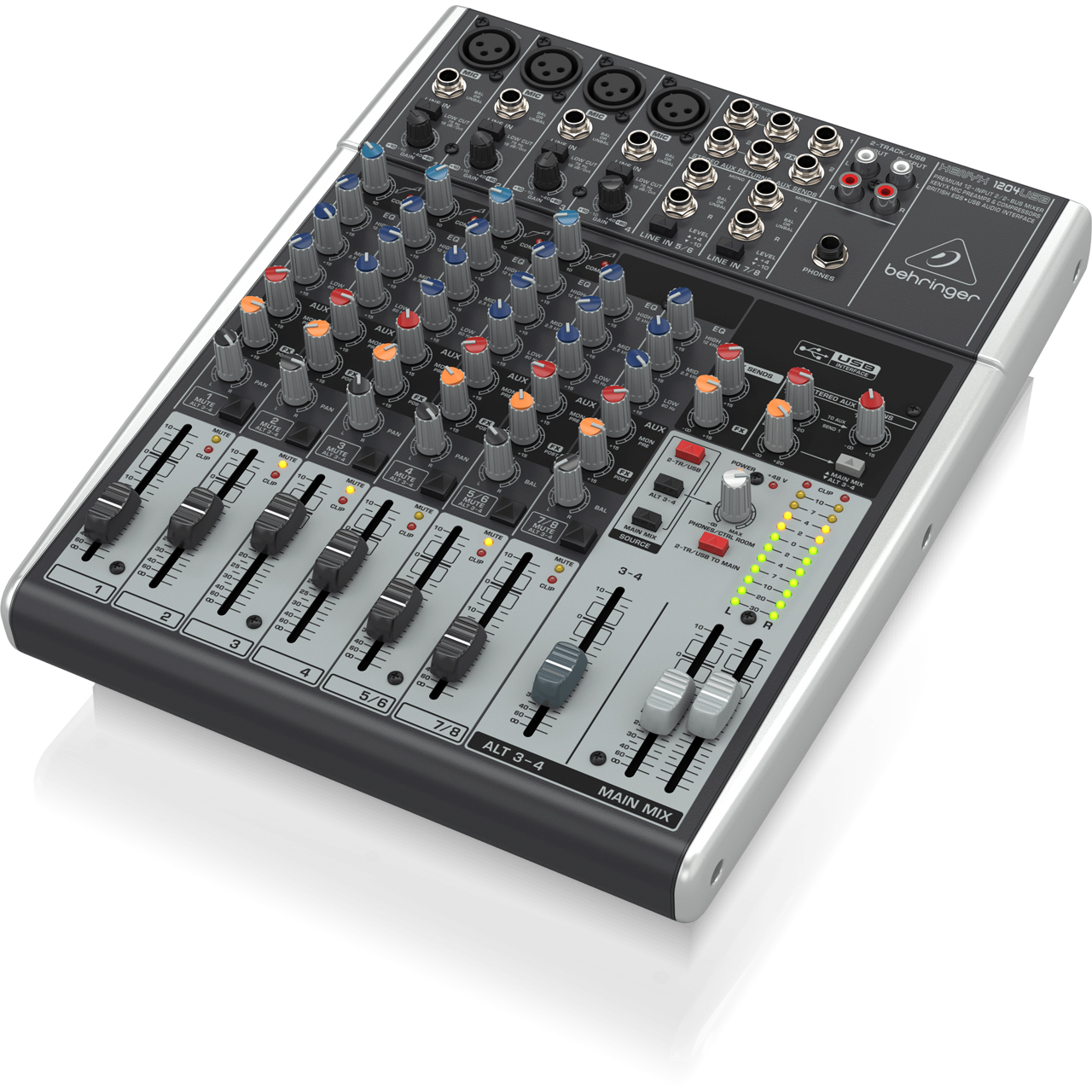

Behringer XENYX 1204USB 12-Input 2/2-Bus Mixer with XENYX Mic Preamps and Compressor - British EQ & USB/Audio Interface

ITEM #: XENYX-1204USB MFG #: 1204USB

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$209.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


1204USB - Overview

Sonically Superior Mic Preamps
The Behringer XENYX 1204USB gets its name from their legendary, high headroom XENYX mic preamps, which have been praised by audio engineers all over the world. These state-of-the-art mic pres represent a major step in the evolution of audio technology - and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps off er a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the XENYX 1204USB provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren't looking.

One-Knob Compression
Ask professional sound engineers what their favorite piece of external processing gear is and the majority response will be virtually unanimous - dynamic compression. What is compression? We're glad you asked. Compression essentially limits the dynamic range of a signal, lowering the level of loud sounds and turning up softer sounds, to achieve sonic balance. But applying compression is a delicate art that many novice, and even intermediate, sound techs find challenging. Behringer's "one-knob" compression is available on all mono channels and is easy to operate, even for entry-level users. With this one knob, you can easily dial in the perfect amount of compression for instruments and vocals, creating powerful mixes with punch and clarity. This is indeed a rare feature for products in this class - but standard on the XENYX 1204USB mixer.

Sublimely Musical British EQ
The British consoles of the 1960s and '70s changed the sound of rock and roll - without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on our XENYX mixers is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

  • Features:

    • Premium ultra-low noise, high headroom analog mixer
    • 4 state-of-the-art XENYX, phantom-powered Mic Preamps comparable to stand-alone boutique preamps
    • 4 studio-grade compressors with super-easy "one-knob" functionality and control LED for professional vocal and instrumental sound
    • Neo-classic "British" 3-band EQs for warm and musical sound
    • Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins and ultra-low latency driver download
    • 2 aux sends per channel: 1 pre fader for monitoring applications, 1 post fader for external FX devices
    • Clip LEDs and mute/alt 3-4 function on all channels
    • 2 subgroups with separate outputs for added routing flexibility
    • 2 multi-functional stereo aux returns with flexible routing
    • Balanced main mix outputs with gold-plated XLR connectors plus separate control room, headphones and stereo tape outputs
    • Control room/phones outputs with multi-input source matrix
    • Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
    • "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
    • Rack mount brackets included for ultimate flexibility
    • Designed and engineered in Germany

  • Specifications:

      Microphone Inputs (XENYX Mic Preamp)
    • Type: XLR connector, electronically balanced, discrete input circuit

      Mic E.I.N.1 (20 Hz - 20 kHz)
    • @ 0Ω Source Resistance: -134dB, 135.7dB A-weighted
    • @ 50Ω Source Resistance: -131dB, 133.3dB A-weighted
    • @ 150Ω Source Resistance: -129dB, 130.5dB A-weighted
    • Frequency Response (-1dB): <10Hz - 150kHz (-1dB)
    • Frequency Response (-3dB): <10Hz - 200kHz (-3dB)
    • Gain Range: +10dB - +60dB
    • Max. Input Level: +12dBu @ +10dB GAIN
    • Impedance: 2.6kΩ bal.
    • Signal-to-Noise Ratio: 110dB A-weighted (0dBu In @ +22dB GAIN)
    • Distortion (THD + N): 0.005%/0.004% A-weighted

      Line Input
    • Type: 1/4" TRS jack, electronicallyÿbal.
    • Impedance: 20kΩ bal., 10kΩ unbal.
    • Gain Range: -10dB - +40dB
    • Max. Input Level: 30dBu

      Frequency Response (Mic In - Main Out)
    • <10Hz - 90kHz: +0dB/-1dB
    • <10Hz - 160kHz: +0dB/-3dB

      Stereo Inputs
    • Type: 2x 1/4" TRS jack, bal.
    • Impedance: 20kΩ bal., 10kΩ unbal.
    • Gain Range: -20dB - +20dB
    • Max. Input Level: +22dBu

      CD/Tape In
    • Type: RCA connector
    • Impedance: 10kΩ
    • Max. Input Level: +22dBu

      Equalizer
    • LOW: 80Hz/±15dB
    • MID: 2.5kHz/±15dB
    • HIGH: 12kHz/±15dB

      AUX Sends
    • Type: 1/4" mono jack, unbal.
    • Impedance: 120Ω
    • Max. Output Level: +22dBu

      AUX Returns
    • Type: 1/4" TRS connector, bal.
    • Impedance: 20kΩ bal., 10kΩ unbal.
    • Max. Input Level: +22dBu

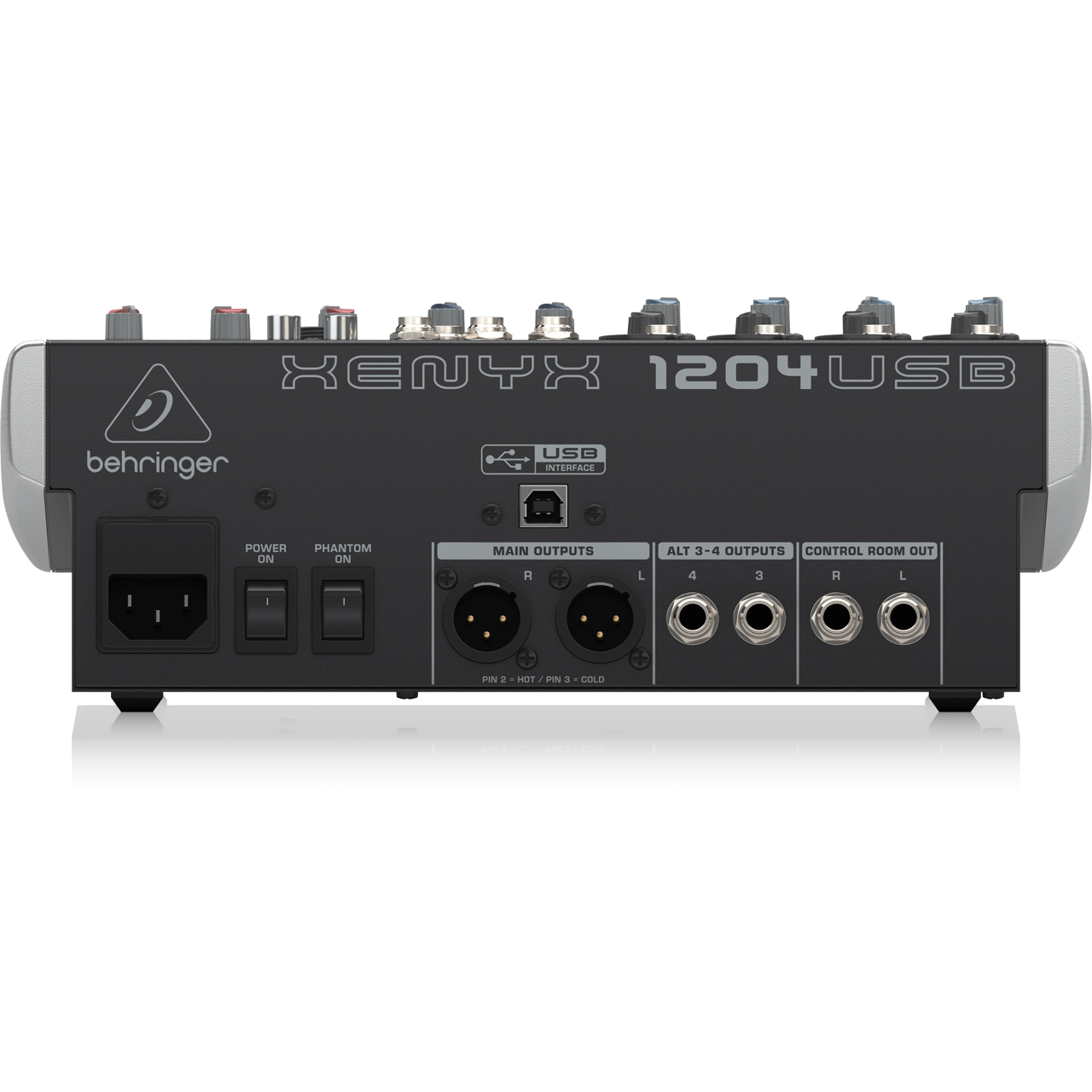

      Main Outputs
    • Type: XLR, electronically balanced
    • Impedance: 240Ω bal., 120Ω bal.
    • Max. Output Level: +28dBu

      Control Room Output
    • Type: 1/4" TS connector, unbal.
    • Impedance: 120Ω
    • Max. Output Level: +22dBu

      Phones Output
    • Type: 1/4" TRS jack, unbal.
    • Max. Output Level: +19dBu/150Ω (+25dBm)

      CD/Tape Out
    • Type: RCA connector
    • Impedance: 1kΩ
    • Max. Output Level: +22dBu

      DSP
    • Converter: 24-bit Delta-Sigma 64/128-times oversampling
    • Sampling Rate: 40kHz

      Main Mix System Data (Noise)
    • Main Mix @ ∞, Channel Fader @ ∞: -105dB/-108dB A-weighted
    • Main Mix @ 0dB, Channel Fader @ ∞: -95dB/-97dB A-weighted
    • Main Mix @ 0dB, Channel Fader @ 0dB: -82.5dB/-85dB A-weighted

      Power Supply
    • Mains Voltage: 100V - 240V, 50/60Hz
    • Power Consumption: 40W
    • Fuse (100V - 230V, 50/60Hz): T 1.6 A H 250V
    • Mains Connector: Standard IEC receptacle

      USB
    • Connecter: Type B
    • Converter: 16-bit
    • Sample Rate: 48kHz

      Physical/Weight
    • Dimensions (HxWxD): 3.8" x 10.6" x 12.9" (97mm x 270mm x 328mm)
    • Weight: 8.4lbs (3.8kg)

  • Warranty:

    • 3 Year

  • GTIN:

    0736211582843
