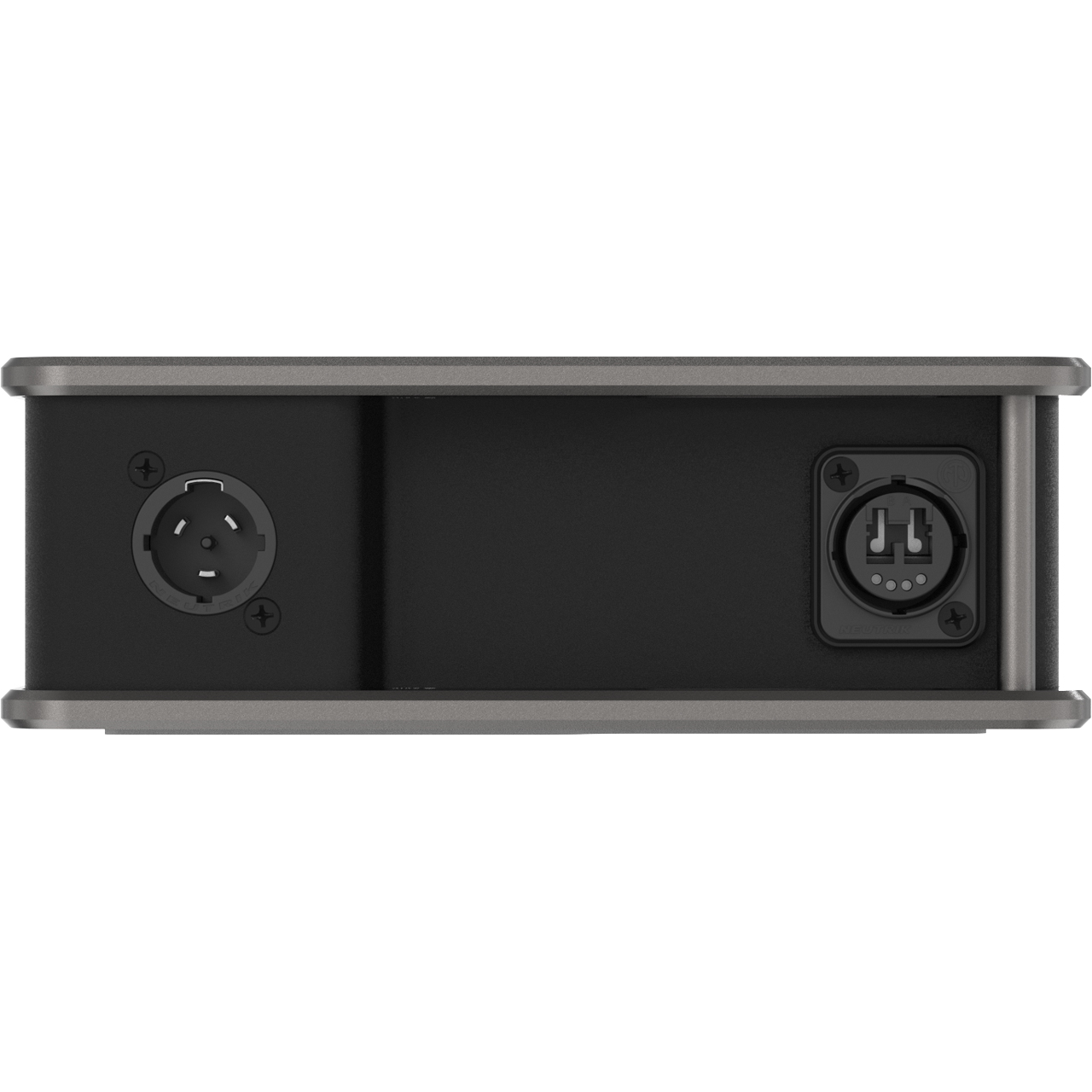

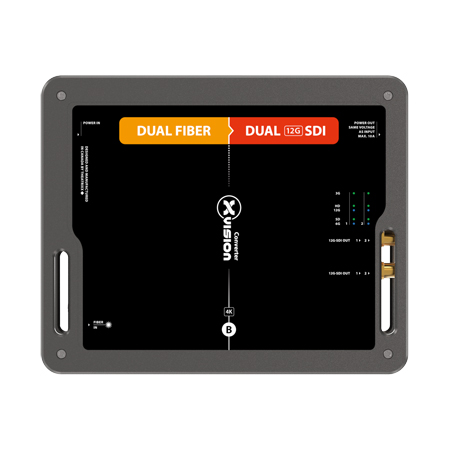

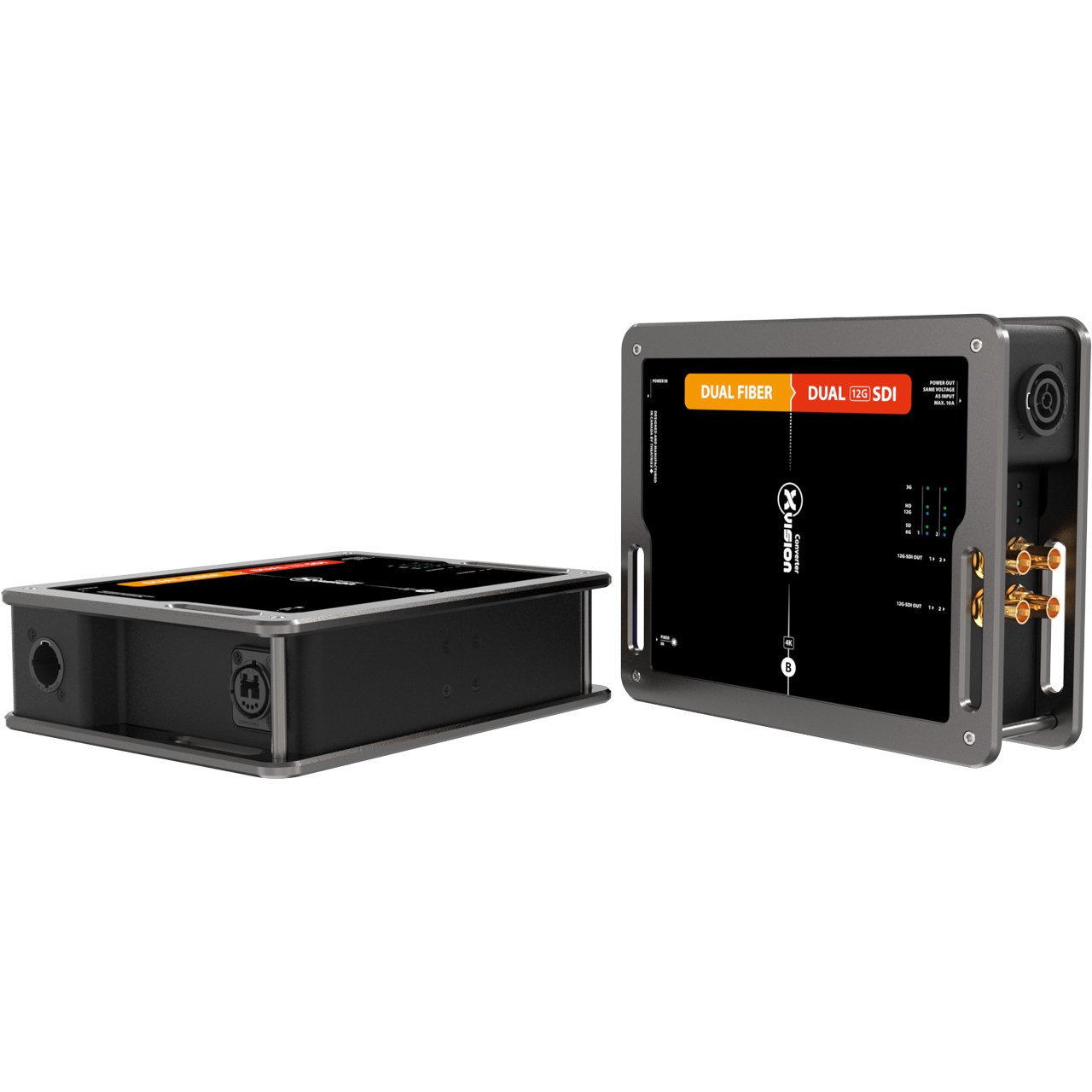

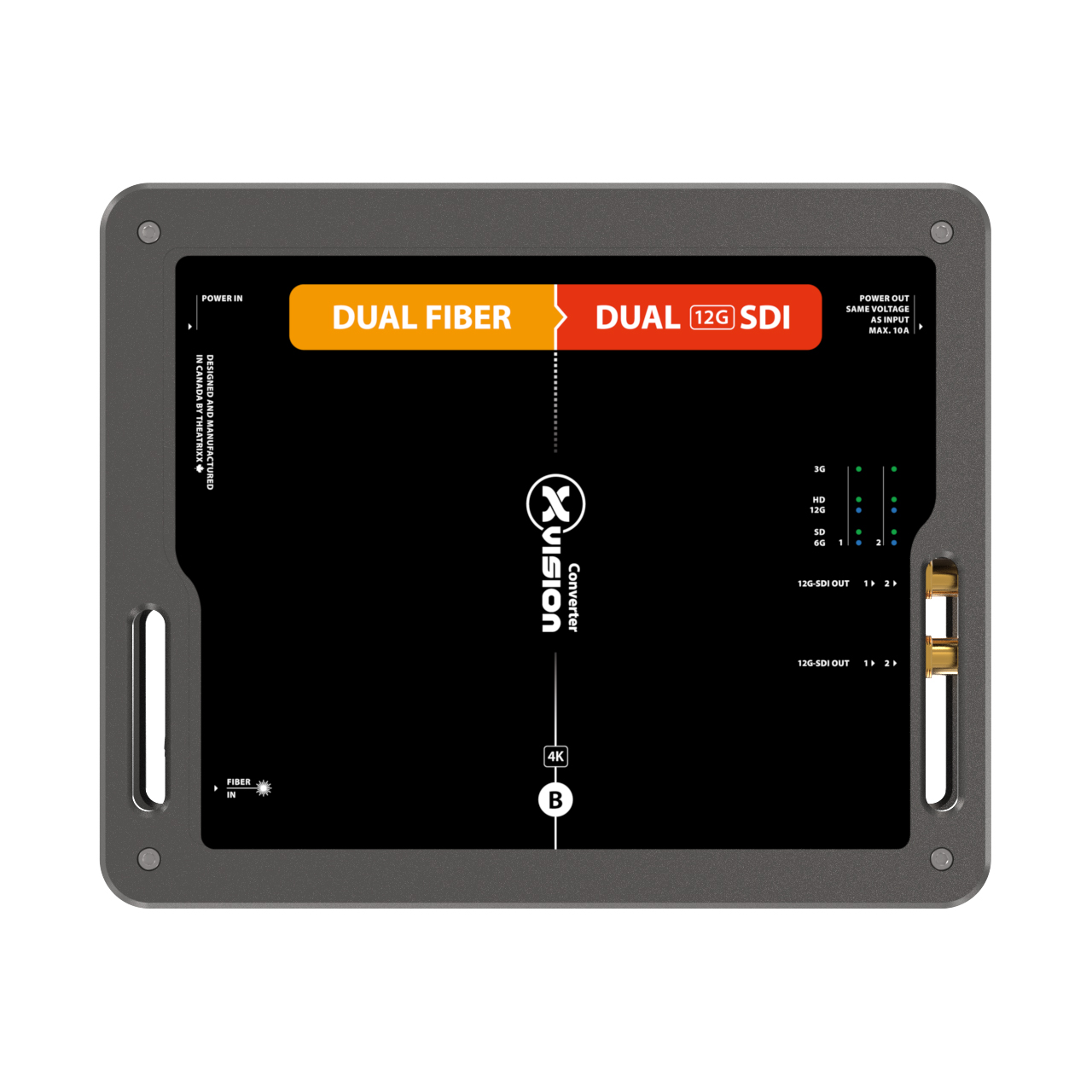

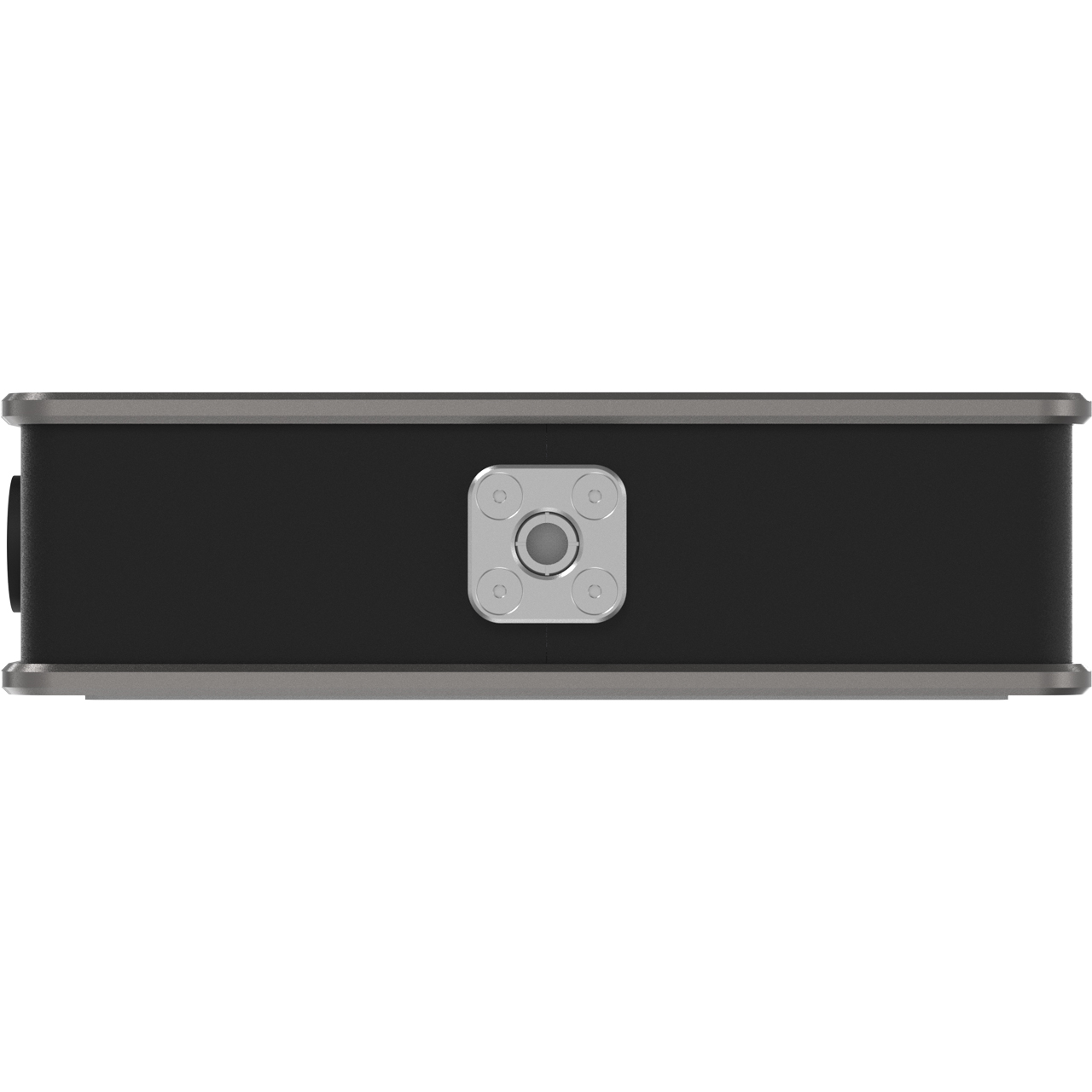

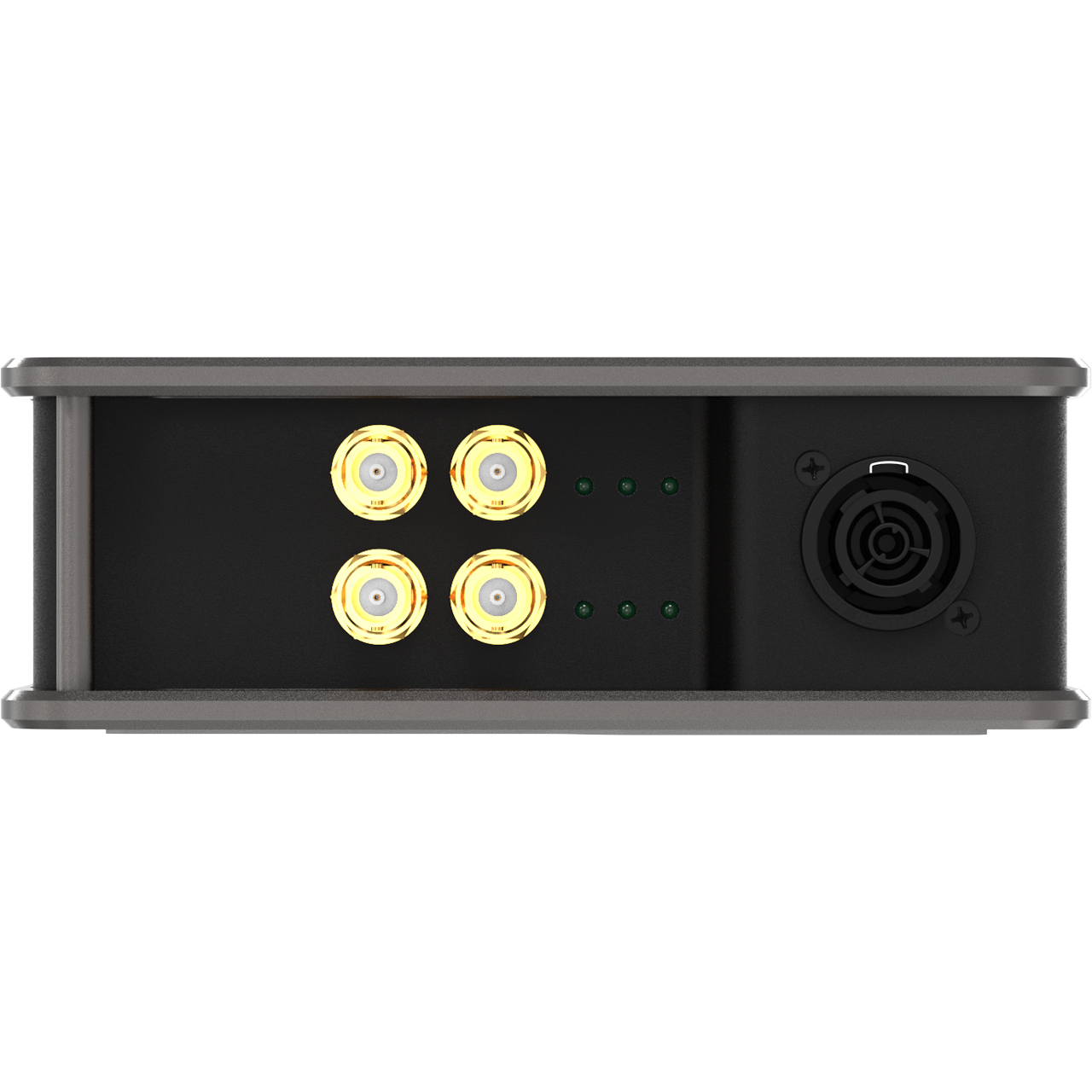

Theatrixx XVV2FIBER2SDI-12GS3 xVision Dual Channel Fiber to 12G-SDI - PT1 In/Thru - Singlemode - OpticalCON QUAD

ITEM #: XVV2FIB2SDI12GS3 MFG #: XVV2FIBER2SDI-12GS3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,560.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    XVV2FIBER2SDI-12GS3 - Overview

    Dual Channel Fiber to 12G-SDI with OpticalCON QUAD - PT1 In/Thru - Singlemode
    Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.

    Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

    Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

    • Features:

      • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
      • Built-in convenience AC outlet to power nearby projector, TV, laptop, Singlemodeall video projector..Power bar to power both the converter and device not required anymore.
      • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
      • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
      • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
      • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
      • Clear and ample status LED indicators for quick troubleshooting.
      • Easy on-the-field identification with unique color and alphabetic coding system.
      • SFP-based video tranSinglemodeission for interoperability with standard SDI over fiber devices.
      • Reclocked and amplified SDI loop thru
      • Proudly designed and assembled in Canada.

    • Specifications:

      • Connections
      • Video Input: 2x 12G/6G/3G/HD/SD SDI BNC
      • Loop-thru: 2x 12G/6G/3G/HD/SD SDI BNC
      • Video Ouput: Singlemode / Optical SDI on OpticalCON QUAD

        Supported Signals
      • Video Format: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
      • SinglemodePTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M

        Physical
      • Height: 62mm (2.44 in)
      • Depth: 180mm (7.08 in)
      • Width: 221mm (8.7 in)
      • Weight: 2 kg (4.4 lbs)
      • Alternate Form Factor: Also available as a Reversible Module

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 0-40 °C

        Power Requirements
      • Power Supply: Built-in power supply, PowerCon True1 input, PowerCON True1 output (loop-thru)
      • Power Consumption: 45W max.
      • Operational Voltage Range: 100-240V, 50-60Hz
      • Courtesy Outlet: Max 10 A, same voltage as input

    • Item Includes:

      • 1x XVV2FIBER2SDI-12GS3 xVision Dual Channel Fiber to 12G-SDI - PT1 In/Thru - Singlemode - OpticalCON QUAD
      • 1x Edison (5-15) to PowerCON True1 Cable (1.5m)
      • 1x 25mm X 65cm Fabric Strap
      • 1x M10 X 20mm Flat Screw + 1x M10 X 30mm Socket Cap Screw
