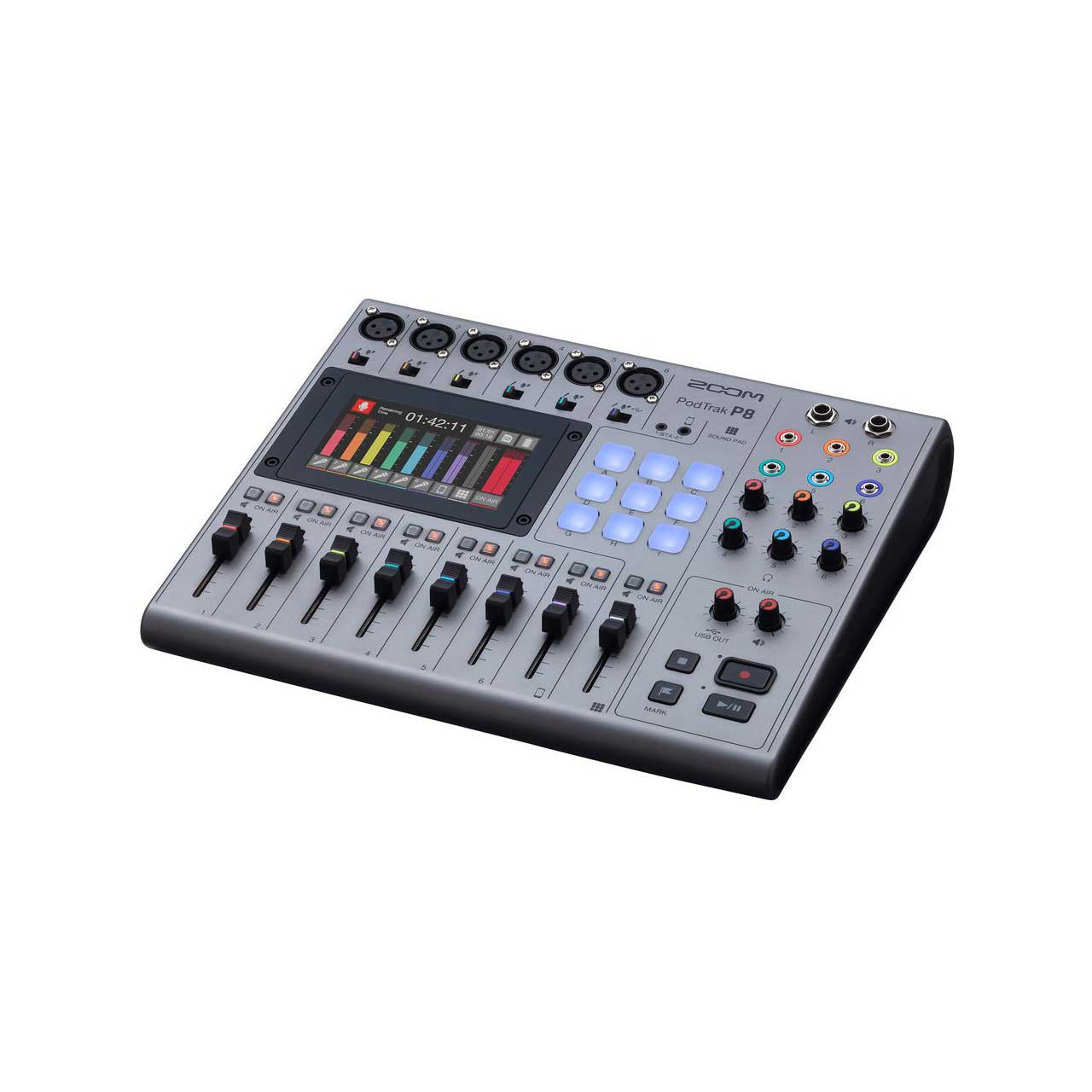

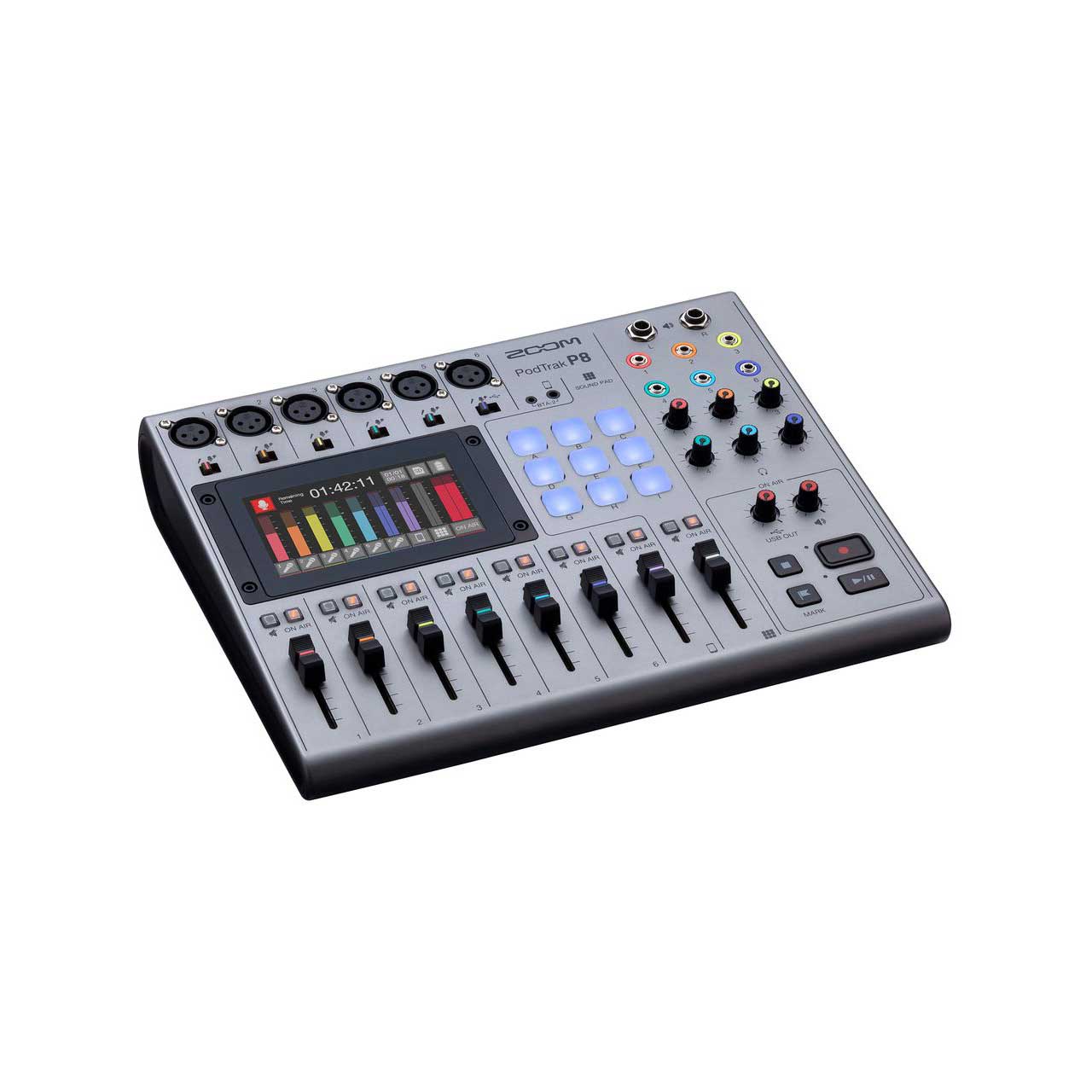

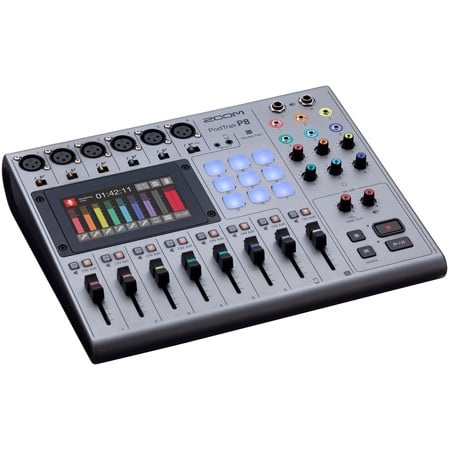

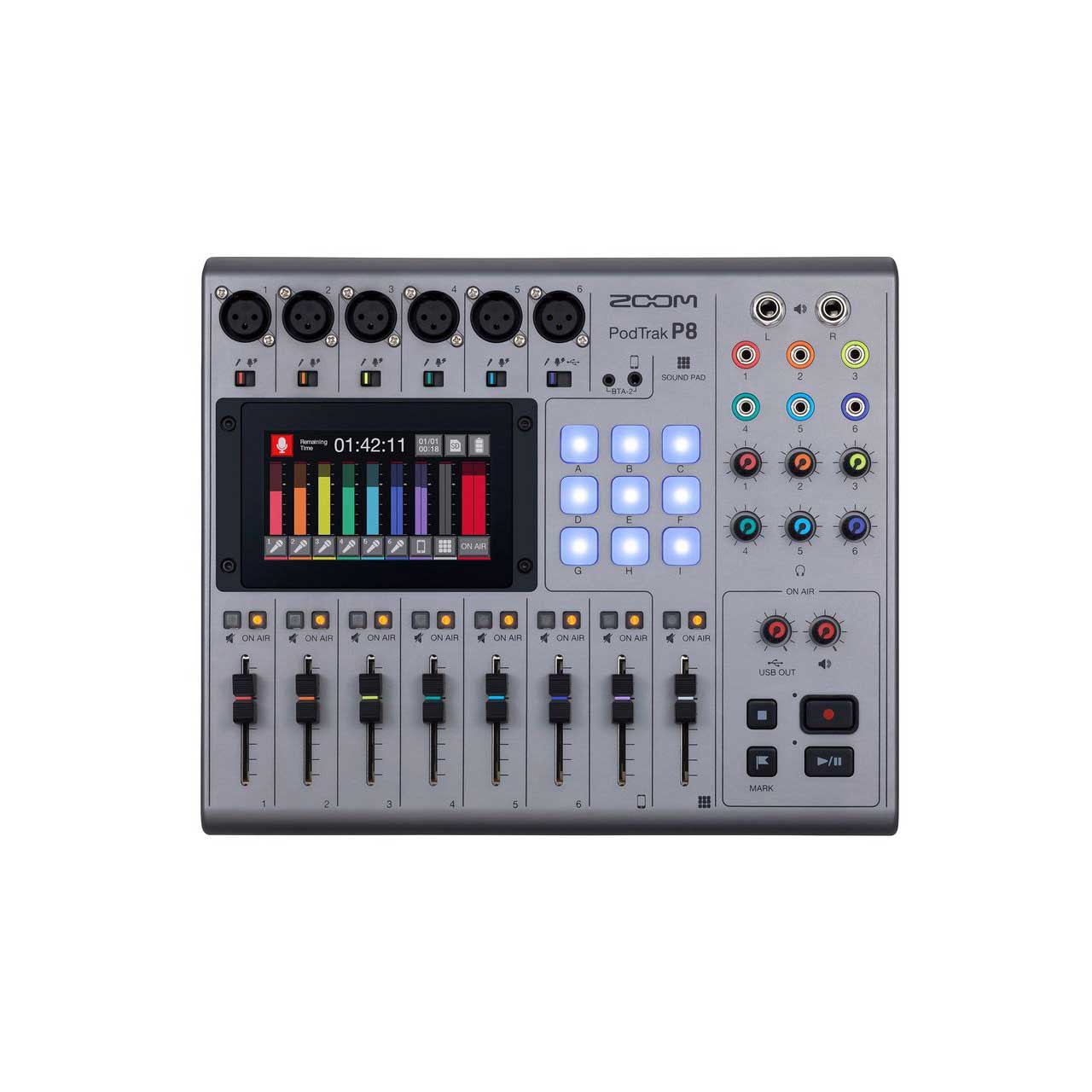

ZOOM PodTrak P8 Portable Multi-Track Podcast Recorder with 9 Sound Pads and Mix/Minus Capability

P8 - Overview

• Features:

  • 4.3" Color LCD touchscreen display. Select from English, French, German, Italian, Spanish and Japanese
  • Record up to 13 tracks simultaneously
  • Six mic inputs with XLR connectors and optional phantom power
  • Individual volume sliders, mute buttons and "on air" indicators for each channel
  • Dedicated channel for recording remote interviews
  • Mix-Minus function automatically prevents echo and feedback from callers phone
  • Nine assignable Sound Pads with four banks
  • 13 pre-loaded sounds including applause, laugh track and more
  • Six headphone outputs with individual volume controls let everyone hear clearly
  • Onboard editing
  • 2-input, 2-output USB audio interface
  • Class-compliant mode for iOS compatibility

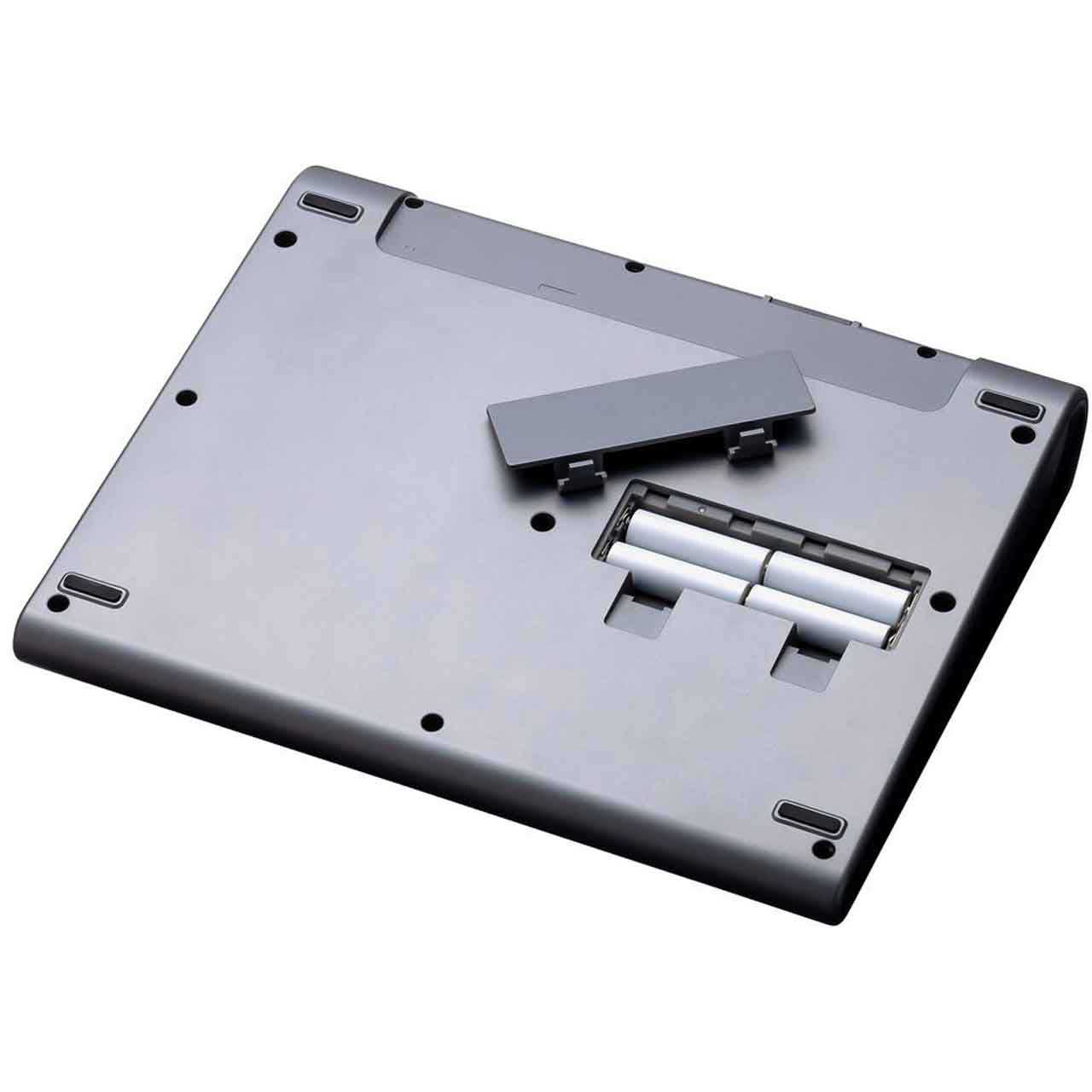

  • Battery power provides up to two hours of use with four AA batteries
  • Up to two hours of use with four AA batteries or use the included AD-14 AC power adapter
  • Records directly to SD, SDHC and SDXC cards up to 512GB
  • 16-bit /44.1kHz audio in WAV format
  • Optional BTA-2 Bluetooth Adapter enables wireless call recording


• Specifications:

  • Inputs & Outputs
  • Number Of Input Channels: Mic inputs: 6 (mono) Smartphone input: 1 (stereo)
  • Number Of Output Channels: 2 (6 headphones and L/R speaker outputs)

    Mic
  • Type: XLR jacks (2: HOT)
  • Input Gain: 0 + 70 dB
  • Input Impedance: XLR:3 kΩ
  • Maximum Input Level: +5 dBu (@0dBFS)
  • Phantom Power: +48 V

    Smartphone Connection Jack
  • Type: TRRS mini jack (4 contacts, TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
  • Input Impedance: 3 kΩ
  • Maximum Input Level: +2.5 dBu

    USB

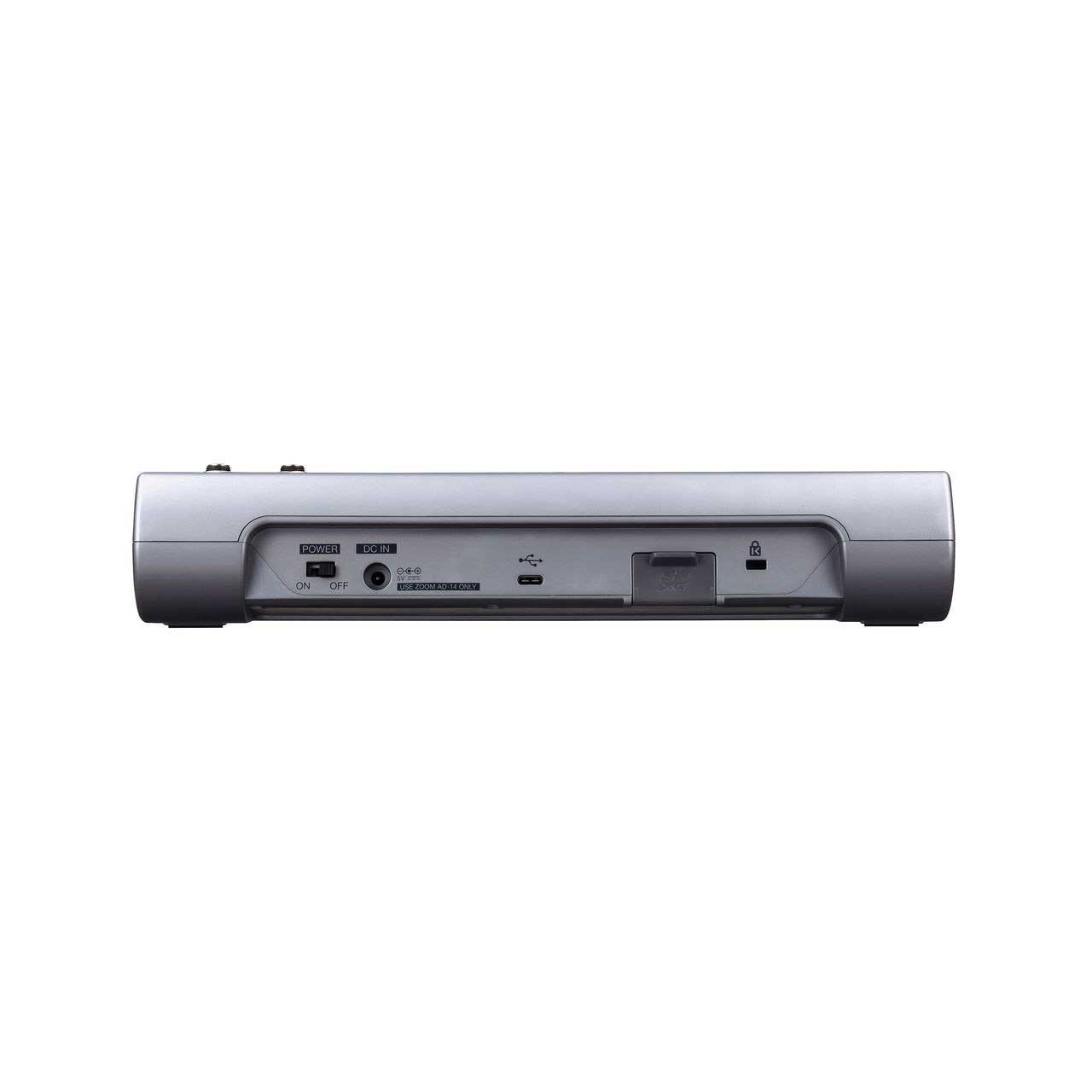

  • USB Type-C: (Audio Interface And Mass Storage Functions)

    Headphones
  • Type: 3.5mm stereo mini
  • Maximum Output Level: 20 mW + 20 mW @32 Ω
  • Output Impedance: 27 Ω

    Speaker Output:
  • Type: TRS jacks (balanced)
  • Maximum Output Level: +5.5 dBu
  • Output Impedance: 320 Ω

    AC Adapter
  • Power Supply Connector For Ad-14
  • Format: WAV 44.1kHz, 16-bit, mono/stereo
  • Recording Media: 4-32 GB cards compatible with the SDHC specification (class 10 or higher), 64-512 GB cards compatible with the
    SDXC specification (class 10 or higher)
  • Audio Interface: 44.1 kHz?16-bit?6 in / 2 out
  • Frequency Response: -1.0 dB: 20 Hz ~ 20 kHz @44.1 kHz
  • Equivalent Input Noise: EIN -124 dBu (IHF-A) @+70 dB, 150 Ω input
  • Display: 4.3" (480x272) full-color touchscreen LCD
  • Power Supply: 4 AA batteries (alkaline, lithium, or rechargeable NiMH) AC adapter (ZOOM AD-14): DC 5 V/1 A (supports USB bus power)
  • Power Consumption: 5 W
  • External Dimensions: 295 mm (W) x 248 mm (D) x 61 mm (H)
  • Weight (Unit Only): 1.43 kg


• Item Includes:

  • 1x ZOOM PodTrak P8 Podcast Recorder
  • 1x ZOOM AD-14 AC Adapter
  • 1x ZOOM Quick Guide


• GTIN:

  0884354023454
