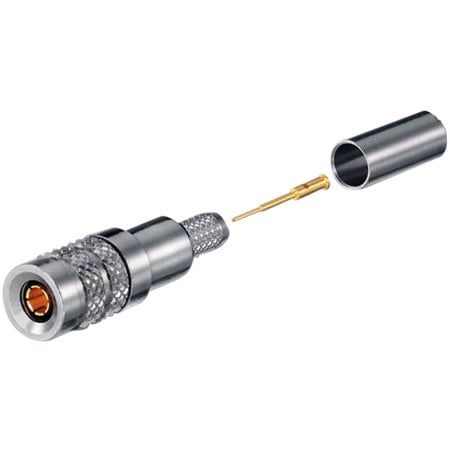

Kings 0345-E00-C7202NU Conn DIN 1.0/2.3 PL 0Hz to 6GHz 75Ohm ST Cable Mount Gold/Nickel Bulk 100 Pack for 1855A

0345-E00-C7202NU - Overview

• Features:

  • DIN 1.0/2.3 Cable Plugs feature precision machined components designed to provide long-term durability, reliability, and performance
  • Crimp center contact features a retention barb which snaps into the insulator to prevent the pin contact from backing out of the connector
  • DIN 1.0/2.3 Cable Plugs use the same KTH-1000 Crimp Tool and Die Sets as KINGS® popular 75 Ohm Broadcast BNC Connectors
  • DIN 1.0/2.3 interface offers twice the density of BNC Connectors and is increasingly being used as the interface of choice on today’s high-end Broadcast equipment


• Specifications:

  • Body: Brass
  • Body: Nickel over Copper
  • Outer/Center Contacts: Gold over Nickel
  • Ferrule: Nickel over Copper
  • Center Contacts: Beryllium Copper
  • Insulators: Teflon®
  • Ferrule: Bronze
  • Impedance: 75 Ohms
  • Frequency Range: DC to 6 GHz
  • Return Loss: 1 GHz < 32 dB; 3 GHz < 23 dB; 6 GHz < 15 dB
  • Durability: 500 Cycles Minimum
  • Mating: Push/Pull, Slide-on
