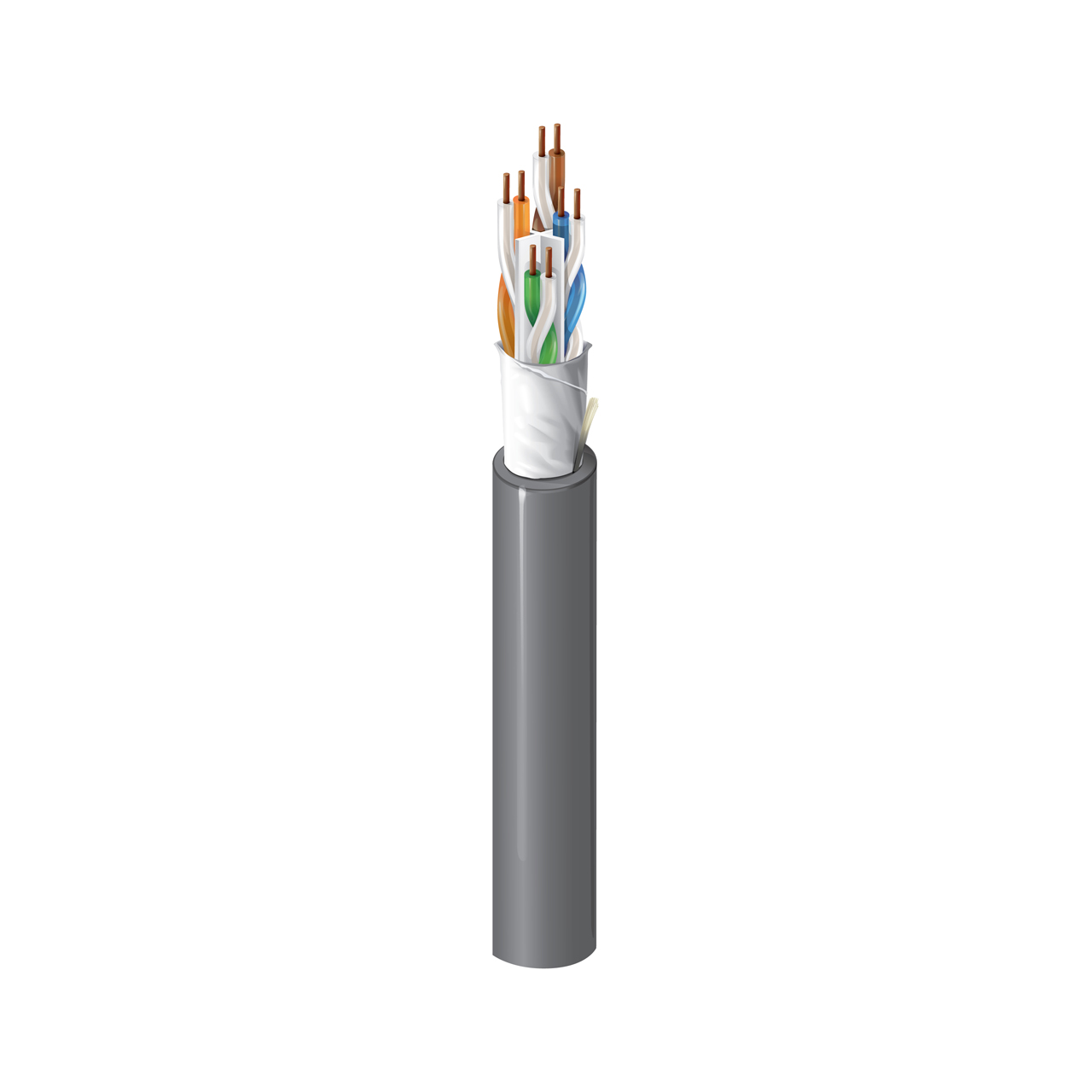

Belden 10GXW13 CMP/Plenum CAT6A 0.250-Inch Diameter U/UTP Premise Horizontal Cable - 4-Pr 23AWG - Gray - 1000 Foot

10GXW131000GY - Overview

The Smallest and Lightest Horizontal Category 6A Cable Available!

• Features:

  • Reliable Network Performance: Designed for mission-critical situations that require constant uptime
  • Best-In-Class System Noise Immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
  • Reduce Installation Time and Costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
  • Unparalleled Performance: Full 100m channel length under 100W PoE load without derating up to 140°F (60°C) using 10GXS cables


• Specifications:

  • Conductor AWG: 23
  • Conductor Stranding: Solid
  • Conductor Material: BC-Bare Copper
  • Conductor Number of Pairs: 4
  • Conductor Count: 8
  • Insulation Material: FEP-Fluorinated Ethylene Propylene
  • Insulation Color Code: White & Blue, White & Orange, White & Green, White & Brown
  • Outer Jacket Separator: Center Member (Patented X-Spline), EquiBlock Barrier Technology
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jack Material Trade Name: Flamarrest
  • Outer Jacket Nominal Diameter: 0.250" (6.35mm)
  • Outer Jacket Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.250" (6.35mm)
  • UL Voltage Rating: 300V (CMP)
  • Storage Temp: -4°F - 167°F (-20°C - 75°C)
  • Operating Temp: -4°F - 167°F (-20°C - 75°C)
  • Bulk Cable Weight: 37lbs/1000ft
  • Max Recommended Pulling Tension: 25lbs (11kg)
  • Min Bend Radius/Minor Axis: 1"
  • Environmental Suitability: Plenum, Indoor
  • Flammability/Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
  • NEC/UL Compliance: Article 800, CMP, CMP-LP (0.5A), CL3P-LP (0.5A)
  • CEC/C(UL) Compliance: CMP


• Item Includes:

  • 1x 10GXW13 CMP/Plenum CAT6A Premise Horizontal Cable - Gray - 1000 Ft


• Warranty:

  • Limited 10 Year Warranty
