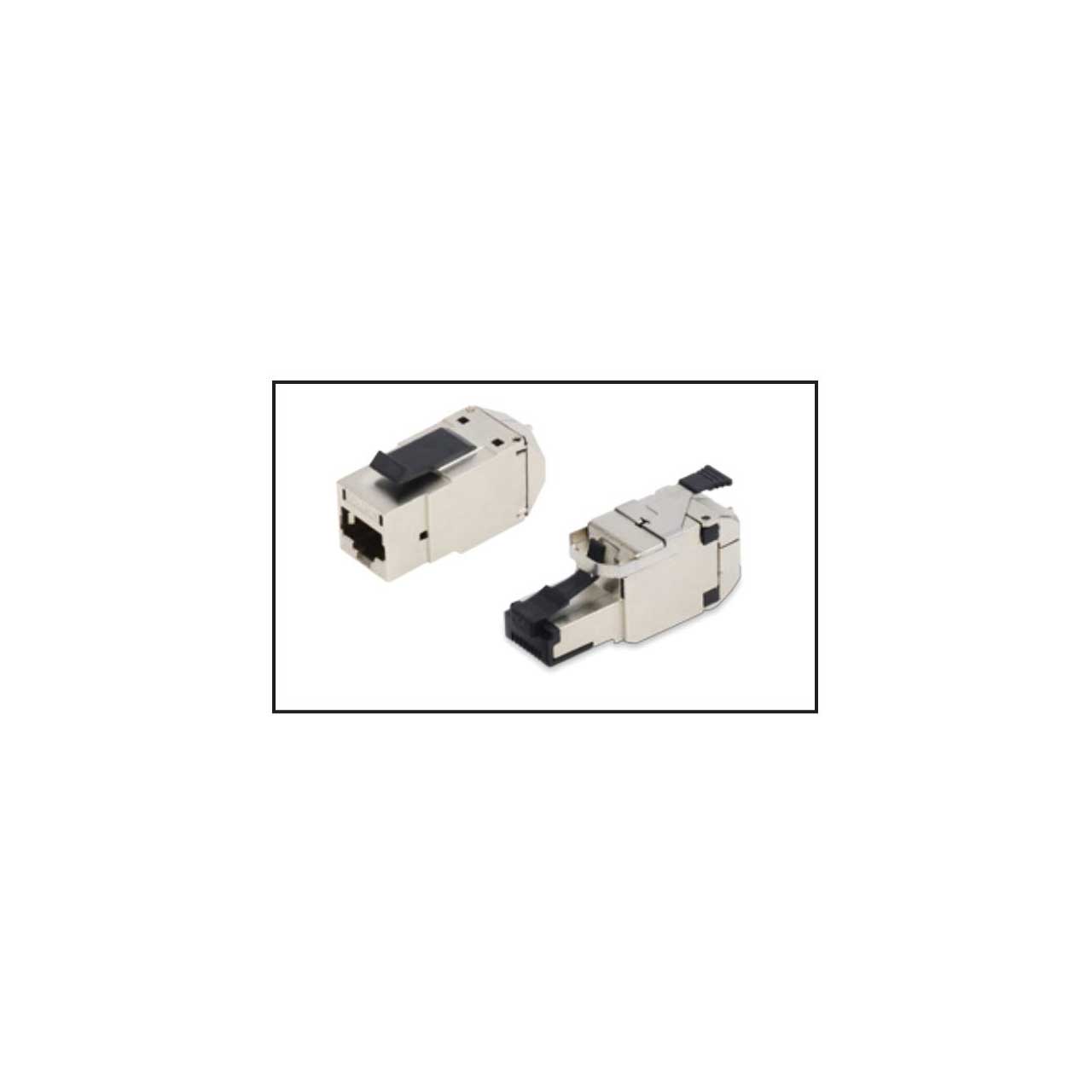

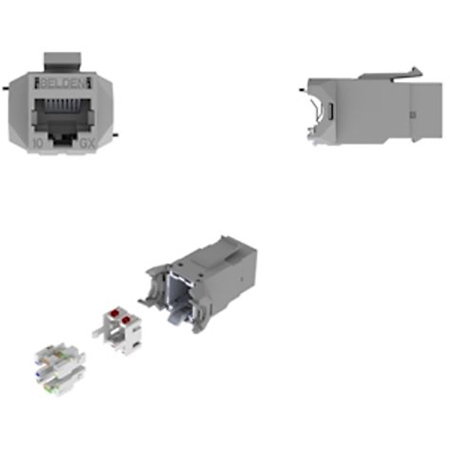

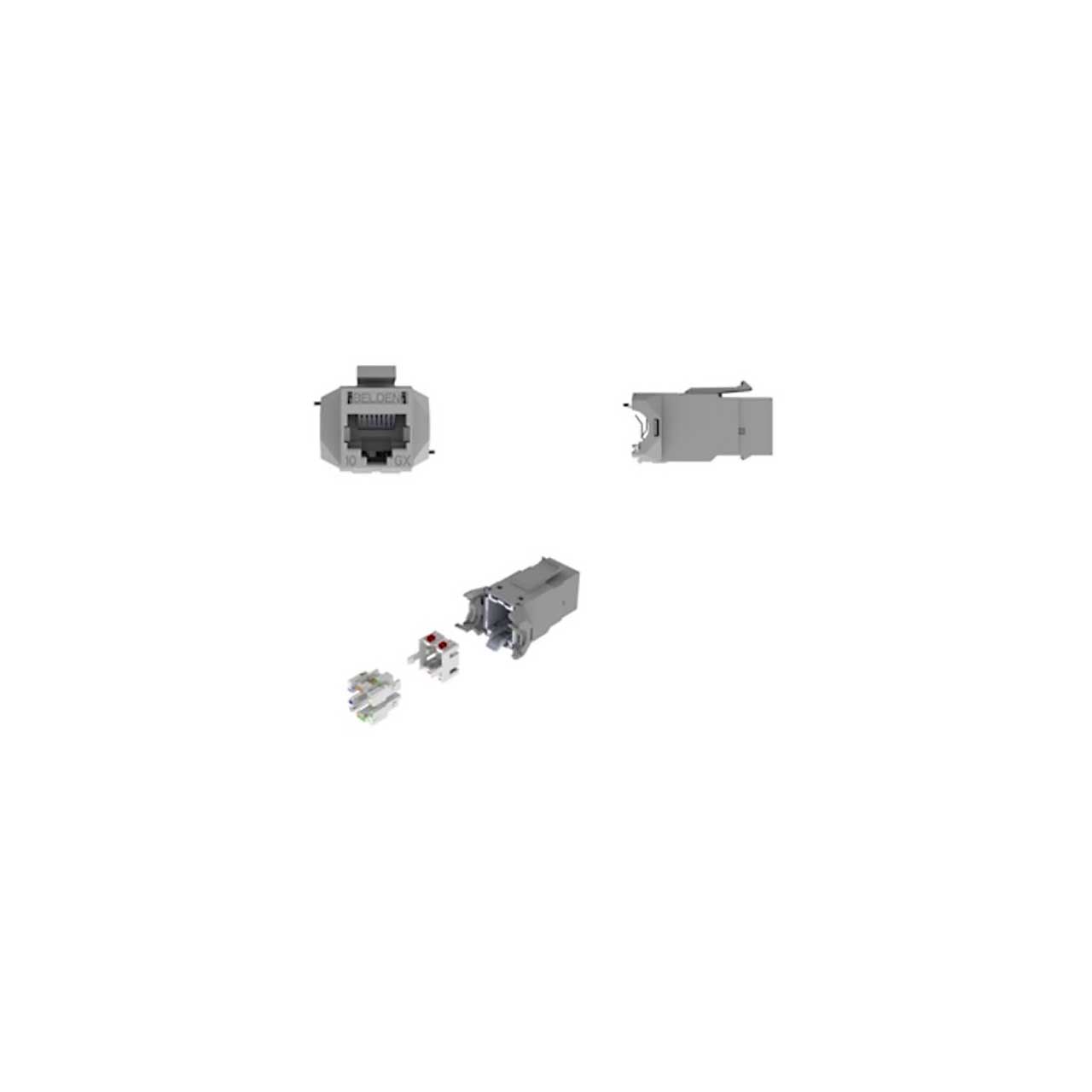

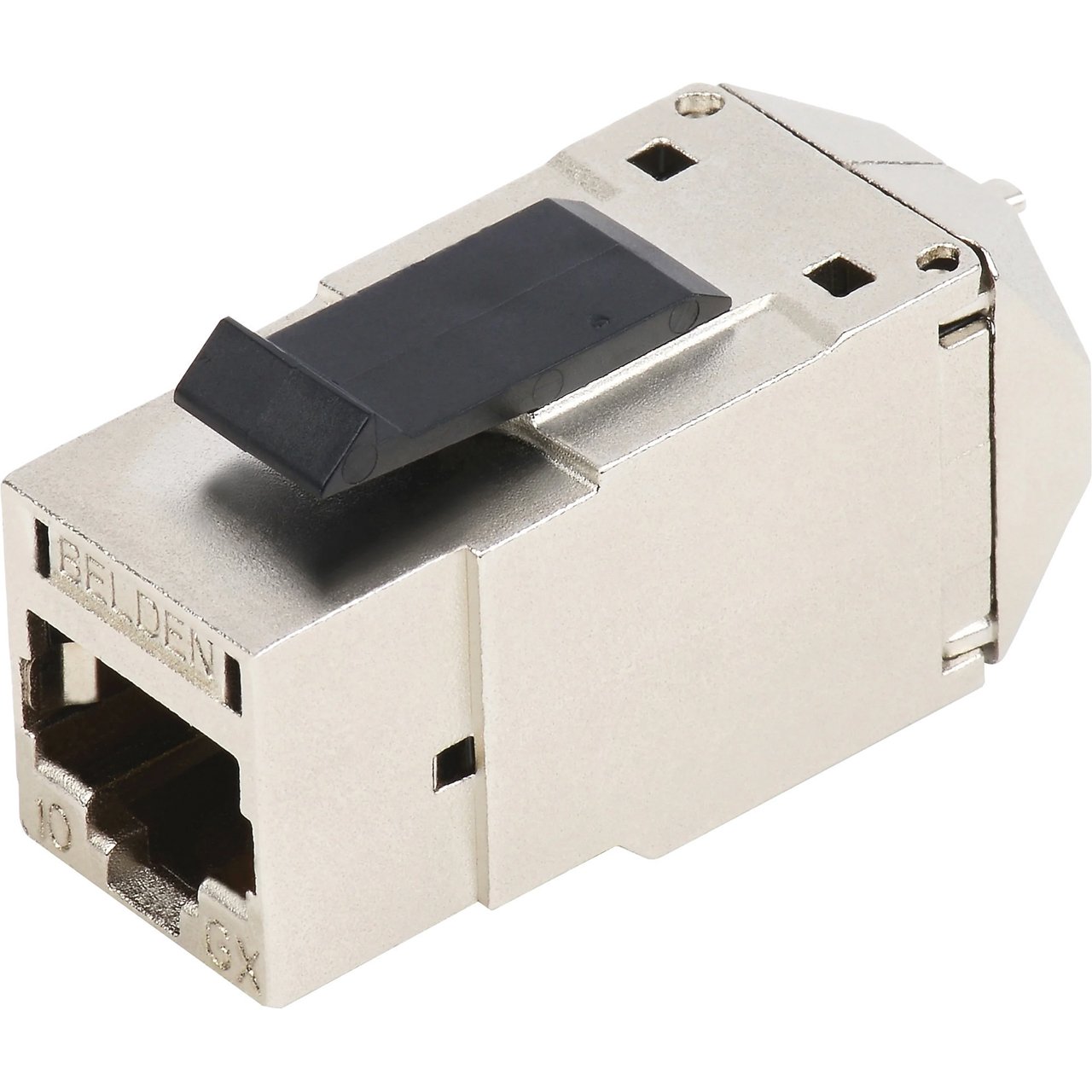

Belden RVAMJKSME-B24 REVConnect 10GX Shielded Modular Jack T568 A/B STP Metal - 24 Pack

RVAMJKSME-B24 - Overview

• Specifications:

  • Dimensions: 0.94" x 1.19" x 1.63"
  • Materials:
  • Front Connection (RJ45) - Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel
  • Rear Connection (REVConnect) - Copper alloy, Gold plated contacts over Nickel
  • Connector Body - Nickel plated zinc alloy diecast
  • Wiring Scheme: T568A/B
  • Weight: 0.7 oz
  • Packaging: Packaged in bulk pack of 24. Weight is per individual unit
  • Footprint/Type: KeyConnect
  • Plug / Jack Compatibility: RJ45, RJ11
  • Termination Interface: Front Mated Connection - 750 cycles; Rear Mated Connection - 20 cycles
  • Cable/Connector Retention: 66.723 N
  • Connector/Hardware Retention: 88.964 N
  • Plug/Connector Retention: 50.042 N
  • Storage Temperature Range: -40°C To +70°C
  • Installation Temperature Range: -10°C To +60°C
  • Operating Temperature Range: -10°C To +60°C
  • Tool Compatibility: RVUTT01 Termination Tool
  • UL Rating: UL94V-0
  • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2006
  • MII Order #39 (China RoHS): EUP 50
  • Telecommunications Standards: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
  • Safety Listing: c(UL)us Listed
  • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F
  • UL Flame Test: UL2043 Air Handling Spaces
  • Suitability - Indoor: Yes - Indoor
  • Insulation Resistance: 500 M-Ohm Minimum
  • Max. Contact Resistance: 20 m-Ohm
  • Termination Resistance: 2.5 m-Ohm


• Item Includes:

  • RVAMJKSME-B24 10GX Shielded Modular Jack - 24 Pack


• GTIN:

  0611589205023
