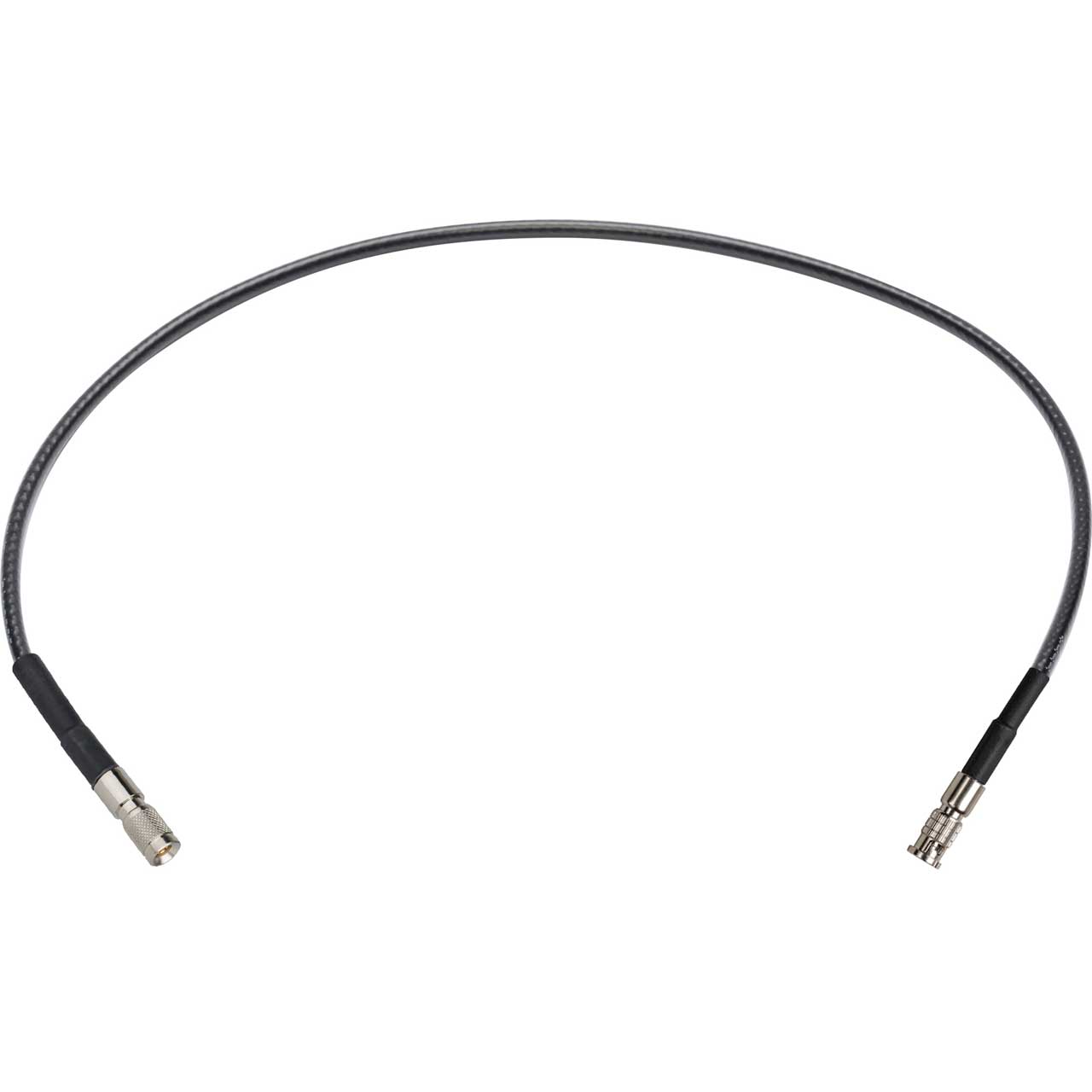

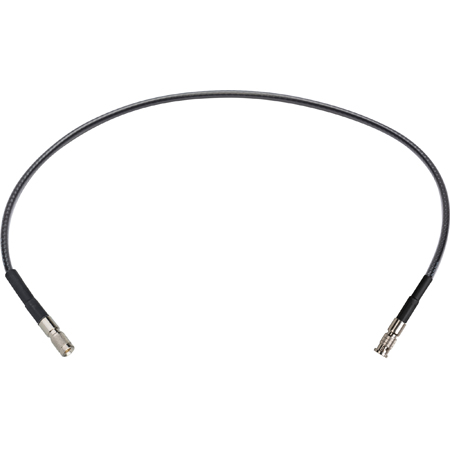

Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 3 Foot

ITEM #: 12GDIN4855-MB003 MFG #: 12GDIN4855-MB003

Primary Image
Laird Digital Cinema
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$34.49

Our Price:

$30.95

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

12GDIN4855-MB003 - Overview

The 12GDIN4855MB Series 12G-SDI DIN1.0/2.3 to 12G-SDI HD-BNC video adapter cables by Laird feature Belden's popular 4855R 12G miniature RG59 cable to fit in tight spaces and minimize cable weight. These cables find their home in the broadcast video market on Evertz routers, AJA & Blackmagic PCIe video cards and more. The Laird cable shop has designed these DIN video cables with the latest 12G infrastructure in mind. The thin profile makes them perfect for studio routing and ENG trucks because of its light weight. This cable is perfect for adapting 12G-SDI DIN 1.0/2.3 video gear to an HD-BNC infrastructure.

  • Features:

    • Designed for UHD and 4K Video Transport
    • 12 GHz, 4K UHD Precision 75-Ohm Video Cable
    • Single Link BNC Simplifies Installations
    • Push-Pull Coupling DIN 1.0/2.3 Connector
    • Optimized Transmission Distance for UHDTV
    • Transmits up to 150 ft/45m


  • Specifications:

    • 23 AWG Belden 12GHz Mini-RG59 Coax Cable
    • PVC Inner & Outer Jackets
    • Meets SMPTE ST 2082-1 and ST 2081-1, 424M Standards
    • DIN 1.0/2.3 RF Connector
    • 75 Ohm
    • 12G-SDI Optimized Amphenol HD-BNC Connector
    • Compatible With 12G-SDI Single Link Format Devices
    • Nominal Impedance: 75 Ohm
    • Insulation: Gas Injected Foam HDPE
    • Tinned Copper Braid Shield
    • Nominal Conductor DCR: 19.7 OHM/1000 ft
    • Nominal Capacitance Conductor to Shield: 16.3 pF/ft
    • Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet


  • Warranty:

    • 1 Year
