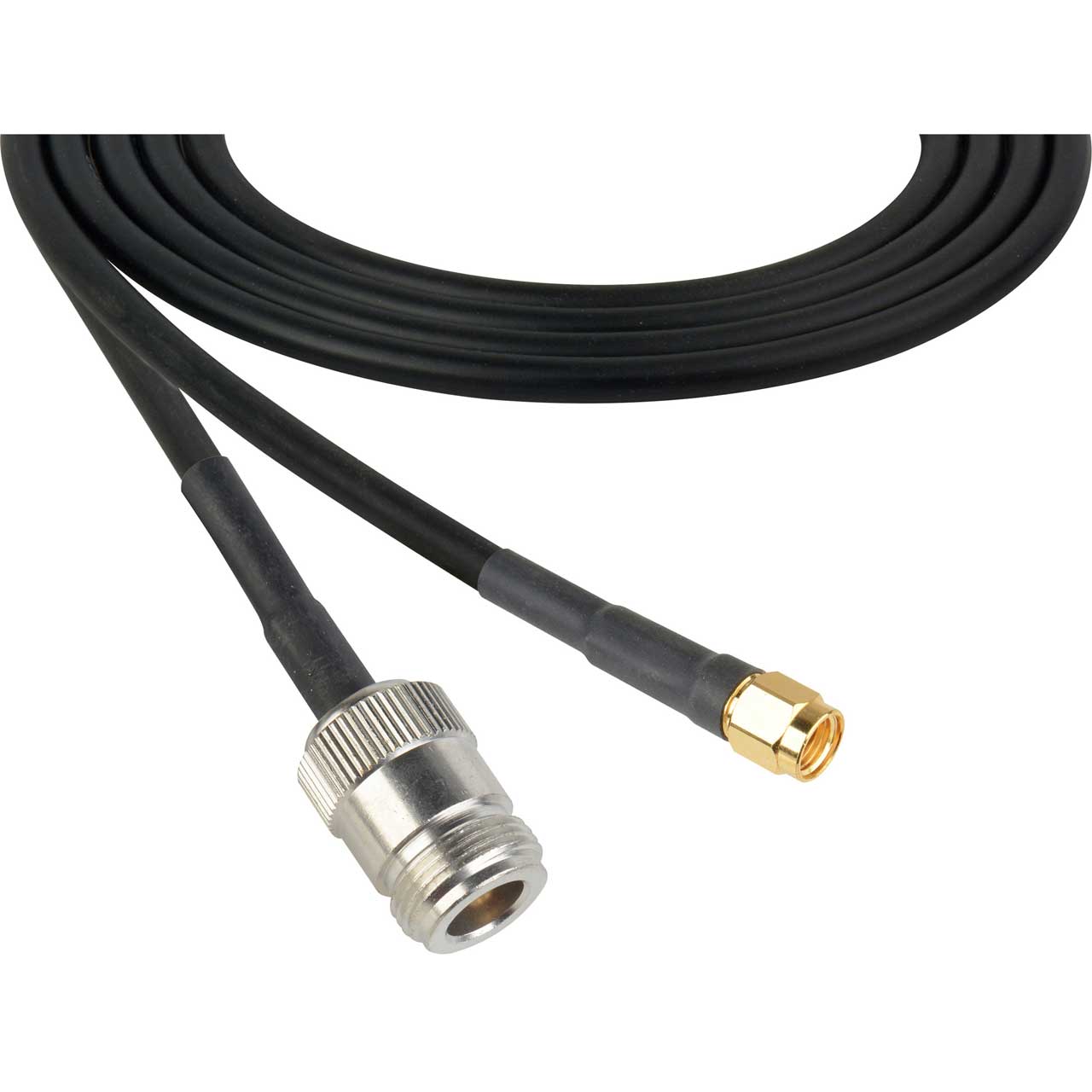

Laird Wi-Fi 802.11 a/b/g-Compatible Belden RG58 7807A Reverse-Polarized SMA Male to N-Type Female Cable - 10 Foot

ITEM #: 200-RPSMA-NF-10 MFG #: 200-RPSMA-NF-10

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$86.95

Our Price:

$78.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


200-RPSMA-NF-10 - Overview

802.11 a/b/g compatible; extend your Wi-Fi antenna connection to increase performance. RP-SMA is a common connector for wireless routers. Relocate your current Wi-Fi antenna to meet aesthetic needs and increase the performance of your wireless LAN network. This ultra low loss cable allows longer runs with no signal degradation. Relocating your Wi-Fi antenna to a more central location and out of an equipment closet is a simple and cost-effective solution for propagation problems.

  • Features:

    • Amphenol 172216 N Type Straight Crimp Jack
    • Amphenol 132234RP SMA Reverse Polarized 50 Ohm Straight Crimp Plug RF Connector
    • 50 Ohm wireless transmission coax cable

  • Specifications:

    • AWG: 17
    • Outer Jacket Material: PE - Polyethylene
    • Overall Cable Diameter (Nominal): 0.195" (4.95mm)
    • Voltage Rating: 300V
    • Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - Black only; When supported by messenger wire
    • Nominal Characteristic Impedance: 50Ω
    • Frequency (MHz): 5MHz - 6000MHz
    • Non-UL Temp Rating: 176°F (80°C)
    • Operating Temp Range: -40°F - 167°F (-40°C - 75°C)
    • Max Recommended Pulling Tension: 25.4lbs
    • Min Bend Radius/Minor Axis: 2"
    • RG Type: 58/U Type

  • Warranty:

    • 1 Year
