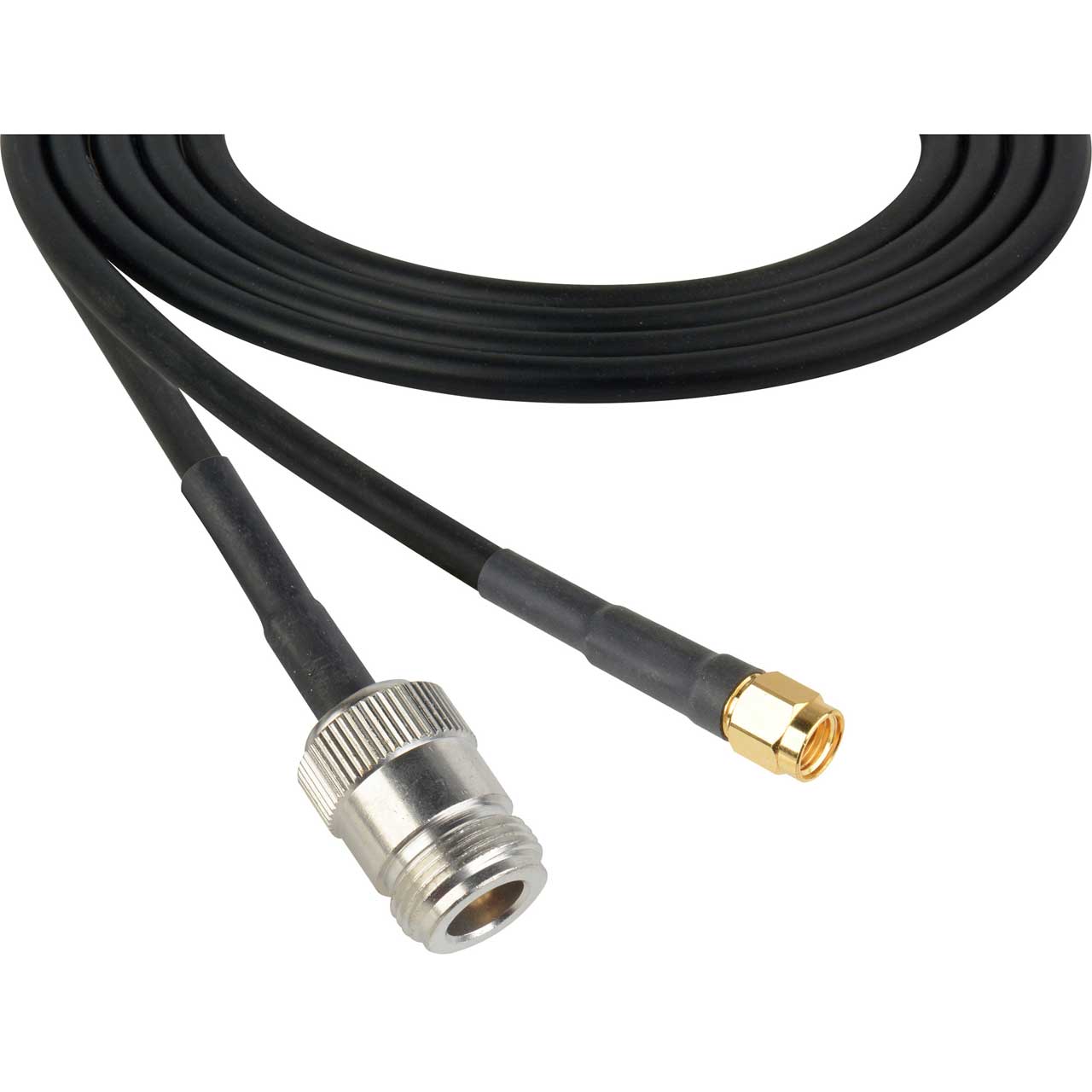

Laird Wi-Fi 802.11 a/b/g-Compatible Belden RG58 7807A Reverse-Polarized SMA Male to N-Type Female Cable - 2 Foot

200-RPSMA-NF-2 - Overview

• Features:

  • Utilizes Belden-7807A cable and High-Quality Amphenol RF Connectors
  • Indoor/outdoor rated
  • Designed for Low Loss (attenuation), Low Passive intermodulation (PIM), and Low Voltage Standing Wave Ratio (VSWR)
  • Excellent performance across long distances


• Specifications:

  • RG Type: 58
  • Conductor AWG: 17
  • Conductor Stranding: Solid
  • Conductor Nom. Diameter: 0.044 in (1.117mm)
  • Conductor Material: Bare Copper-BC
  • Overall Cable Diameter: 0.195 in (4.95 mm)
  • Insulation Material: Polyethylene - PE - (Foam)
  • Insulation Nom. Diameter: 0.116 in (2.95 mm)
  • Outer Shield Layer 1 Type: Tape
  • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
  • Outer Shield Layer 2 Type: Braid
  • Outer Shield Layer 2 Material/Coverage: Tinned Copper (TC)/95%
  • Outer Jacket Material: Polyethylene - PE
  • Outer Jacket Nom. Diameter: 0.195 in (4.95 mm)
  • VSWR: 5 - 6000 MHz - 1.25:1
  • Nom. Conductor DCR: 5.4Ω/1000ft
  • Nom. Outer Shield DCR: 3.6Ω/1000ft (12Ω/km)
  • Nom. Capacitance Cond-to-Shield: 23.5 pF/ft (77.1 pF/m)
  • Nom. Characteristic Impedance: 50Ω
  • Nom. Velocity of Prop: 85%
  • Temperature: -40°F to 176°F (-40°C to +80°C)
  • Flexing Bend Radius: 1.9 in (48 mm)
  • Max Pull Tension: 25.4lbs (11.5 kg)
  • Weight: 0.026lbs/ft

    Connectors:
  • Body Finish:
    -N-Type: White Bronze
    -RP Connector: Gold
  • Body Material: Brass
  • Contact Finish: Gold
  • Contact Material:
    -N-Type: Phosphor Bronze
    -RP Connector: Brass
  • Coupling Mechanism: Threaded
  • Frequency (Max GHz): 11
  • Impedance (Ohms): 50Ω


• Warranty:

  • 1 Year
