Steren 201-232 2-Way 2.4Ghz 90dB Satellite Splitter DC Power Passing to One Port

ITEM #: 201-232 MFG #: 201-232

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the 201-232

201-232 - Overview

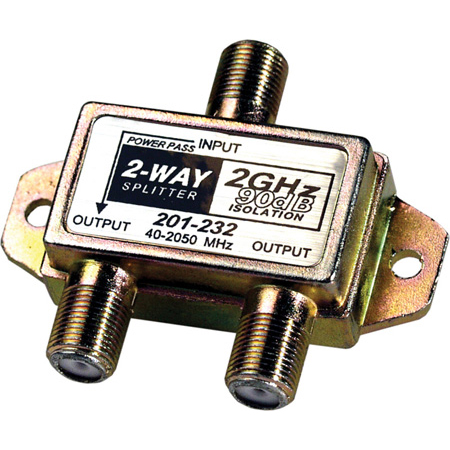

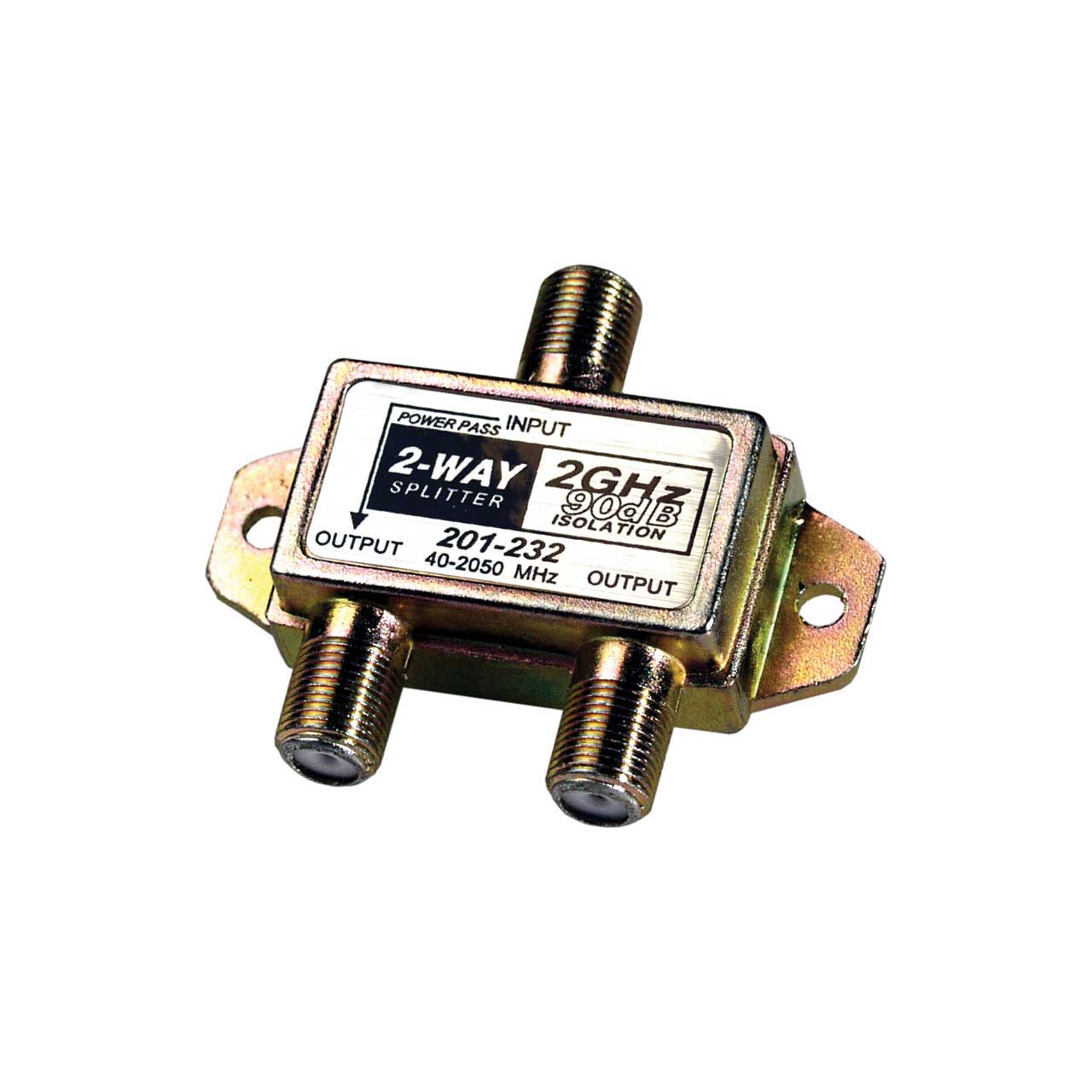

The Steren 201-232 2GHz satellite splitter for satellite and other high frequency use. These printed circuit board splitters are state of the art and of the highest quality. Tin plated zinc housing and 100% soldered back provides the most effective RF shielding at 90dB! High performance, maximum signal transfer with minimum loss.

  • Features:

    • 2.4 GHz Satellite Splitter
    • 950 - 2400MHz
    • 75 Ohm
    • High-Frequency F-Splitters
    • Suitable for Analog and Digital Satellite Applications
    • 90 dB min RFI Shielding
    • Epoxy-Sealed Back-Cover
    • High-Performance Printed-Board Circuitry
    • Improved Hum Modulation and Intermodulation
    • 3/8 Precision Machined F-Connector Threads
    • Mounting Tabs with Screws
    • One Port DC Power Passing
    • Insertion Loss 4.4dB max.
    • Port-Port Isolation 12dB min.
    • Input Return Loss 12dB min.


  • GTIN:

    0884645110818
