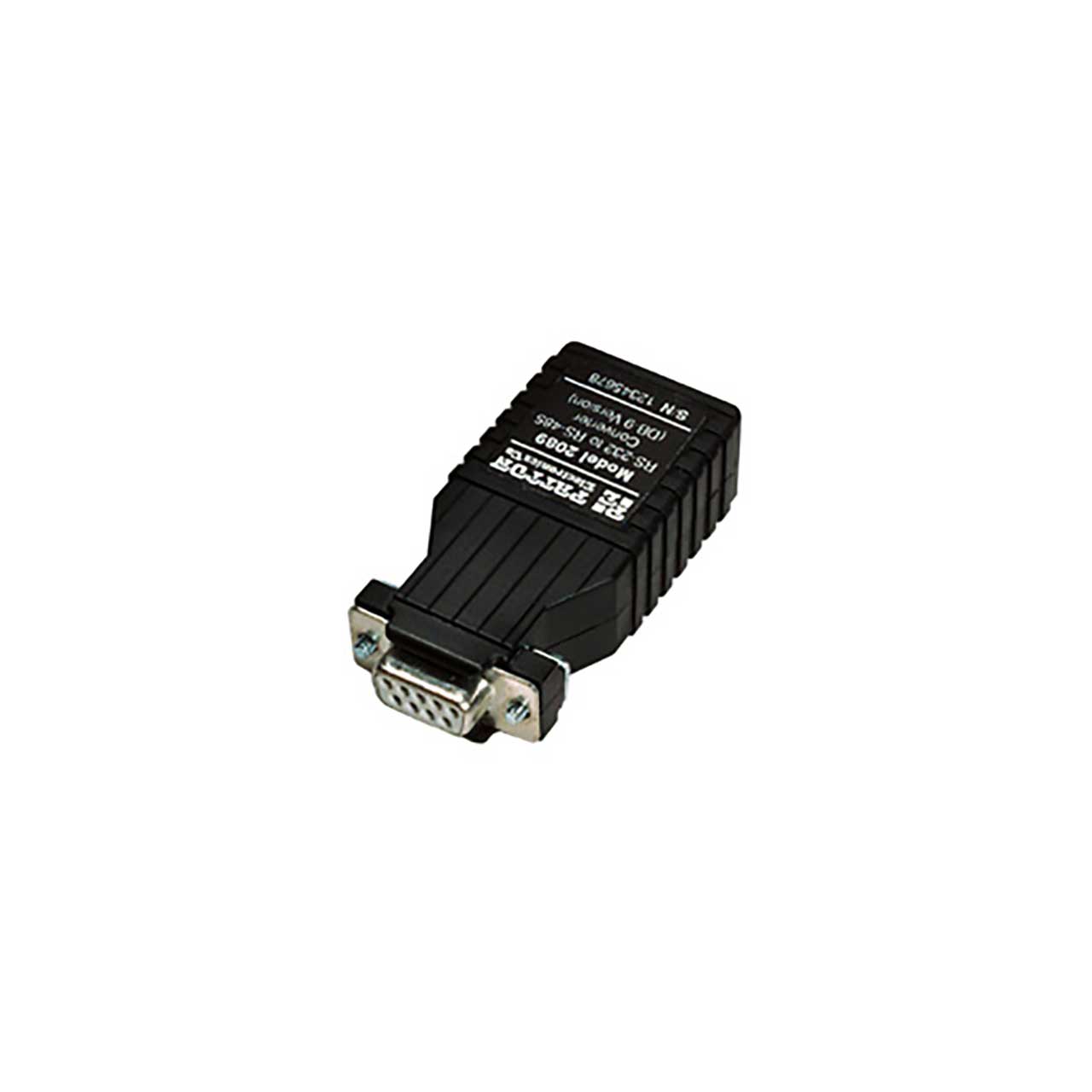

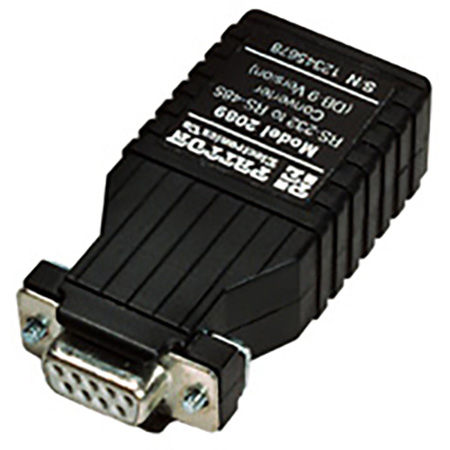

The Model 2089F-RJ45 is Patton's first high speed RS-232 on a DB-9 to RS-485 EIA-574 interface converter with handshaking. The 2089F-RJ45 features a DB9 female to RJ45 connector. The Supporting async data rates to 115.2 kbps over one or two unconditioned twisted pair, the Model 2089F-RJ11 passes one control signal in each direction. The Model 2089 can handle up to 50 terminal drops in a multipoint polling environment; yet it is small enough to plug directly into a DB-9 serial port...and requires no AC power or batteries for operation. The Model 2089 has five configuration parameters, allowing the unit to be "fine tuned" to a variety of point-to-point or multipoint applications. Silicon Avalanche Diode surge protection is standard as well. Amazing!

  • Features:

    • Fully Conforms to the EIA RS-485 Standard
    • Data Rates to 115,200 bps

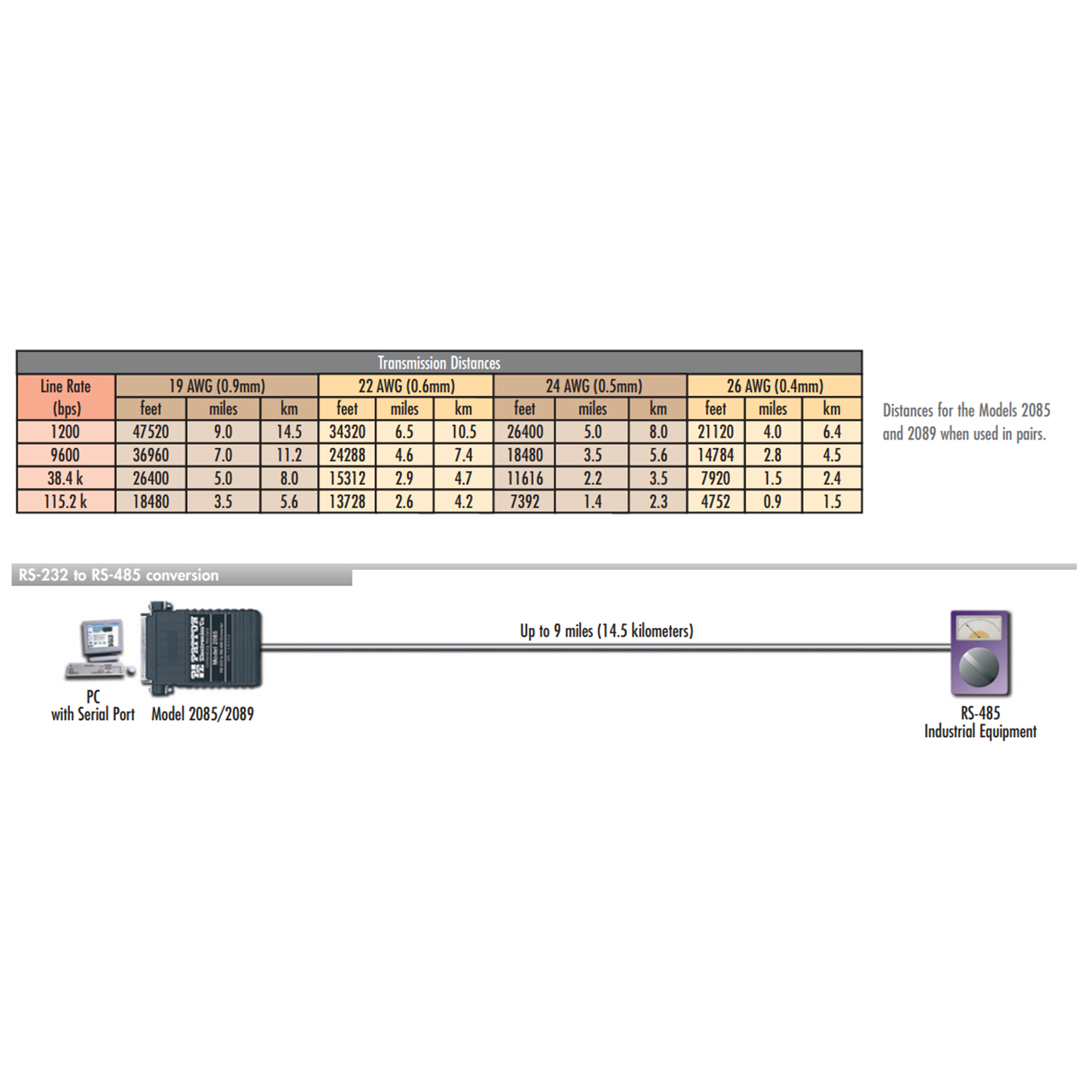

    • Range Up to 9 Miles (14.5 Km)
    • No AC Power or Batteries Required
    • Up to 50 Terminal Drops in a Multipoint Polling Environment
    • 600 Watts of Silicon Avalanche Diode Surge Protection - Standard
    • Made in the USA


  • Specifications:

    • Transmission Format: Asynchronous
    • Data Rate: Up to 115,200 bps
    • Range: Up to 9 miles (14.5km)
    • EIA-574 Interface: DB-9, male or female
    • RS-485 Interface Options: RJ-11 or RJ-45 jack, terminal block with strain relief
    • Transmit Line: 2, 4 wire unconditioned twisted pair
    • Transmit Mode: 4-wire, full or half duplex; 2-wire half duplex
    • Control Signals: DSR turns "ON" immediately after the terminal raises DTR; DCD
      turns "ON" after recognizing the receive signal from the line; CTS turns "ON" after the terminal
      raises RTS.
    • RTS/CTS Delay: 0 or 8 msec
    • Carrier: The carrier is switch selected either continuous operation or controlled
      by RTS
    • Surge Protection: 600W power dissipation at 1 mS
    • Power: Draws operating power from EIA-574 data and control signals; no AC power
      or batteries required.
    • Temperature: 32°F to 122°F
    • Size: 2.50 x 1.20 x 0.75 Inches
