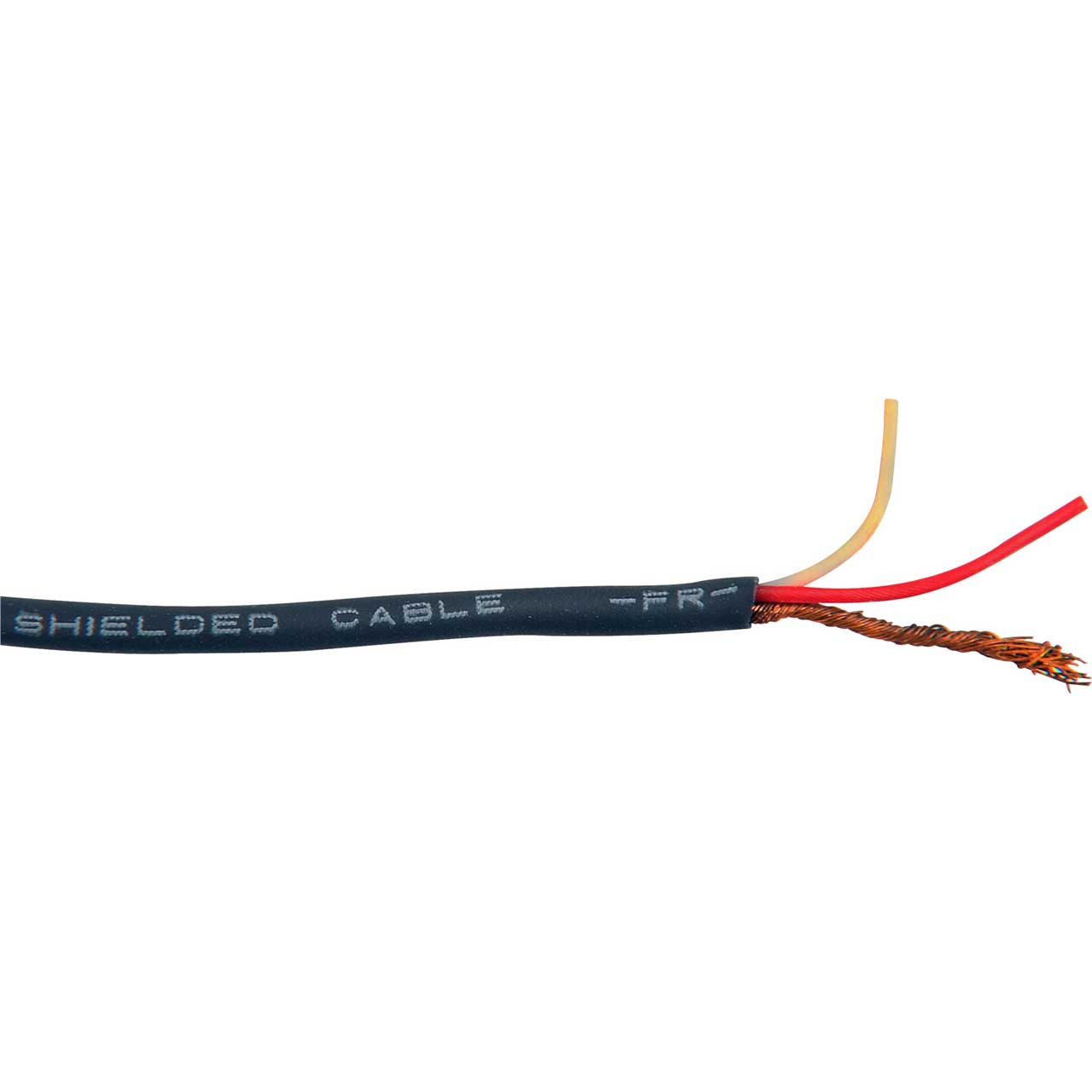

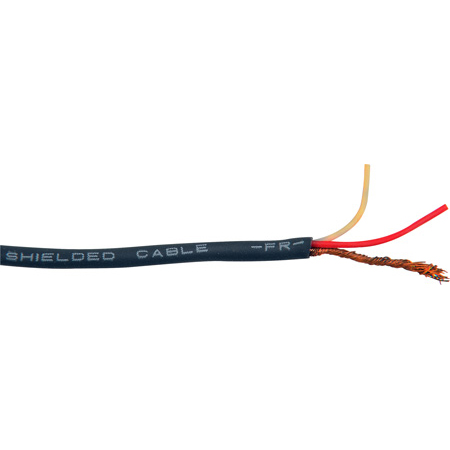

Mogami W2490 Ultraflexible Miniature Cable - Per Foot - Gray

ITEM #: 2490 MFG #: W2490-08-F

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Mogami Wire & Cable Corp.
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$0.25

Our Price:

$0.22

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    W2490-08-F - Overview

    The Mogami W2490 was developed as custom cables for magnetic head leads for computer drives, which must be moved rapidly and precisely with very low force. All are very soft and highly flexible with excellent shielding.

    • Specifications:

      • No. of Conductors: 2
      • Conductor:
        - Details: 7/0.08TA
        - Size (mm²): 0.0351mm² (#32AWG)
      • Insulation:
        - Ov. Dia.(mm): 0.53∅ (0.0209")
        - Material: Flexible PVC
      • Shield Served Shield: Approx. 30/0.10A
      • Jacket:
        - Ov. Dia. (mm): 1.7∅ (0.0669")
        - Material: Flexible PVC
      • DC Resistance at 68°F (20°C):
        - Inner Conductor: 0.55Ω/m(0.168Ω/t)
        - Shield Conductor: 0.08Ω/m (0.0244Ω/t)
      • Flex Life (cycles): 9,100
      • Voltage Breakdown: Must withstand at DC 250V/15 sec
      • Insulation Resistance: 1000MΩ x m Min. at DC 250V , 68°F (20°C)
      • Tensile Strength (79°F (26°C), 65%RH): 9.8 N (Per One Core Conductor)
      • Emigration: Non-emigrant to ABS resin
      • Applicable Temperature: -4°F - 176°F (-20°C - 80°C)
