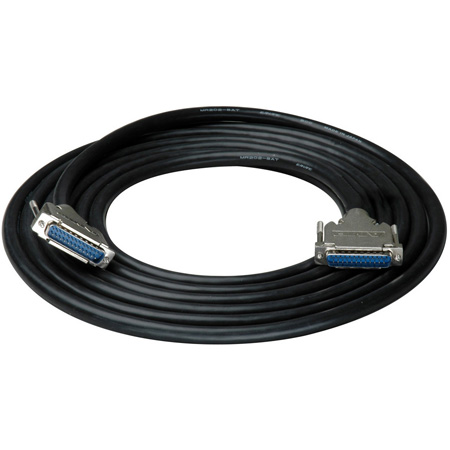

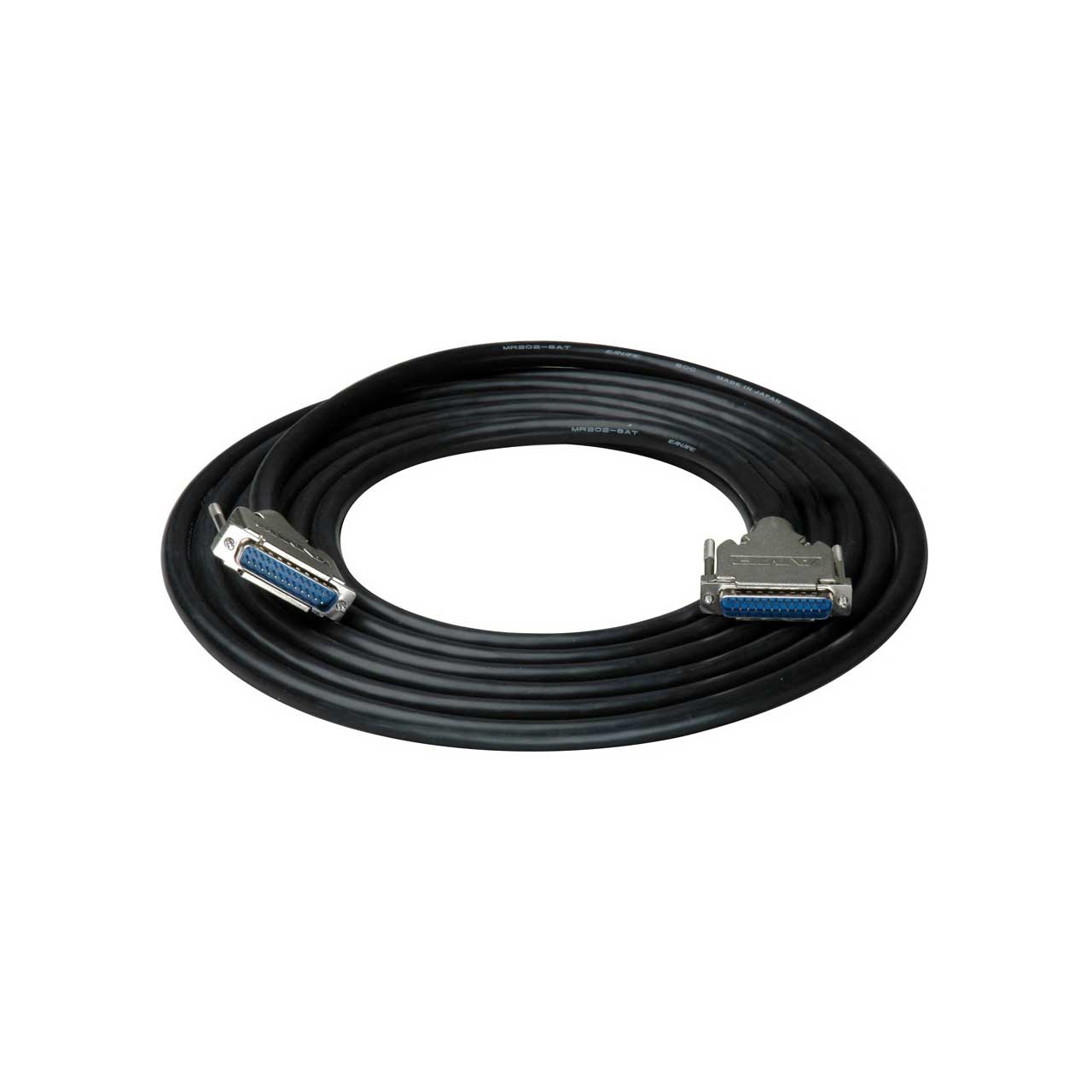

Sescom DB25 DA-88 Audio Cable Canare Analog 25-Pin D-Sub Male to 25-Pin D-Sub Male -10 Foot

25MA-25M-C10 - Overview

• Features:

  • DB25 Male to DB25 Male with 8 Channels Analog Audio In or Out
  • Crafted with Canare Super Flexible MR202-08AT Cable
  • All Channels are Individually Shielded & Twisted (100% Foil) with #25AWG Gauge Conductors
  • Wired Pin to Pin for Analog Connections
  • Cables are Designed with Industry Standard AMP Dsub Cable Hoods for the Best RF Rejection
  • Industry Standard AMP 25 Pin Metal Hoods for Durability
  • Straight-Through Wired Cables
  • Made in the USA


• Specifications:

  • Nominal DC Resistance Conductor: <32.5 ohms/1000ft
  • Nominal Capacitance between conductors: 23.2 pF/ft.
  • Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake.
  • Compatible with Panasonic, Radar, Digi, Tascam, and other equipment


• Warranty:

  • 1 Year
