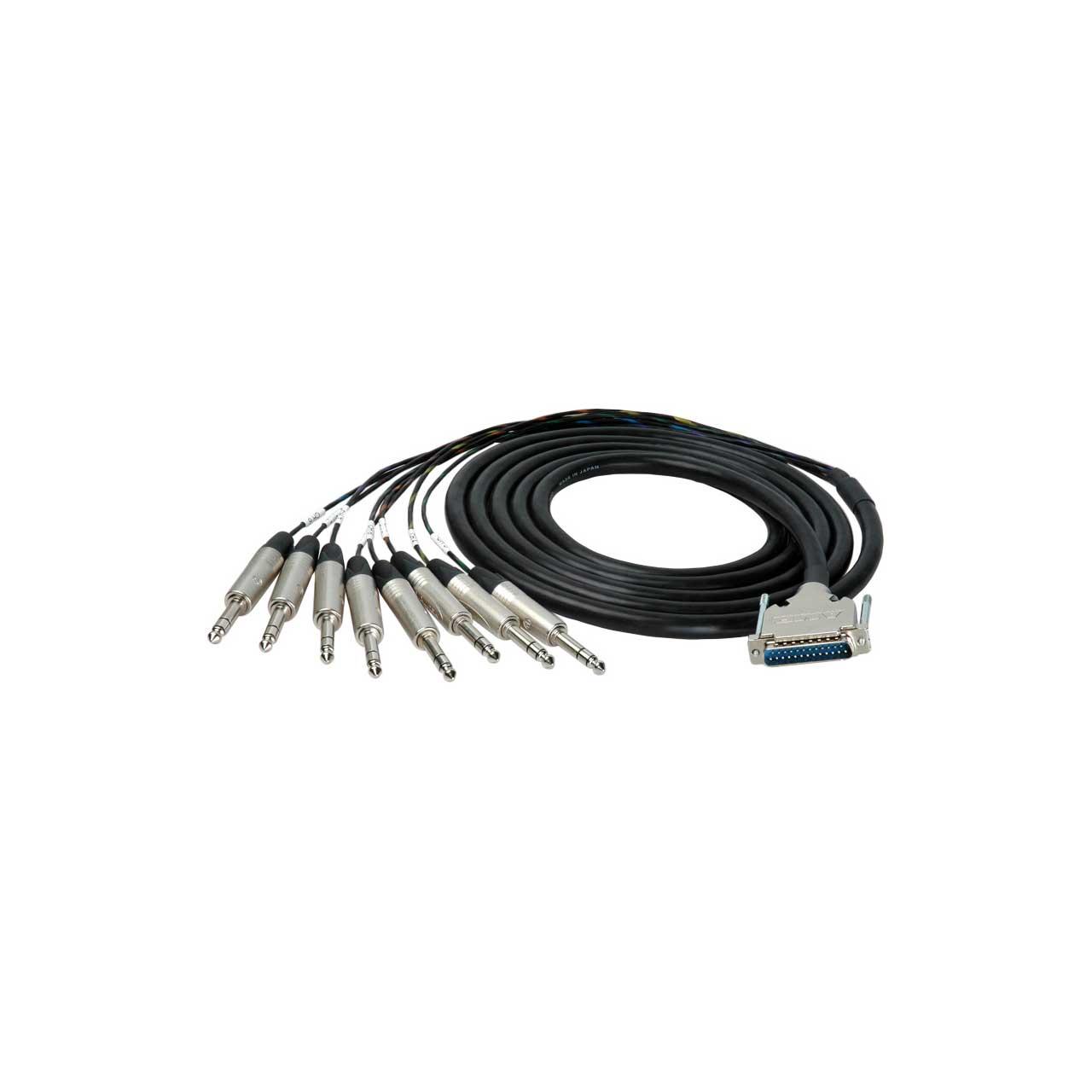

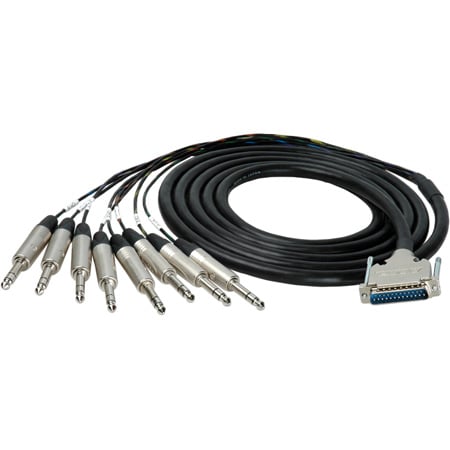

Sescom DB25 DA-88 Audio Cable Mogami Analog 25-Pin D-Sub Male to 8 1/4 TRS Balanced Male - 5 Foot

ITEM #: 25MA-TRS-M05 MFG #: 25MA-TRS-M05

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$175.49

Our Price:

$157.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


25MA-TRS-M05 - Overview

Cables are crafted with Mogami super flexible 2932 cable. All channels are numbered and individually shielded twisted pairs of #26 AWG gauge conductors, with #25 AWG drain. Standard fan out is 18 inches for common interface requirements. Designed for superior connectivity and strain relief these use the Neutrik XS series TRS plugs and industry standard AMP DSub cable hood. Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake. Compatible with Digi, Panasonic, Radar, Tascam and other equipment.

  • Features:

    • DB25 Male to 8 TRS Male Analog Audio In or Out Crafted with Mogami Super Flexible 2932 Cable
    • All Channels are Numbered and Individually Shielded & Twisted Pairs with #26 AWG Gauge Conductors and Drain Wire
    • Channels are Numbered and Fanned out 18 Inches
    • Neutrik NPX3 Male Plugs Provide Chuck Type Strain Relief for Overall PVC Jacketed for Strength and Durability
    • Industry Standard AMP 25 Pin Metal Hoods for Durability
    • Made in the USA

  • Specifications:

    • DC Resistance at 20°C Inner Pair Conductor: 0.13ohm/m(0.040ohm/ft)
    • Capacitance at 1kHz, 20°C (Partial Capacitance Value): 130pF/m(40pF/ft)
    • Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake.
    • Compatible with Panasonic, Radar, Digi, Tascam, and other equipment

  • Warranty:

    • 1 Year
