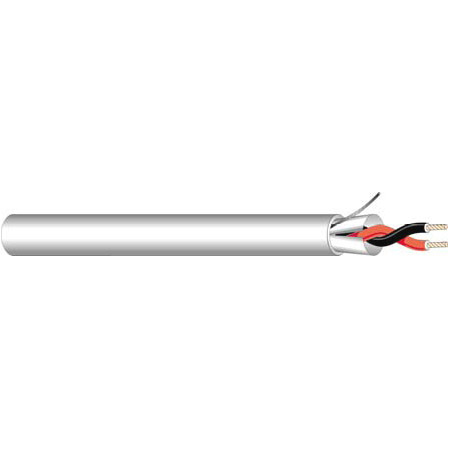

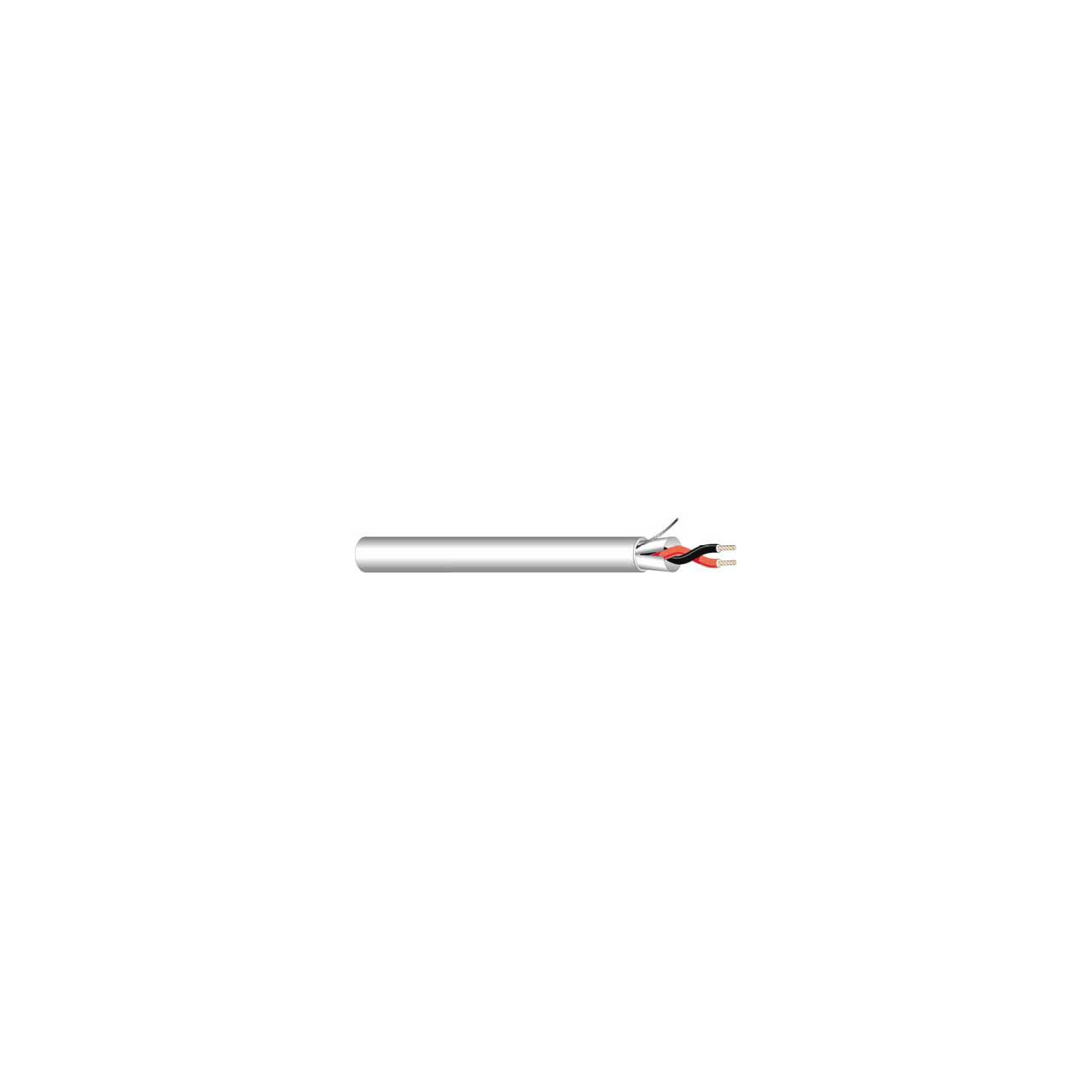

West Penn Wire 293 2 Conductor 18 Gauge Cable - Per Foot

293 - Overview

• Specifications:

  • Number of Conductors: 2
  • AWG Size: 18
  • Conductor Stranding: 7x26
  • Conductor Type: Bare copper
  • Nominal DCR: 6.2 Ohm/1000ft
  • Cabling Lay Length: 1.75 in
  • Twists/Foot: 6.9 twist/ft
  • Insulation Type: Thermoplastic
  • Insulation Thickness: 0.008 in
  • Insulation Color Code: 1. Black 2.Red
  • Shield Type: Overall 100% Aluminum Foil
  • Drain Wire Type: Tinned Copper
  • Drain Wire AWG: 24 AWG
  • Nom. Cap. Between Conductors: 40 pF/ft
  • Nom. Cap. Conductor to Shield: 79 pF/ft
  • Jacket Type: PVC
  • Jacket Thickness: 0.017 in
  • Nominal Cable O.D.: 0.16 in
  • Plenum: No
  • NEC UL Rating: CMR, CMG
  • RoHS Compliant: Yes
  • Pull Tension: 57 lbs
  • Bend Radius: 1.44 in
  • Cable Weight: 23 lbs


• GTIN:

  0612825051992
