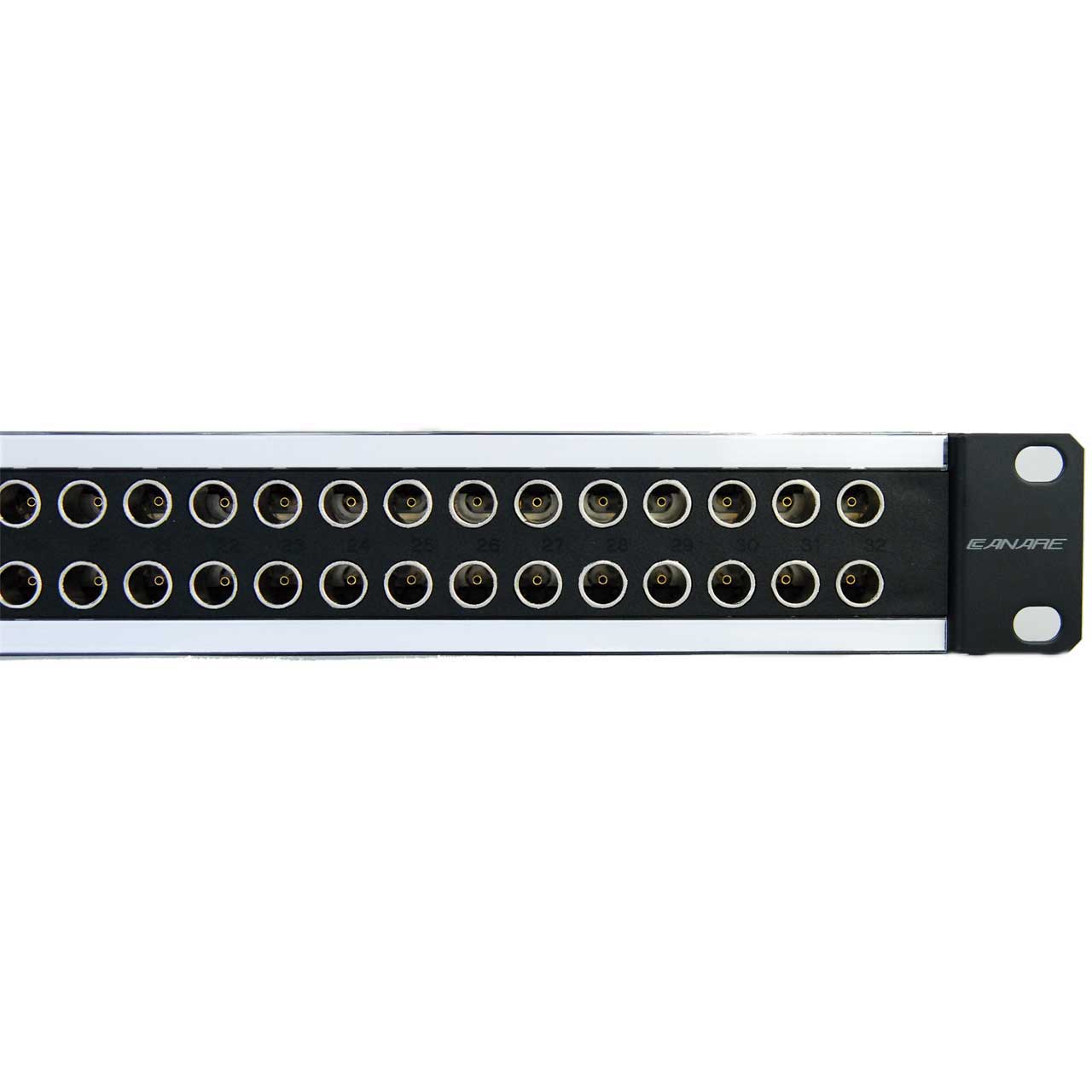

75Ω mid-sized (mini-WECO) video patchbay with 32x straight-through video jacks, module part# MDVJ-STS.

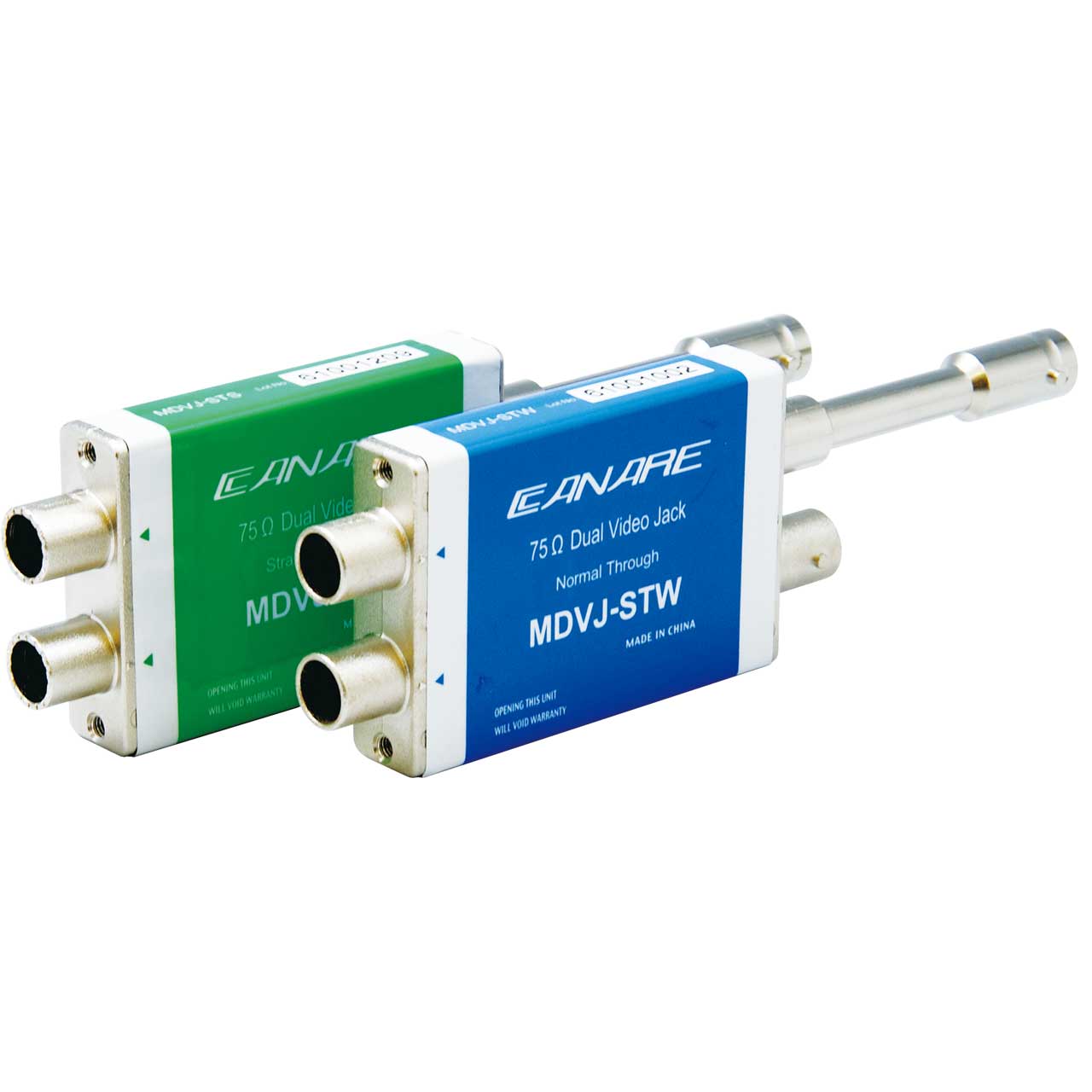

MDVJ-STS is a 'straight through' module, which is effectively two single jacks in one housing, each terminated with a 75 ohm load until a jack plug is inserted. This module is useful for bringing up auxiliary equipment on a central jackfield location. 'Straight through' modules may be ordered separately for substitution by the user, or combinations of 'normalled' and 'straight through' modules may be specified for factory assembly to special order. Both jacks have a return loss of 20dB or greater at 2.4GHz and 10dB or greater at 3GHz, making them suitable for SMPTE 292M 1.5Gb/s and SMPTE 424M 3Gb/s applications.
