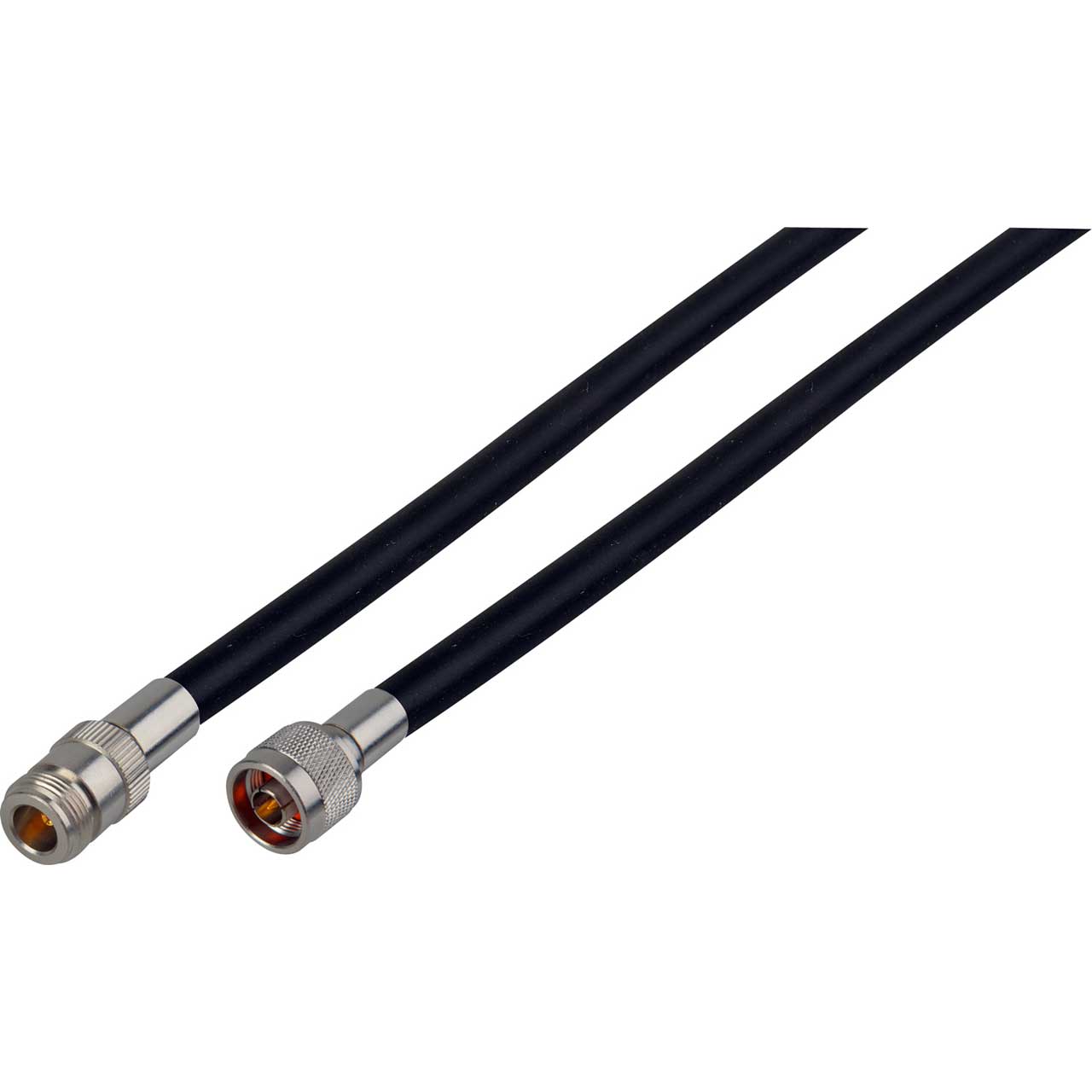

Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7810A N-Type Male to N-Type Female 50 Ohm Cable - 5 Foot

400-NNF-5 - Overview

• Features:

  • Utilizes Belden 7810A cable and High-Quality Amphenol RF N-Type connectors
  • Outdoor Rated, Sunlight Resistant. UV Resistant
  • Designed for Low Loss (attenuation) and Low Voltage Standing Wave Ratio (VSWR)
  • Excellent performance across long-distance


• Specifications:

  • RG Type: 8
  • Conductor AWG: 10
  • Conductor Stranding: Solid
  • Conductor Nom. Diameter: 0.111in (2.819mm)
  • Conductor Material: Bare Copper Covered Aluminum-BCCA
  • Insulation Material: Polyethylene - PE - (Foam)
  • Insulation Nom. Diameter: 0.285in (7.24mm)
  • Outer Shield Layer 1 Type: Tape
  • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
  • Outer Shield Layer 2 Type: Braid
  • Outer Shield Layer 2 Material/Coverage: Tinned Copper (TC)/95%
  • Outer Jacket Material: Polyethylene - PE
  • Outer Jacket Nom. Diameter: 0.403in (10.2mm)
  • Overall Cable Diameter: 0.403in (10.2mm)
  • Nom. Conductor DCR: 1.3 Ohm/1000ft
  • Nom. Outer Shield DCR: 2.0 Ohm/1000ft (6.6 Ohm/km)
  • Nom. Capacitance Cond-to-Shield: 23 pF/ft (75 pF/m)
  • Nom. Characteristic Impedance: 50Ω
  • Nom. Velocity of Prop: 86%
  • VSWR: 5 - 6000 MHz - 1.25:1
  • Voltage Rating: 300V
  • Temperature: -40°F to 176°F (-40°C to +80°C)
  • Bend Radius: 2in (51mm)
  • Max Pull Tension: 145lbs (65.8 kg)
  • Weight: 0.077lbs/ft

    Amphenol N-Type Connectors:
  • Body Finish: White Bronze
  • Body Material: Brass
  • Contact Finish: Gold
  • Contact Material: Brass
    -Plug: Brass
    -Jack: Phosphor Bronze
  • Coupling Mechanism: Threaded
  • Frequency (Max GHz): 11GHz
  • Impedance (Ohms): 50Ω
  • Insulator Material: PTFE
  • Temperature:
    -Plug: -85°F to 329°F to (-65°C to 165°C)
    -Jack: -40°F to 185°F (-40°C to 85°C)


• Warranty:

  • 1 Year
