Laird 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 18 Inch Fanouts - 6 Foot

ITEM #: 4C6SNKEC-006 MFG #: 4C6SNKEC-006

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$179.95

Our Price:

$157.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


4C6SNKEC-006 - Overview

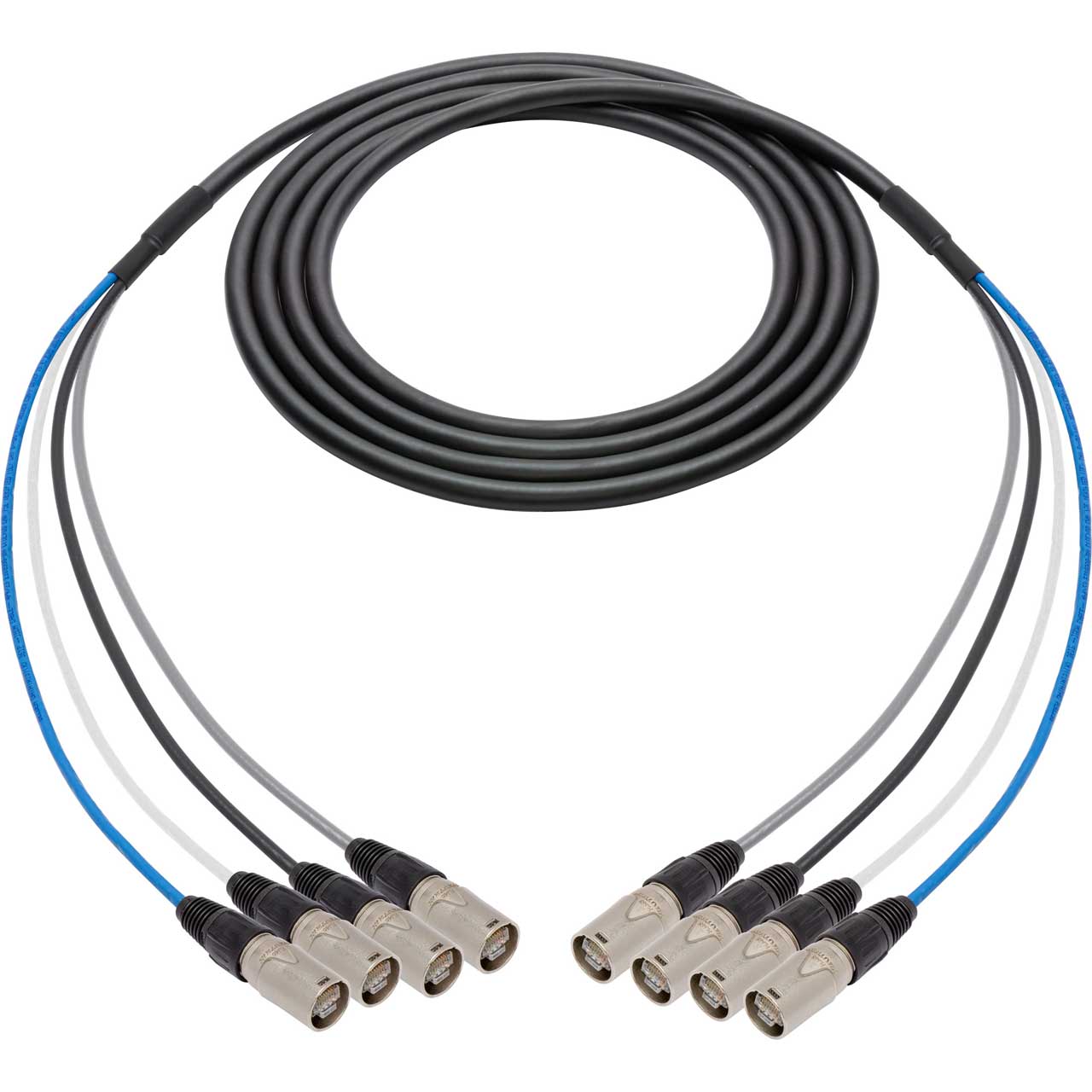

Ease your AV Over IP network installations with Laird 4C6SNKEC Series 4-Channel CAT6 snake cables. These cables are assembled with Neutrik etherCON connectors making them an ideal choice for stage and studio installs where a rugged and reliable connection are necessary. They are also a great fit when using Luminex and similar ethernet switches in Dante applications. Cables are assembled using an exclusive Laird bundled 4-channel Ethernet Snake cable featuring a Belden 3612 CAT6 equivalent. These cables are perfect for premise horizontal Category 6 wiring designed for Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51 and RS-422 applications.


Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

  • Features:

    • 4 Cables in One Single Jacket
    • Designed for Ethernet Applications
    • Keep Cables Organized for Quick Cable Runs
    • Cat6 Belden Cable
    • Locking Neutrik etherCON Connectors

  • Specifications:

    • Belden 3612 Riser/CMR Cat 6+ Premium Premise Horizontal Cable (4x Bundle)
    • Conductor AWG: 23
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor No. of Pairs: 4
    • Conductor Count: 8
    • Total Number of Pairs: 4
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Max. Conductor DCR: 77 Ohm/km
    • Max. DCR Unbalance: 3%
    • Max. Capacitance Unbalance: 330 pF/100m
    • Nom. Mutual Capacitance: 15.5 pF/ft
    • UL Voltage Rating: 300 V (CMR)
    • UL Rating: 75°C
    • Operating Temp: -20°C To +75°C
    • Installation Temp: 0°C To +50°C
    • Storage Temp: -20°C To +75°C
    • Max. Pull Tension: 25 lbs
    • Environmental Suitability: Riser, Indoor
    • Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2

      Neutrik etherCON NE8MX-1
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Temperature range: -30 °C to +80 °C

  • Warranty:

    • 1 Year
