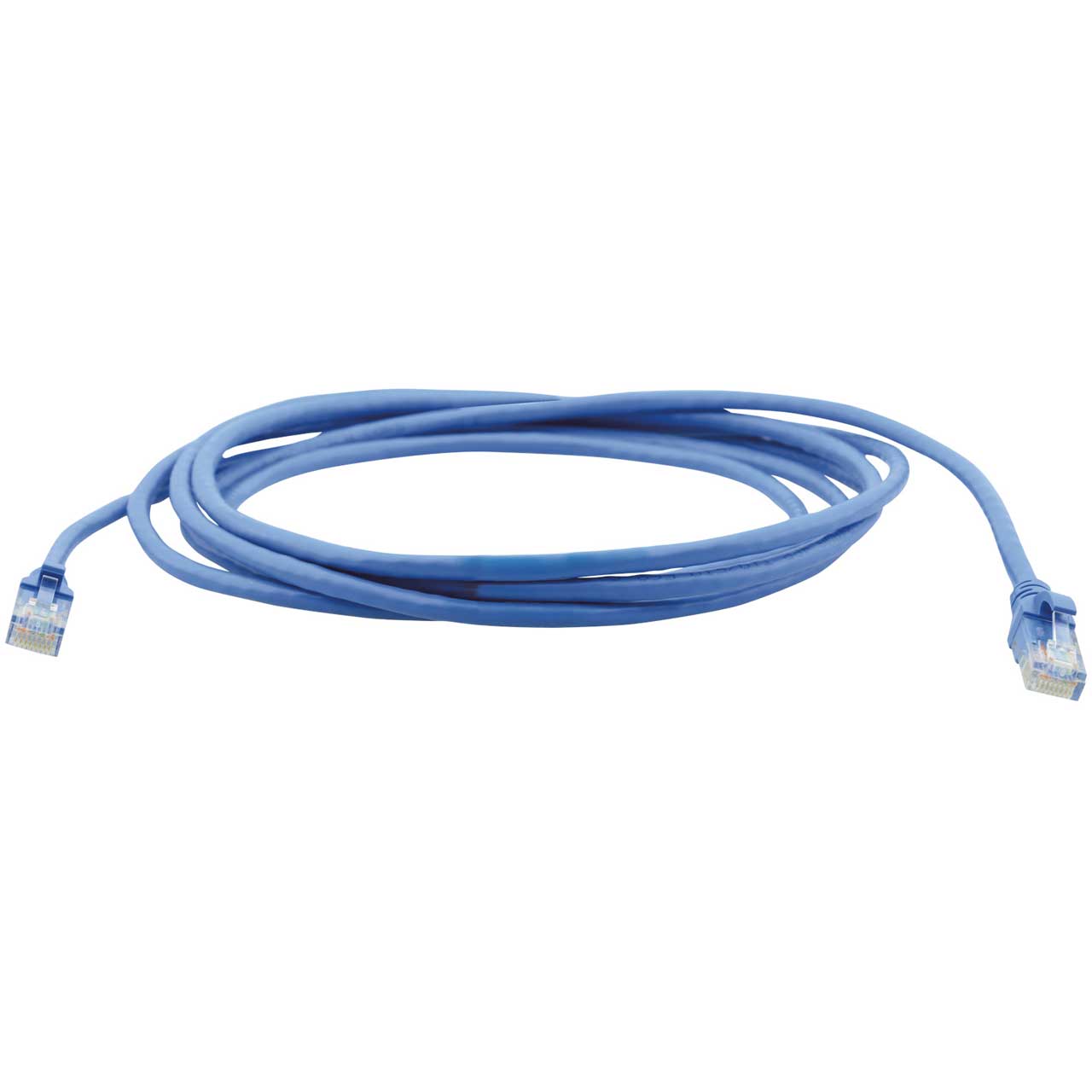

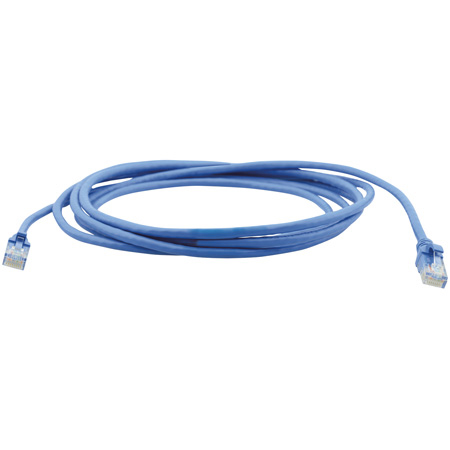

Kramer PC6-108-10 CAT6 UTP 250MHz CM 4X2X24AWG Patch Cord - 10 Foot

PC6-108-10 - Overview

• Features:

  • Quality Construction - 4 twisted pairs (U/UTP) of 24AWG stranded copper.
  • RJ-45 Connector - Slim snagless RJ-45 connector, 50µ gold plated contacts.
  • Rated UL-CM.
  • Varied Selection of Lengths - 0.15 to 4.60m (0.5 to 15ft).


• Specifications:

  • CONSTRUCTION
  • Conductor Material: Annealed copper
  • Conductor Diameter: 7x0.2 ±0.01mm
  • Insulation Material: HDPE
  • Insulation Diameter: 0.97 ±0.08mm
  • Color Code: Blue/white blue, brown/white brown, orange/white orange, green/white green
  • Sheath Material: PVC
  • Sheath Color: Blue RAL 5015
  • Sheath Diameter: 6.0 ±0.20mm


  • ELECTRICAL
  • Impedance: 1-100MHz 100±15Ω,
  • Impedance: 100-250MHz 100±20Ω
  • Max. Conductor DC Resistance: <94.7Ω/km
  • Propagation Velocity: 70%


  • PHYSICAL
  • Mechanical Characteristics: Bending radius - installed: 40mm, during installation: 50mm
  • Connector Type: Snagless RJ-45 UTP CAT5E
  • Wiring: EIA/TIA 568B
  • Contact Plating: Gold 50µ


  • REGULATORY
  • Compliant Standards - Electrical: EIA/TIA 568B, ISO/IEC 11801
  • Flammability: IEC 60332-1, UL CM
  • Environmental : RoHS (2011/65/EU)


• Item Includes:

  • KR-PC6-108-10


• Warranty:

  • Lifetime Warranty


• GTIN:

  7291063081683
