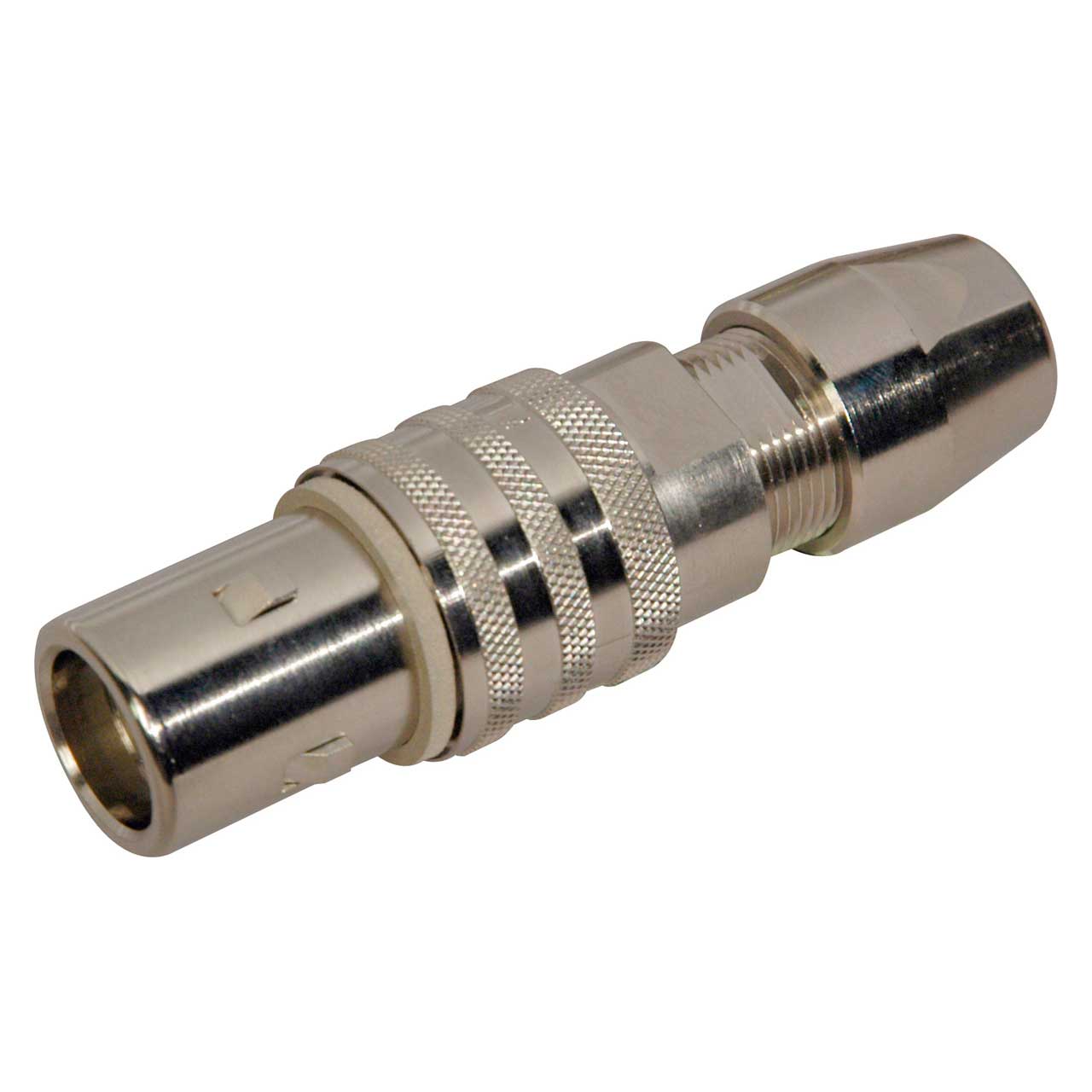

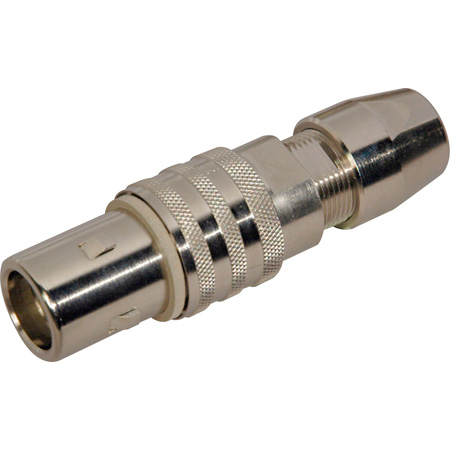

Kings 7704-3 Tri-Loc Bulkhead Receptacle / Serial Digital Triax Connector

7704-3 - Overview

• Features:

  • Durable weatherproof construction--Ideal for outdoor use.
  • Performs in even the harshest environments.
  • Easy, two-crimp installation of plugs and jacks.
  • Push-on, pull-apart mating.
  • Non-conductive anti-shock safety tip on contacts.
  • 75 Ohm Impedance.
  • Adapters are available in a variety of configurations.
  • Inspection gauges allow for quick and easy verification of interface dimensions and proper mating.
  • Inexpensive retrofit kits for field replacement of damaged or non-functioning internal Tri-Loc parts.


• Specifications:

  • Material
  • Body: Brass
  • Center Contacts: Brass (Male)
  • Beryllium Copper (Female)
  • Insulators: Teflonr
  • Spring Member: Beryllium Copper

    Finishes
  • Body: Nickel
  • Center Contacts: Gold over Nickel
  • Outer Contacts: Silver

    Electrical
  • Impedance: 75 Ohms
  • Return Loss: Up to 500 MHz, -20 dB minimum
  • Up to 750 MHz, -17 dB minimum
  • Operating Freq: DC to 2.5 GHz

    Mechanical
  • Life: 30,000 cycles minimum
  • Cable Retention: 140 lbs minimum, 1/2" diameter cable
  • 100 lbs minimum, 3/8" diameter cable

    Environmental
  • Moisture: 0 to 98%
  • MIL-STD-202 Method 106
  • Temperature: -20° to +70° C
  • Corrosion: MIL-STD-202 Method 101
