Sescom 8-Channel XLR Male to XLR Female Snake Cable - 100 Foot

Name: Sescom 8-Channel XLR Male to XLR Female Snake Cable - 100 Foot
Brand: Sescom
SKU: 8XLM-8XLF-100
Price: 335.95 USD
Availability: InStock

ITEM #: 8XLM-8XLF-100 MFG #: 8XLM-8XLF-100

Sescom

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$369.49

Our Price:

$335.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

8XLM-8XLF-100 - Overview

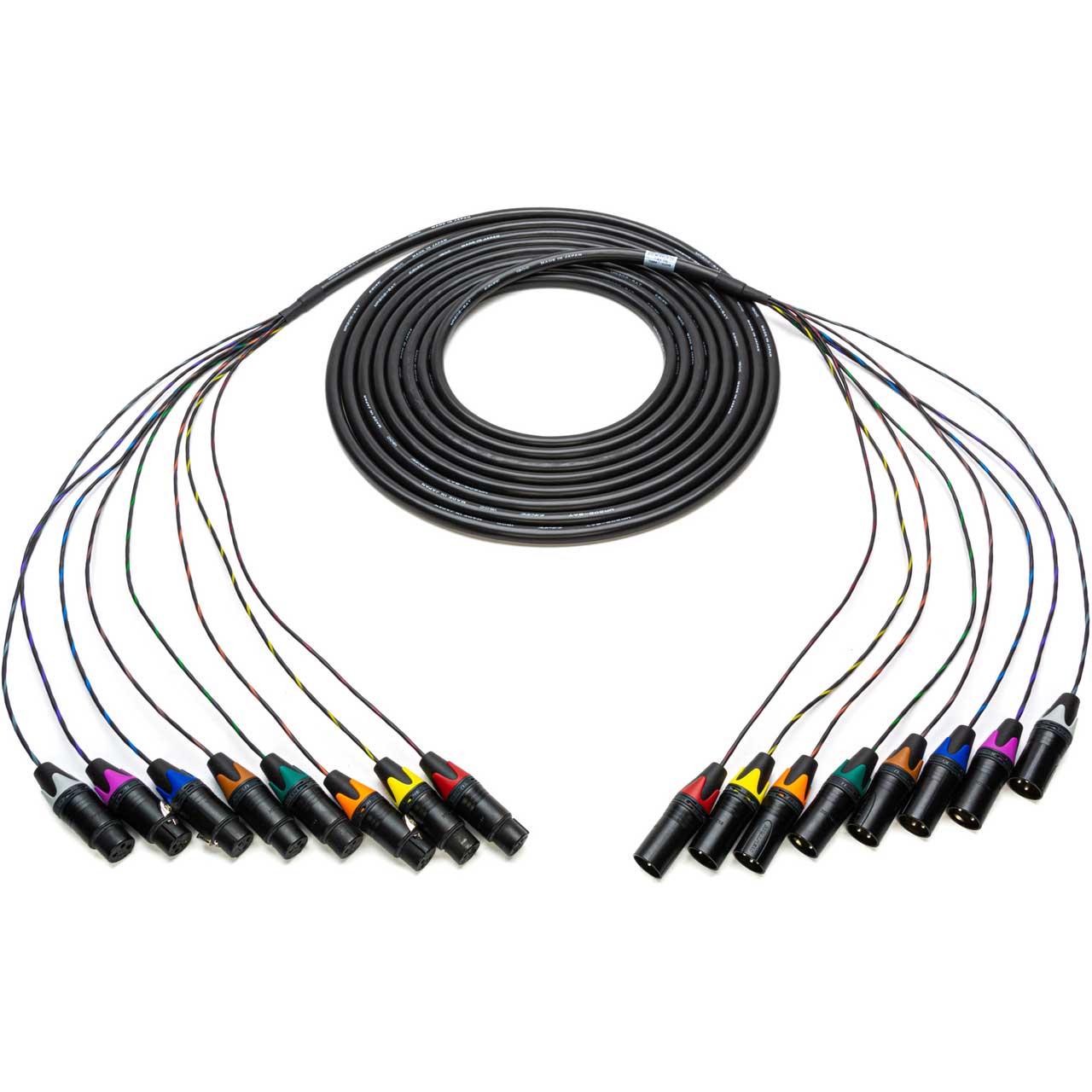

Sescom Multichannel XLR male to XLR female audio snake cables are built in the USA with the highest quality components and are perfect for live events and general-purpose studio applications. Neutrik connectors feature chuck type strain relief for secure clamping and are color coded for easy identification.

Made with Canare MR202 cable and Neutrik NC3MXX/FXX-BAG connectors, these long lasting and durable cables are super flexible for control room layout and interfacing between equipment racks, audio patchbays, mixers, and multitrack recorders.

Available with 2, 4, 8, or 12 channels and a variety of lengths.

Features:
- Super flexible Canare MR202-AT cable multichannel audio snake cable
- Neutrik XLR connectors with chuck strain relief for secure clamping
- PVC jacketed for strength and durability
- Color-coded connectors and conductors for easy identification
- Polyurethane gland provides high protection to the cable under bending stress
Specifications:
- Number of Channels: 8
- Number of Conductors (2 per Channel): 16
- PVC Jacket Thickness: .039in/1.0mm
- Channel O.D.: .106in (2.7mm)
- Channel Jacket Nom. Thickness: 11.8 mil
- Nom Cable OD: .433in/11.0mm
- Insulation Type: IPE 9.1mil
- Conductor AWG: 25
- Pitch of Pairs: <.99 in (<25mm)
- Shield Coverage/Type: 100% Alum Tape
- Drain Wire AWG: 25 AWG
- Nom. Capacitance Between Conductors: 76 pF/m
- Nom. Capacitance between Conductors to Shield: 142 pF/m
- Conductor D.C.R.: <32.5 ohm/1000ft (<10.7 ohm/100m)
  Neutrik Connectors:
- Connection Type: 3-Pin XLR
- Capacitance between Contacts: ≤ 4 pF
- Contact Resistance: ≤ 3 mΩ
- Dielectric Strength: 1,5 kVdc
- Insulation Resistance: > 10 GΩ (initial)
- Rated Current Per Contact: 16 A
- Rated Voltage: < 50 V
- Insertion Force: ≤ 20 N
- Withdrawal Force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Locking Device: Latch lock
- Contact Plating: 2 µm Ag
- Strain Relief: Polyacetal (POM)
- Temperature: -22°F to 176°F (-30 °C to +80 °C)
Warranty:
- 1 Year
