Angry Audio C3 BUNDLE Low-latency Stereo Headphone Amp AI Audio Processor Studio Bundle with 3 Headphone Gizmos

ITEM #: AA-C3-BUNDLE MFG #: C3 BUNDLE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,229.00

Our Price:

$1,167.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    C3 BUNDLE - Overview

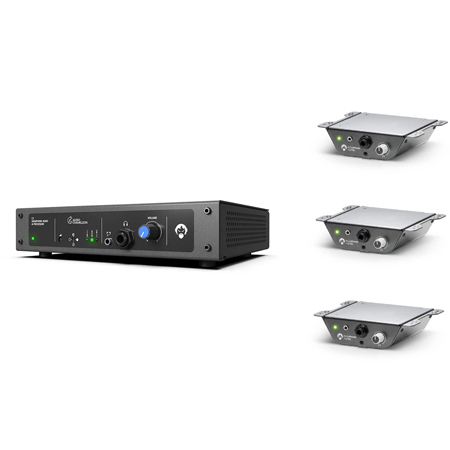

    The Chameleon C3 Bundle Headphone Processor is bundled with three Headphone Gizmos (991030D without power supply adapters). The C3 provides power and processed audio to a daisy-chain of gizmos.

    Back in the analog days, on-air personalities could hear themselves in their headphones using a radio tuned to their station. The station's audio processing would make everything sound bigger and louder, even their voices. Which gave them the instant feedback they needed to adjust their voice and mic technique to sound just the way they wanted. Unfortunately, when radio stations transitioned to digital, delay was introduced into the signal chains making it impossible for talent to listen to live processed sound.

    Some resourceful engineers have rigged up old analog processors for the talent, but not everyone has a spare. Some modern digital processors offer a low-latency monitor tap, which would actually be a pretty good solution if your processor lived in the studio with the talent. Sigh. Sadly, most on-air talent is listening to dry, flat unprocessed audio in their headphones. We wondered why nobody builds a low-latency headphone processor for on-air talent. Then we stopped wondering and got to work.

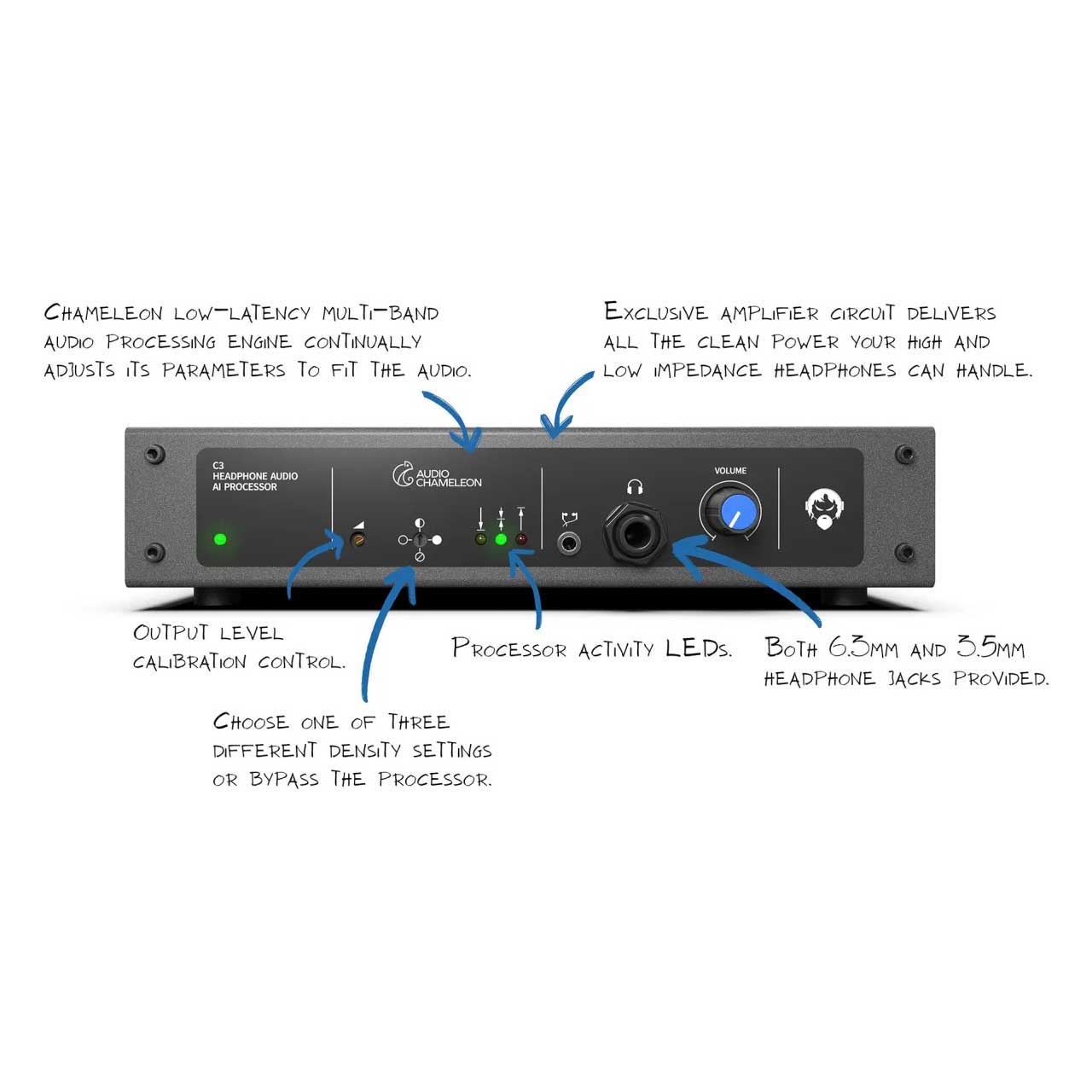

    Meet Chameleon C3, a low latency multi-band audio processor and high-performance headphone amplifier, all in one compact and easy to use gadget. Chameleon takes an entirely new approach to audio processing. Using a form of A.I. Chameleon monitors the incoming audio and continuously adjusts its parameters to fit the content. The result is the perfect blend of loud and clean for absolutely any format. Choose from three different density levels. Your talent will sound amazing in their own ears. Which will cause them to work their voices and mic technique more effectively. Which in turn will make them sound amazing to your listeners ears.

    • Specifications:

      • C3 Headphone Processor

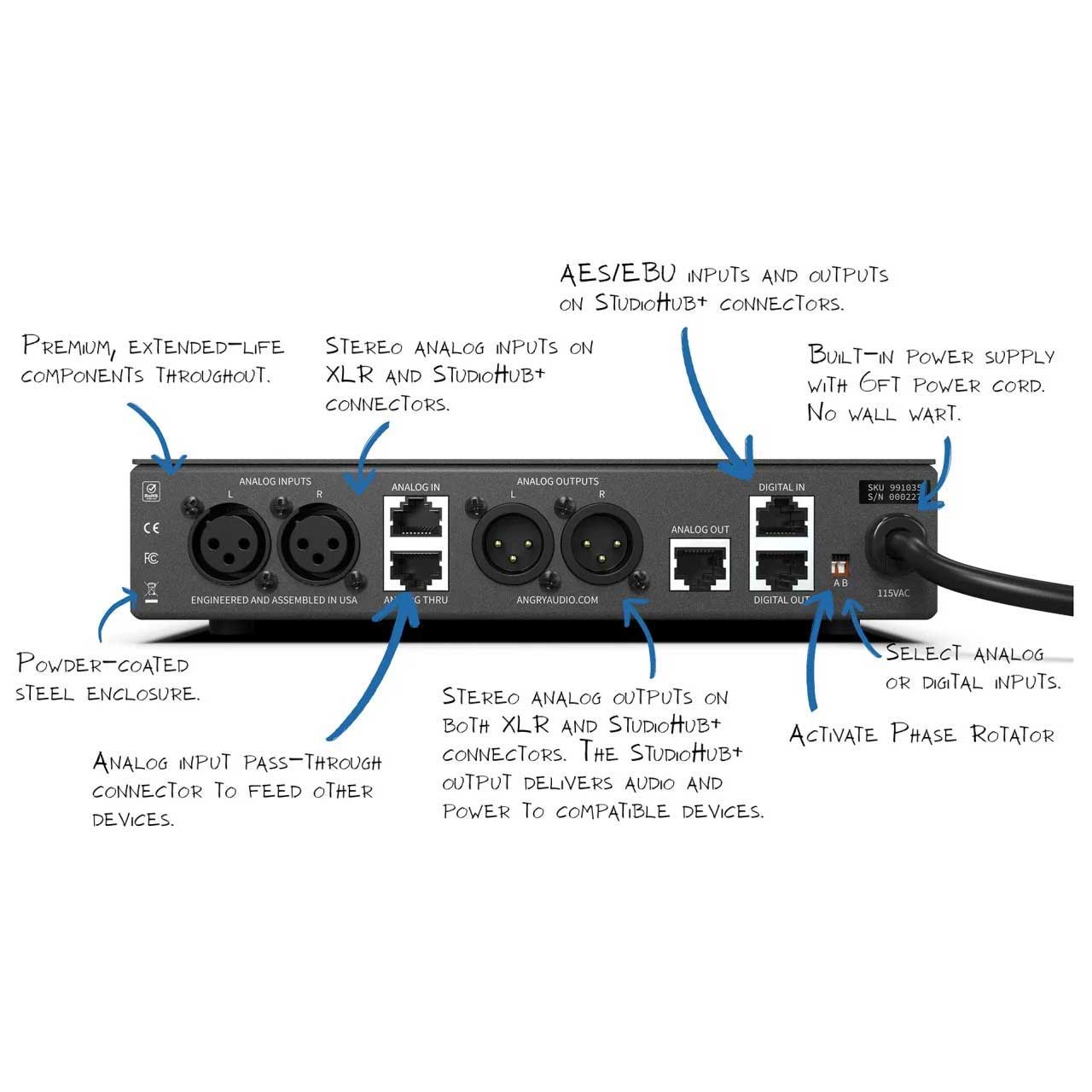

      • Analog Input: Balanced +4dBu Stereo XLRF connectors, Balanced +4dBu Stereo RJ45F connector (StudioHub+ pinout)
      • Analog Through: Parallel to Analog Input (StudioHub+)
      • Analog Output: Balanced +4dBu Stereo XLRM connectors, Balanced +4dBu Stereo RJ45F connector (StudioHub+ includes 15VDC)
      • Digital Input: Transformer isolated, AES/EBU, RJ45F connector (StudioHub+), ASRC, 44.1kHz to 48kHz sampling rate
      • Digital Output: Transformer isolated, AES/EBU, 48kHz S/R, RJ45F connector (StudioHub+)
      • Power Input: 115VAC 50/60Hz
      • Power Consumption: 10VA
      • Operating Temperature: 32° to 104° F
      • Storage Temperature: -4° to 113° F
      • Relative Humidity: 0% to 90% non-condensing
      • Cooling Venting: chassis (fanless)
      • Product Dimensions: 8.5 x 6.25 x 1.7 inches
      • Product Weight: 3.5 pounds
      • Shipping Dimensions: 12 x 9 x 6 inches
      • Shipping Weight: 5 pounds

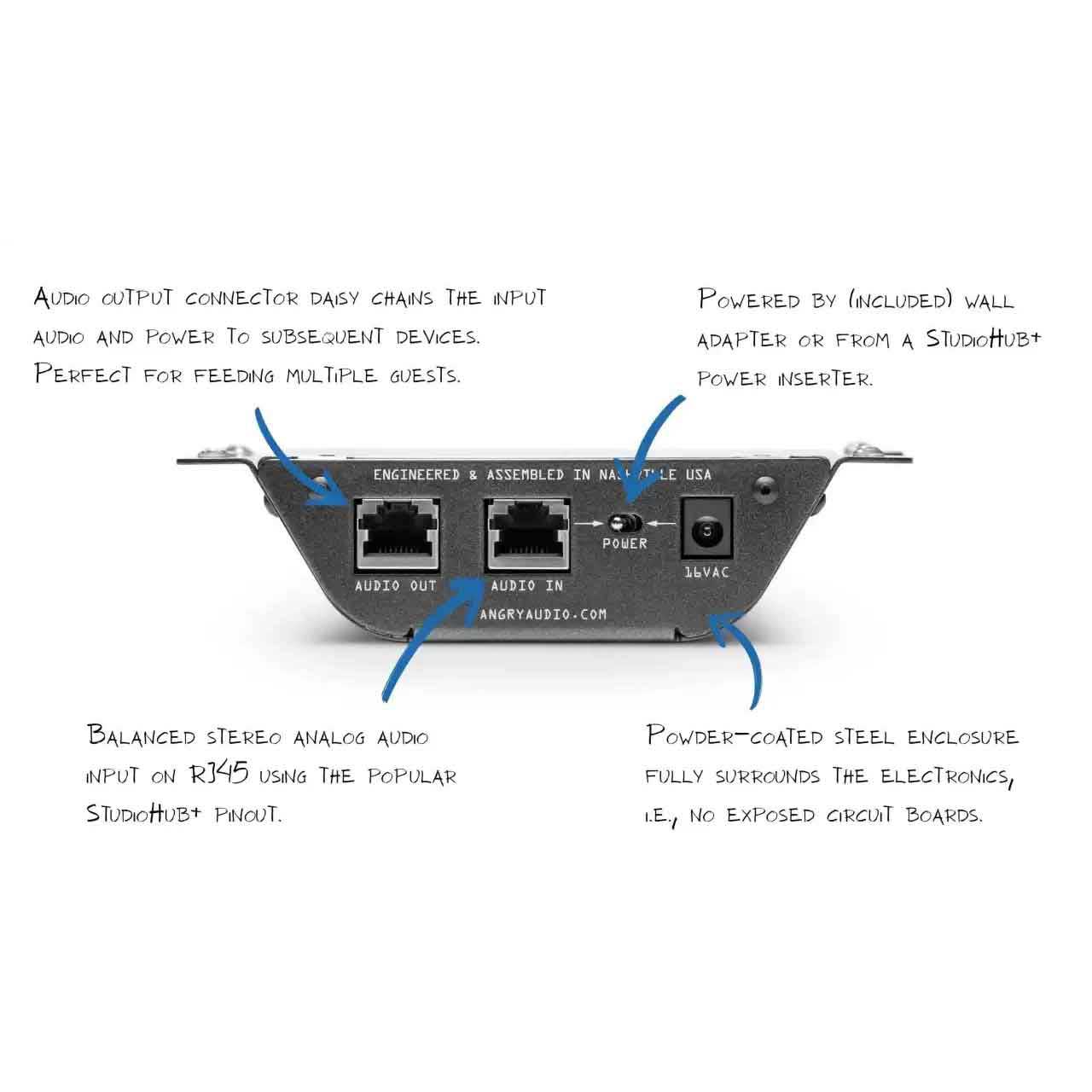

        Headphone Gizmo
      • Connections
      • Audio Input and Output RJ45 jack, StudioHub+ format
      • Headphone Outputs 1/8" (3.5mm) and 1/4" (6.3mm) TRS
      • Power 16VAC (115V or 230V) via wall adapter or +/-15VDC via RJ45 audio input jack

        Headphone Amplifier
      • Nominal Input Level: +4dBu
      • Maximum Input Level: +26dBu
      • Input Impedance: 20kΩ Fully Balanced
      • Headphone Impedance: ≥16Ω
      • Output Voltage: +20dBu
      • Output Power: 2.6W per channel at 16Ω
      • Output Current: 400mA
      • Frequency Response: 20Hz - 20kHz ±0.1dB
      • THD+N: ≤0.003% (20Hz - 20kHz)
      • Noise: ≤-96dBu (20Hz - 20kHz unweighted)
      • Dynamic Range: ≥115dB
      • CMRR: ≥80dB (1kHz)

        Power and Environmental
      • Power Input (120V Adapter): 120VAC 60Hz
      • Power Input (230V Adapter): 230VAC 50Hz
      • Power Output (Adapter): 16VAC, 500mA, 8.0W
      • Operating Temperature: 32° to 104° F
      • Storage Temperature: -4° to 113° F
      • Relative Humidity: 0% to 90% non-condensing

        Product Weight & Dimensions
      • Gizmo Dimension: 5.6in x 4.0in x 1.4in
      • Shipping Dimensions: 8.0in x 6.0in x 3.0in
      • Shipping Weight: 3.0 pounds

    • Item Includes:

      • 1x Angry Audio C3 BUNDLE Low-latency Stereo Headphone Audio Processor Studio Bundle with 3 Headphone Gizmos
