Angry Audio Rave! Radio Mixing Console with StudioHub Cable and Adapter Kit - 8 Line Inputs/4 Microphone Inputs

Name: Angry Audio Rave! Radio Mixing Console with StudioHub Cable and Adapter Kit - 8 Line Inputs/4 Microphone Inputs
Brand: Angry Audio
SKU: AA-RAVE-SH-BUN
Price: 2374.05 USD
Availability: PreSale

ITEM #: AA-RAVE-SH-BUN MFG #: RAVE STUDIOHUB BUNDLE

Angry Audio

List Price:

$2,499.00

Our Price:

$2,374.05

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RAVE STUDIOHUB BUNDLE - Overview

Radio Ready, Cost Effective, Broadcast Quality Mixing Console!

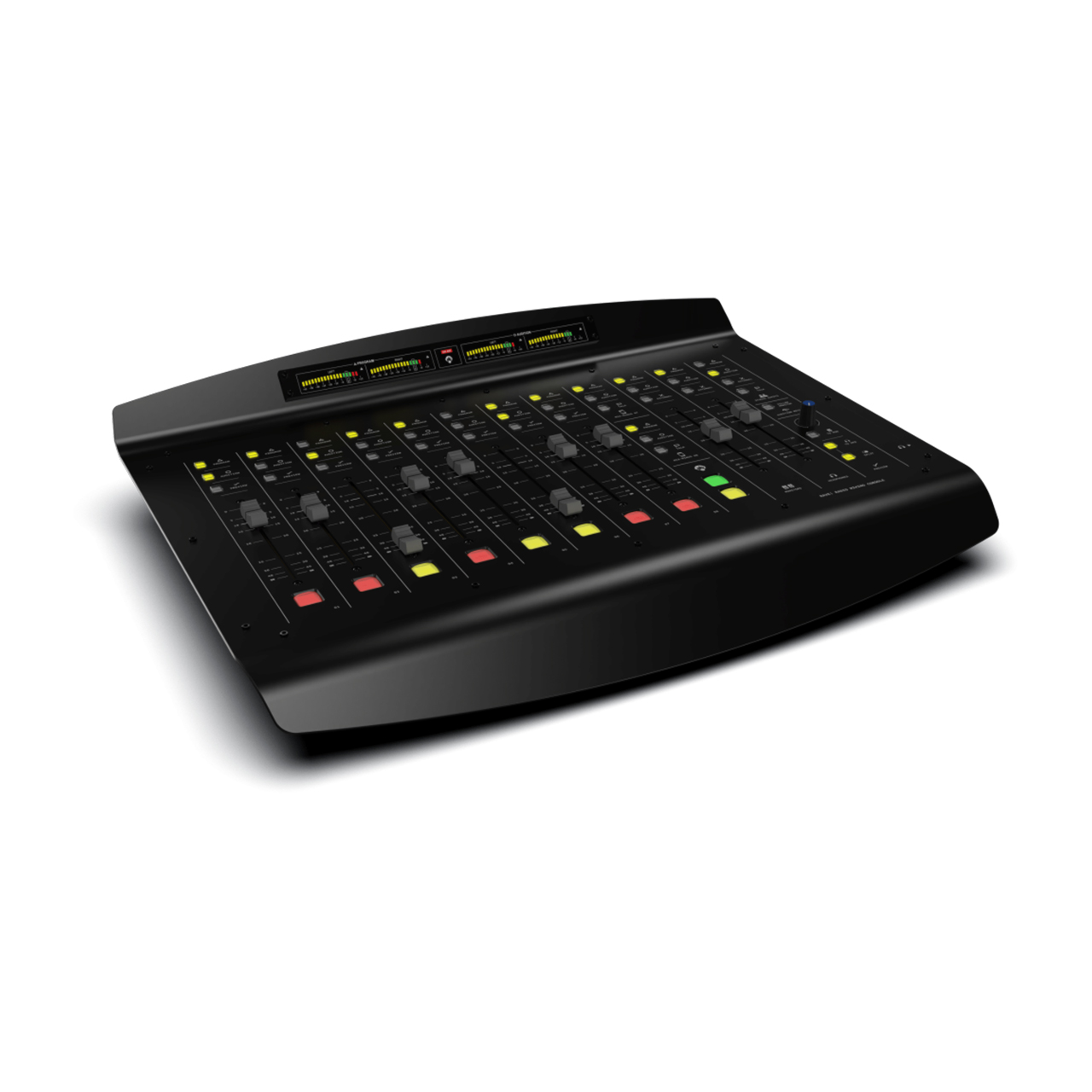

RAVE! is the new radio mixing console from Angry Audio. Up to eight stereo line inputs, up to four microphone inputs, two output mix buses, two mix-minus outputs with talkback, flexible monitoring for the board operator, monitor feed to studio guests with talkback, automatic monitor muting when the mics are open, crystal clear metering and tallies. The control surface is machined and anodized aluminum. The markings are all laser etched so as to never wear out.

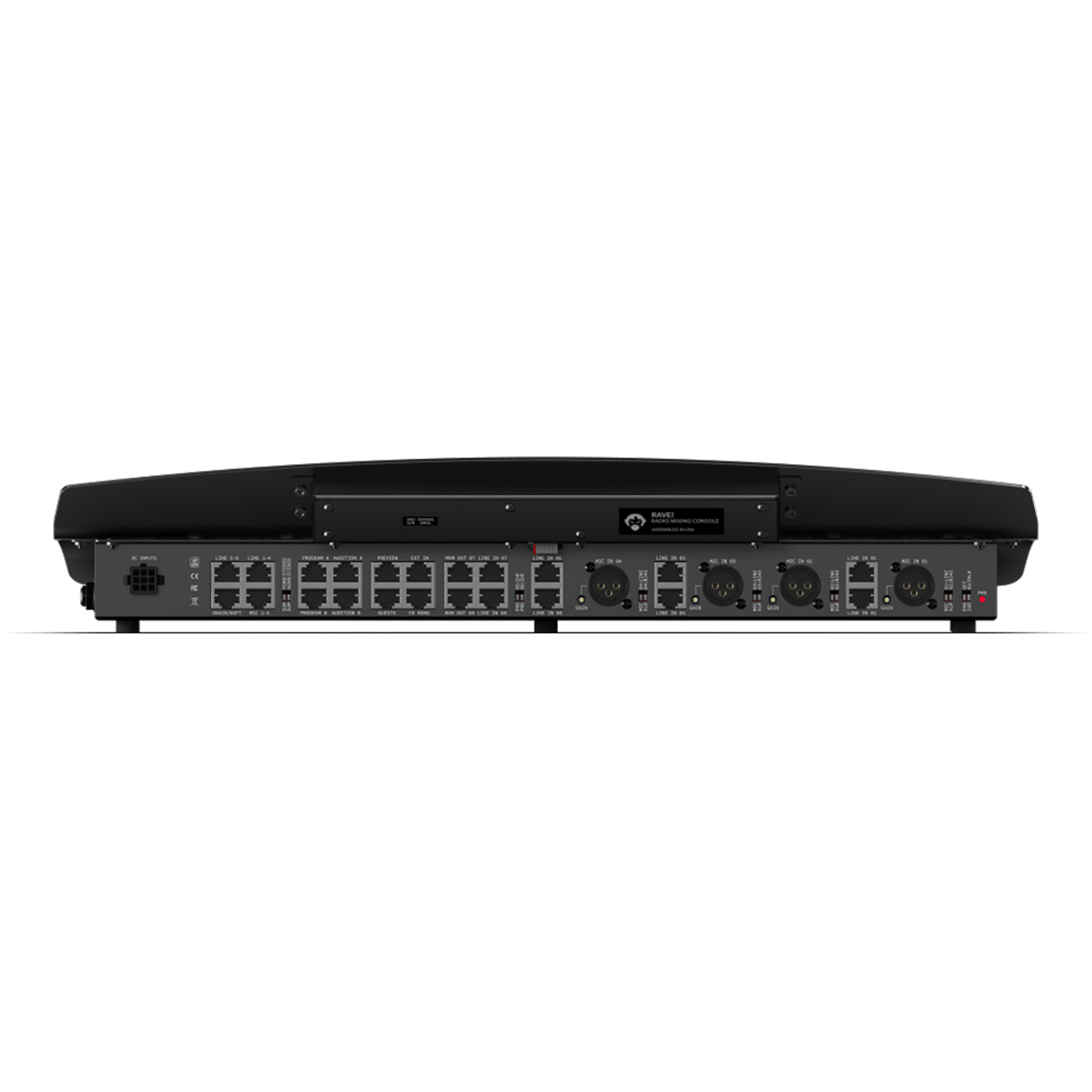

Easy installation with StudioHub+ RJ45 connectors for line inputs and outputs, XLR inputs for microphones, a built-in power supply (no wall wart here), mic and line remote logic, warning and user tally outputs for lighting ON AIR signs and annunciators, preview (cue) on every channel, silky smooth faders, avionics-style switches with LED illumination. Sleek, low-profile desktop design. Click the Update link at the bottom of the page and we’ll keep you in the RAVE! loop.

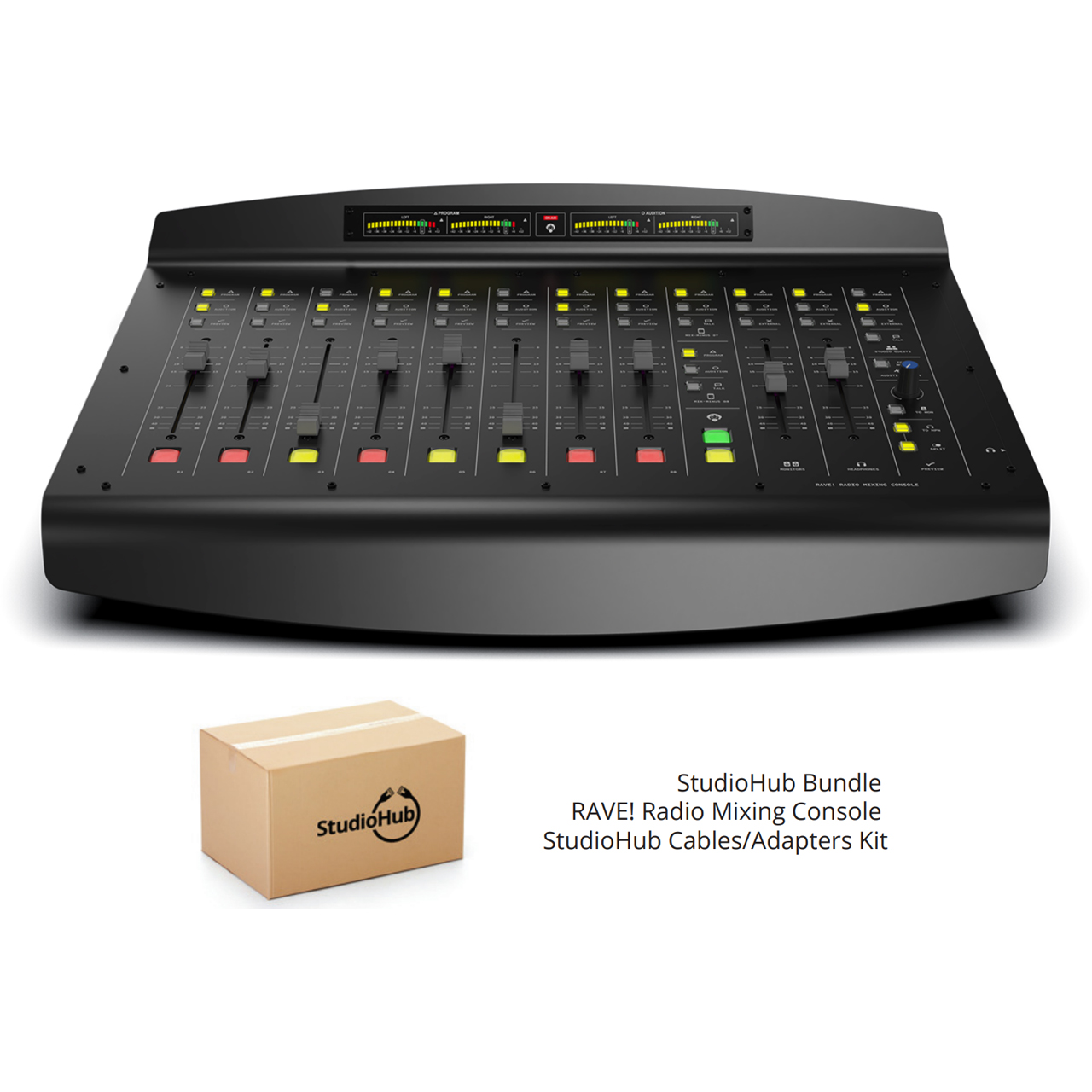

Please Note: This bundle includes the StudioHub Cable and Adaptor Kit.

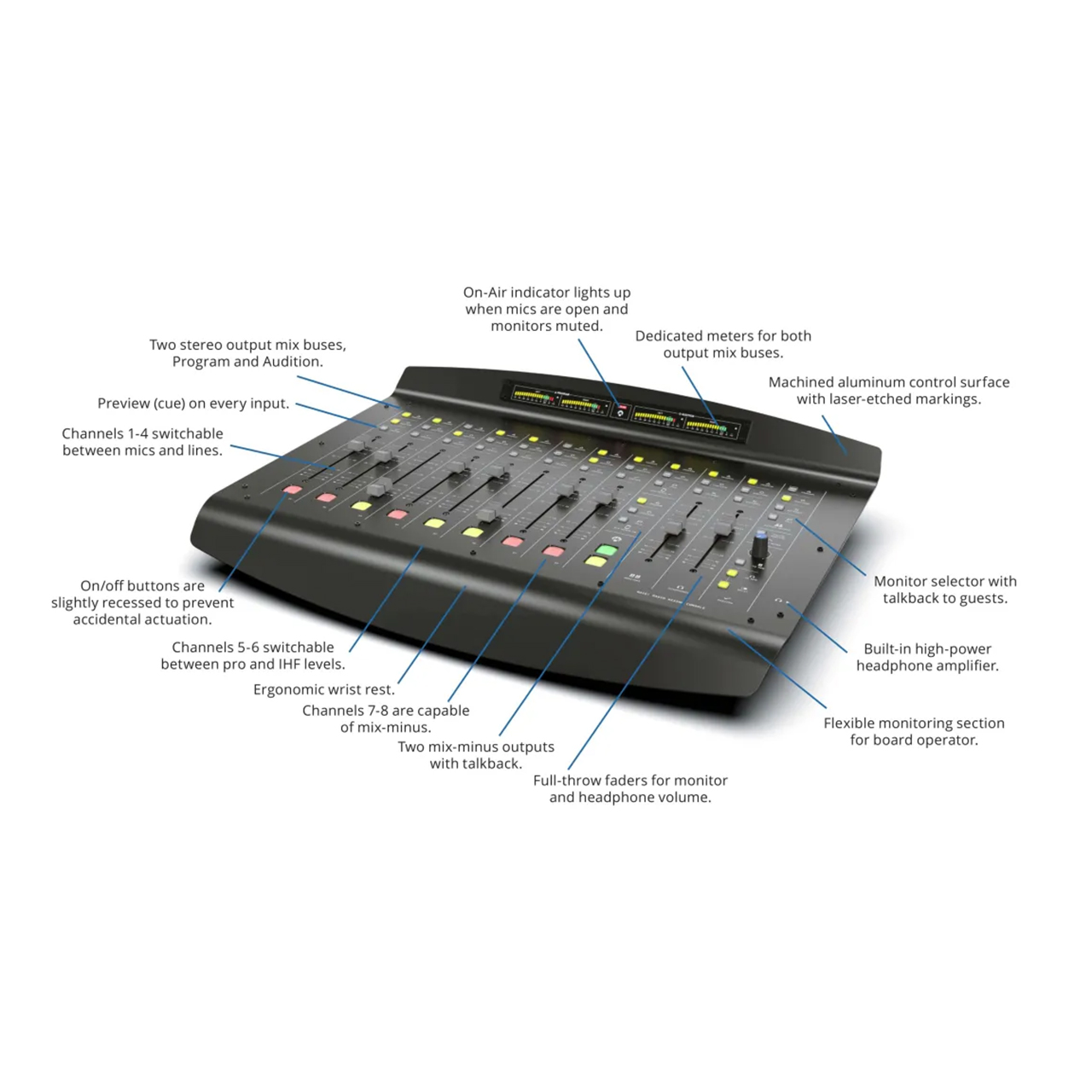

Features:
- Two stereo output mix buses, Program and Audition
- Preview (cue) on every input
- Channels 1-4 switchable between mics and lines
- On/off buttons are slightly recessed to prevent accidental actuation
- Channels 5-6 switchable between pro and IHF levels
- Ergonomic wrist rest
- Channels 7-8 are capable of mix-minus
- Two mix-minus outputs with talkback
- Full-throw faders for monitor and headphone volume
- Flexible monitoring section for board operator
- Built-in high-power headphone amplifier
- Monitor selector with talkback to guests
- Machined aluminum control surface with laser-etched markings
- Dedicated meters for both output mix buses
- On-Air indicator lights up when mics are open and monitors muted
Specifications:
- Power & Environmental
- Power Input: 115 VAC 50/60Hz
- Power Consumption: VA
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 113°F (-20°C to 45°C)
- Relative Humidity: 0% to 90% non-condensing
- Cooling: Venting chassis (fanless)

  Performance Specifications:
- Nominal Levels:
  - Line Inputs/Line Outputs: +4 dBu
  - Mic Inputs: -50 dBu
- Maximum Levels:
  - Line Inputs/Line Outputs: +24 dBu
- Frequency Response:
  - Line Input to Program Output: +0 dB, -0.5 dB, 20 Hz - 20 kHz
  - Mic Input to Program Output: +0 dB, -0.5 dB, 20 Hz - 20 kHz
- SNR: Line Input to Program Output: > 88 dB. 20 Hz - 20 kHz
- EIN: Mic Input to Program Output: -128 dBU, 150Ω Source
- THD+N:
  - Line Input to Program Output: < 0.002%
  - Mic Input to Program Output: < 0.007%
- Stereo Separation: > 80 dB, 10 kHz
- Bus Crosstalk: > 90 dB, 10kHz

  Weight and Dimensions
- Power Supply Dimensions: 8.25" x 6.25" x 1.75" (20.9cm x 15.87cm x 4.44cm)
- Power Supply Weight: 5 lbs (2.26 kg)
- Console Dimensions: 21" x 16" x 3.75" (53.34cm x 40.64cm x 9.52cm)
- Console Weight: 19 lbs (8.61 kg)
Item Includes:
- 1x RAVE! Radio Mixing Console

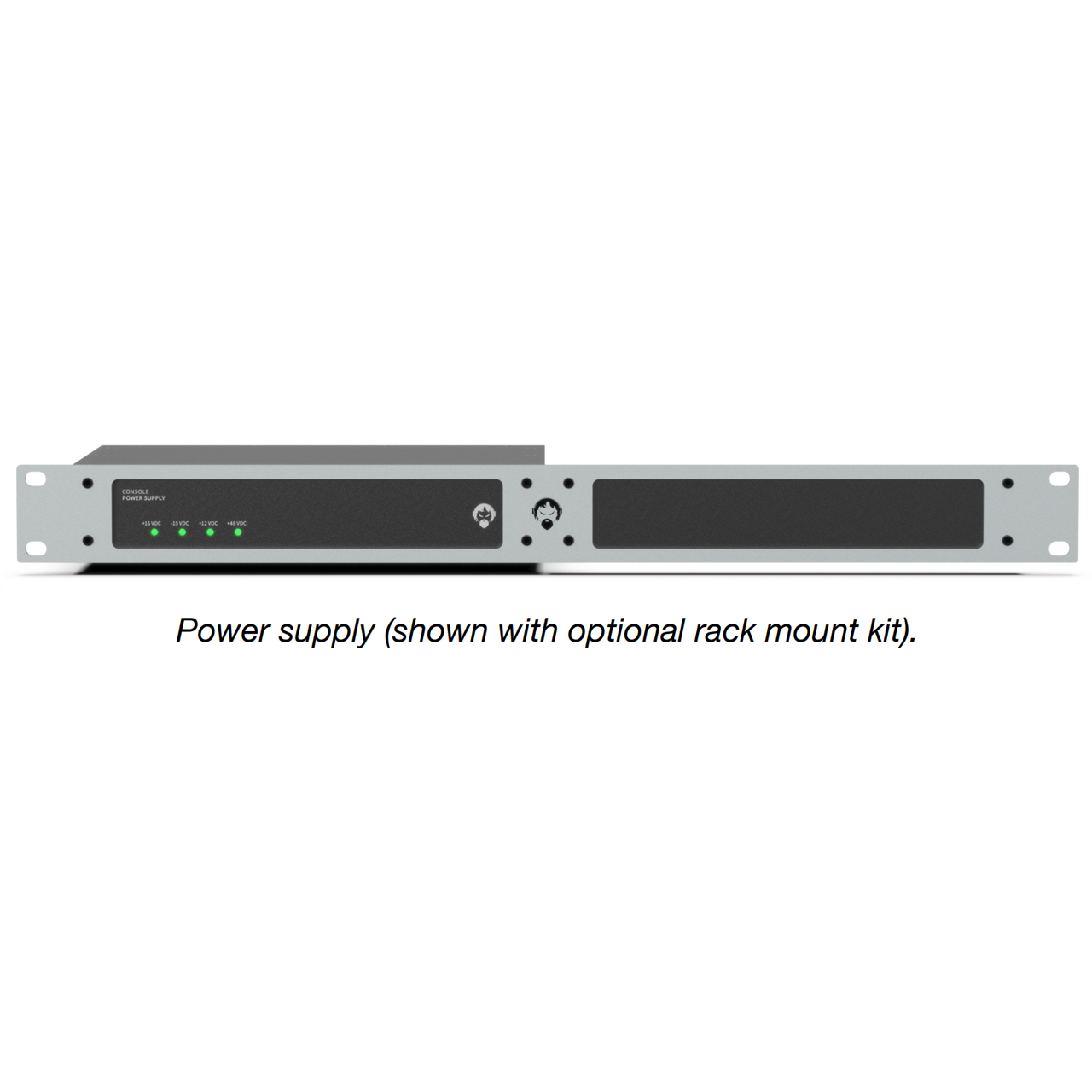

- 1x Console Power Supply
- 1x AC Power Cord (connects power supply to AC mains)
- 1x DC Cable (connects console to power supply)
- 1x StudioHub Cable/Adaptor Kit
Warranty:
- 2-Year Limited Warranty

RAVE STUDIOHUB BUNDLE - Recommended Accessories

Milspec D155200WT 6 Outlet Power Strip with 3 Foot Cord - White
MILSPE-D155200WT
Our Price: $6.27
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
Pelican 1920B LED Flashlight - Black
PEL-1920
Our Price: $40.95
Duracell PC1500 ProCell Heavy Duty AA Batteries - 24 Pack
24DURAA
Our Price: $12.40
Pro Tapes 001UPCG255MBLA Pro Gaff Gaffers Tape BGT-60 - 2 Inch x 55 Yards - Black
BGT-60
Our Price: $19.95
Black 5 Inch Soft cinch VELCRO® Brand Polytie Cable Tie - 25 Pack
3105-25
Our Price: $10.18

RAVE STUDIOHUB BUNDLE - Reviews

RAVE STUDIOHUB BUNDLE - Attachments

Angry Audio Rave! User Manual
Angry Audio Rave Brochure
