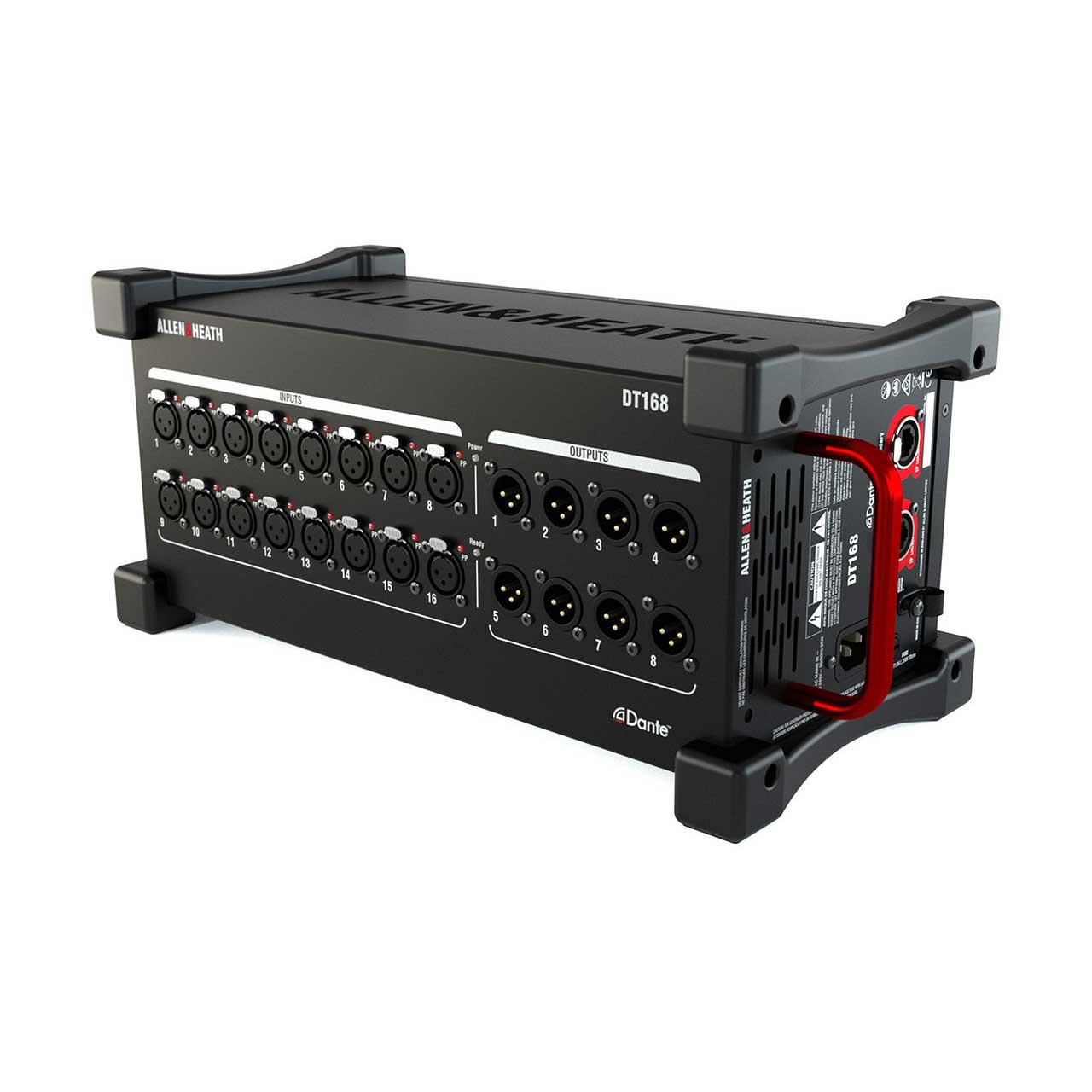

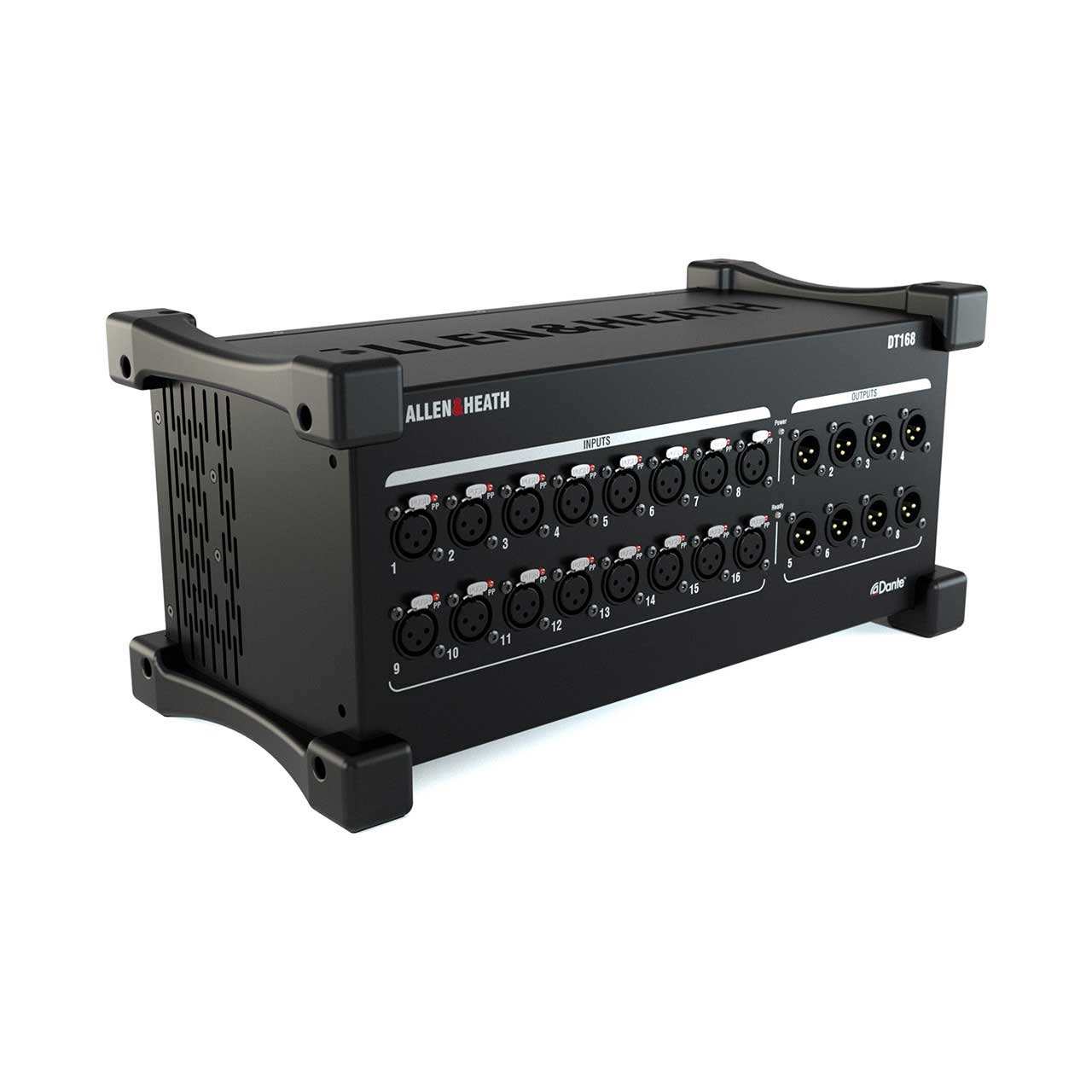

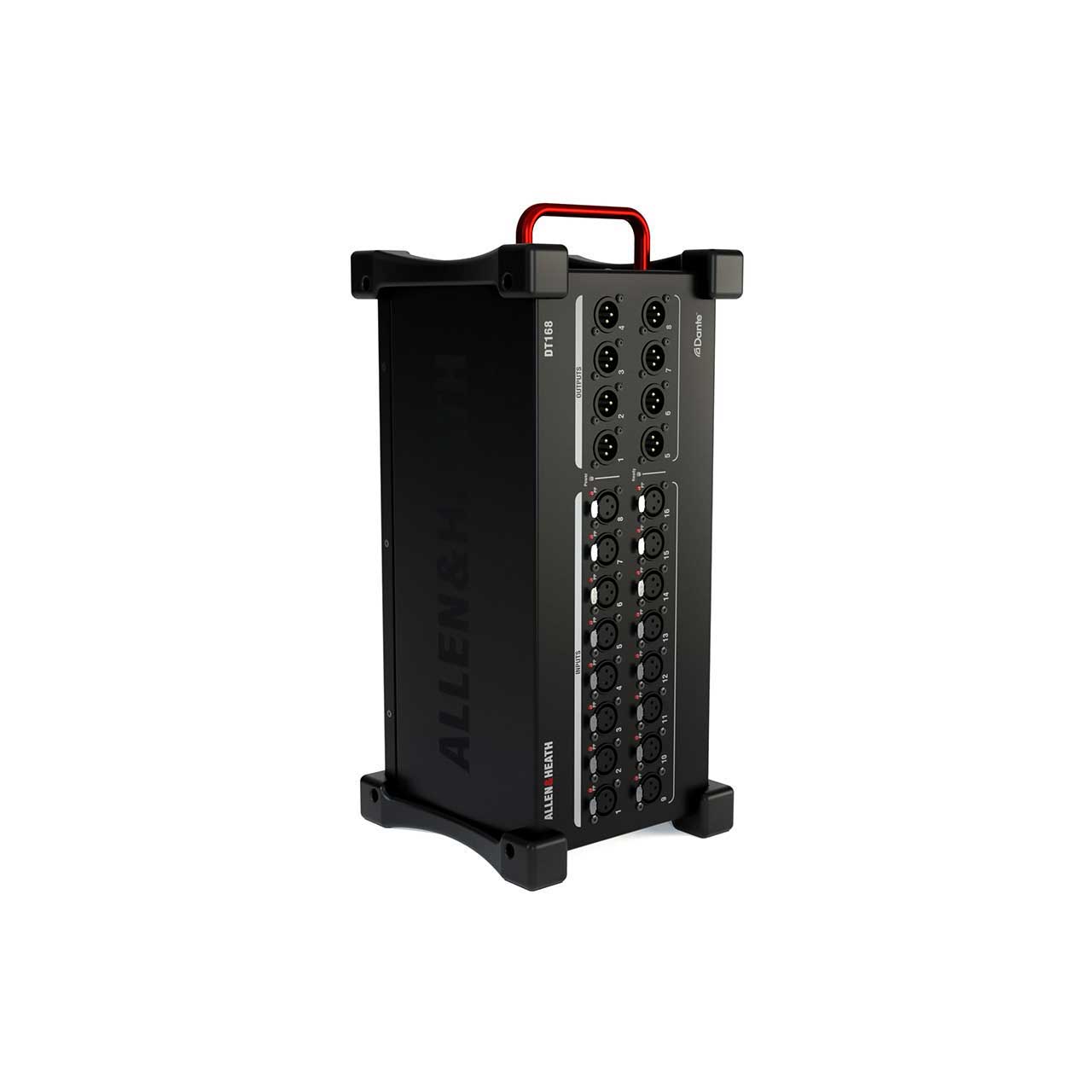

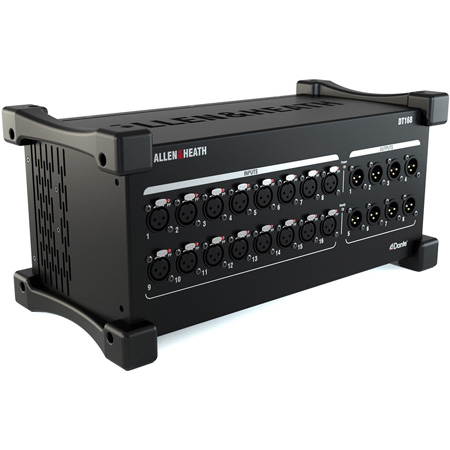

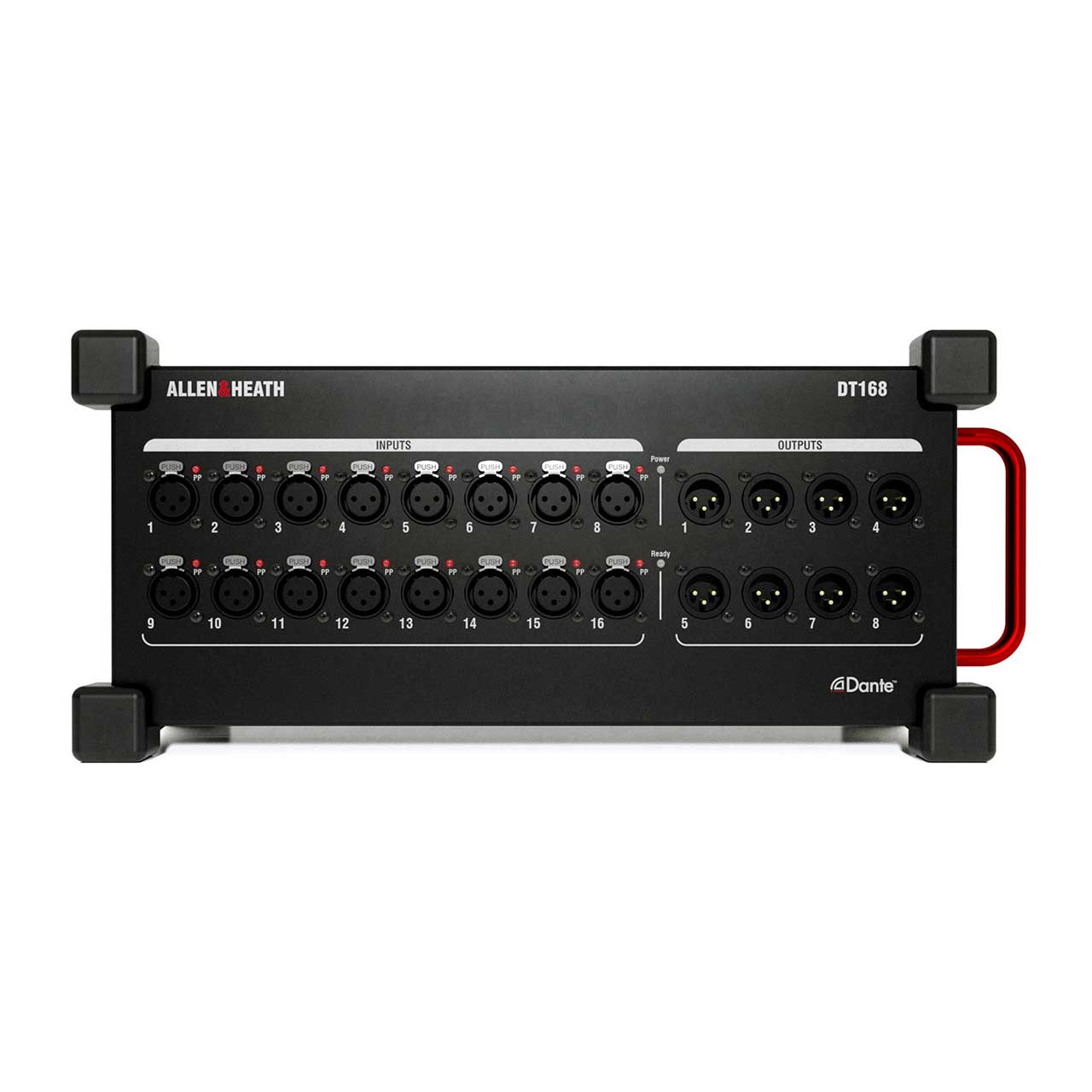

Allen & Heath AH-DT168 16x8 XLR Stagebox with Dante Audio Expander and dLive 96kHz Mic Preamps - 48kHz/96kHz

DT168 - Overview

• Features:

  • Dante audio expander, 96kHz / 48kHz
  • Portable stagebox design
  • 16 mic preamps on XLR with Phantom Power status LEDs
  • 8 XLR Line Outs
  • Primary and Secondary Dante ports with locking EtherCon
  • Redundant or Switched mode
  • Direct preamp control from dLive, Avantis and SQ
  • Optional 19-inch rack mount kit available
  • Rubber bumpers and carry handle
  • AES67 compatible
  • Dante Domain Manager ready


• Specifications:

  • Mic/Line XLR Inputs: Balanced, +48V Phantom Power
  • Mic/Line Preamp: Fully recallable
  • Input Sensitivity: -60 to +15dBu
  • Analogue Gain: +5 to +60dB, 1dB steps
  • Pad: -20dB Active PAD
  • Maximum Input Level: +30dBu (PAD in)
  • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)


  • Mic/Line Channel Noise: 22-22kHz, Direct Out @ unbalanced out
  • Mic EIN: -127dB with 150Ω source
  • Unity gain (Pad in): -90dBu
  • Low gain (5dB, Pad out): -96dBu
  • Mid gain (30dB, Pad out): -90dBu


  • Mic/Line Channel THD+N: 22-22kHz, Direct Out @ unbalanced out
  • Unity gain (Pad in): 0.003% -88dBu @ 1kHz, 0dBu output
  • Low gain (5dB, Pad out): 0.002% -93dBu @ 1kHz, 0dBu output
  • Mid gain (30dB, Pad out): 0.003% -88dBu @ 1kHz, 0dBu output


  • Analogue XLR Outputs: Balanced, Relay protected
  • Output Impedance: <75Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +22dBu
  • Residual Output Noise: -92dBu (muted, 20-20kHz)

    DANTE
  • Sample rate: 48kHz or 96kHz
  • Bit Depth: 24 Bit
  • Gain, Pad, 48v Control: Allen & Heath dLive, Avantis, AHM-64 or SQ system


  • Operating Temperature: 0 deg C to 40 deg C (32 deg F to 104 deg F)
  • Mains Power: 100-240V, 50/60 Hz, 40W max
  • Dimensions: 16.1" x 7.5" x 7.3"
  • Weight: 10.1lbs


• Item Includes:

  • 1x Allen & Heath DT168 16x8 Dante Audio Expander with dLive 96kHz Mic Preamps - 48kHz / 96kHz


• GTIN:

  6938122249240
