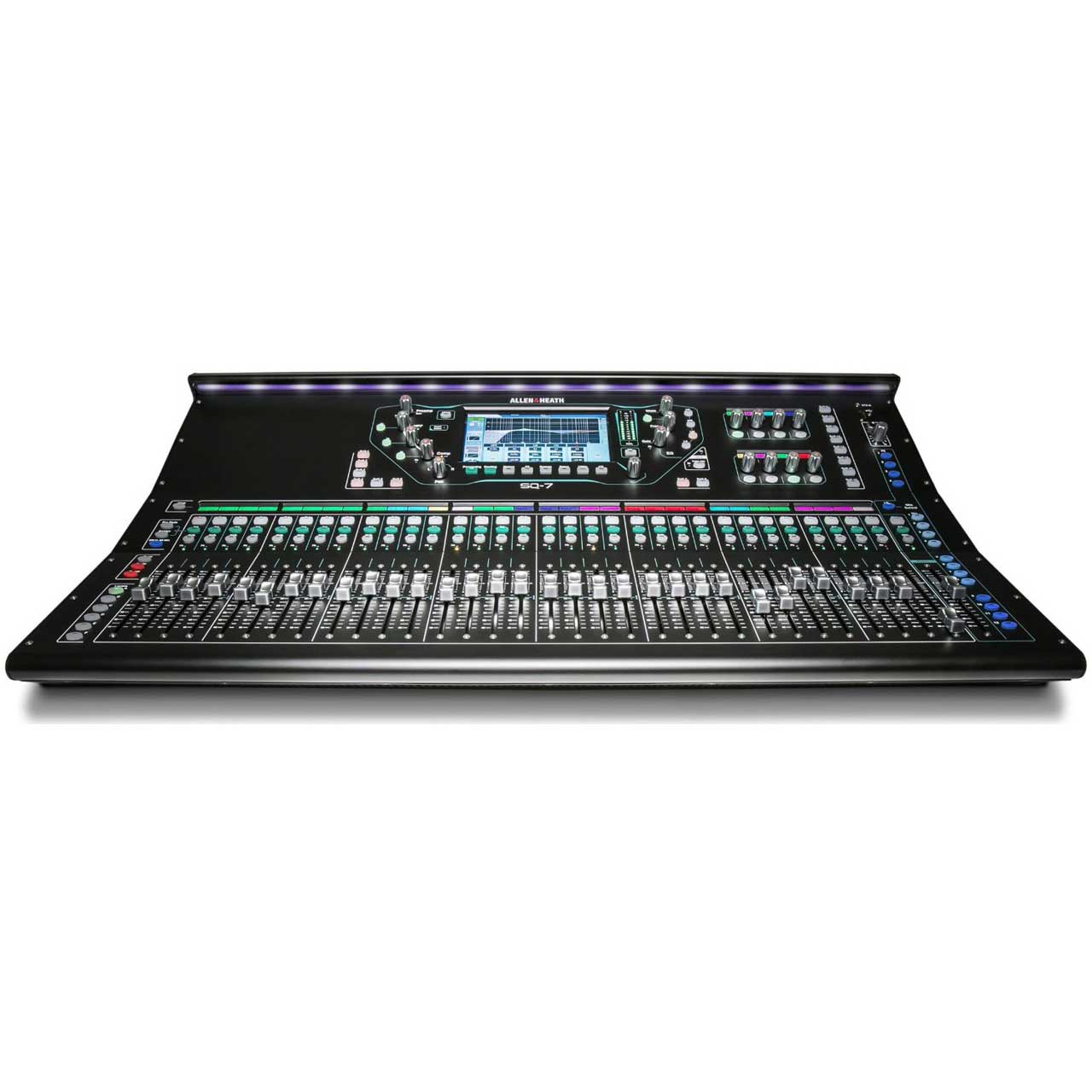

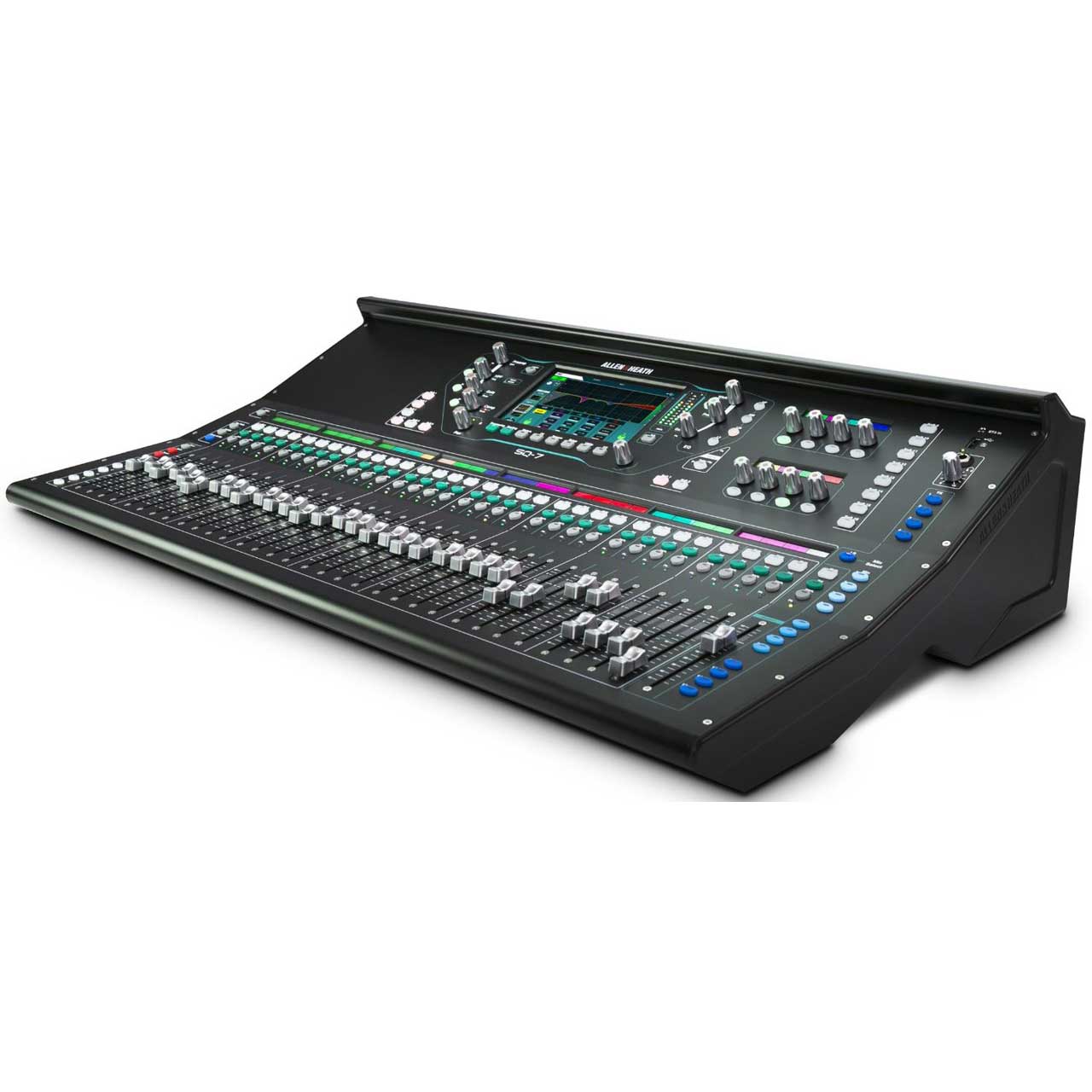

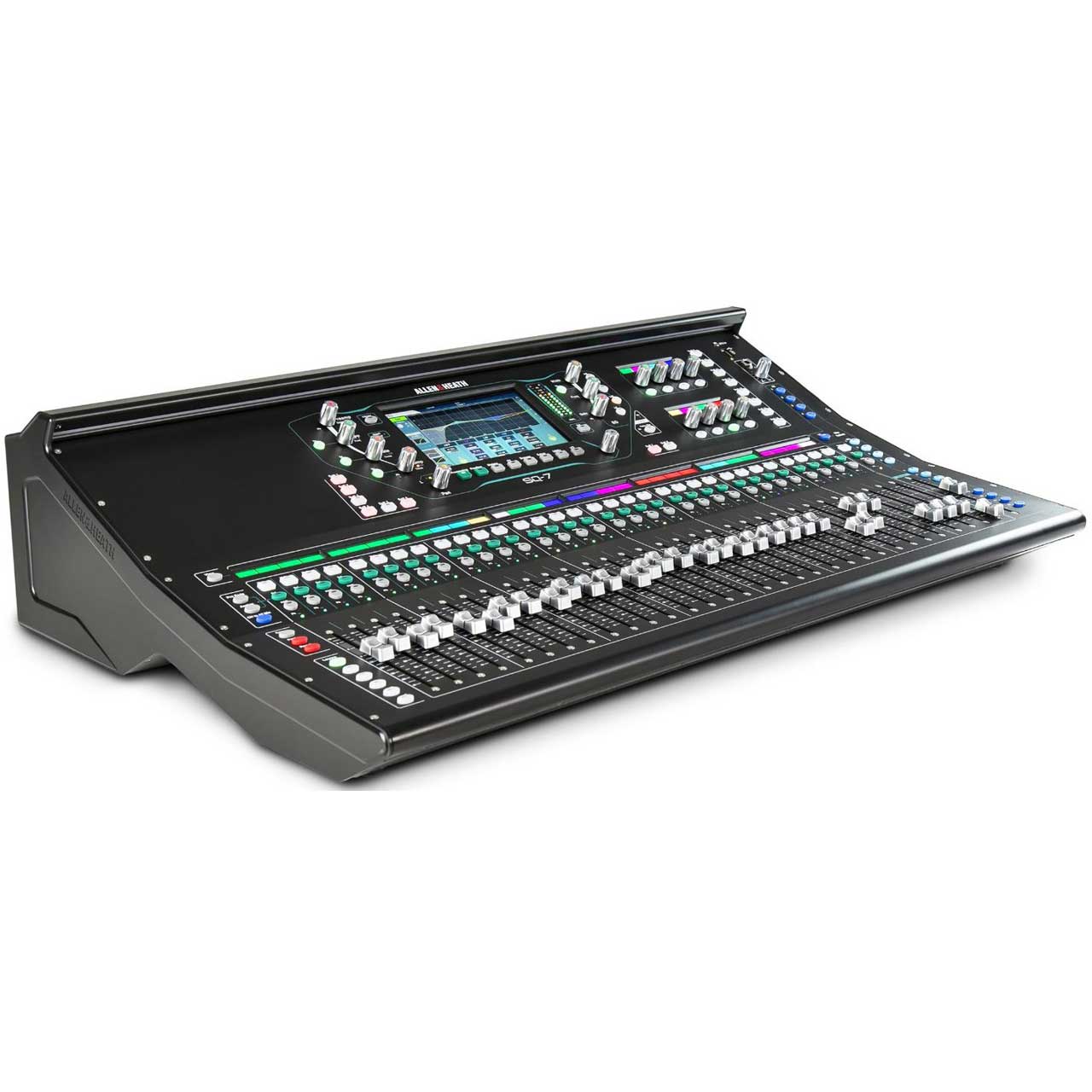

Allen & Heath AH-SQ-7 33 Fader 48 Channel 32 Onboard Preamp 96kHz Digital Mixing Console

AH-SQ-7 - Overview

• Features:

  • 96kHz FPGA processing
  • 48 Input Channels
  • DEEP Processing ready
  • 33 Faders / 6 Layers
  • 12 Stereo mixes + LR
  • 3 Stereo Matrix
  • 8 Stereo FX Engines + dedicated stereo returns
  • 7" capacitive touchscreen
  • SLink port for remote audio / expansion
  • 64ch I/O Port for audio networking
  • 32x32 USB audio interface
  • SQ-Drive direct recording to USB
  • AES output
  • Chromatic channel metering
  • Integrated LED illumination
  • Dedicated physical controls
  • 16 Assignable SoftKeys
  • 8 Assignable Soft Rotaries
  • Channel LCD displays


• Specifications:

  • Mic/Line Inputs
  • Inputs: Balanced XLR, fully recallable
  • Input Sensitivity: -60 to +0dBu
  • Switchable Pad: -20dB
  • Analogue Gain: 0dB to +60dB, 1dB steps
  • Maximum Input Level: +30dBu
  • Input Impedance: >5kΩ
  • THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
  • THD+N, Mid Gain +30dB: 0.003% -91dBu (20Hz-20kHz, AES Direct Out, @-30dBu INPUT 1kHz)
  • Phantom Power: +48V (+3V / -2V)

    Stereo Line Inputs
  • ST1, ST2 connectors: Balanced, 1/4" TRS jack
  • ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
  • Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu ST1, ST2 / 0dBu ST3

  • Trim: +/-24dB
  • Maximum Input Level (ST1,ST2 / ST3): +22dBu / +18dBu
  • Input Impedance: >7kΩ

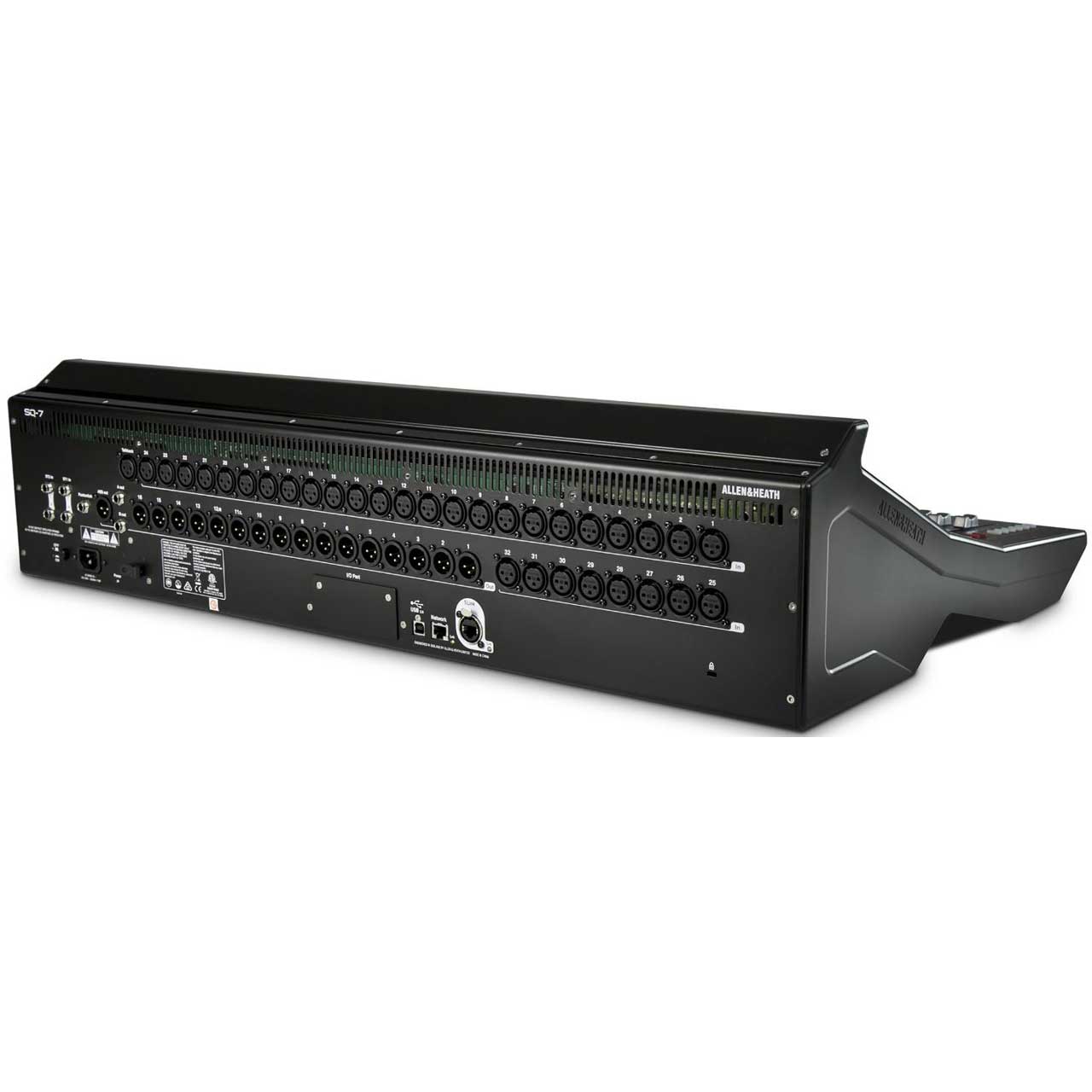

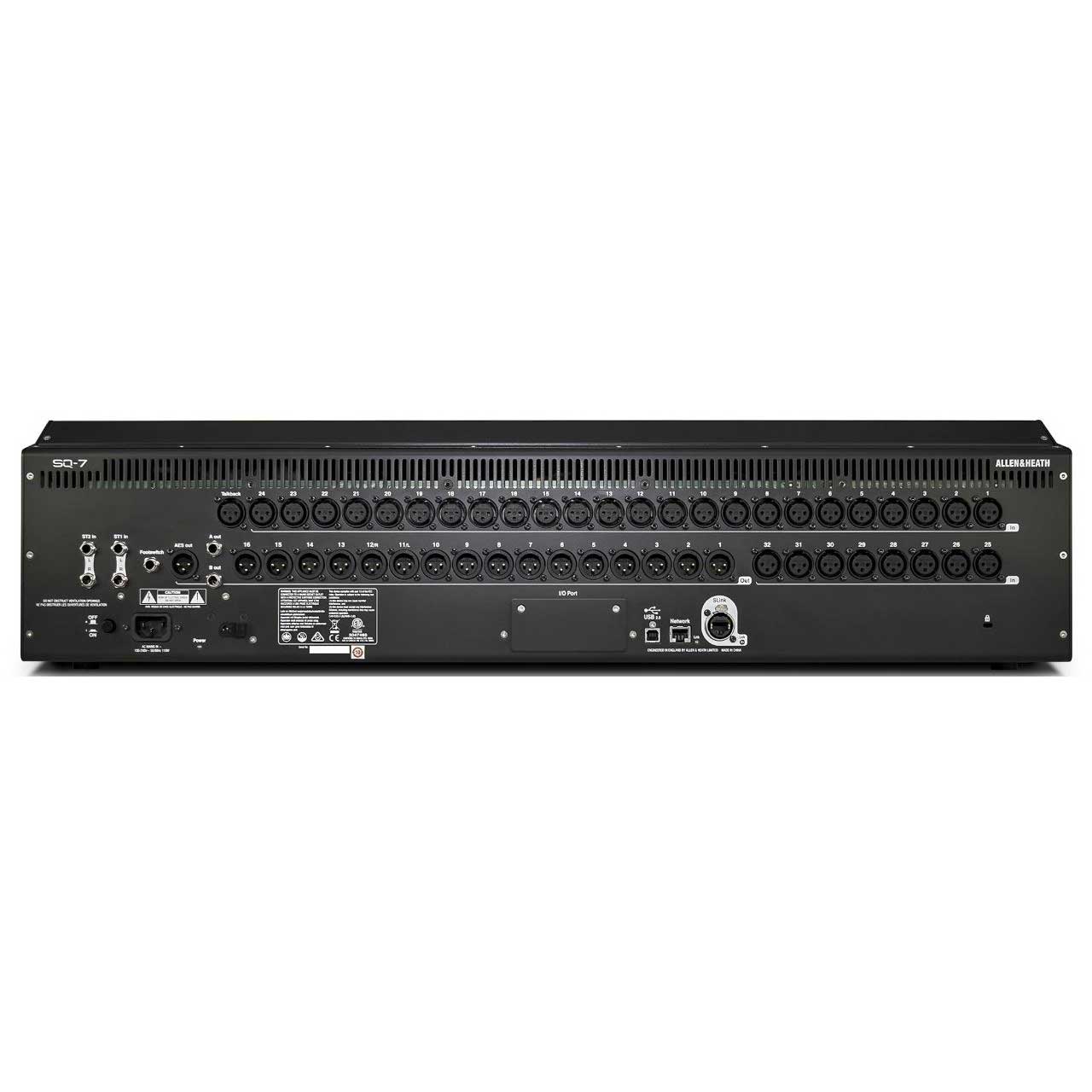

    Outputs
  • XLR Outputs: Balanced
  • Outputs A and B: Balanced 1/4" TRS Jack
  • Source: Patchable
  • Output Impedance: <75Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +22dBu
  • Residual Output Noise: -90dBu (muted, 20Hz-20kHz)

    General
  • AES Digital Output: Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed)
  • SLink: Neutrik EtherCON (RJ45)
  • dx mode (96kHz devices): 32 channels assignable, compatible with DX168
  • Inputs/Outputs: Fully Patchable
  • Sync/SRC: assignable as master audio sync for all modes, SRC 64 channel
  • I/O Port: Multi-channel I/O option module
  • Faders: 100mm motorized
  • Touch Screen: 7" Capacitive, 800 x 480 resolution, 24 bit RGB
  • SofKeys: 16
  • SoftTotarys: 8
  • Mute Groups/DCA Groups: 8/8
  • Network: TCP/IP Ethernet for MIDI and Control
  • Midi: TCP/IP and USB B
  • Footswitch: Single or Dual, Momentary or Latching

    Physical
  • Desk mounted Dimensions (W x D x H): 804 x 514.9 x 198 mm (31.7" x 20.3" x 7.8")
  • Shipping Dimensions (W x D x H): 960 x 685 x 360 mm (37.8" x 27" x 14.2")
  • Weight 17.8 kg (39.3 lbs)
  • Packed weight 21.9 kg (48.3 lbs)


• GTIN:

  6938122247482
