Anton Bauer 8075-0253 Wooden Camera 26V Plate (ARRI LF/65/SXT) - Gold Mount Plus

ITEM #: AB-8075-0253 MFG #: 8075-0253

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Anton Bauer
Free Shipping with $49 Minimum Order

List Price:

$1,179.00

Our Price:

$1,061.10

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

8075-0253 - Overview

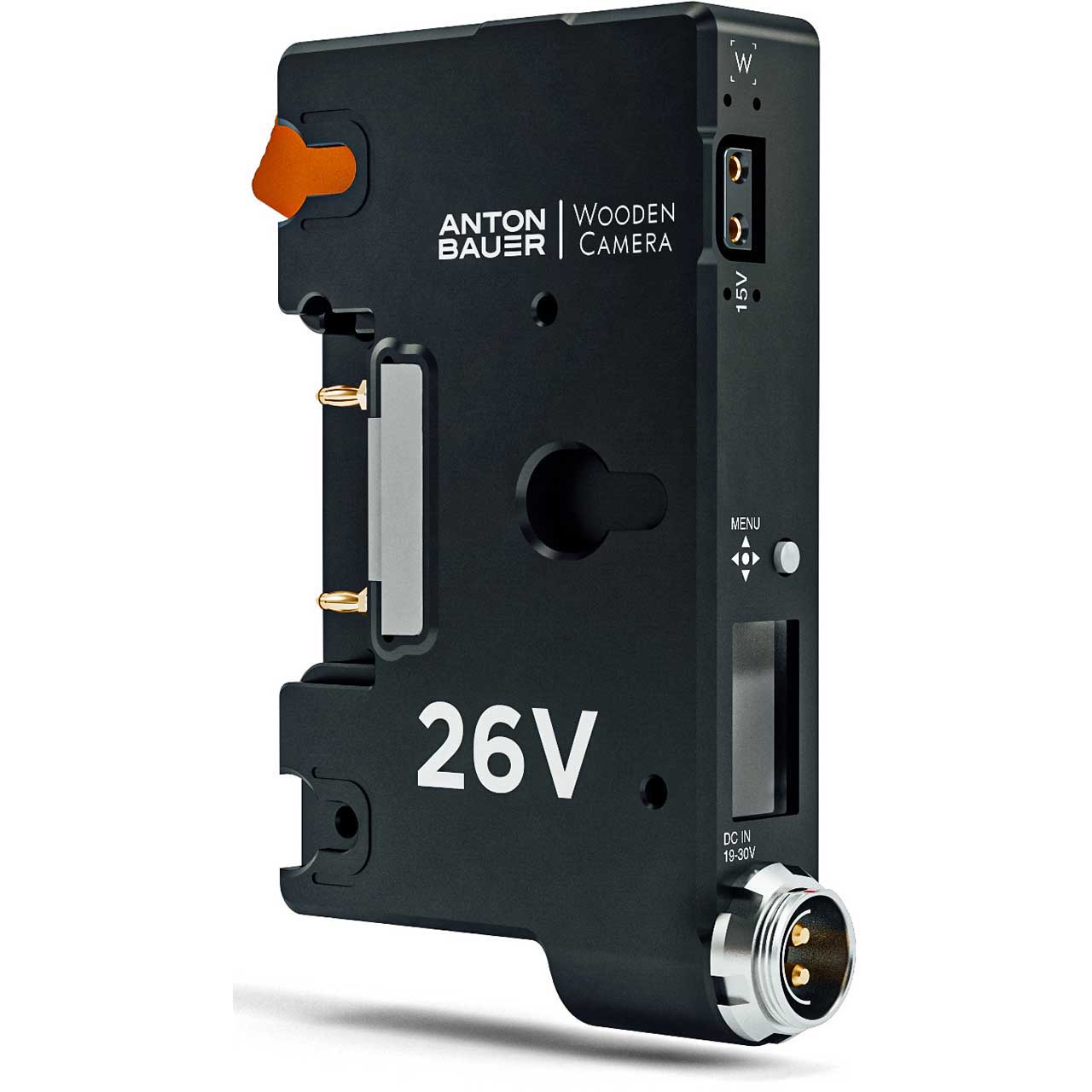

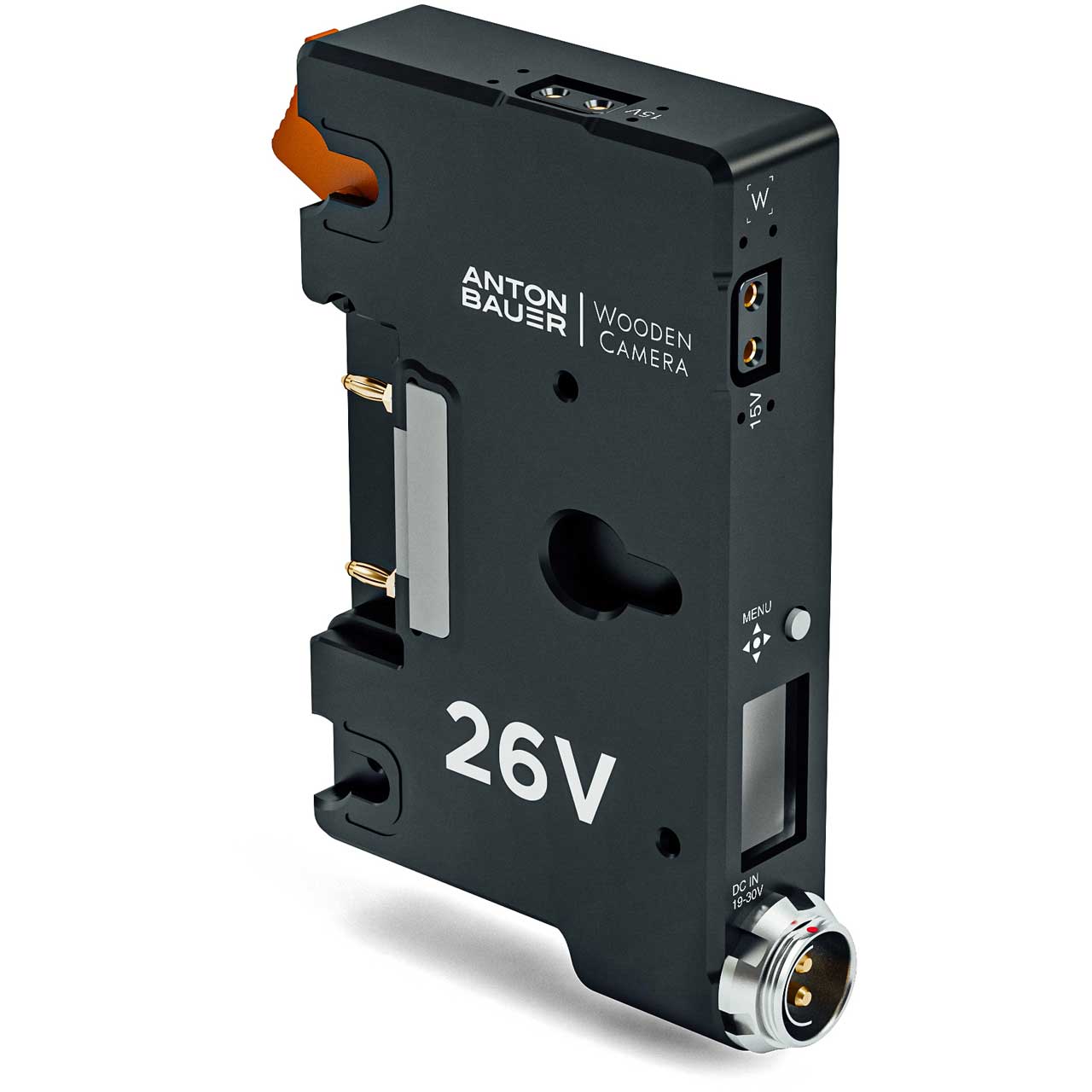

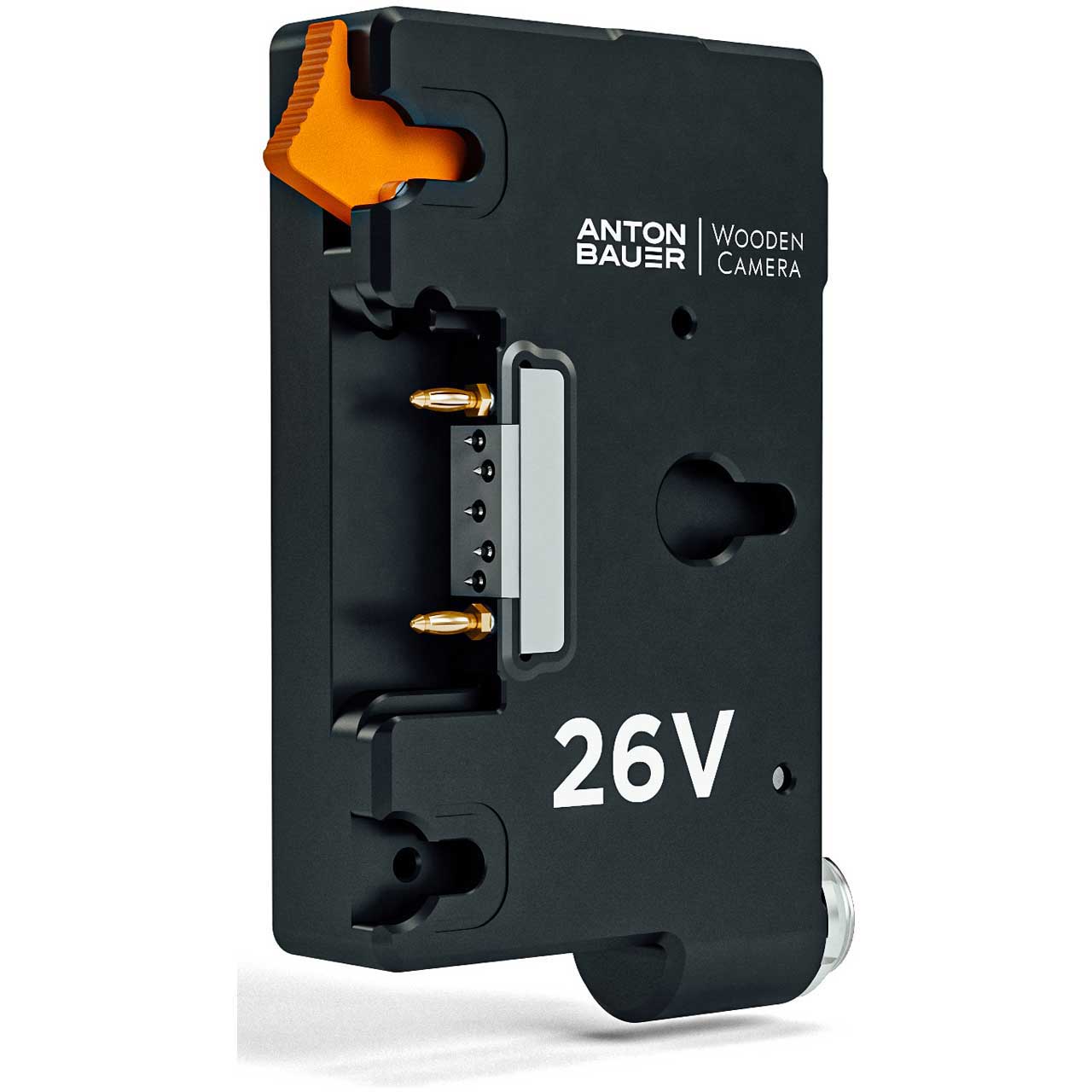

Anton Bauer 8075-0253 Wooden Camera 26V Plate attaches one 26V battery to the back of ARRI Alexa LF, 65, and SXT cameras.

Prioritized 2pin DC input to support block batteries with hot-swap backup and OLED screen for voltage information. Includes two regulated 15V P-Tap ports enabling Dionic 26V batteries to be swapped without the need to disconnect P-Tap powered accessory cables.

Can be used in conjunction with Anton/Bauer VCLX battery to allow hot swap capability without the need for powering down the camera.

  • Features:

    • Wooden Camera / Anton/Bauer 26V Gold Mount Plus Plate enables a single Dionic 26V battery to power an Alexa LF, 65, or SXT Camera

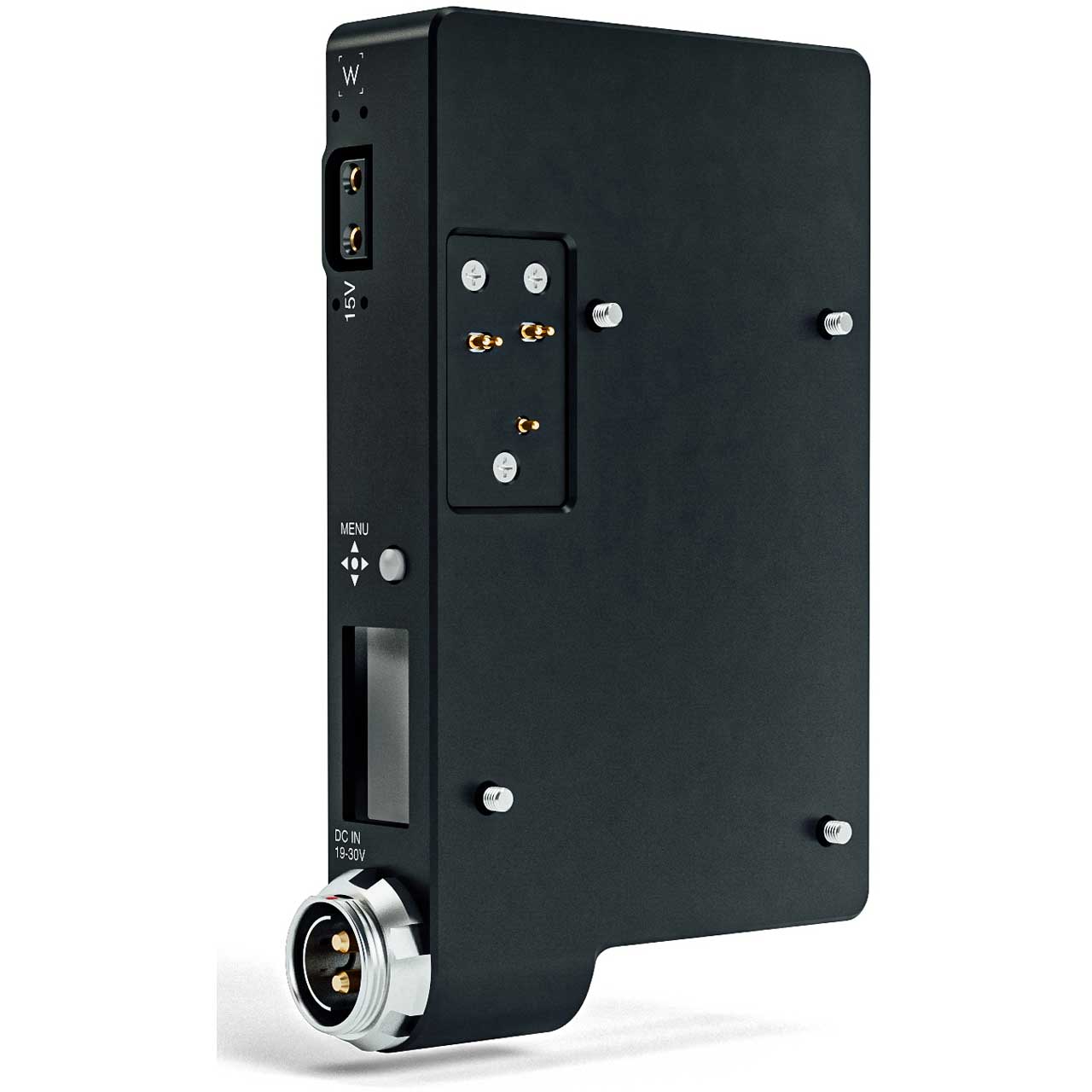

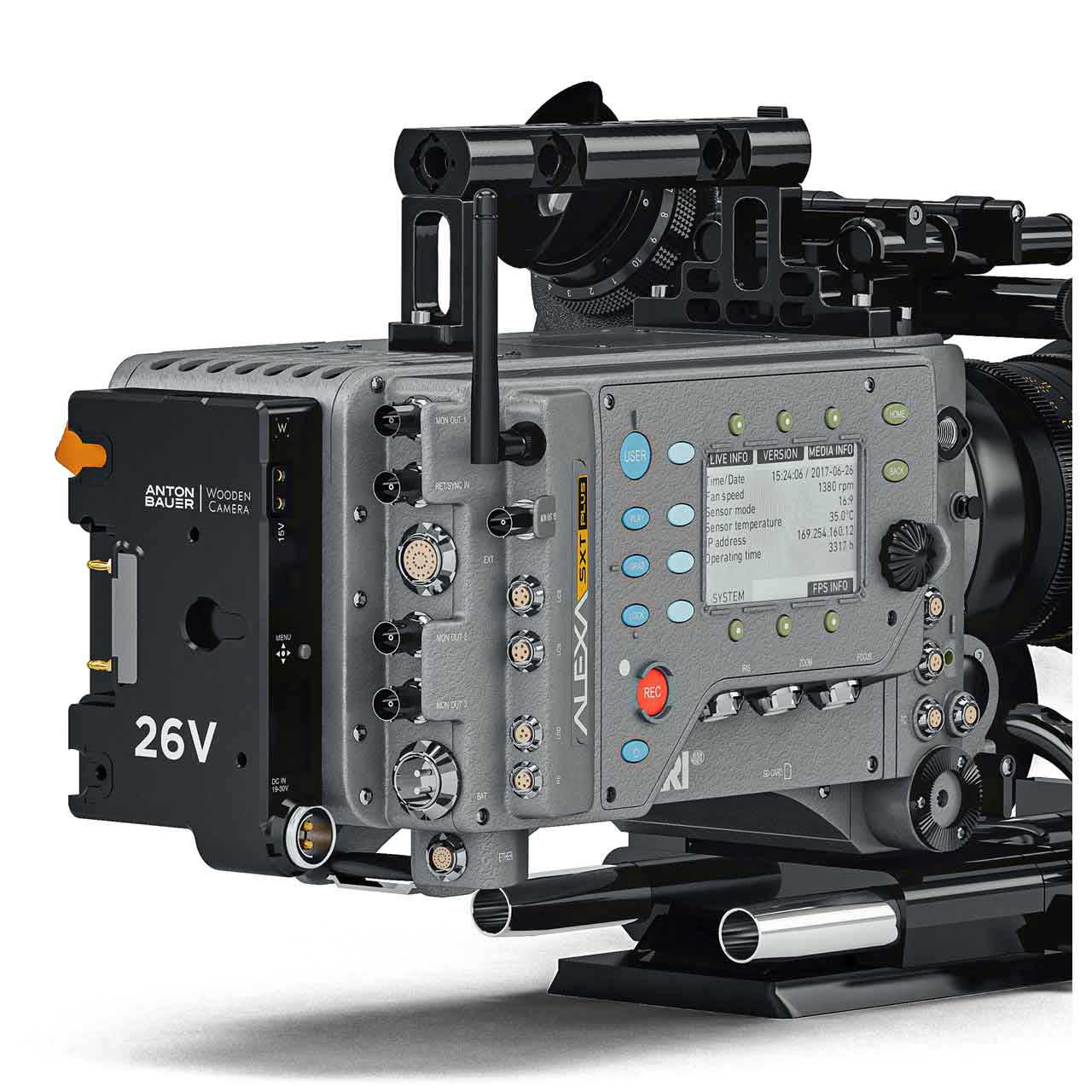

    • Plate attaches to the back of the ARRI Alexa LF, 65, or SXT cameras through battery contacts without cables
    • Internal circuit board prioritizes the 2pin Fischer DC Input, allowing 24V block batteries to be used first, leaving the on-board battery fully charged
    • Hot swapping between battery sources is possible and OLED screen provides voltage data, battery capacity, and active source information
    • Two P-TapS provide regulated 15V power
    • Plate includes a "digital reset" through the OLED if current thresholds are exceeded and cuts power to the P-Taps


  • Specifications:

    • Mount: Gold Mount Plus and Gold Mount
    • Included P-TapS: (2) 15V regulated
    • Digital Reset: Via OLED if P-Tap current threshold is exceeded without impacting power to camera


  • Item Includes:

    • 1x Anton Bauer 8075-0253 Wooden Camera 26V Plate


  • GTIN:

    0606184858415
