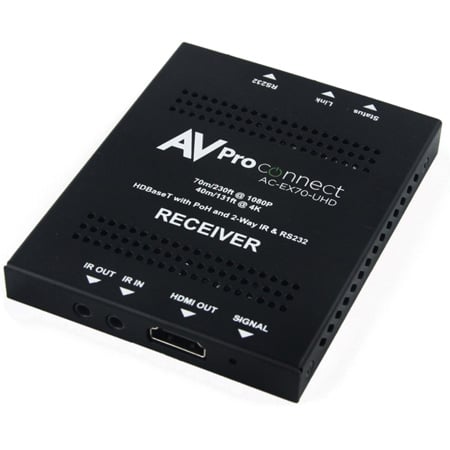

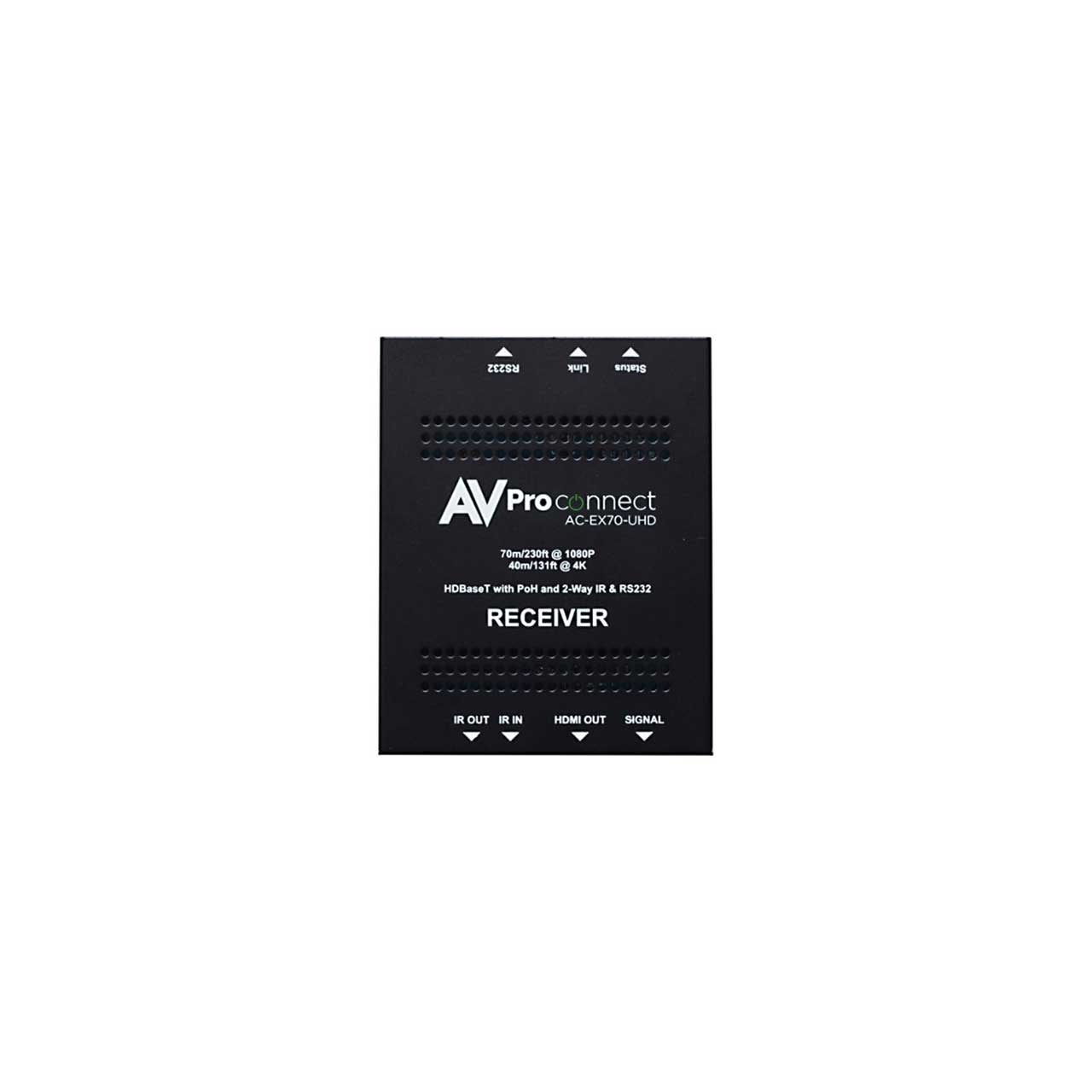

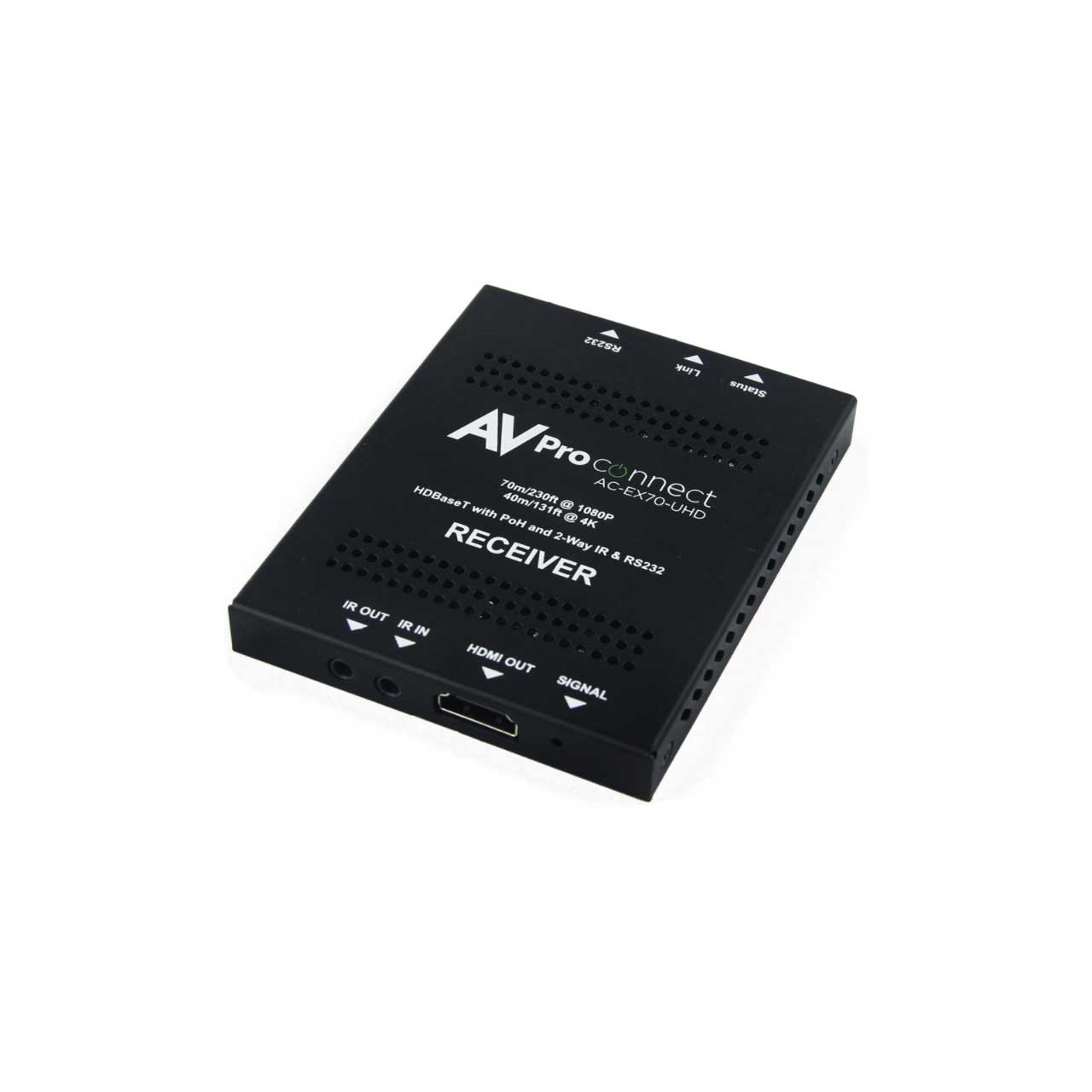

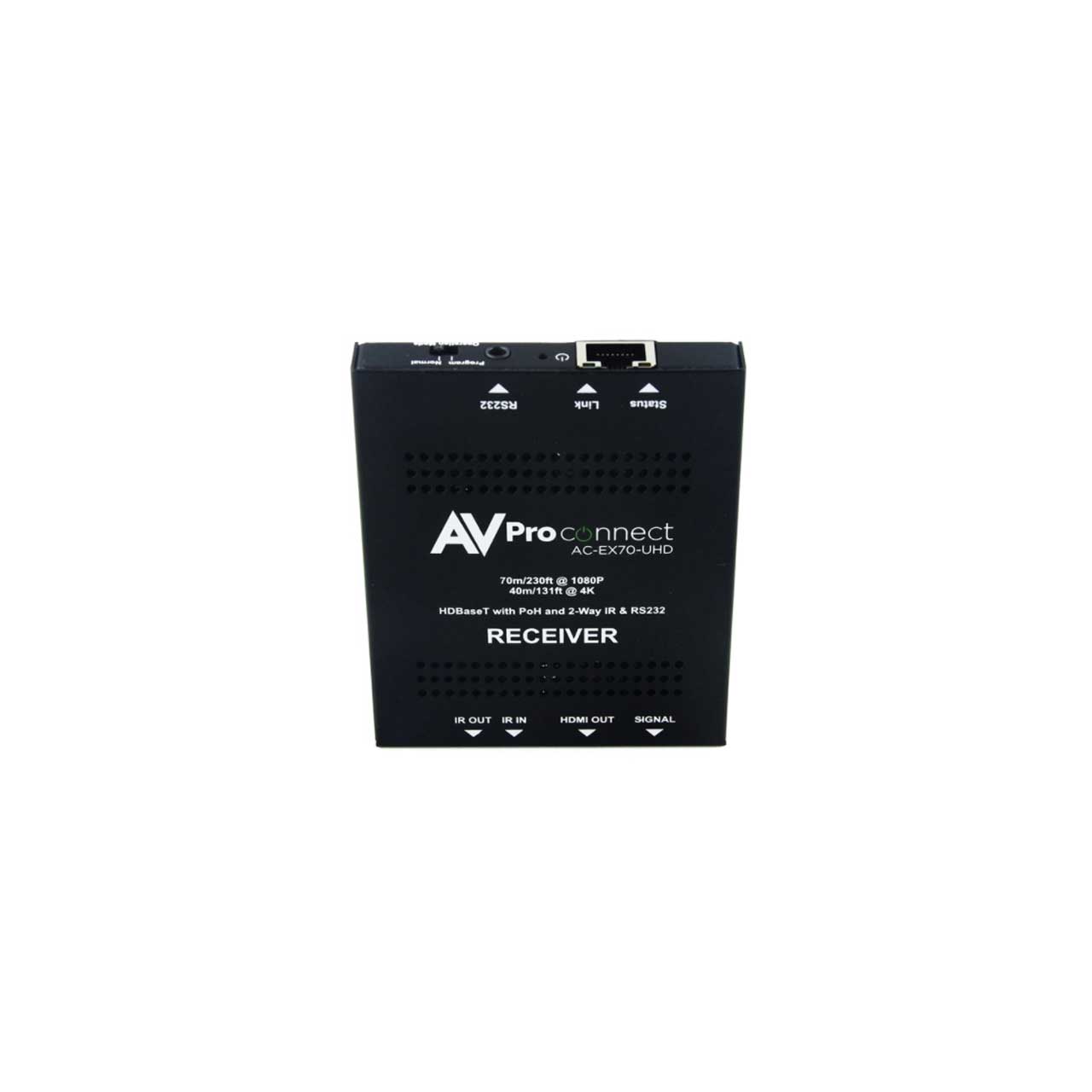

The AC-EX70-UHD-R is a Super Slim 70 meter HDMI via HDBaseT extender over single CAT-5e/6a/7 UTP/STP.
The AVPro Edge primary extender is the most cost effective, state of the art and reliable single CAT 70 meter extender on the market today and solves problems for both commercial and residential markets for distributing high value 4K UHD content from rack to display. With the additional ability to cascade extenders affordable and reliable HDMI extension is now possible. Additionally AC-EX70-UHD offers solutions for UHD/HD uncompressed distribution in residential digital entertainment centers, retail stores, AV events that require reliable and long distance distribution, suitable for Data Center, Control Rooms, Conference Rooms, Schools and Corporate Training environment.
Key Benefits Include:
1) Extend 4K HDMI: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-5E/6A cables are available widely and can be reworked easily by the installer or end-user.
2) Distance: By using AC-EX70-UHD, the transmission distance for HD 1080P is up to 70 meters (230ft) and UHD 4K resolution the distance reaches an impressive 40 meters (115ft).
3) Cascade: AC-EX70-UHD features HDMI signal equalization and amplification. This allows for a “daisy chain” of AC-EX70-UHD extenders for extremely long distance transmission. Up to 8 layers with HDCP and using your own non-HDCP content, unlimited!
4) Control: IR & RS-232 are bidirectional and can control the sources from the sinks or vice versa.
5) Power: PoH (Power over HDBaseT) function is intended to power RX from the TX and the advantage of lightweight (160 gram) super-slim extender is to be mounted anywhere where space is at a premium.
6) Field Updates: Should a firmware update be necessary it can be accomplished in the field
