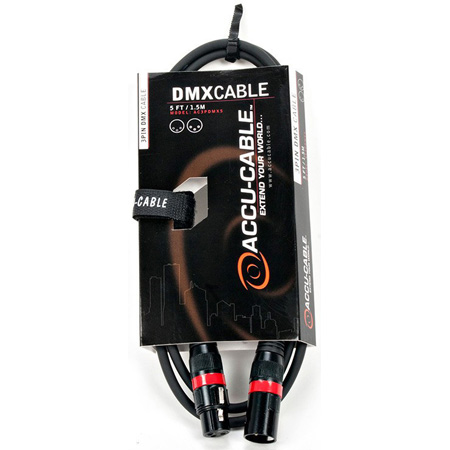

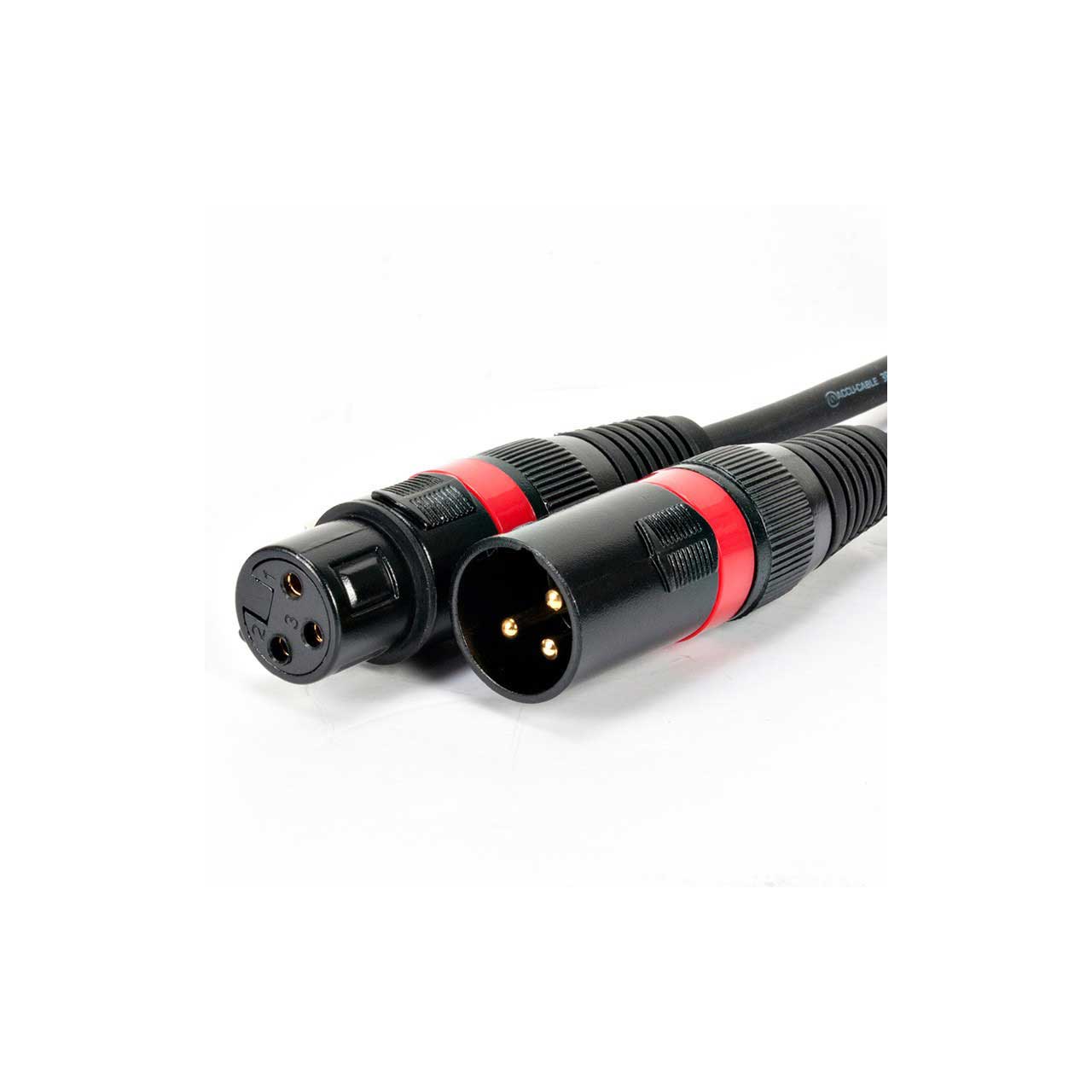

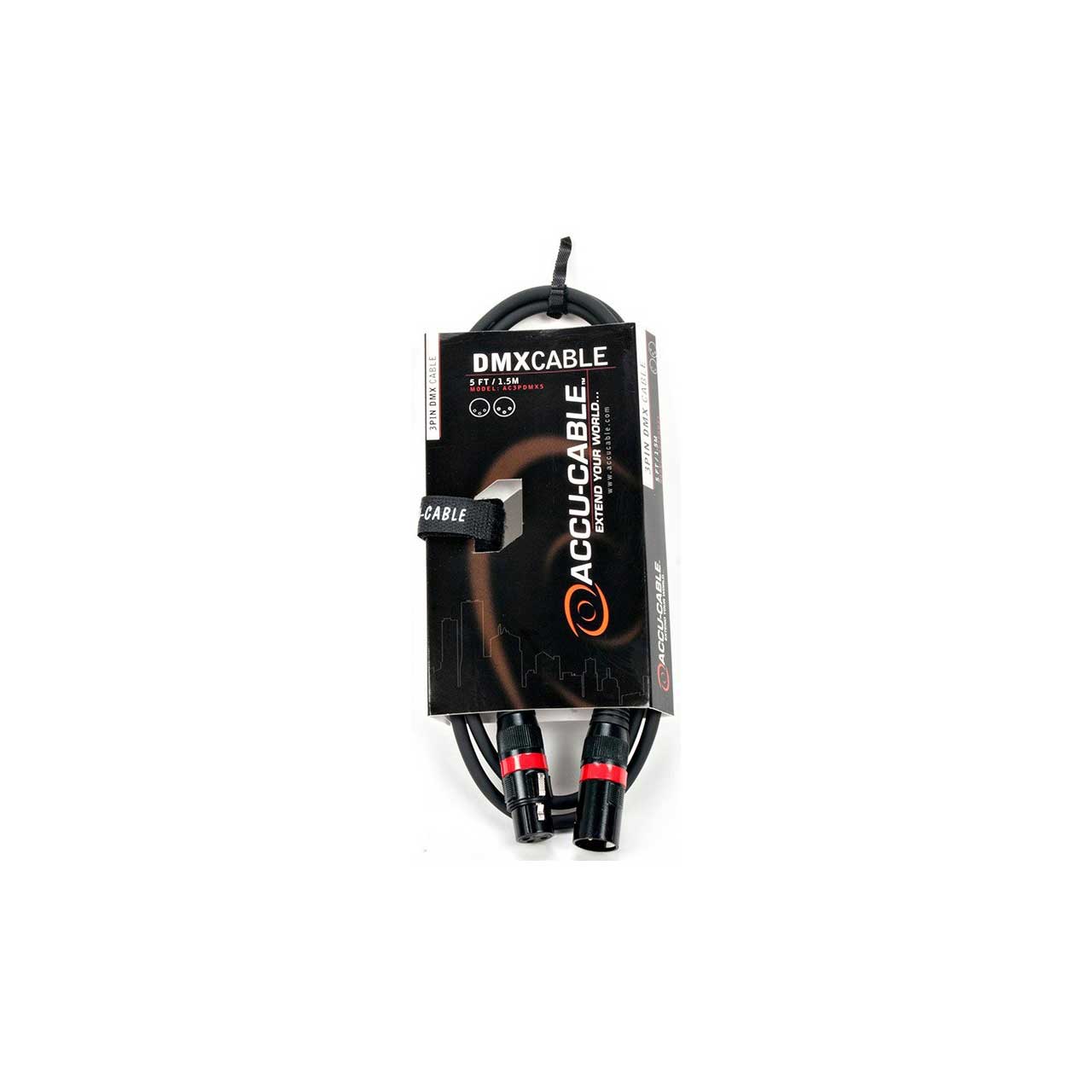

ACCU-CABLE AC3PDMX5 3 Pin DMX Cable - 5 Foot

AC3PDMX5 - Overview

• Specifications:

  • Physical Characteristics:
  • Conductor:
  • Number of Pairs: 1
  • Total Number of Conductors: 2
  • AWG: 22
  • Stranding: 0.15 x 19
  • Conductor Diameter: .0354"
  • Conduct or Material: TC-Tinned Copper


  • Insulation:
  • Insulation Material PE Polyethylene


  • Lay Length:
  • Lay Length: 2.5"
  • Direction: Left Hand Lay
  • Twists: 4.8 per foot


  • Inner Jacket:
  • Inner Jacket Material: PE- Polyethylene
  • Inner Jacket Diameter: .055"
  • Pair Color Code: Black/White


  • Outer Shield:
  • Outer Shield Trade Name: Duofoil
  • Outer Shield Type: Tape/Braid


  • Outer Shield Material:
  • Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
  • Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85


  • Outer Jacket:
  • Outer Jacket Material: PVC-Polyvinyl Chloride


  • Overall Nominal Diameter:
  • Overall Nominal Diameter: .229"


  • Mechanical Characteristics:
  • Operating Temperature Range: (-30 degrees C To + 75 degrees C)
  • Bulk Cable Weight: 31 lbs/1000
  • Minimum Bend Radius (Install): 3.2"
  • Maximum Recommended Pull Tension: 72 lbs.


  • Electrical Characteristics:
  • Nominal Characteristic Impedence: 110 Ohms
  • Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
  • Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
  • Nominal Velocity of Propagation: 66%
  • Nominal Delay: 1.6 Nanoseconds per foot
  • Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
  • Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
  • Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
  • Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
