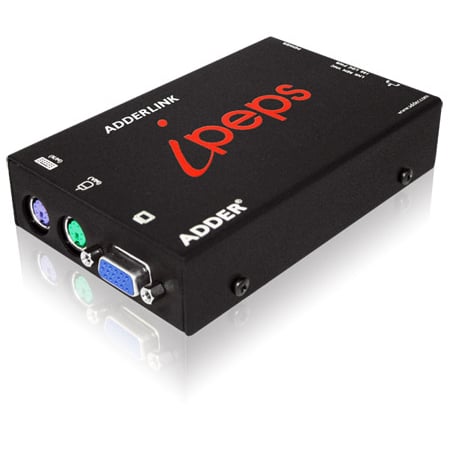

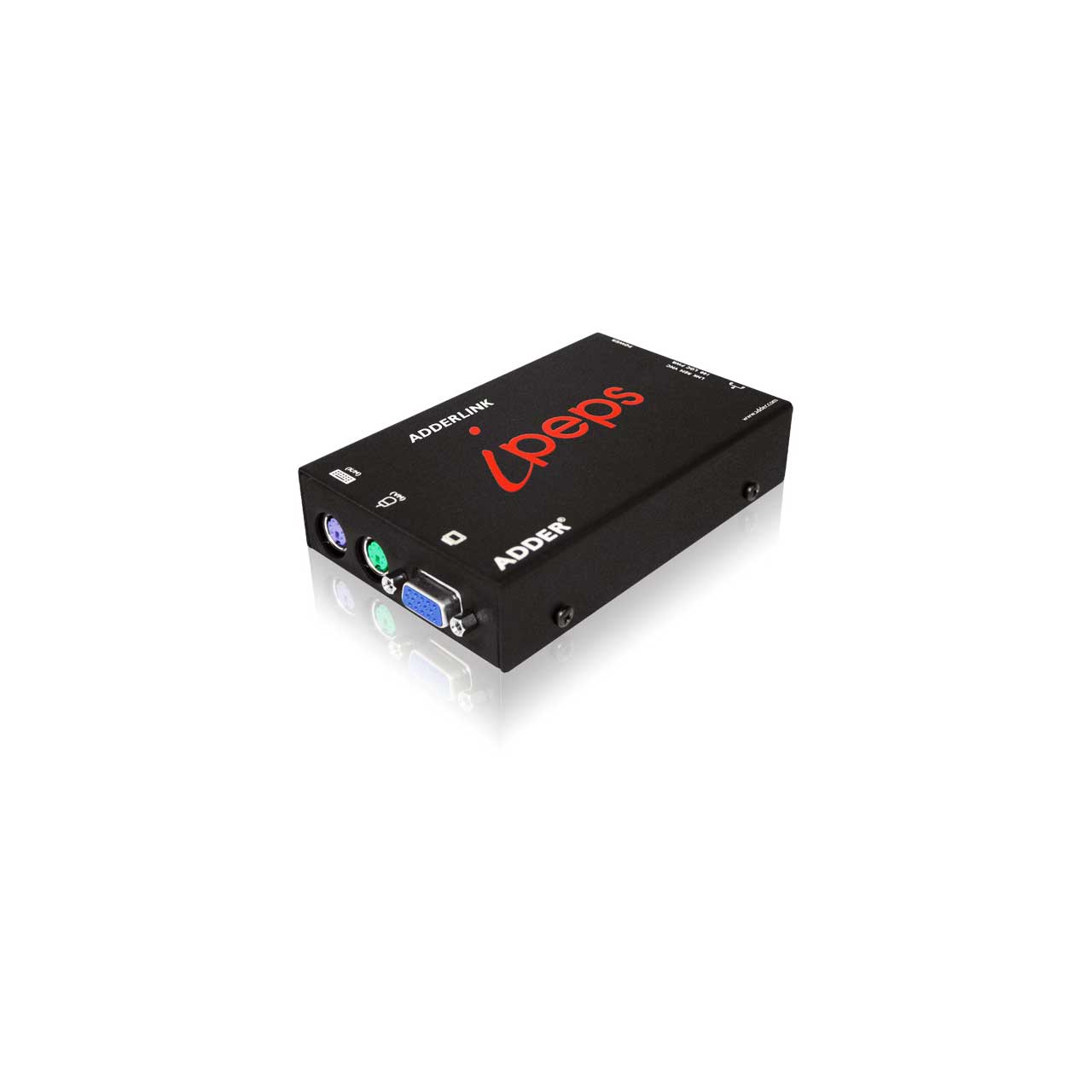

ADDERLink AL-IPEPS ipeps - Single User KVM-over-IP Extender - VGA - PS/2 - USB

ITEM #: ADR-AL-IPEPS MFG #: AL-IPEPS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$605.00

Our Price:

$544.50

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


AL-IPEPS - Overview

High performance video over RealVNC

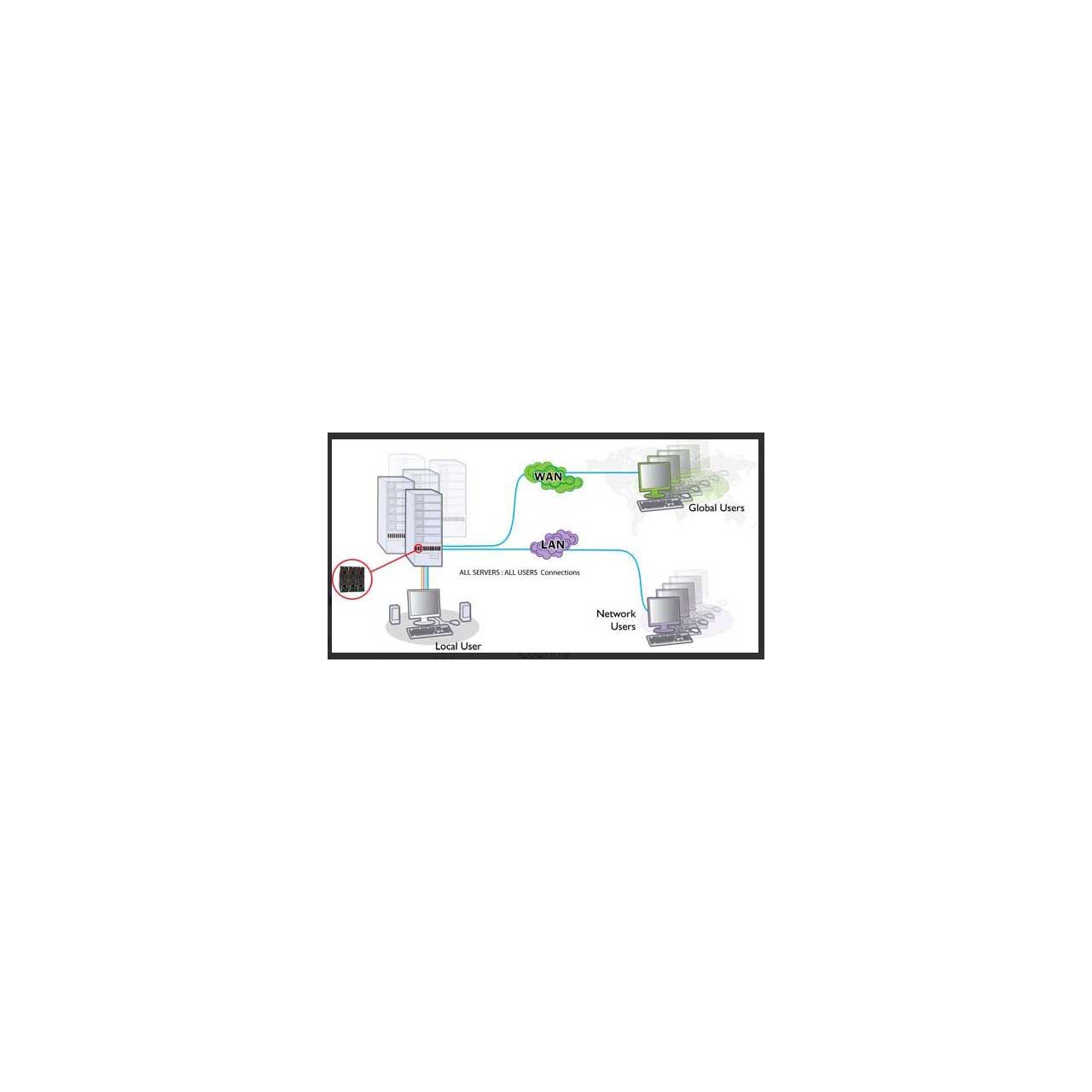

The AdderLink™ AL-IPEPS enables you to remotely access and control your critical computing hardware using your standard IP network. KVM connections are VGA and PS/2. Using RealVNC client software, computers outside the network can be remotely and securely accessed.

RealVNC server with RFB 3.3 support: up to four users can remotely and securely access computers outside your network, with the possibility of creating sixteen user profiles with defined access rights

High performance video over VNC: RealVNC enables video resolutions of up to 1600x1200, as it is free of the limitations of HTTPS

USB and Virtual media support: engineered to act as a conduit through which data can be passed so that files can be transferred via IP onto the ipeps and onto the target computer by means of a USB virtual media port

Choice of power source: can be powered from two USB cables or independently from an external 5V power source

Independent operation: maintain full control even during boot up, BIOS level or computer crash states, it will even work even if the controlled devices are not operational

ADDER.NET Enterprise Management Software: provides a centralised, secure and intuitive user access management interface, where up to sixteen user profiles with defined access rights can be created

  • Features:

    • Regulated access: the unit can be accessed remotely by up to four users at any one time
    • User management: sixteen user profiles can be created with defined access rights
    • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication), with added encryption of RealVNC
    • Compact and efficient: powered by a single USB connection, it takes up 'Zero U' on your rack

  • Specifications:

    • Video
    • Supports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer

    • Approvals / Compliance
    • CE
    • FCC
    • Standards
    • USB1.1 (Low and Full Speed)

    • Cable Requirements
    • CATx

    • Environmental
    • 0 - 40 deg C / 32 to 104 deg F

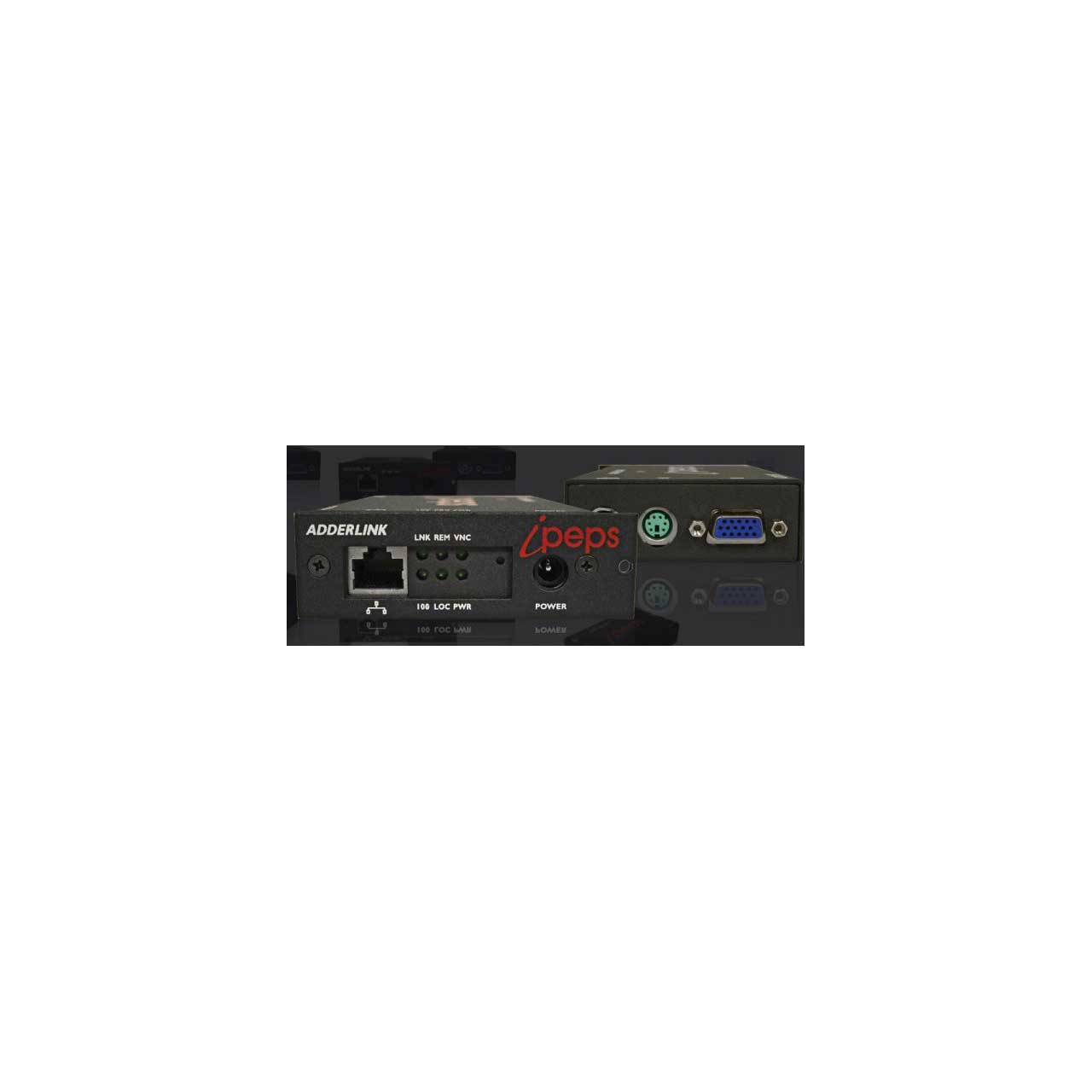

    • Connectors
    • Two PS2 connectors
    • Ethernet: RJ45 10/100 auto sensing
    • Video: HDD15, Keyboard/Mouse: MiniDIN6 1m 3-in-1 cable supplied (USB converters also included)

    • Mechanical
    • IPEPS 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs

    • Power
    • Two PS2 cables or independently from an external 5V power source 100-240 VAC 50 - 60Hz

    • Software
    • All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc

  • Item Includes:

    • 1x iPeps KVM Extender
    • 1x Rack bracket
    • 1x USB converter plugs
    • 1x KVM cable set

  • Warranty:

    • 2 Year Limited

  • GTIN:

    0609385898747
