The Allen & Heath DT02 Dante expander is compact and portable and converts two channels of Dante audio to a pair of XLR line-outputs, enabling simple break-out to analogue equipped hardware for install and live applications.
2 Line Outs
Balanced, relay protected line outputs on XLR
AES67 Compatible
Interoperability with other AES67 devices on the same network
DDM Ready
Dante Domain Manager offers security, organization, scalability, and control for Dante networks
96kHz Dante Support
Choose between standard 48kHz operation and high-fidelity 96kHz operation
Easily Add Line Outputs to a Dante Network
DT02 is a cost-effective, compact 48kHz/96kHz Dante interface enabling 2x XLR outputs wherever you need them on your Dante network. Ideal for a wide variety of fixed installation and AV hire / portable applications, DT02 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as with third party Dante systems.
PoE or PSU
The unit can be PoE powered or powered via a DC 12V supply. Two versions are available, the standard DT02 with power supply and rubber feet, or the DT02-M which includes surface mounting ears (and no power supply).

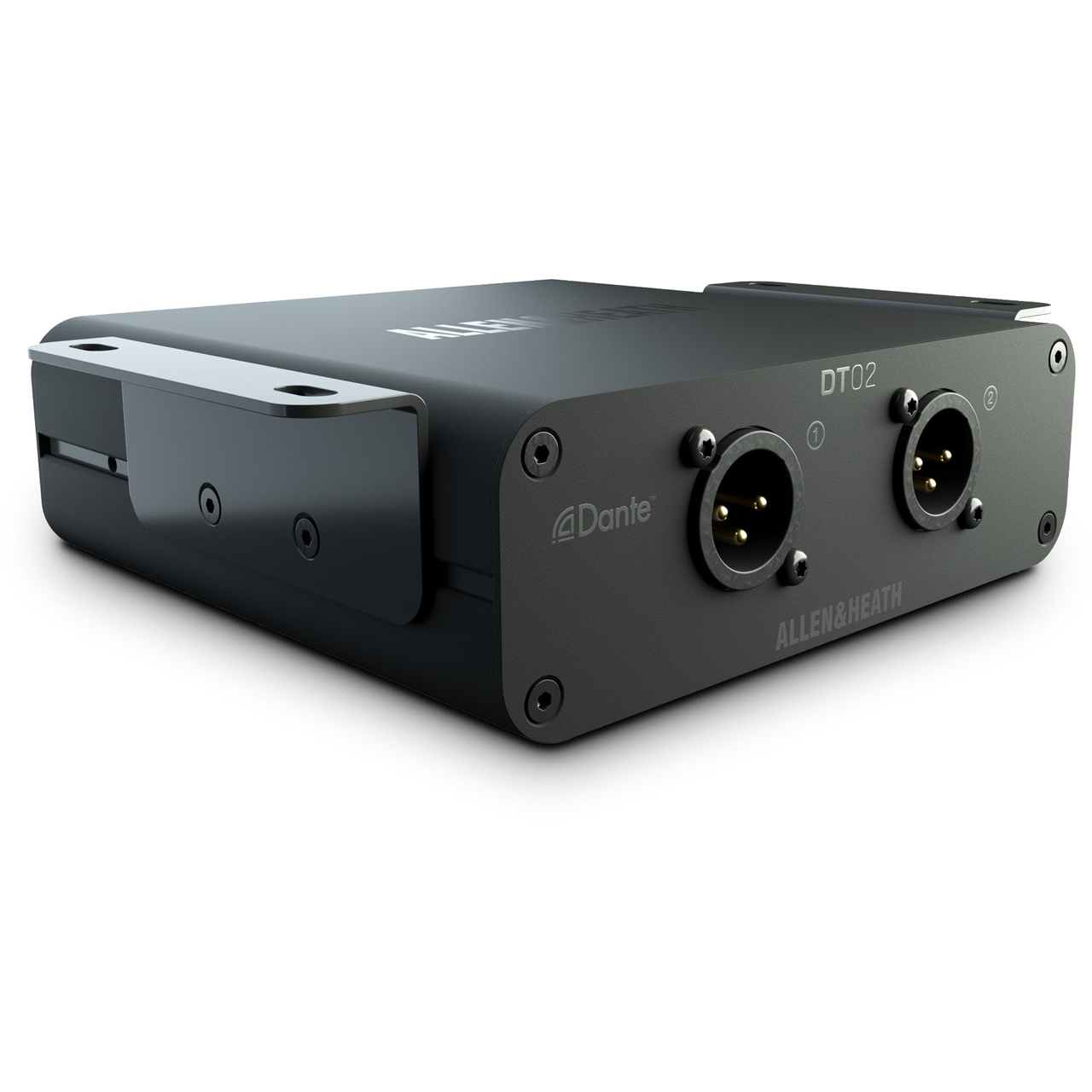

Surface Mount
Thanks to its compact format, DT02 can be easily mounted in the proximity of powered speakers or monitors. The DT02-M version ships with surface mounting ears for visually unobtrusive installation.

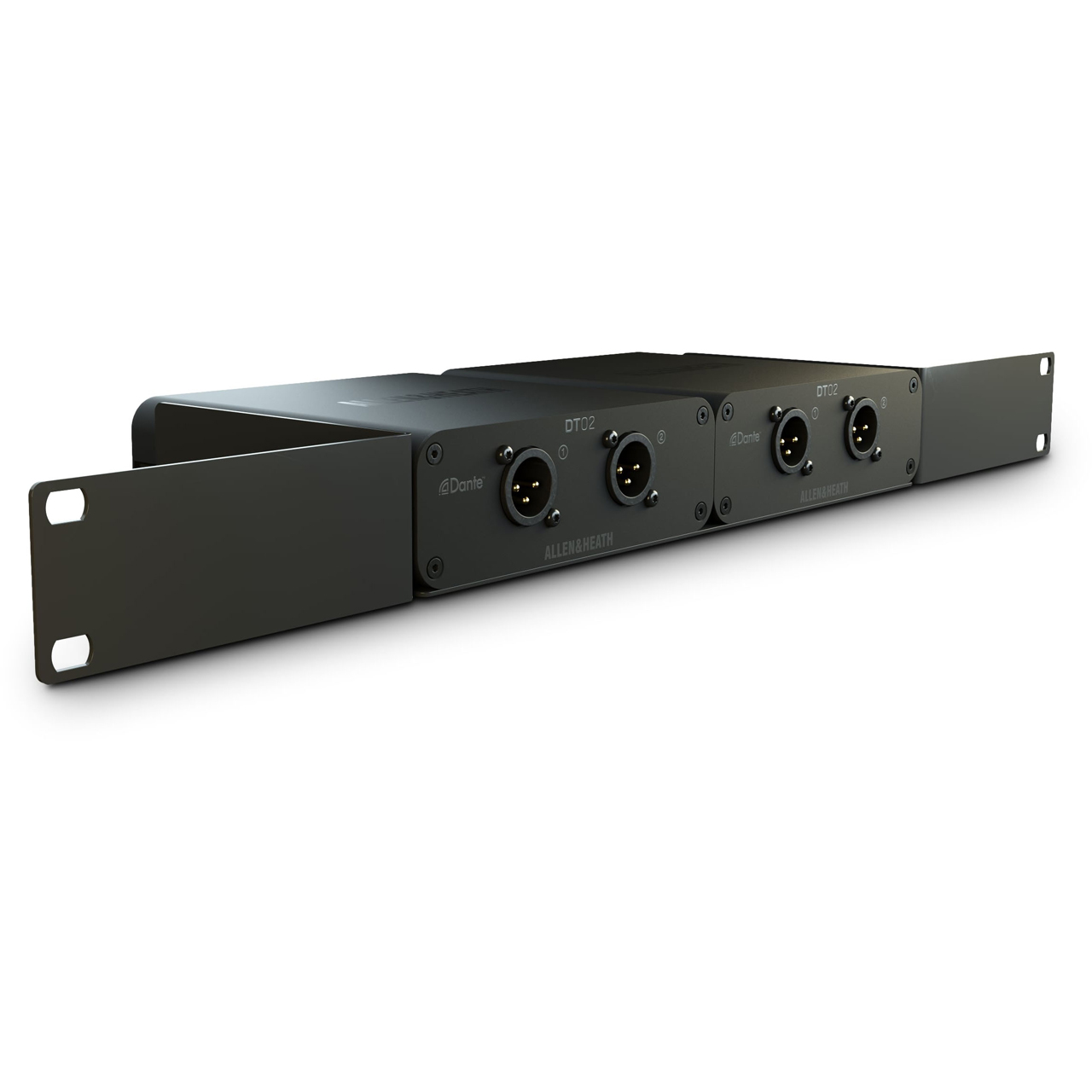

Rack Mount Kit
An optional rack mount kit is available for installation of up to two DT units in a 1U 19? slot in the equipment rack.
DT02 Compatibility
The DT02 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.
