The Allen & Heath DT22 compact and portable and enables simple integration of Phoenix/Euroblock equipped hardware into a Dante network. Two inputs and two outputs make it suitable for a range of fixed install scenarios.
2 Line Ins + Outs

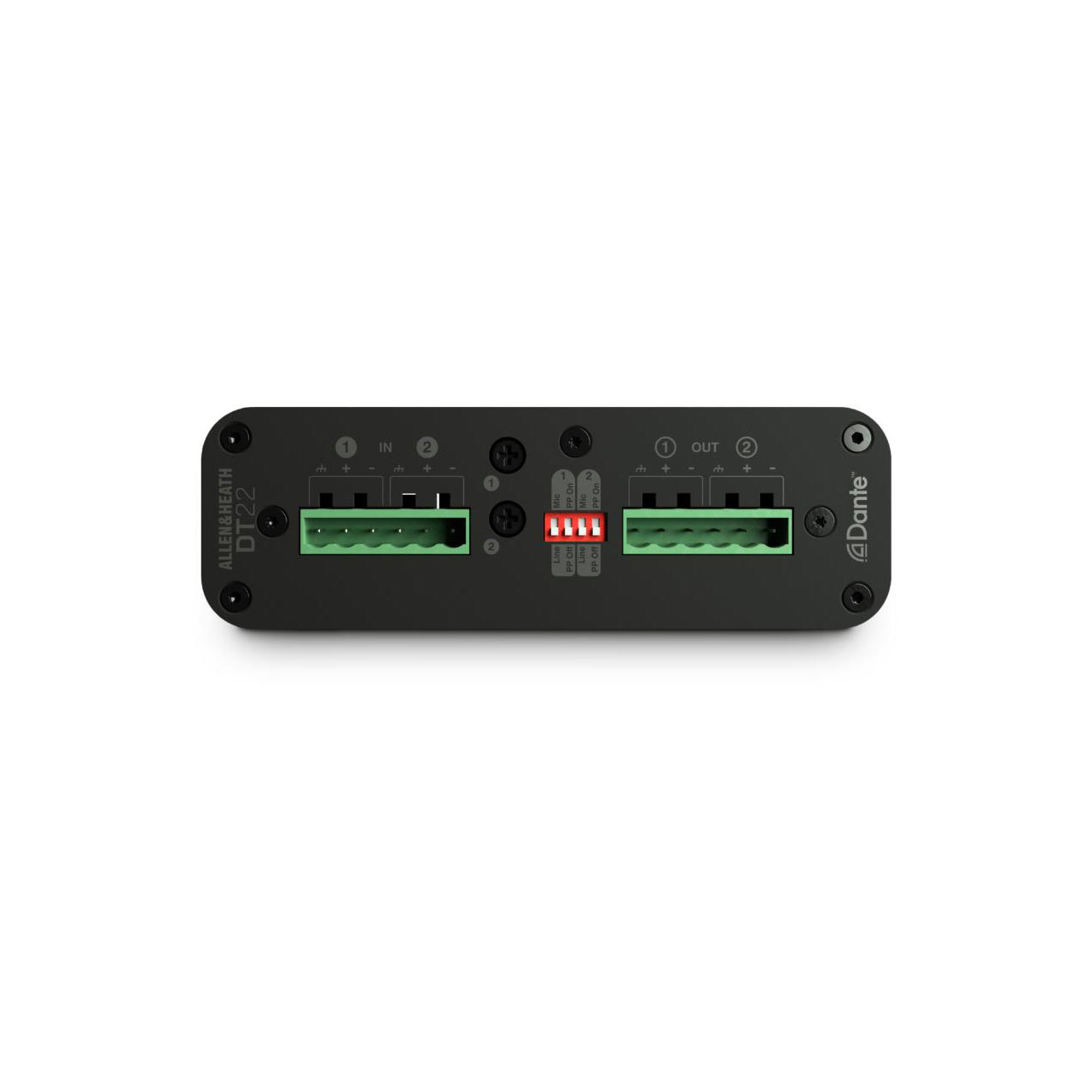

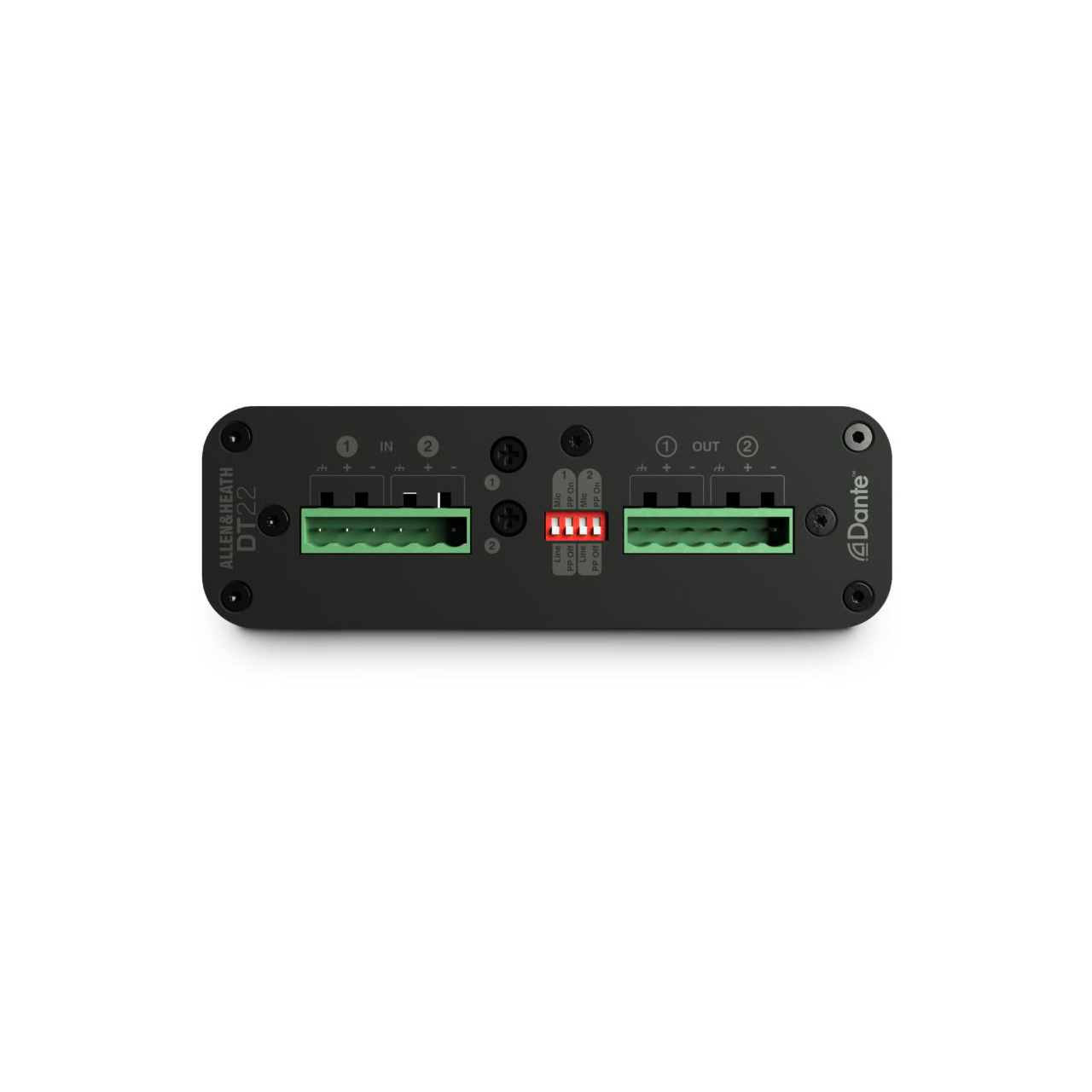

Pair of mic/line inputs with local gain control and +48V phantom power, and two line outputs, all on Phoenix/Euroblock connectors.
AES67 Compatible
Interoperability with other AES67 devices on the same network.
DDM Ready
Dante Domain Manager offers security, organization, scalability, and control for Dante networks.
96kHz Dante Support
Choose between standard 48kHz operation and high-fidelity 96kHz operation.
Easily Add Line Inputs to a Dante Network
DT22 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs and 2 line outputs - via standard Phoenix / Euroblock connectors - wherever you need to get analogue audio in and out of a Dante network.

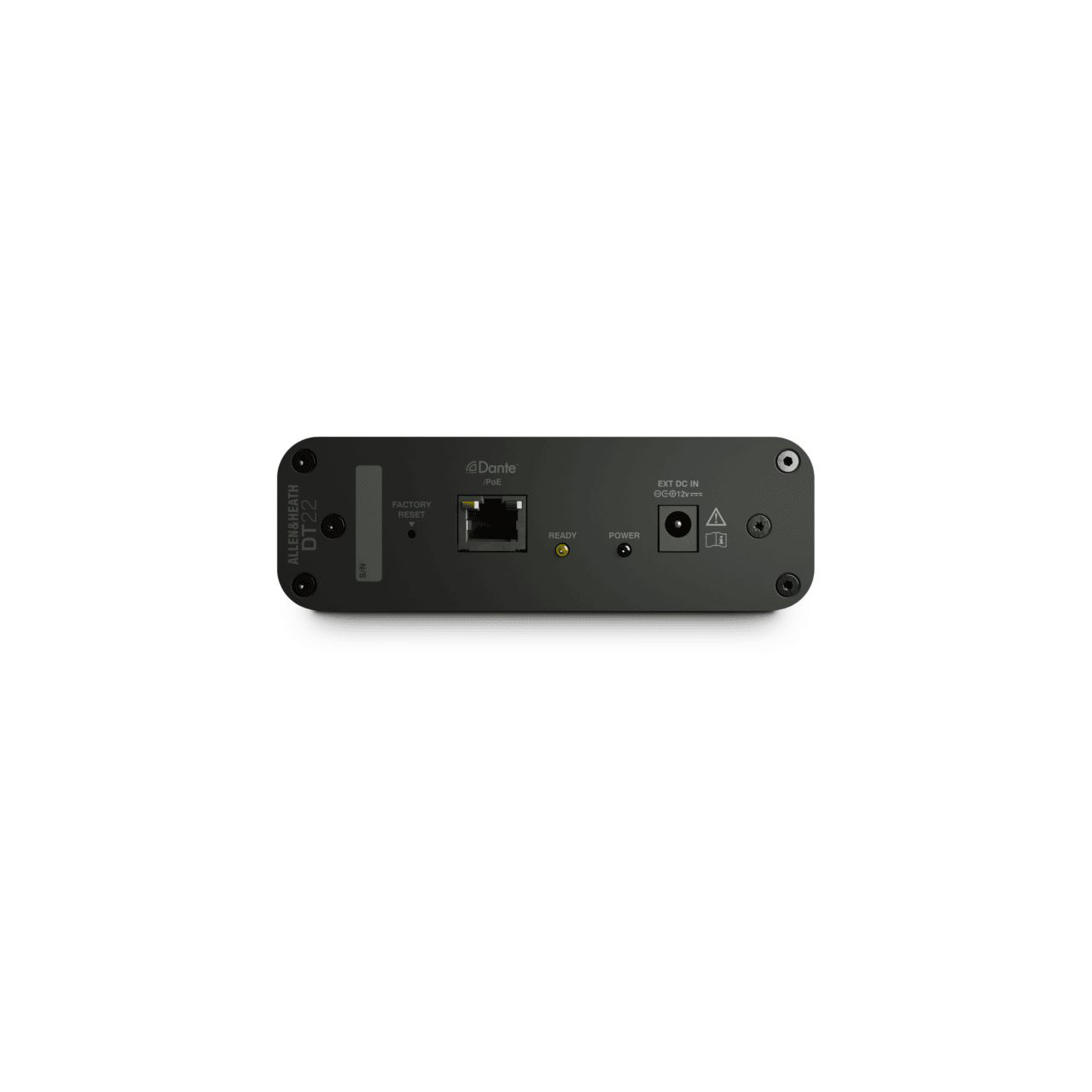

PoE or PSU
It can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply (not included).

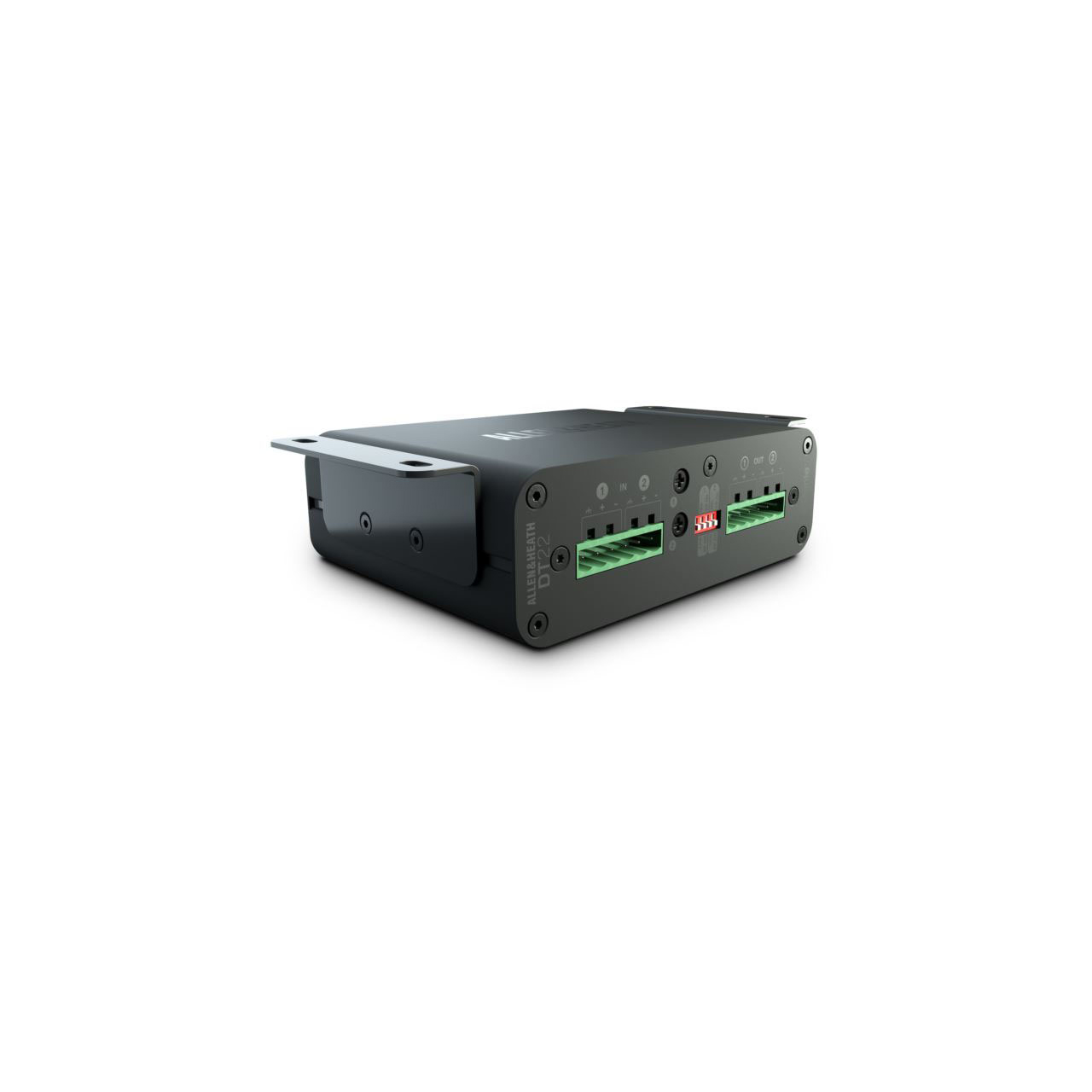

Surface Mount
DT22 is designed for fixed installation and can be easily mounted under a meeting table, for example in a breakout room or huddle space, or mounted under a podium for local mic/PC and speaker connection. Surface mount ears are included with the DT22.
Rack Mount Kit
An optional rack mount kit is available for installation of up to two DT22 units in a 1U 19? slot to interface with analogue equipment such as an AV switcher.
DT22 Compatibility
The DT22 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.
