CORVID 24 - Overview

The next step in multi-channel video and audio I/O!

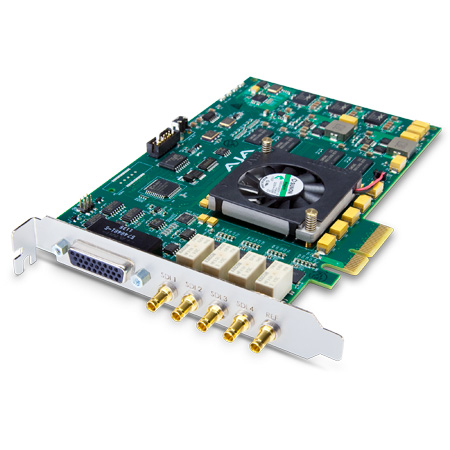

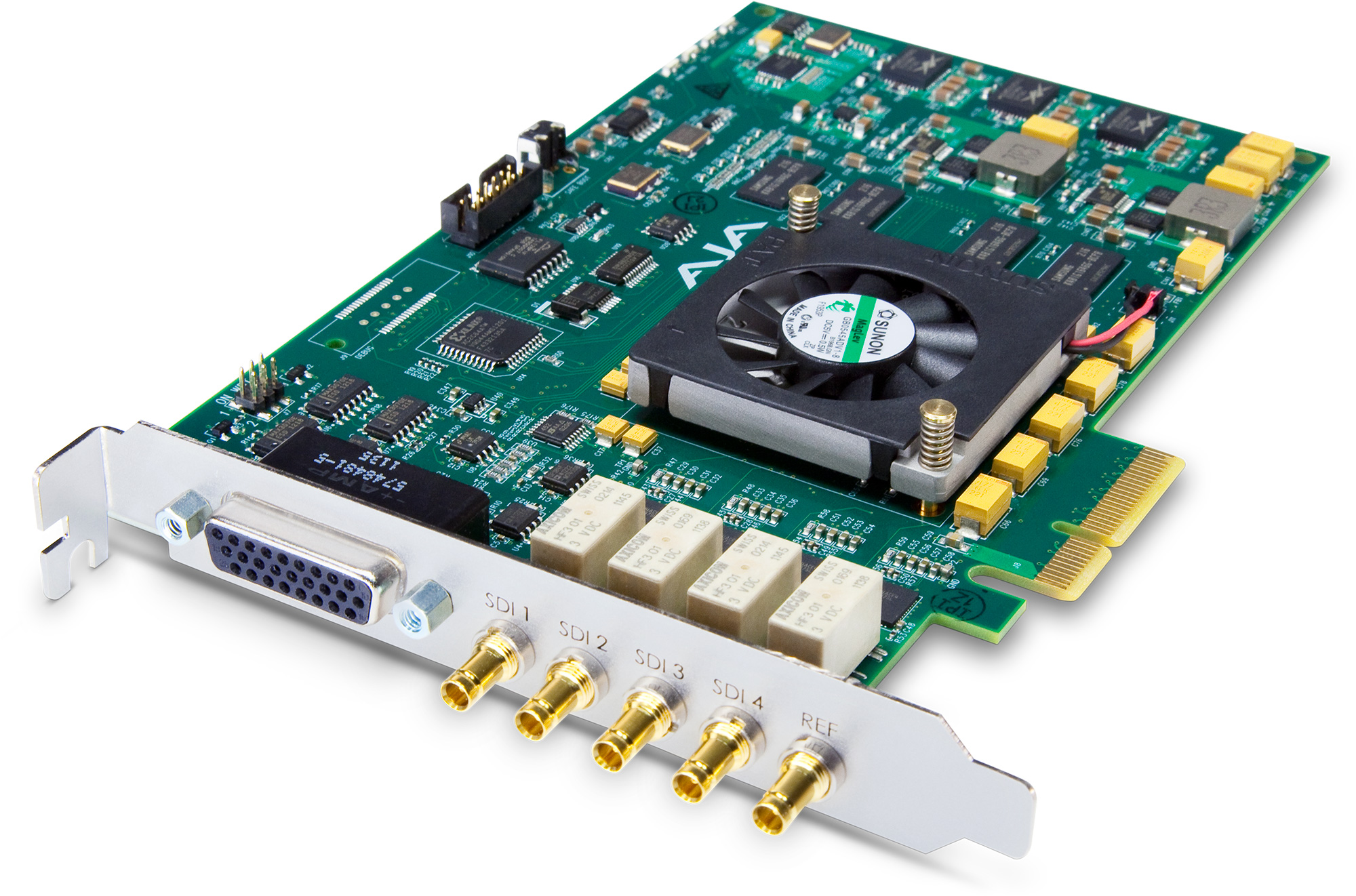

The AJA Corvid 24 is a 4-Lane PCIe 2.0 Card for 8/10-bit Uncompressed content with 4-Channels I/O Digital 3G, HD, SD-SDI I/O and Bypass Relays for Video Loop Out. The Corvid 24 is the next step in multi-channel video and audio I/O and a perfect intermediate solution for high density I/O. Supporting up to 4 independent channels of capture or output, with separate LTC, embedded 24-bit audio, and metadata for each channel or use all four connections to support full 4K. Thanks to it's multiple operating system support, Corvid 24 will work in almost any environment.

  • Features:

    • 4K/UltraHD/2K up to 25p, HD/SD up to 60p
    • 4x bidirectional 3G-SDI spigots with 16-channel embedded audio
    • 2-In/2-Out mode supporting dual video + key or dual down-stream keyers
    • Failover bypass relays with watchdog timers (2-In/2-Out mode only)
    • RGB 4:4:4 8-bit, YCbCr 4:2:2 10-bit workflows supported
    • 2x independent Mixer/Keyer widgets.
    • 2x independent 16-ch 48 kHz SDI embedded audio I/O engines
    • 4K Closed Caption Support
    • Reference/LTC Input on card (Analog black burst or Tri-level)

  • Specifications:

    • Video Formats
    • (4K) 4096 x 2160p 23.98, 24, 25
    • (UltraHD) 3840 x 2160p 23.98, 24, 25
    • (2K) 2048 x 1080p 23.98, 24, 25
    • (2K) 2048 x 1080PsF 23.98, 24, 25
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i 50
    • (SD) 525i 59.94

      Video Input Digital
    • 3G-SDI
    • SMPTE-259/292/296/424

      Video Output Digital
    • 3G-SDI
    • SMPTE-259/292/296/424

      Audio Input Digital
    • 16-channel 24-bit SDI embedded; 48 kHz synchronous

      Audio Output Digital
    • 16-channel 24-bit SDI embedded; 48 kHz synchronous

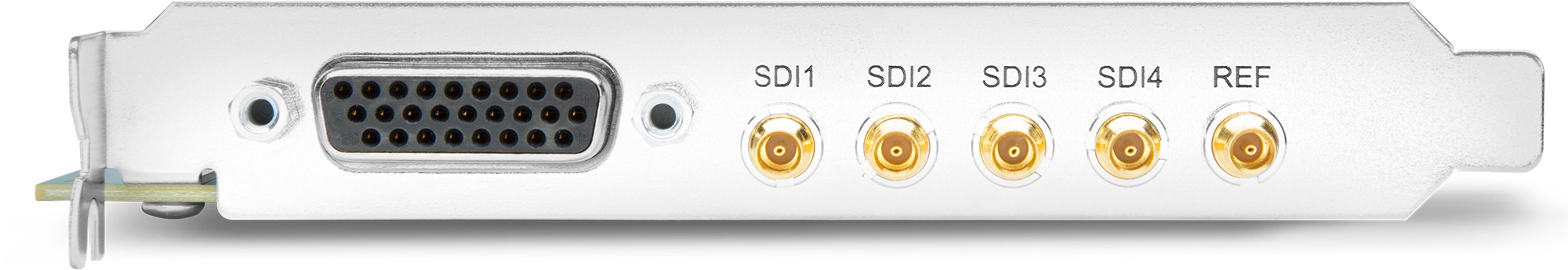

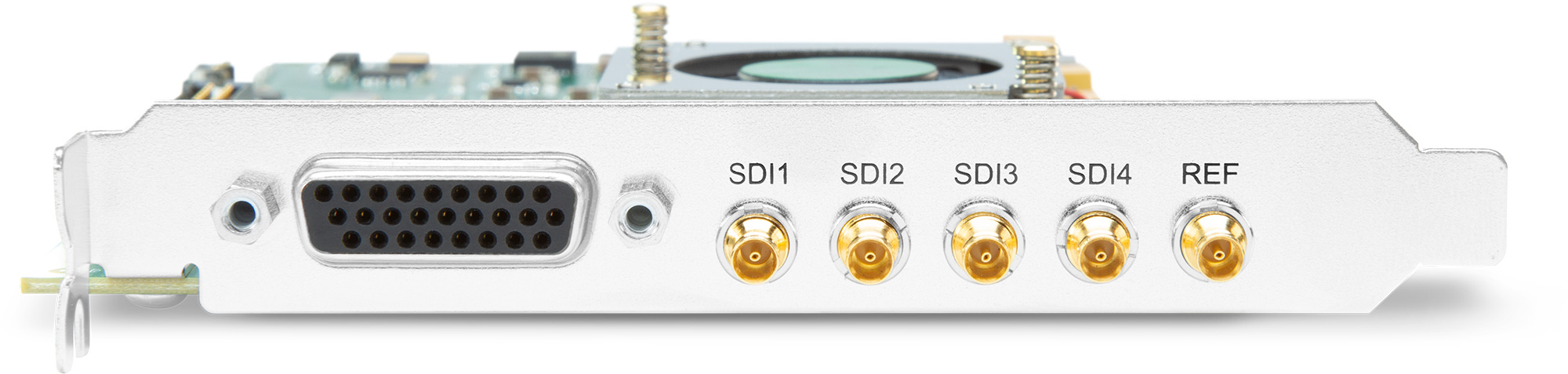

      BNC
    • 4x 3G-SDI
    • Din 1.0/2.3

      Electrical Interface
    • 4-lane PCIe 2.0

  • Warranty:

    • Three year warranty

  • GTIN:

    0812321030822
