Blackmagic Design BDLKMICROREC DeckLink Micro Recorder PCI Express Mini Card for SD and HD formats up to 1080p30

Name: Blackmagic Design BDLKMICROREC DeckLink Micro Recorder PCI Express Mini Card for SD and HD formats up to 1080p30
Brand: Blackmagic Design
SKU: BMD-BDLKMICROREC
Price: 145.00 USD
Availability: InStock

ITEM #: BMD-BDLKMICROREC MFG #: BDLKMICROREC

Blackmagic Design

Our Price:

$145.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BDLKMICROREC - Overview

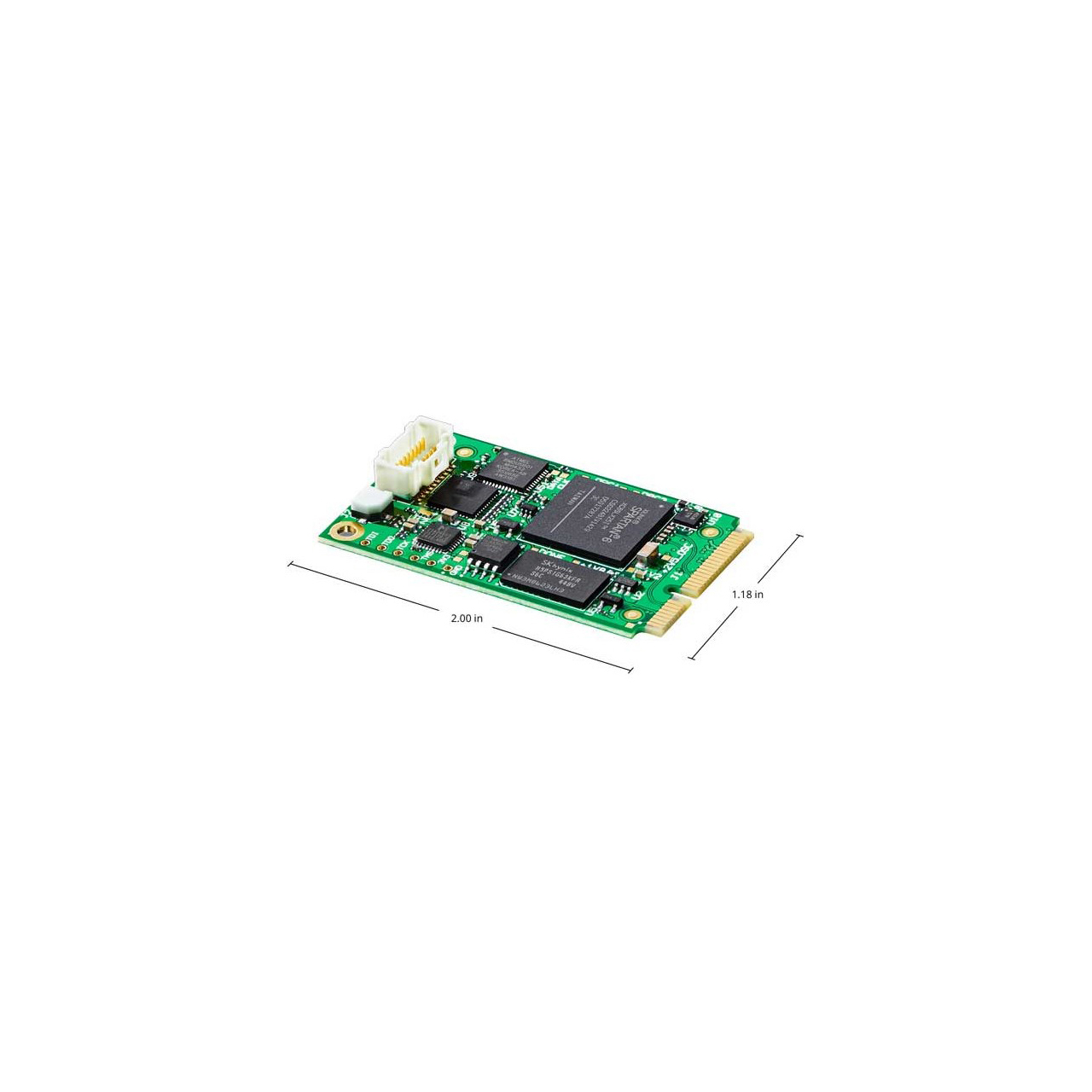

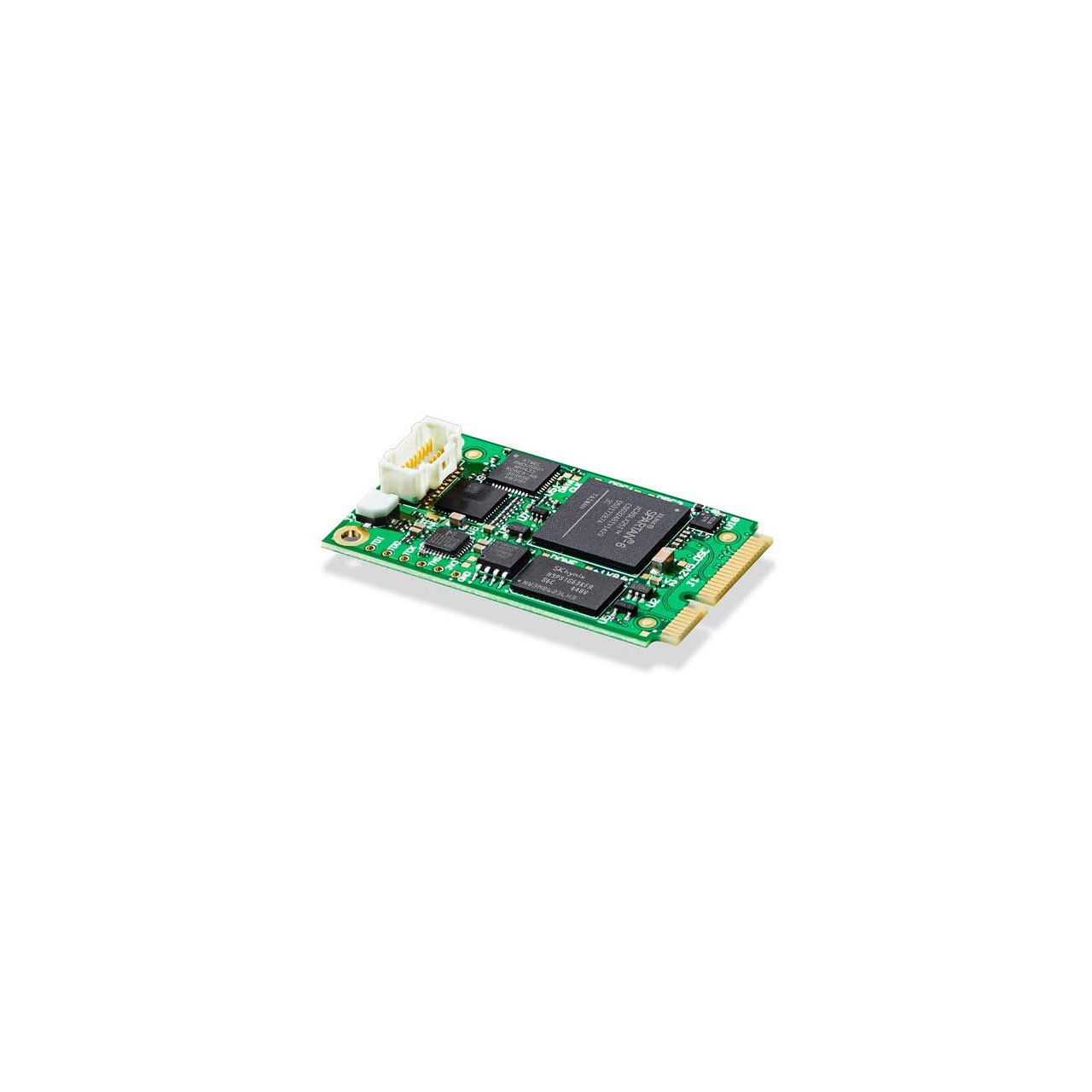

The DeckLink Micro Recorder is a low-latency miniature video capture card for all SD and HD formats up to 1080p30. Compatible with computers that have a 1-lane Gen 1 Mini PCIe slot, SDI or HDMI video inputs can be added using the built in Hirose and Molex connectors.

Connections - PCIx1 Gen 1:
PCI Express Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification.

Specifications:
- SD Format Support: 525i/59.94 NTSC, 625i/50 PAL.
- HD Format Support: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,1080i50, 1080i59.94, 1080i60,1080PsF23.98, 1080PsF24, 1080PsF25,1080PsF29.97, 1080PsF30.
- Video Sampling: 4:2:2.
- Color Precision: 8, 10-bit YUV 4:2:2.
- Compliance: SMPTE 259M, 292M, 296M, and HDMI.
- Power Consumption: 3 W max.
- Operating Temperature: -25°C to 55°C (-13°F to 131°F).
- Storage Temperature: -40°C to 75°C (-40°F to 167°F).
- Relative Humidity: 0% to 90% non-condensing.
- Operating Systems: Mac 12.0 Monterey, Mac 13.0 Ventura or later, Windows 10, 64-bit. Windows 11, Linux.
Item Includes:
- DeckLink Micro Recorder
Warranty:
- 3 Year Limited Manufacturer's Warranty.

BDLKMICROREC - Recommended Accessories

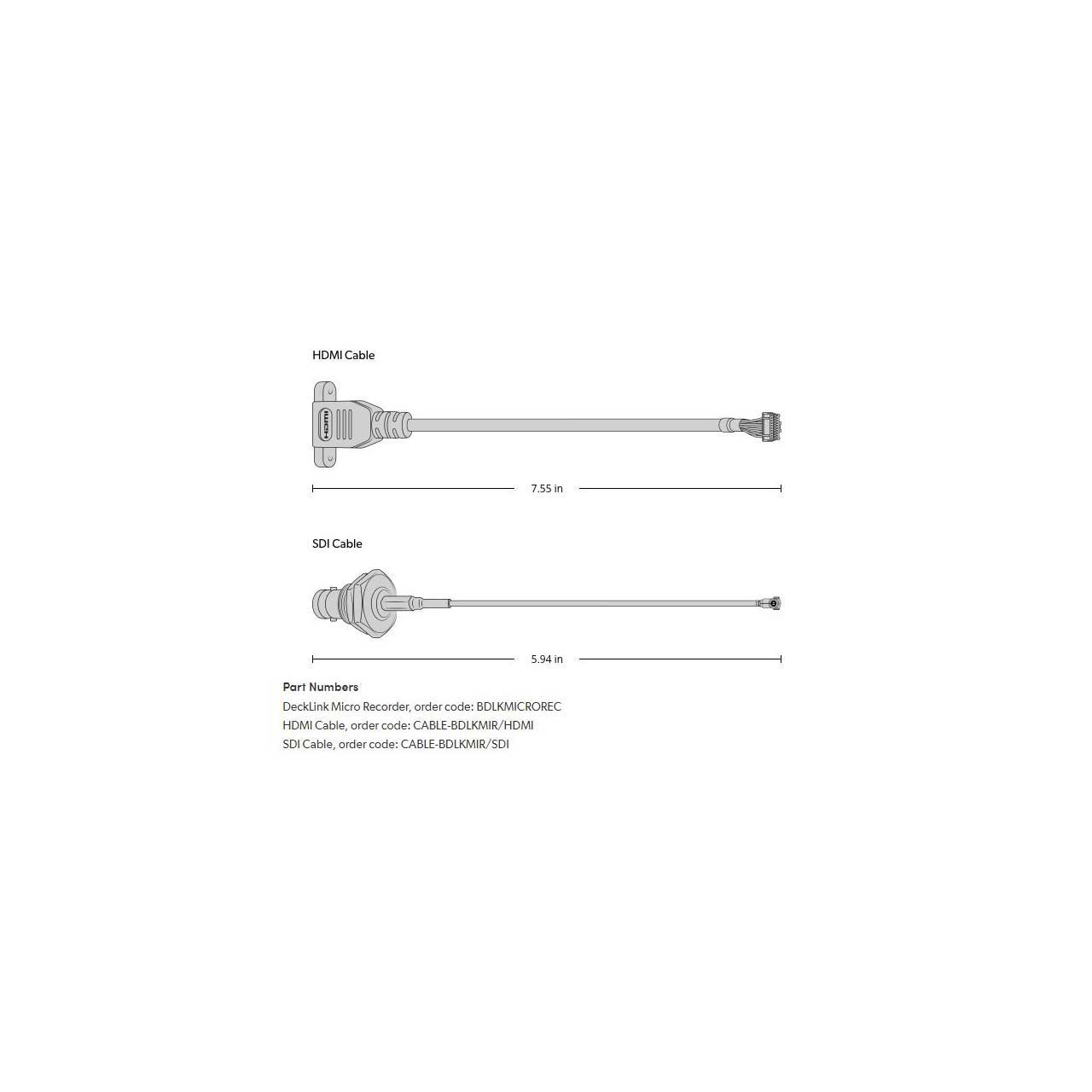

Blackmagic Design CABLE-BDLKMIR/SDI DeckLink Micro Recorder Card SDI Cable - 6 Inch
