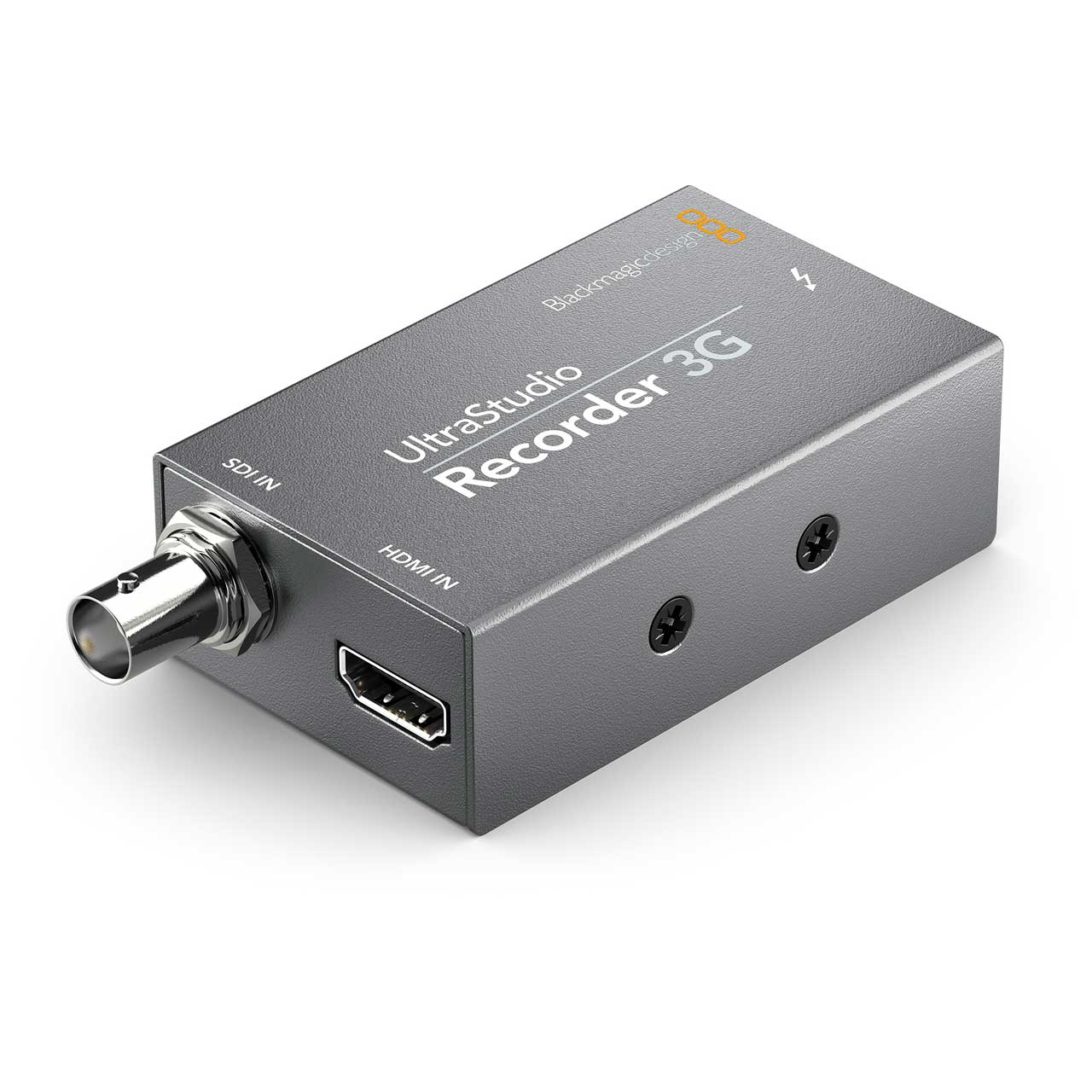

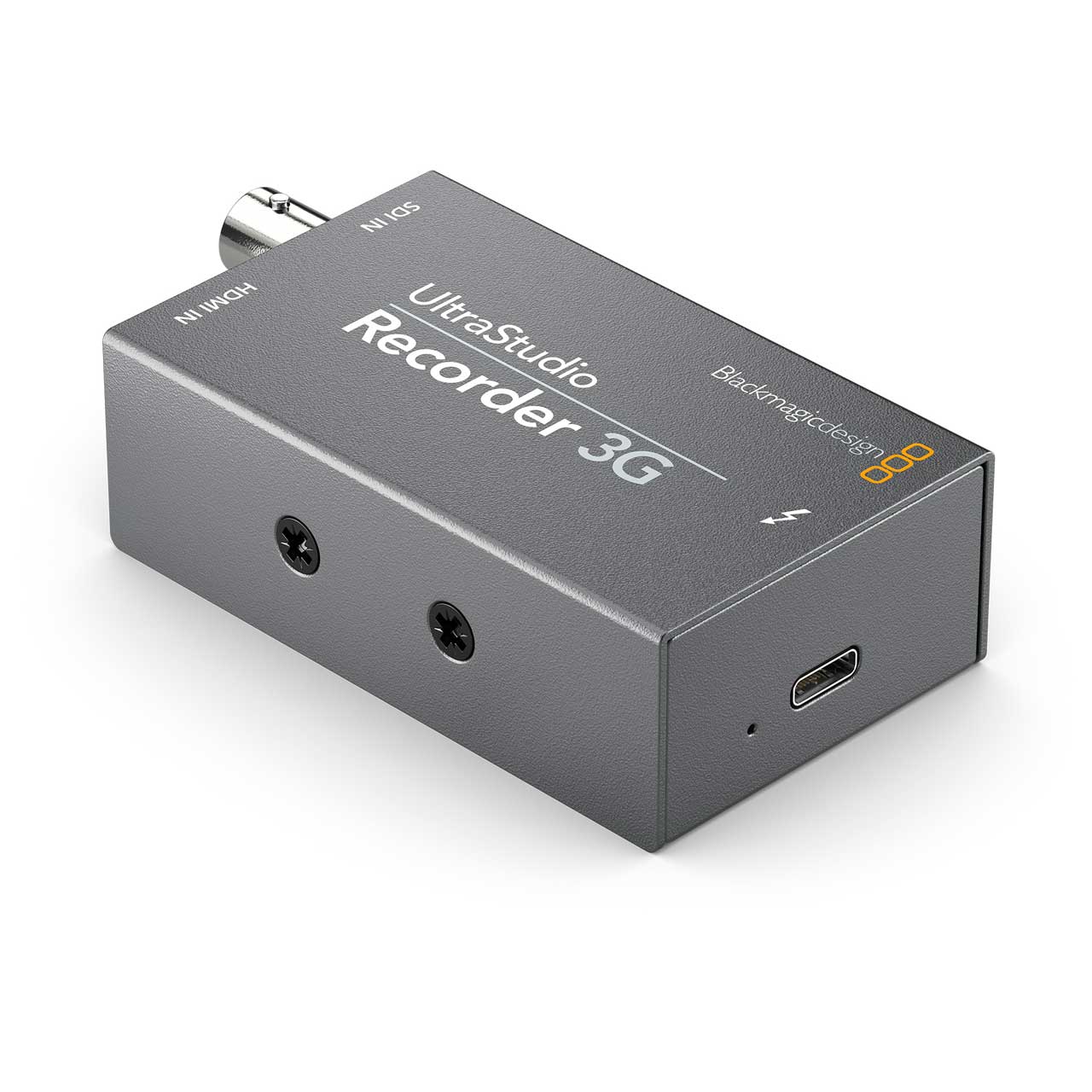

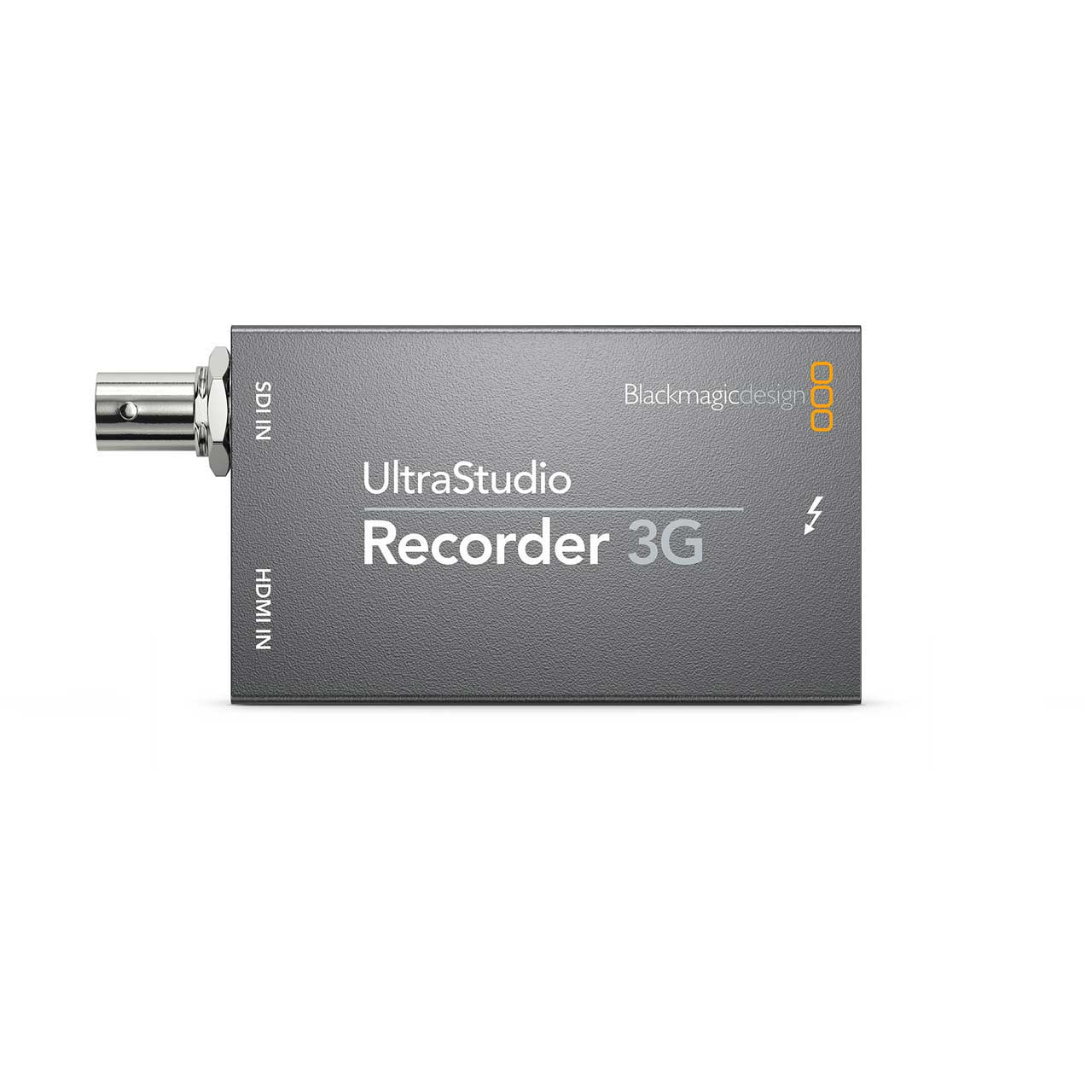

Blackmagic Design BDLKULSDMAREC3G UltraStudio Recorder 3G SDI and HDMI Video Capture

BDLKULSDMAREC3G - Overview

• Specifications:

  • Connections
  • SDI Video Inputs: 1
  • SDI Rates: 270Mb, 1.5G, 3G
  • SDI Audio Inputs: 16 Channels embedded in SD/HD
  • HDMI Video Inputs: 1
  • HDMI Audio Inputs: 8 Channels embedded in SD/HD
  • Computer Interface: Thunderbolt™ 3 (Mac OS, Windows and Linux)
  • Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

    Software
  • Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
  • Internal Software Upgrade: Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
  • Software Applications: Wirecast, vMix, OBS
  • Other supported applications include: Cinegy Capture Pro, DevTek Easy MediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom.

    SDI Video Standards
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30,1080i50, 1080i59.94, 1080i60
  • 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  • SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
  • SDI Video Sampling: 4:2:2, 4:4:4
  • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards
  • SDI Color Space: REC 601, REC 709 and REC 2020
  • Multiple Rate Support: SDI video connection is switchable between SD and HD

    HDMI Video Standards
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
  • HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
  • HDMI Video Sampling: 4:2:2 and 4:4:4
  • HDMI Color Precision: 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards
  • HDMI Configuration: HDMI 2.0a supports Deep Color
  • HDMI Color Space: REC 601, REC 709 and REC 2020
  • Multiple Rate Support: HDMI video connection is switchable between SD and HD
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.


  • Hardware Frame Buffer: v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB)


• Item Includes:

  • 1x UltraStudio Recorder 3G


• Warranty:

  • 12 Month Limited Manufacturer's Warranty.


• GTIN:

  9338716006896
