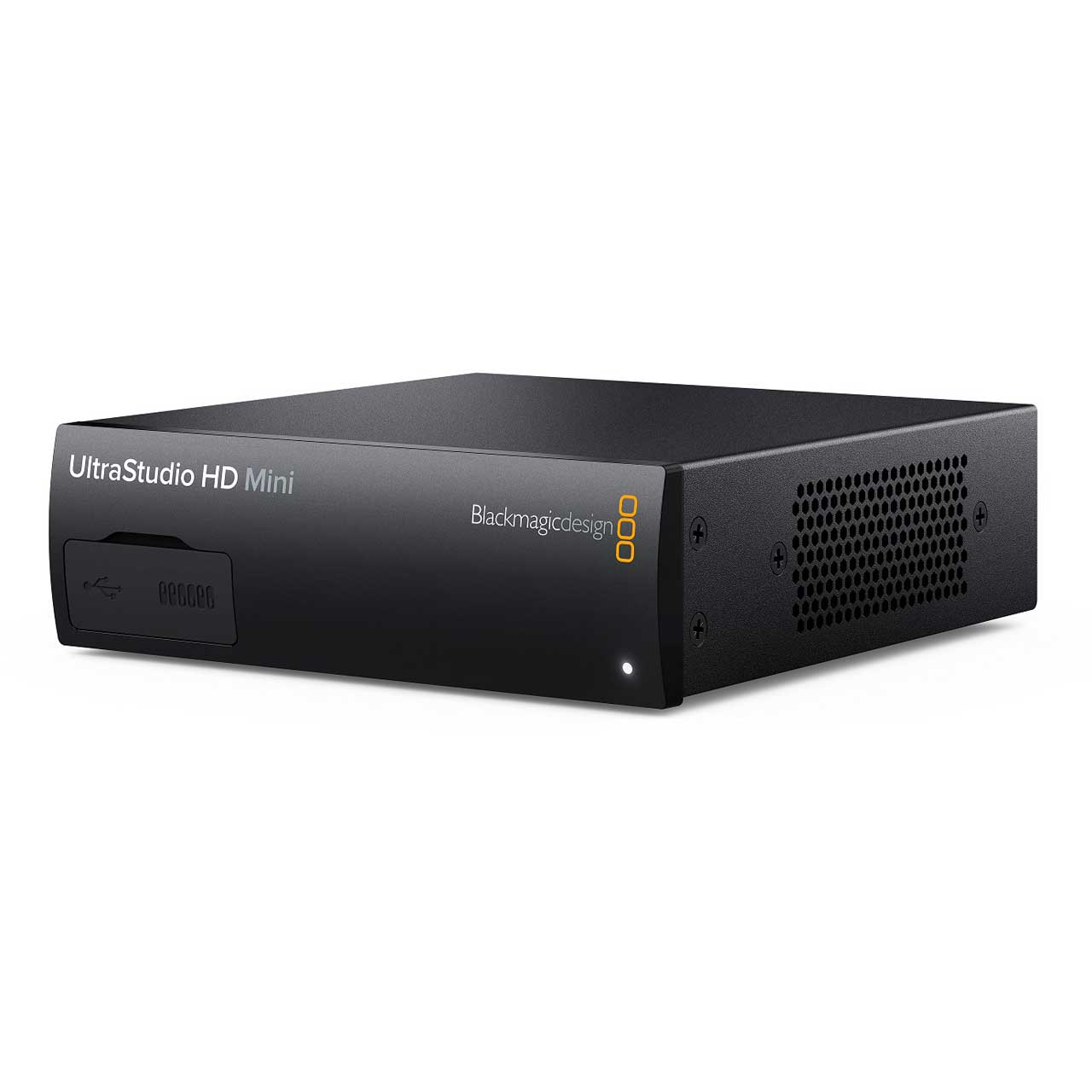

Blackmagic Design UltraStudio HD Mini with Thunderbolt 3 Capture & Playback Solution with 3G-SDI&HDMI

BDLKULSDMINHD - Overview

Professional Capture and Playback for Thunderbolt 3 Computers!

• Features:

  • Thunderbolt 3 Connectivity

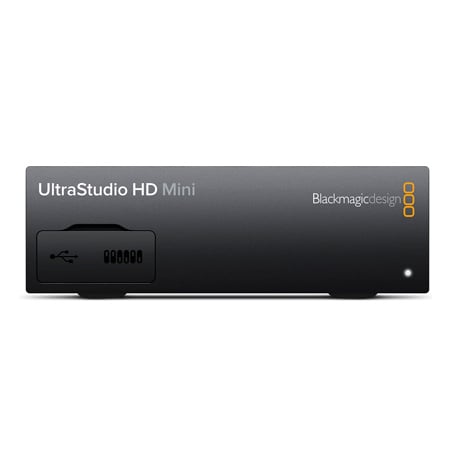

  • Software Control via front panel DIP switches or the RS-422 on the rear
  • Color Space Conversion: Hardware based real time.
  • HD Down Conversion in real time
  • Real-Time Effects Support
  • Software Application Support


• Specifications:

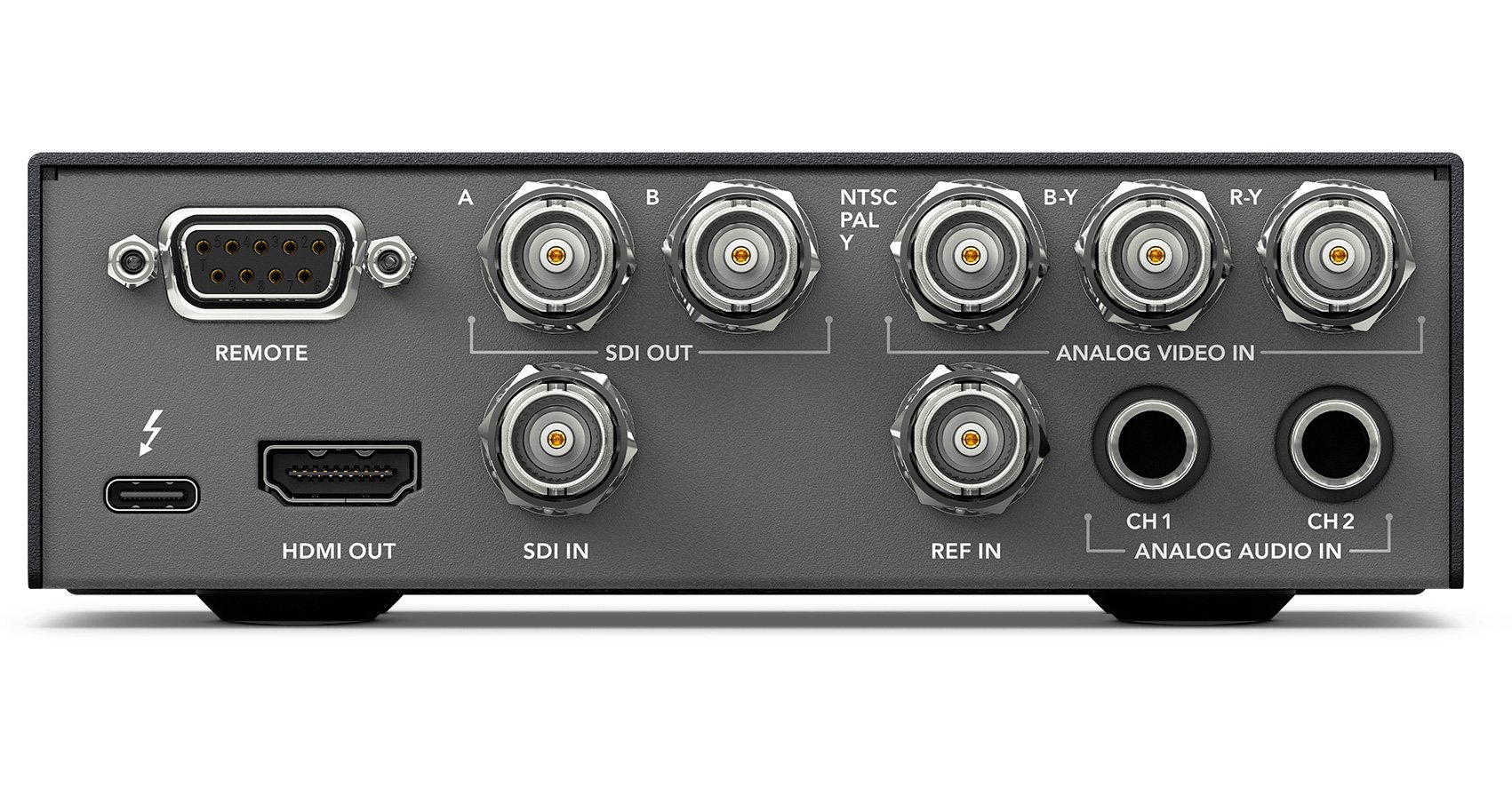

  • Connections
  • SDI Video Inputs: 1x 3Gb/s SD/HD switchable
  • SDI Video Outputs: 2x 3Gb/s SD/HD switchable, supports fill and key
  • SDI Rates: 270Mb, 1.5G, 3G
  • Optical SDI: None
  • HDMI Video Inputs: None
  • HDMI Video Outputs: 1x HDMI 1.4b type A connector
  • Analog Video Inputs: Y, B-Y, R-Y/NTSC/PAL
  • Analog Video Outputs: None
  • Analog Audio Inputs: 2x 1/4 inch jack connectors for balanced and unbalanced analog audio
  • Analog Audio Outputs: None, embedded audio only
  • SDI Audio Inputs: 16 Channels embedded in SD and HD
  • SDI Audio Outputs: 16 Channels embedded in SD and HD
  • HDMI Audio Outputs: 2 Channels embedded in SD and HD
  • Timecode Connection: None. RP-188 only
  • Reference Input: Tri-Sync or Black Burst

    Video Standards
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  • Ultra HD Video Standards: None
  • 4K Video Standards: None
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
  • Audio Sampling: Television rate of 48kHz and 24 bit
  • SDI Video Sampling: 4:2:2/4:4:4
  • Color Space: REC 601, REC 709
  • HDMI Resolution: Pixel for pixel HD resolution input from connected device
  • Multiple Rate support: SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.
  • Hardware Frame Buffer: v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B,R12L (12 bit RGB)

    Color Precision
  • HDMI: 8-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards
  • SDI: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards


  • Computer Capture: 1x Thunderbolt™ 3 for Mac and Windows. Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK
  • Built in Control Panel: None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status
  • Device Control: 1x RS-422 deck control

    Processing
  • Colorspace Conversion: Hardware based real time
  • HD Down Conversion: Real time 10-bit hardware down conversion on SDI B output when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles
  • Real Time Effects: Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve
  • Physical Installation: Requires computer with a ThunderboltT 3 USB-C port. Please check support pages to see the full system requirements
  • Operating Systems: Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 8.1 and 10, both 64-bit. Linux
  • Power Requirements: Powered by Thunderbolt cable. Requires computer with a Thunderbolt™3 USB-C port


• Item Includes:

  • UltraStudio HD Mini
  • SD card with software and manual.
  • DaVinci Resolve SD card


• Warranty:

  • 3 Years


• GTIN:

  9338716004809
