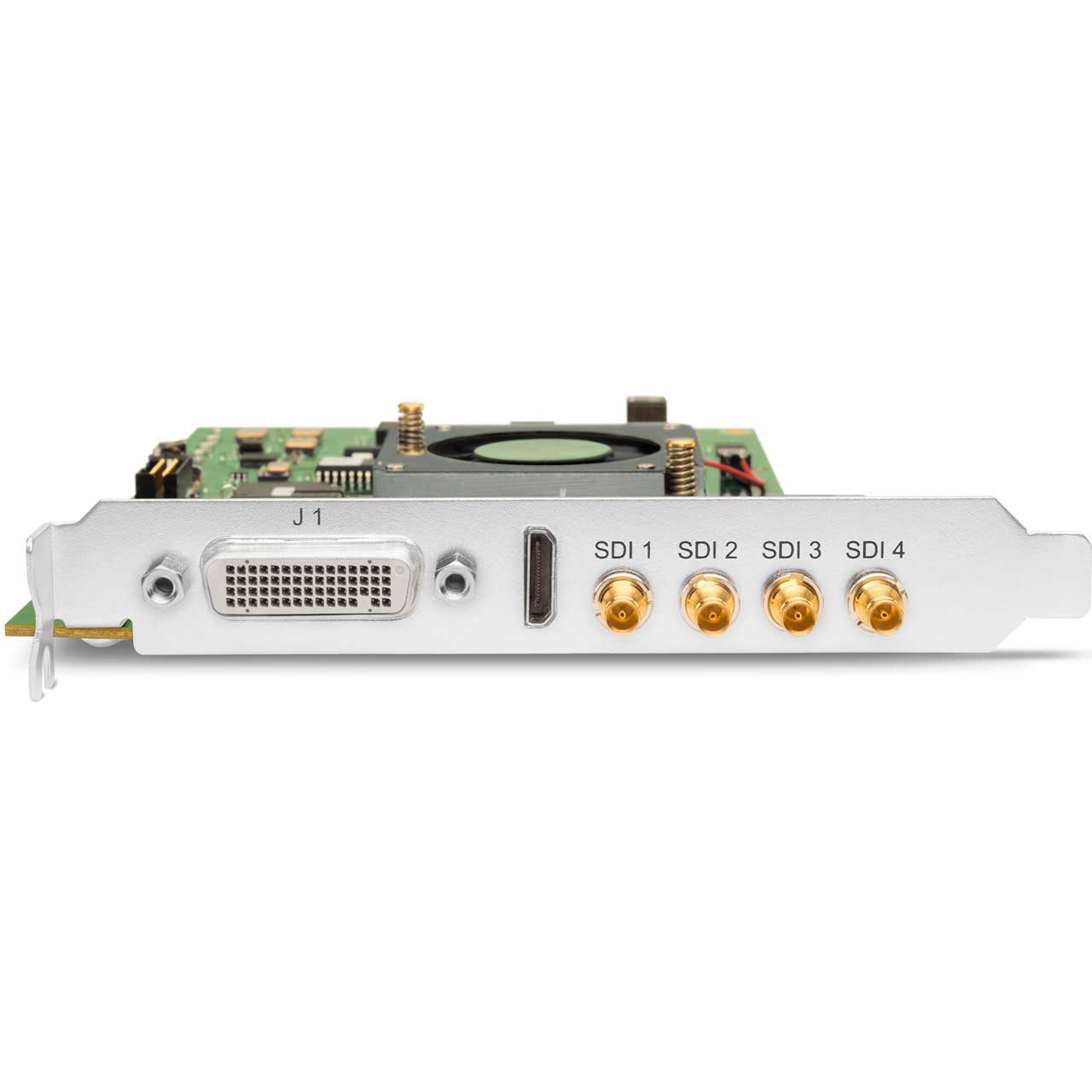

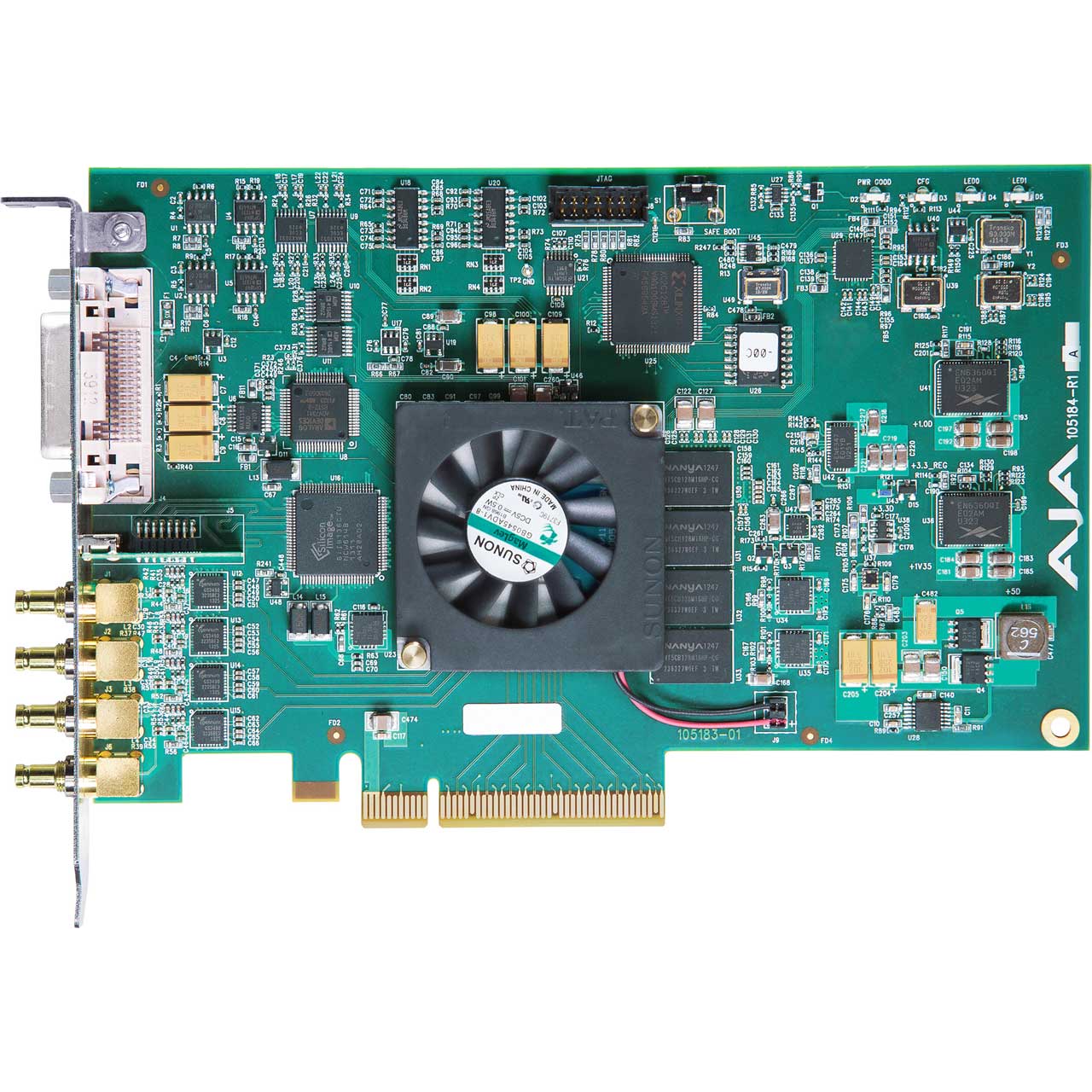

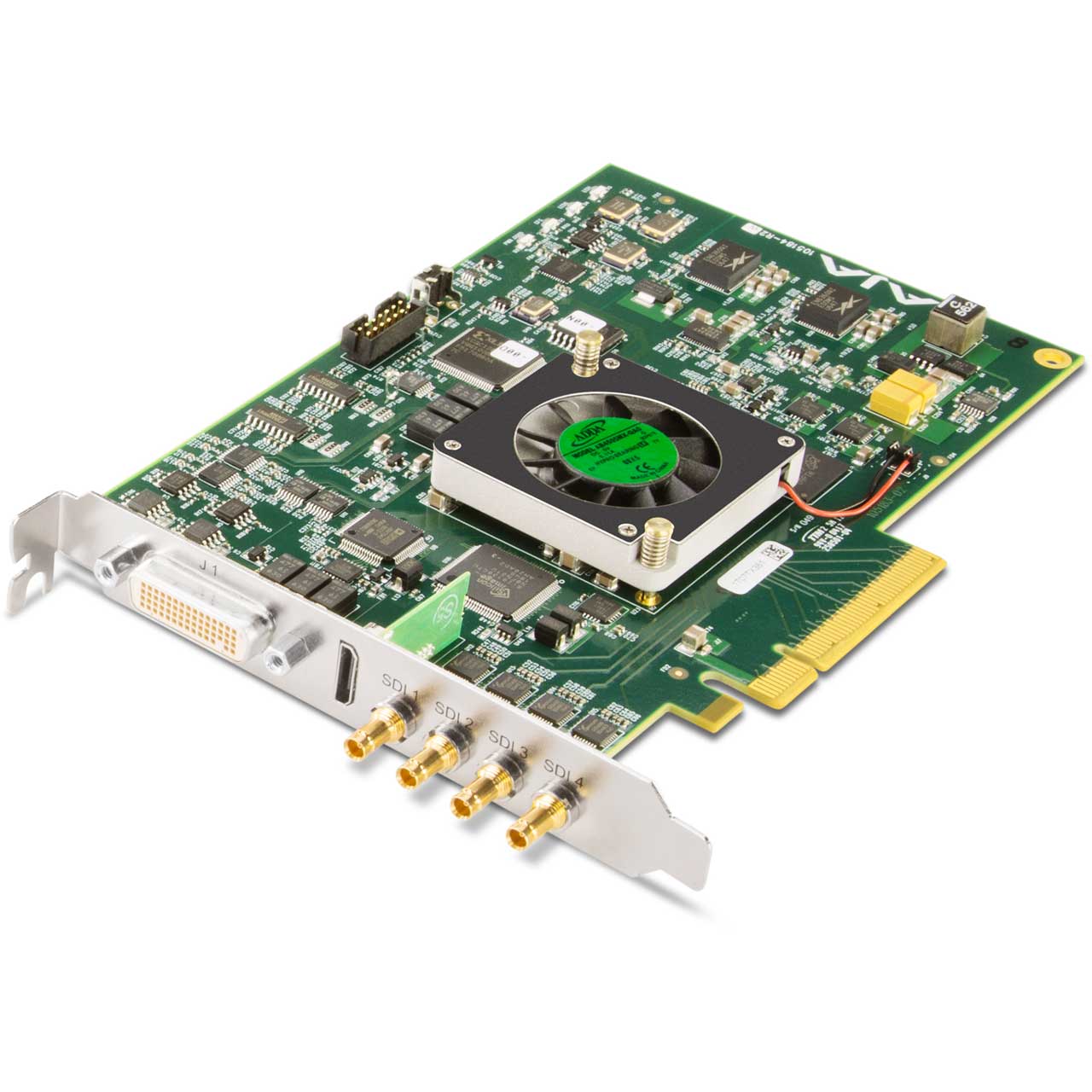

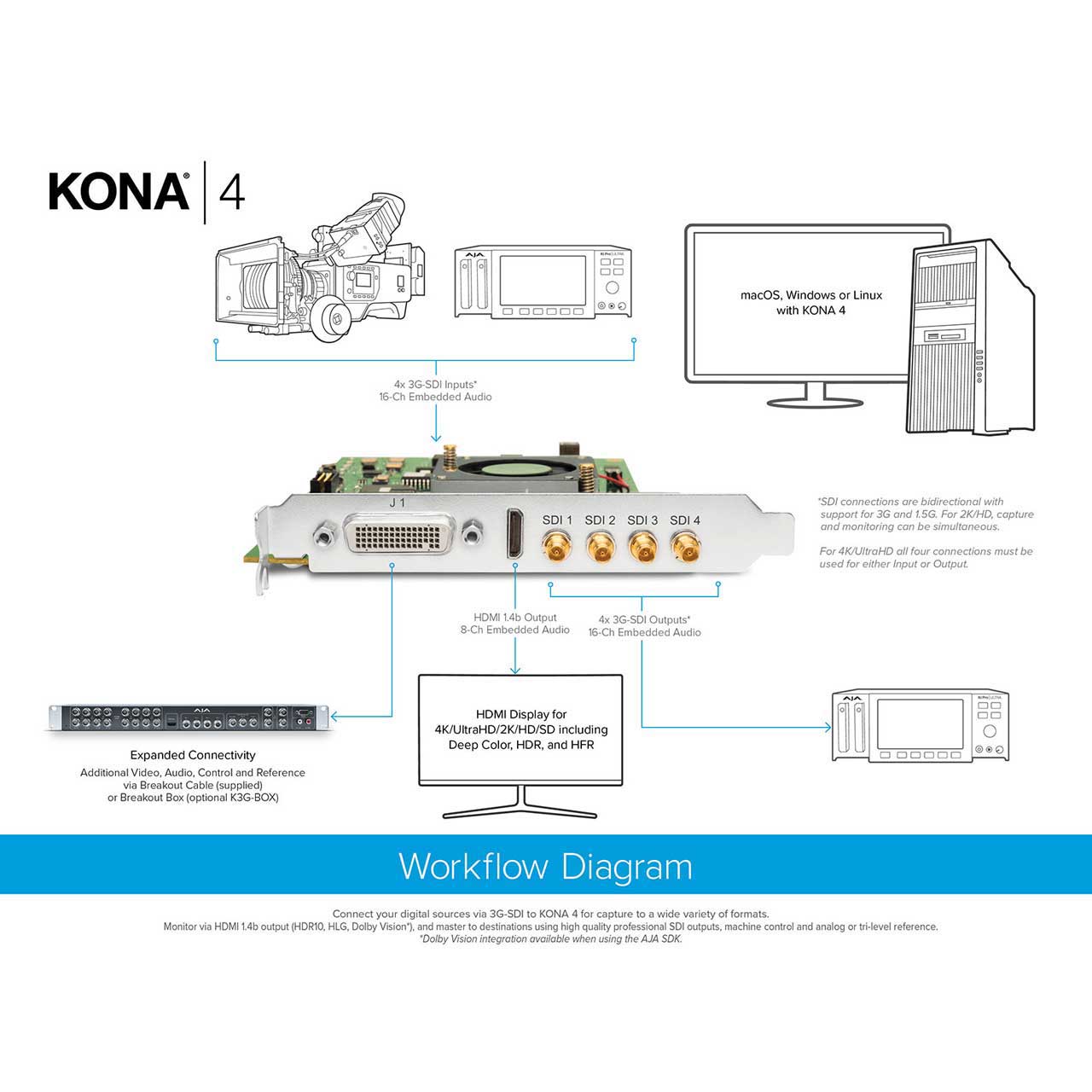

AJA KONA-4-R0-S01 4K/2K/3G/Dual Link/HD/SD 10-Bit PCIE Card with HDMI 1.4A Output - With Bracket & Cables

KONA-4-R0S01 - Overview

• Features:

  • 4K/UltraHD/2K/HD/SD up to 50/60p
  • 4x bidirectional 3G-SDI spigots with 16-channel embedded audio
  • HDMI 1.4b monitoring with 8-channel embedded audio, plus 4K to HD downsampling
  • RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
  • Real time up, down, cross-conversion (HD/SD)
  • 4K Closed Caption Support
  • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
  • PQ, HLG, HDR10, HDR10+ and Dolby Vision Support
  • HDR Metadata Capture and Auto Playback Detection
  • Compatible with leading creative apps
  • Included breakout cable for Ref (Analog or Tri-level), LTC, RS-422, 8-ch AES/EBU
  • Extend external connectivity with K3G-BOX breakout box


• Specifications:

  • Video Formats
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 720p 23.98*, 24*, 25*, 29.97*, 30*, 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 23.98*, 59.94
  • *These formats are dependent on specific software functionality and are not normal over the wire formats.

    Video Input Digital
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.

    Video Output Digital
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • HDMI v1.4b
  • 30/36-bits/pixel, RGB or YUV, 2.25 Gbps
  • 2K, HD, and SD, UltraHD with HFR support up to 60p 4:2:0
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.

    HDR
  • SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
  • HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
  • HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G
  • Note: HDR support is application dependent. Check with your software manufacturer for compatibility.

    Video Output Analog
  • Composite/S-Video (Y/C) (1x BNC/2 x BNC+adapter)
  • NTSC, NTSCJ, PAL
  • Component (3x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y frequency response
  • +/- .2 dB to 1 MHz C frequency response
  • 5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1% ns Y/C delay inequity

    Audio Input Digital
  • 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
  • 16-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous (via 8x BNC on optional K3G-Box)
  • 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

    Audio Output Digital
  • 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
  • 16-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous (via 8x BNC on optional K3G-Box)
  • 8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
  • 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

    Downstream Keyer
  • Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

    SD to SD Aspect Ratio Conversion
  • Letterbox: This transforms SD anamorphic material to a letterboxed image
  • H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
  • SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
  • V Crop: Will transform SD letterbox material to an anamorphic image

    Timecode
  • LTC timecode input and output (via 1x BNC each)

    Reference Input
  • Analog color black (1V) or composite sync (2 or 4V)
  • Looping
  • 75 ohms on optional K3G-Box, terminated on supplied


• Warranty:

  • Three year warranty


• GTIN:

  0812321030266
