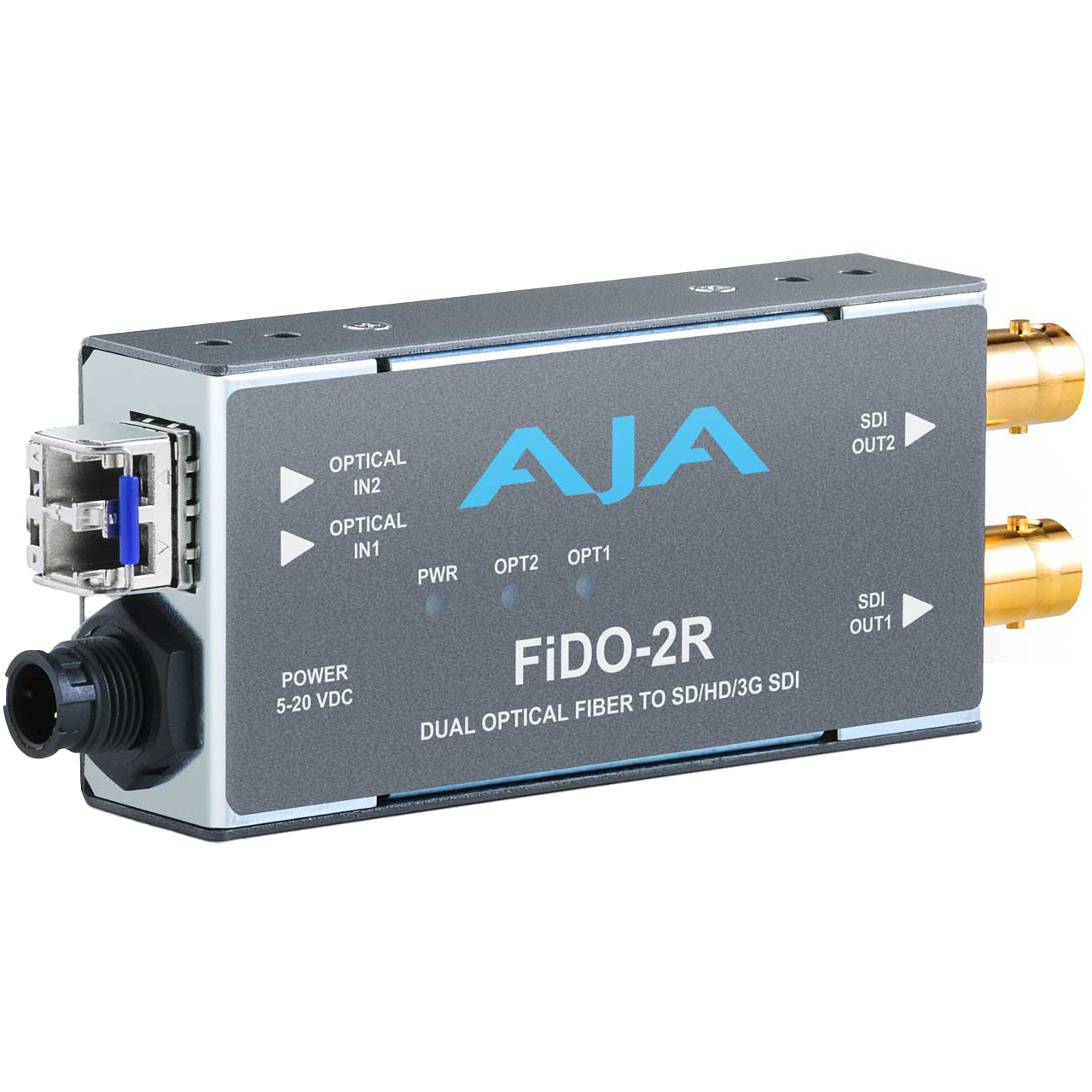

AJA FiDO-2R 2-Channel Single Mode LC Fiber to SD/HD/3G-SDI

ITEM #: AJA-FIDO-2R MFG #: FIDO-2R

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$815.00

Availability: In Stock
iAvailability Description Popup


FIDO-2R - Overview

2-Channel Single Mode LC Fiber to 3G-SDI Receiver!

AJA FiDO-2R offers unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems.

FiDO converters use a compact, low profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

  • Features:

    • 2-Channel Single Mode LC Fiber to 3G-SDI Receiver
    • Duplex connection (LC connector)
    • Dual, independent 3G/HD/SD-SDI outputs
    • Both Fiber-to-SDI paths are completely independent
    • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
    • Five year warranty

  • Specifications:

    • Video Formats
    • 150 Mbps - 3 Gbps, format agnostic

      Video Input Digital
    • 2-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
    • Nominal Wavelength: 1260 - 1620 nm
    • Optical Sensitivity: -18dBm (min)
    • Overload Power: -3dBm (min)

      Video Output Digital
    • 2-Channel independent 3G-SDI BNC Outputs, SMPTE-259/292/424

      Reclocking
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked

      Size
    • openGear standard form factor, front slot and rear card. Two slots required for each card.

      Power
    • openGear frame compatible, 2.5 watts max per card

      Environment
    • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)

  • GTIN:

    0892448000465
