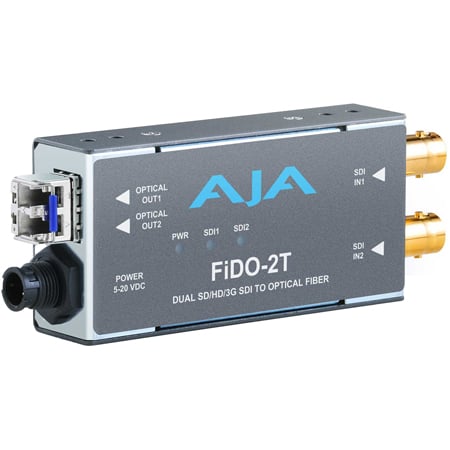

AJA FiDO-2T 2-Channel 3G-SDI to Single-Mode LC Fiber Transmitter

ITEM #: AJA-FIDO-2T MFG #: FIDO-2T

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$815.00

Availability: In Stock
iAvailability Description Popup


FIDO-2T - Overview

2-Channel 3G-SDI to Single-Mode LC Fiber Transmitter!

AJA's FiDO-2T offers unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation. Perfect for eliminating ground loop problems on the go!

FiDO converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world and a the locking power connector can't accidentally pull loose.

  • Features:

    • 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter
    • Duplex connection (LC connector)
    • Dual, independent 3G/HD/SD-SDI inputs
    • Both SDI-to-Fiber paths are completely independent
    • Uses 5-20VDC power (DWP-U-R1 universal power supply included)

  • Specifications:

    • Video Formats
    • 150 Mbps - 3 Gbps, format agnostic

      Video Input Digital
    • 2-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424

      Video Output Digital
    • 2-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
    • Nominal Wavelength: 1310 nm
    • Optical Power: -5dBm (min), 0dBm (max)
    • Extinction Ratio: 7.5dB (Typ)

      Reclock
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked

      Size (w x d x h)
    • 4.6" x 1.71" x 0.85" (117 x 43.5 x 21.6mm)

      Weight
    • 0.5 lb (0.3 kg)

      Power
    • 3 watts max
    • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

      Environment
    • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)

  • Warranty:

    • Five year warranty

  • GTIN:

    0892448000977
