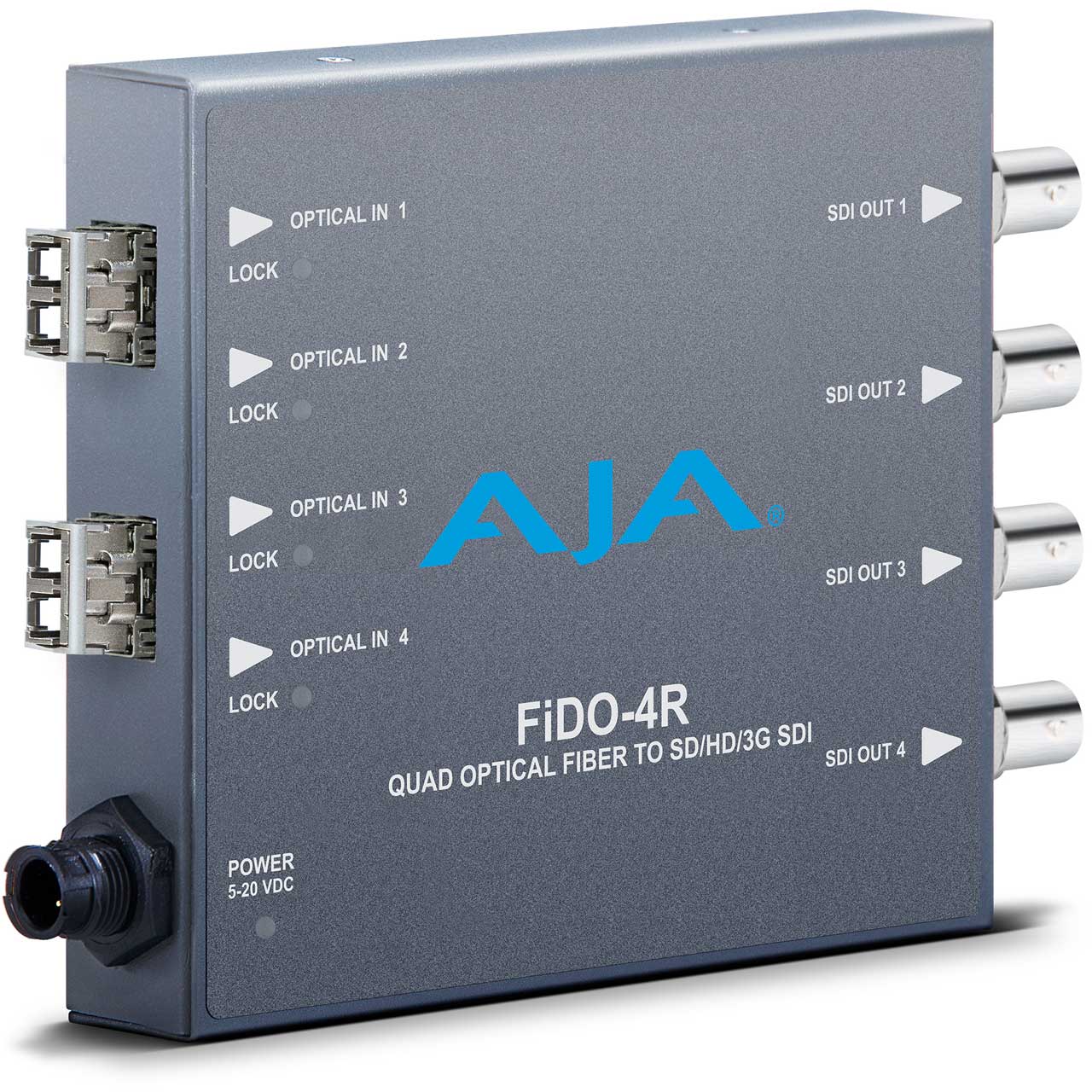

AJA FiDO-4R 4-Channel LC Optical Fiber to 3G-SDI 4K Receiver

Name: AJA FiDO-4R 4-Channel LC Optical Fiber to 3G-SDI 4K Receiver
Brand: AJA Video
SKU: AJA-FIDO-4R
Price: 1869.00 USD
Availability: InStock

ITEM #: AJA-FIDO-4R MFG #: FIDO-4R

AJA Video

Our Price:

$1,869.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FIDO-4R - Overview

AJA's FiDO-4R offers unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Features:
- 4-Channel Single Mode LC Fiber to 3G-SDI Receiver
- 4 simplex or 2 duplex input connections (LC connector)
- 4 independent channels of 3G/HD/SD-SDI output
- 4K/UltraHD-SDI over 4 fiber links
- Uses 5-20VDC power (DWP-U-R1 universal power supply included)
Specifications:
- Video Formats:
- 150 Mbps - 3 Gbps, format agnostic

  Video Input Digital
- 4-Channel independent Single Mode LC Fiber Inputs, SMPTE-297
- Nominal Wavelength: 1260 - 1620 nm
- Optical Sensitivity: -18dBm (min)
- Overload Power: -3dBm (min)

  Video Output Digital:
- 4-Channel independent 3G-SDI BNC Outputs, SMPTE-259/292/424

  Reclocking:
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  All other rates are passed through and not reclocked

  Size (WxDxH): 4.6 x 4.02 x 0.85" (117 x 102.11 x 21.6mm)
- Weight: 0.8Lbs (0.4kg)

  Power:
- 5 watts max
- Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

  Environment
- Safe Operating Temperature: 0° to 40°C (32° to 104°F)
- Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
- Operating Relative Humidity: 10 to 90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Warranty:
- 5 year warranty
GTIN:
0812321030129
