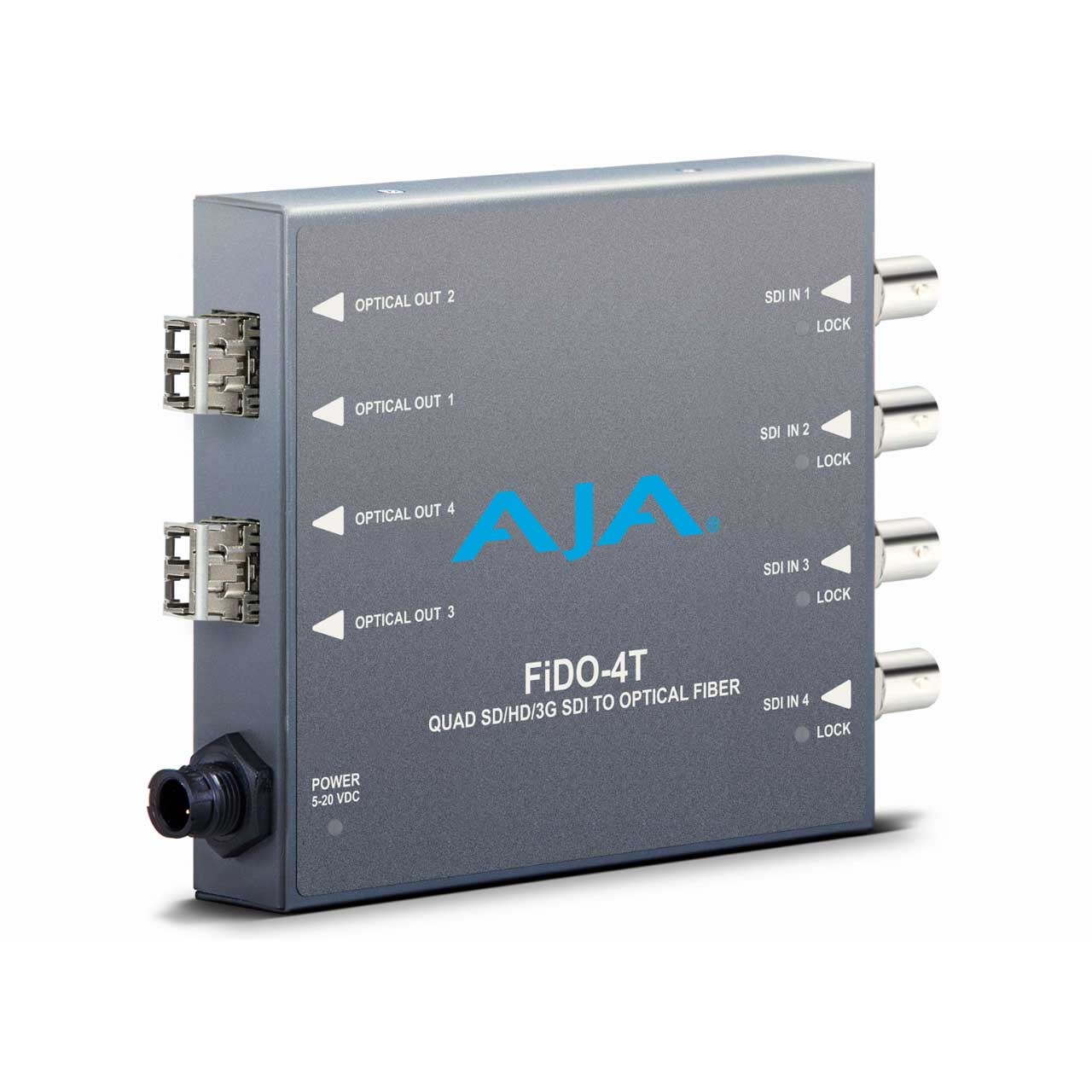

AJA FiDO-4T 4-Channel 3G-SDI to LC Optical Fiber 4K Transmitter

FIDO-4T - Overview

• Features:

  • 4-Channel 3G-SDI to Single-Mode LC Fiber Transmitter
  • 4 simplex or 2 duplex output connections (LC connector)
  • 4 independent channels of 3G/HD/SD-SDI input
  • 4K/UltraHD-SDI over 4 fiber links
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)


• Specifications:

  • Video Format
  • 150 Mbps - 3 Gbps, format agnostic
  • Video Input Digital
  • 4-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424

    Video Output Digital
  • 4-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (min), 0dBm (max)
  • Extinction Ratio: 7.5dB (Typ)

    Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked

    Dimensions (WxDxH)
  • 4.6 x 4.02 x 0.85" (117 x 102.11 x 21.6mm)

    Weight
  • 0.8Lbs (0.4kg)

    Power
  • 5 watts max
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Warranty:

  • 5 year warranty


• GTIN:

  0812321030143
