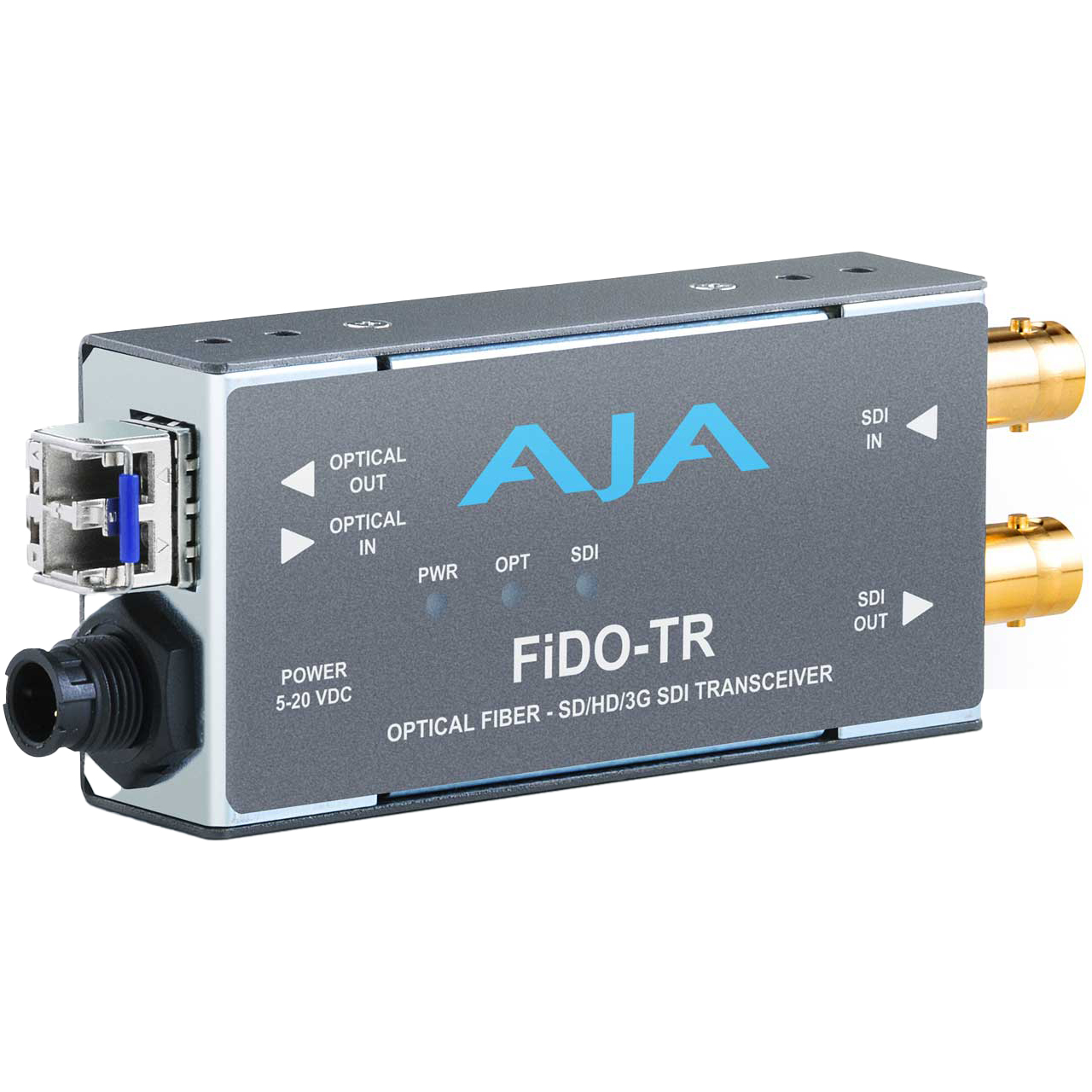

AJA FiDO-TR 1-Channel 3G-SDI/LC Single-Mode LC Fiber Transceiver

FIDO-TR - Overview

1-Channel 3G-SDI/LC Single-Mode LC Fiber Transceiver!

• Features:

  • 1-Channel 3G-SDI/LC Single Mode LC Fiber Transceiver

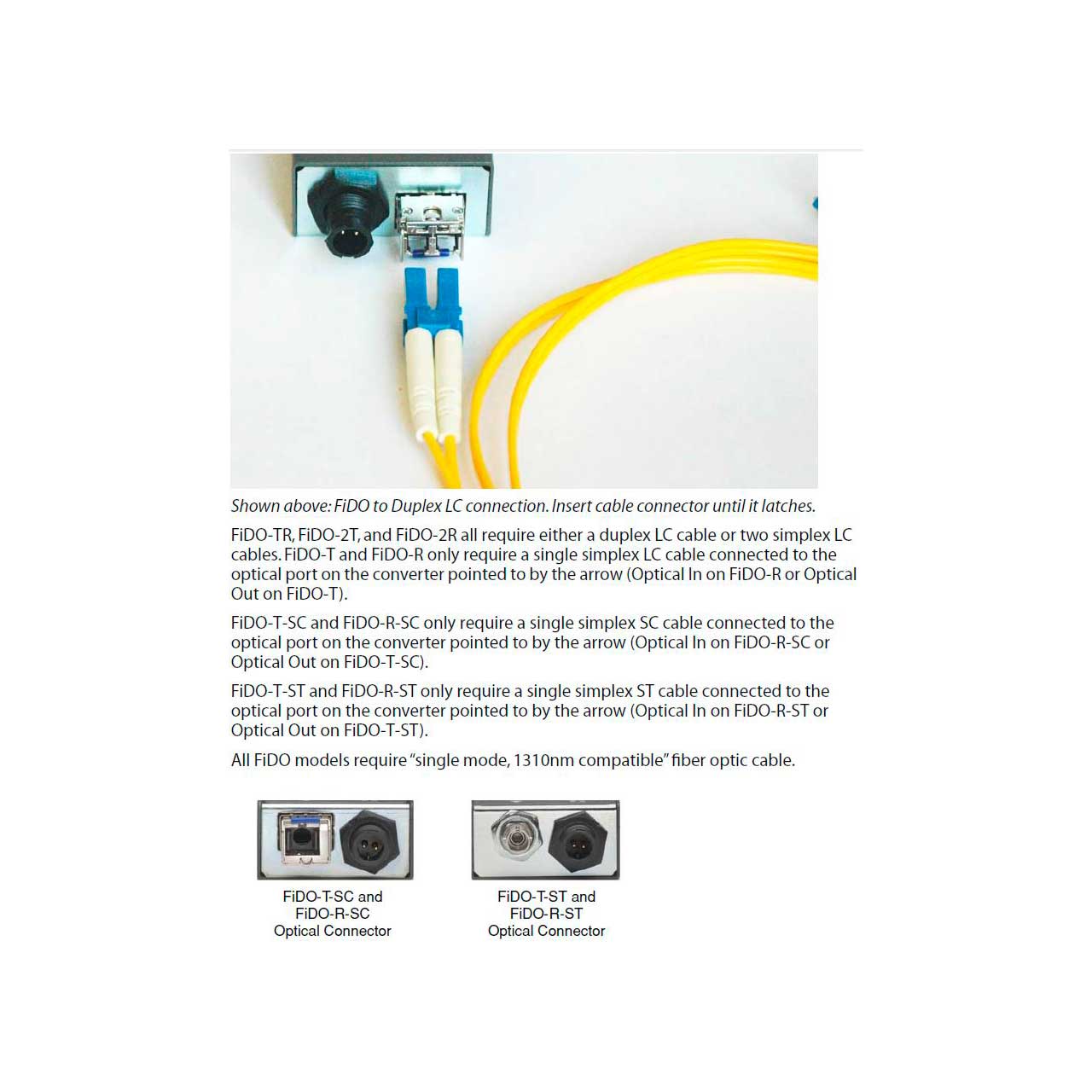

  • Duplex connection (LC connector)
  • 3G/HD/SD-SDI input and output
  • Bidirectional, dual channel fiber
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty


• Specifications:

  • Video Formats:
  • 150 Mbps - 3 Gbps, format agnostic

    Video Input Digital
  • 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424
  • 1-channel Single Mode LC Fiber Input, SMPTE-297
  • Nominal Wavelength: 1260-1620 nm
  • Optical Sensitivity: -18dBm (min)
  • Overload Power: -3dBm (min)

    Video Output Digital
  • 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
  • 1-channel Single Mode LC Fiber Output, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (min), 0dBm (max)
  • Extinction Ratio: 7.5dB (Typ)

    Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked

    Size (WxDxH)
  • 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)

    Weight
  • 0.4 lb (0.2 kg)

    Power
  • 3 watts max
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

    Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Item Includes:

  • 1x AJA FiDO-TR SDI/Optical Fiber Mini-Converter
  • 1x DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters


• Warranty:

  • Five year warranty


• GTIN:

  0812321030013
